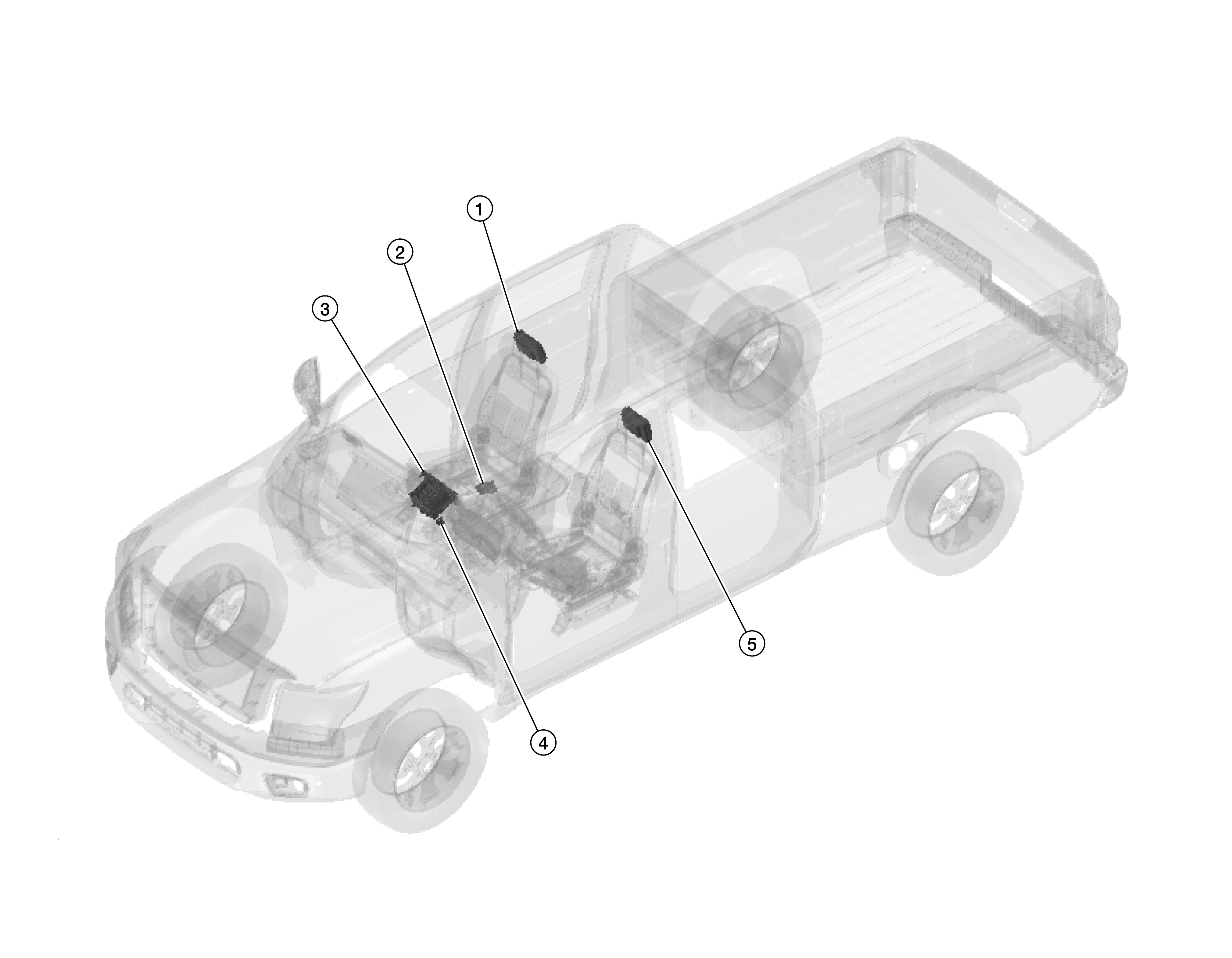

Component Location
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|
No. |
Component |
Function |
|
1. |
Headrest display unit (passenger seat) |
7-inch color TFT-LCD panel with top loading DVD player and infrared transmitter for wireless headphones. |
|
2. |
Rear seat entertainment control unit |
Controls the headrest display units. |
|
3. |
AV control unit |
Refer to AV Control Unit . |
|
4. |
AUX in jack |
Refer to USB Interface and AUX In Jack . |
|
5. |
Headrest display unit (driver seat) |
7-inch color TFT-LCD panel with top loading DVD player and infrared transmitter for wireless headphones. |
