Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull gently at the top of the display unit to release magnets.

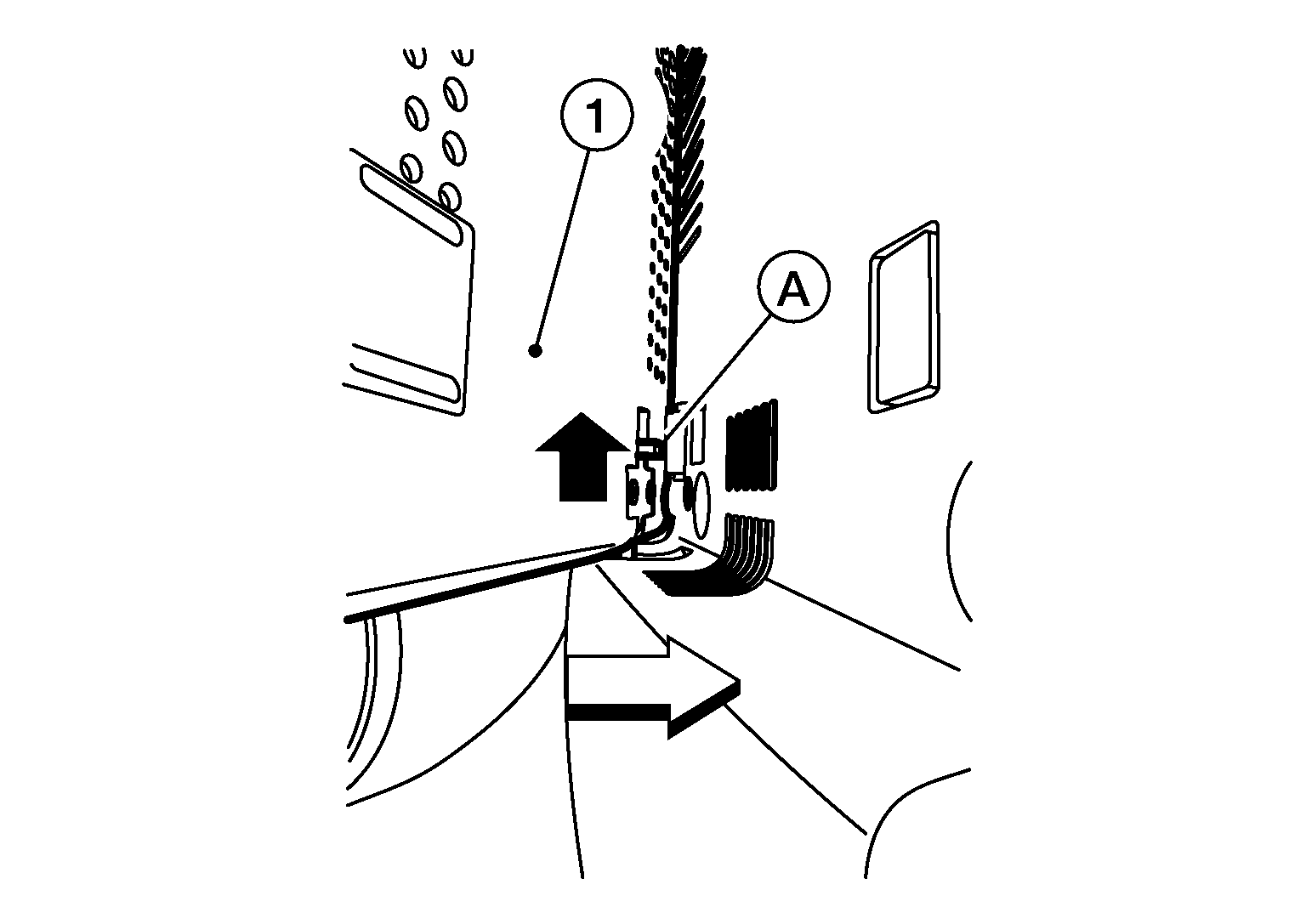

  2. Release headrest display unit lock tab (A) in the direction shown and reposition the headrest display unit (1).
    GNSALNIA1922Z-922Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front

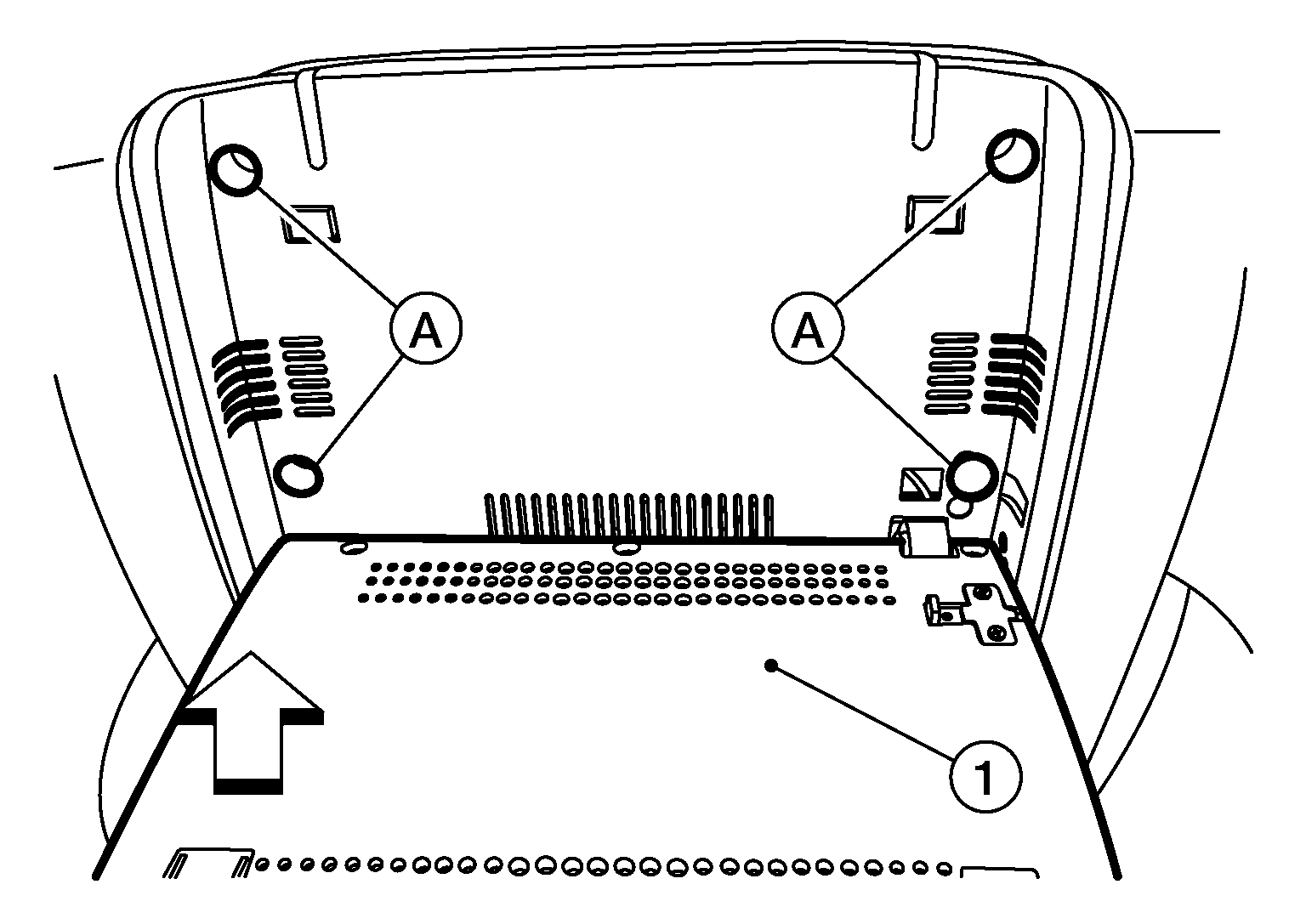

  3. Remove screws (A) and reposition headrest display unit (1).
    GNSALNIA1923Z-923Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front
  4. Disconnect harness connectors from headrest display unit and remove headrest display unit.
