Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- When replacing the TCU, a new TCU must be used. The functions controlled by the TCU do not operate properly if a TCU from another vehicle is used.
- Before replacing TCU, perform "SAVE VIN DATA" to save current vehicle specification. For details, refer to Description .
- Remove body control module. Refer to Removal and Installation .
- Disconnect harness connectors from the TCU (1).

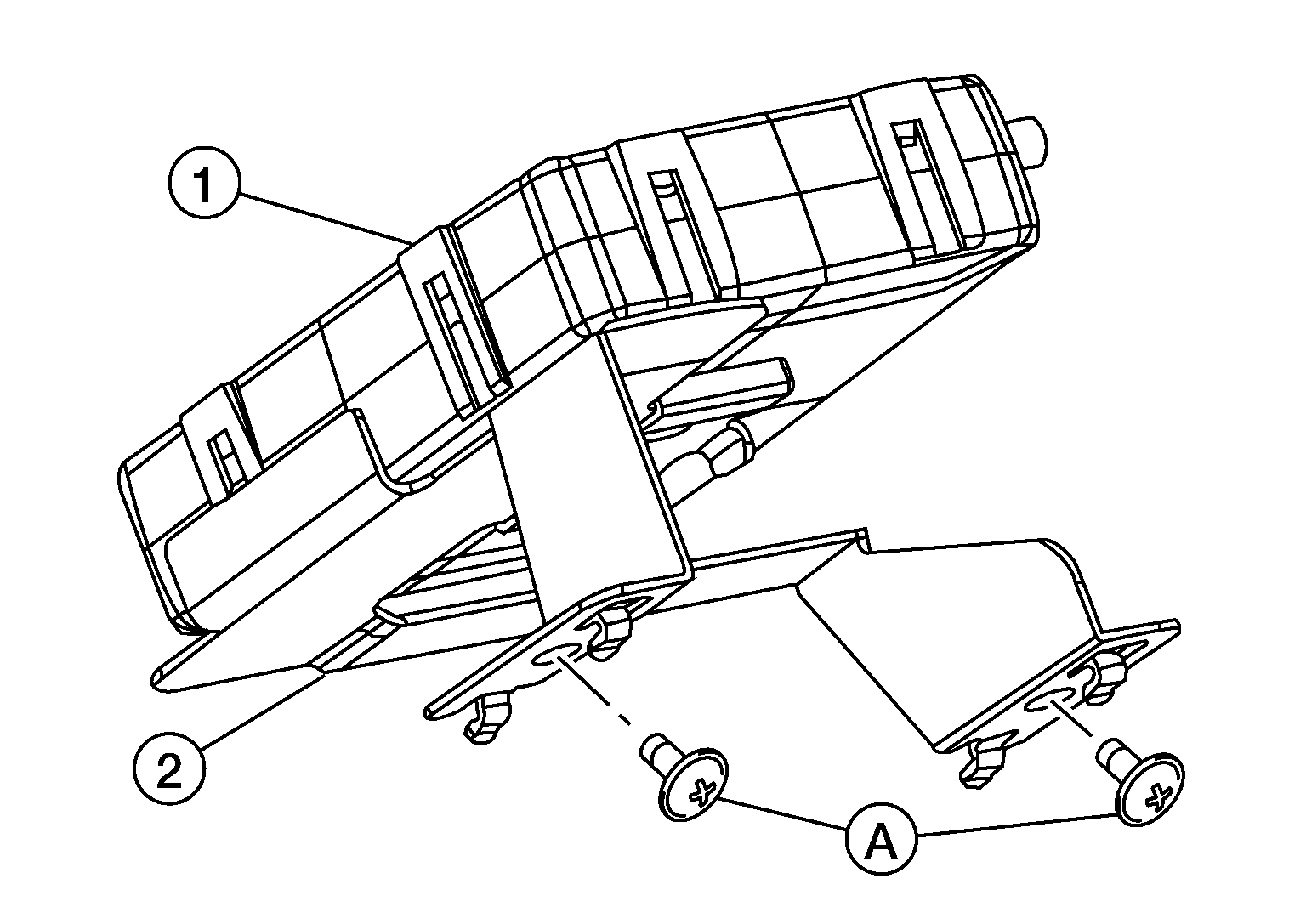

- Remove screws (A) from bracket, remove bracket from steering member and remove TCU (1) from bracket (2).
