Method Of Starting

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition ON.
  2. Turn the audio system OFF.
  3. While pressing the APPS button, turn the TUNE-SCROLL dial counterclockwise 5 or more clicks, then clockwise 5 or more clicks, then counterclockwise 5 or more clicks. Shifting from current screen to previous screen is performed by pressing BACK button.

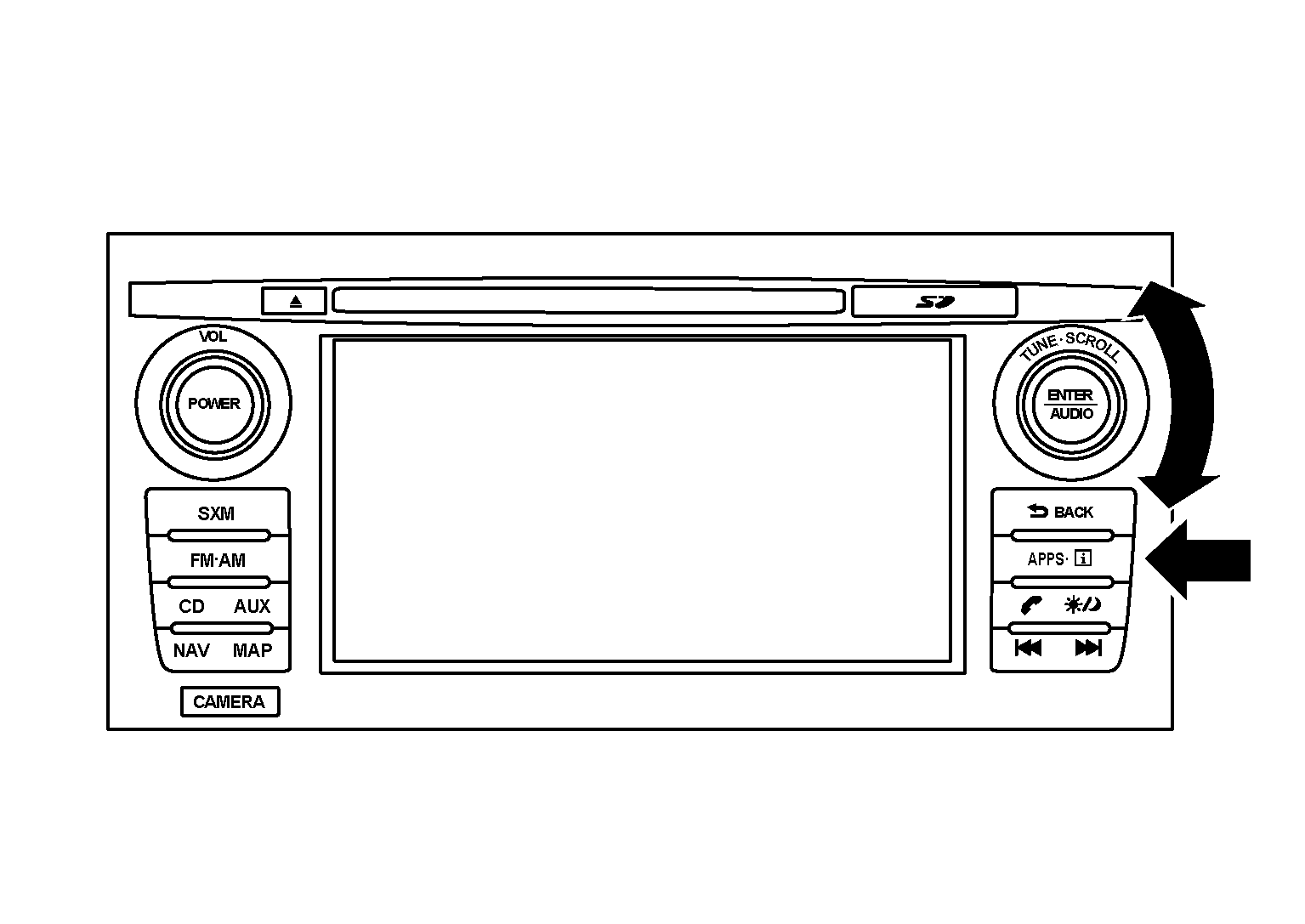

    GNSAWNIA3850Z-850Courtesy of NISSAN NORTH AMERICA, INC.
  4. The trouble diagnosis initial screen is displayed, and Version, User Configuration, Radio, System State or Self Test can be selected.
    GNSAWNIA3745Z-745Courtesy of NISSAN NORTH AMERICA, INC.
