RH Seat: Seatback: Disassembly

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Remove RH rear seat. Refer to Removal and Installation .

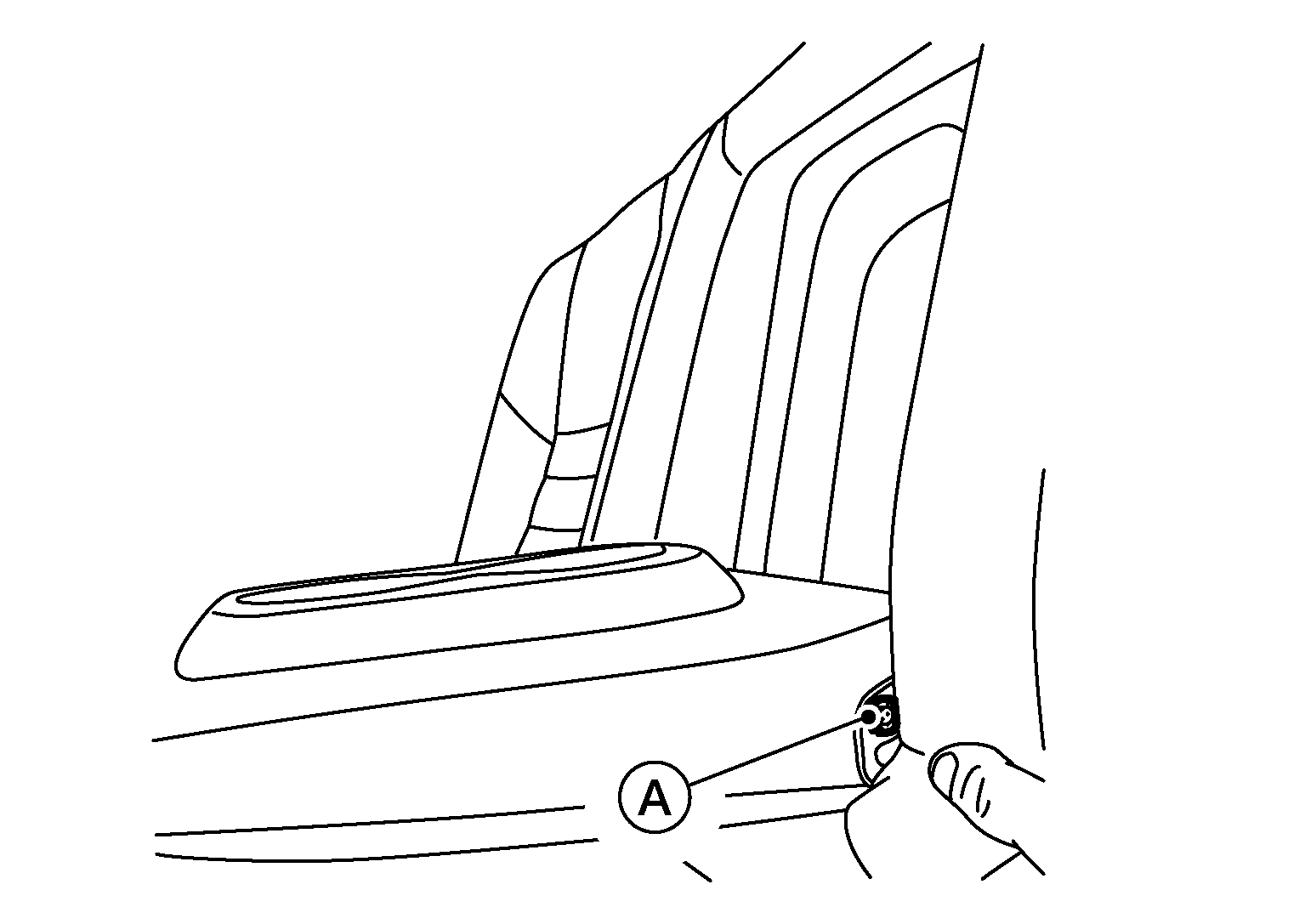

Remove armrest bolt (A).

Courtesy of NISSAN NORTH AMERICA, INC.

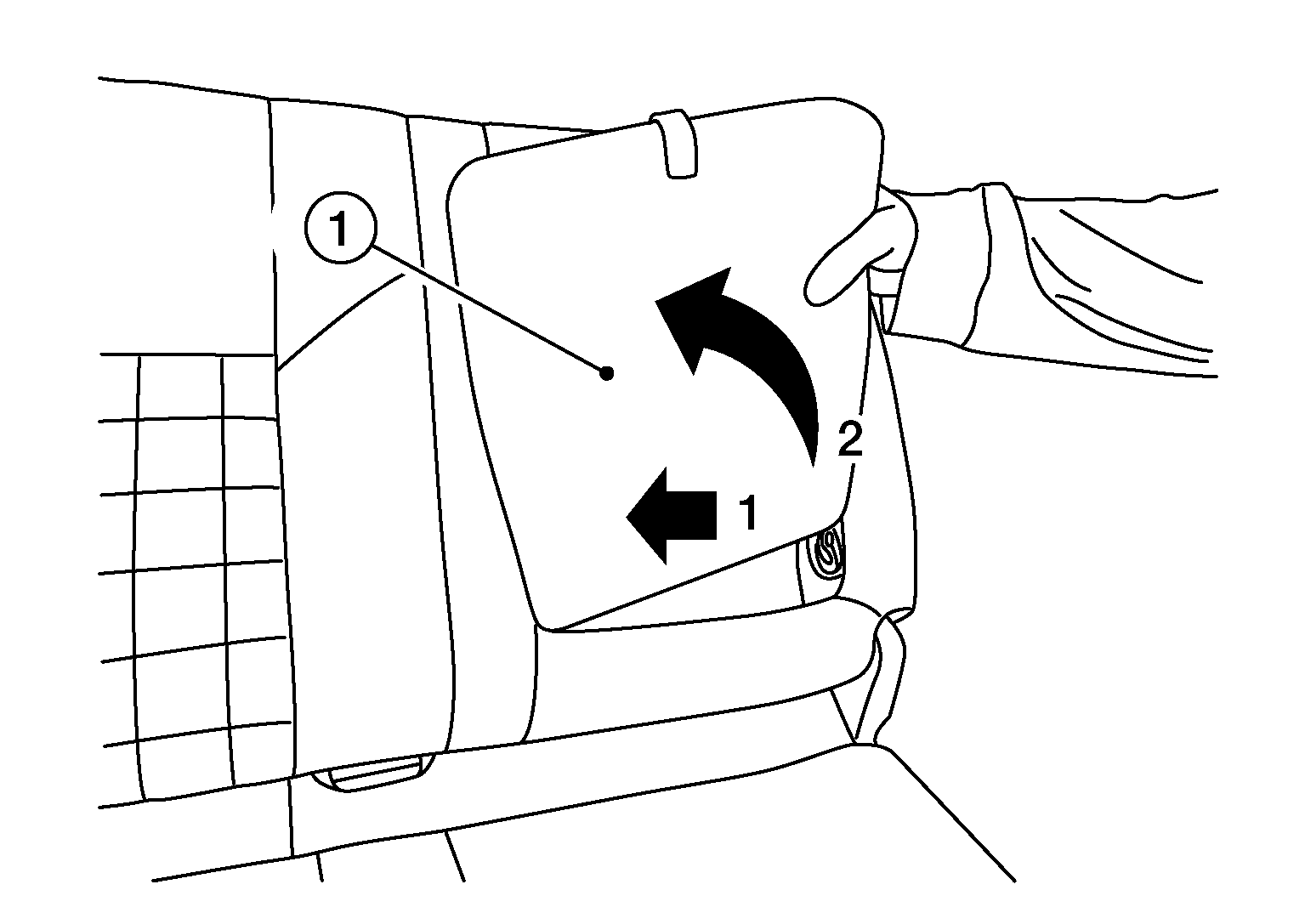

Remove armrest (1) as shown.

Courtesy of NISSAN NORTH AMERICA, INC.

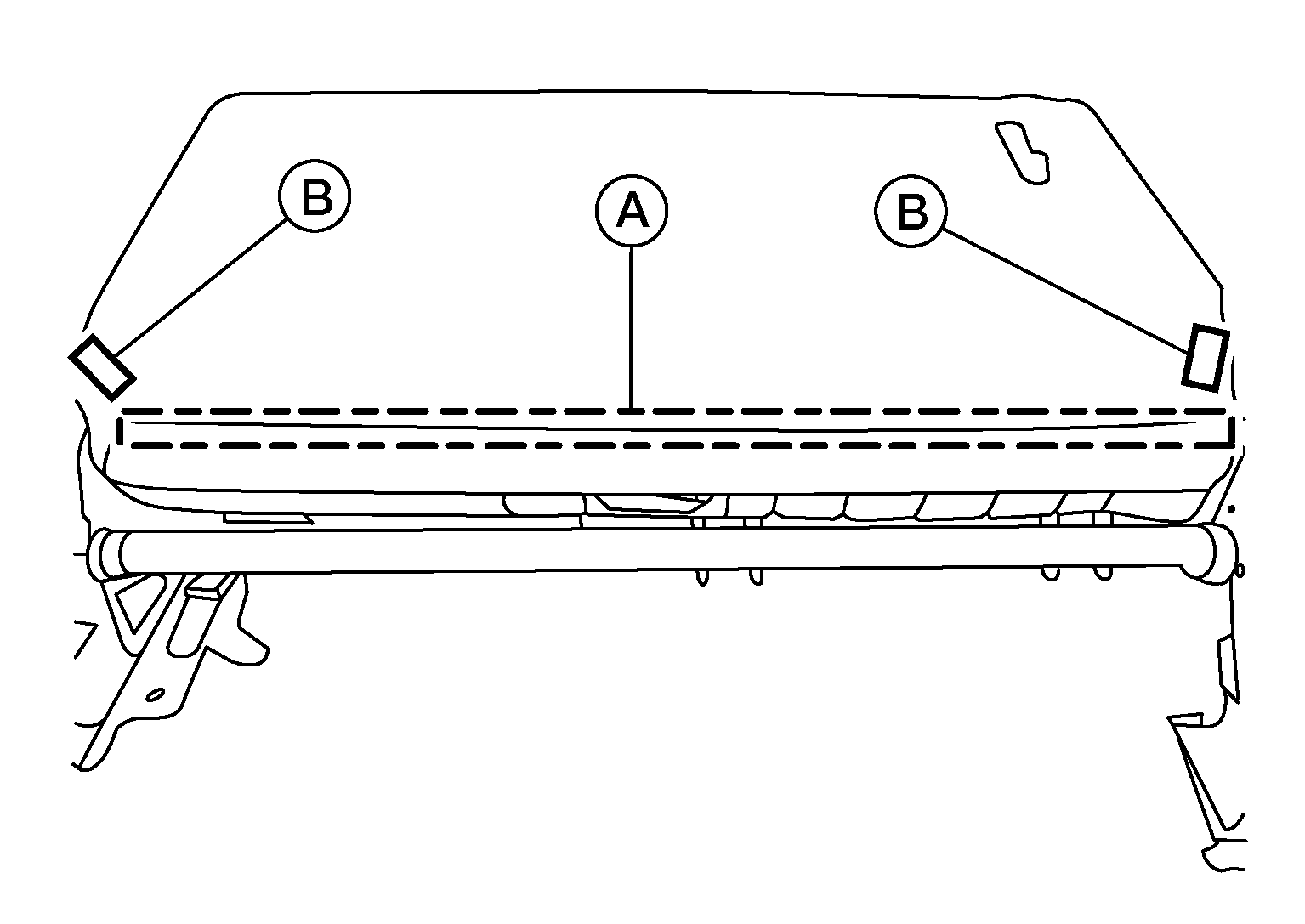

Release seatback J-hook (A) and fasteners (B).

Courtesy of NISSAN NORTH AMERICA, INC.

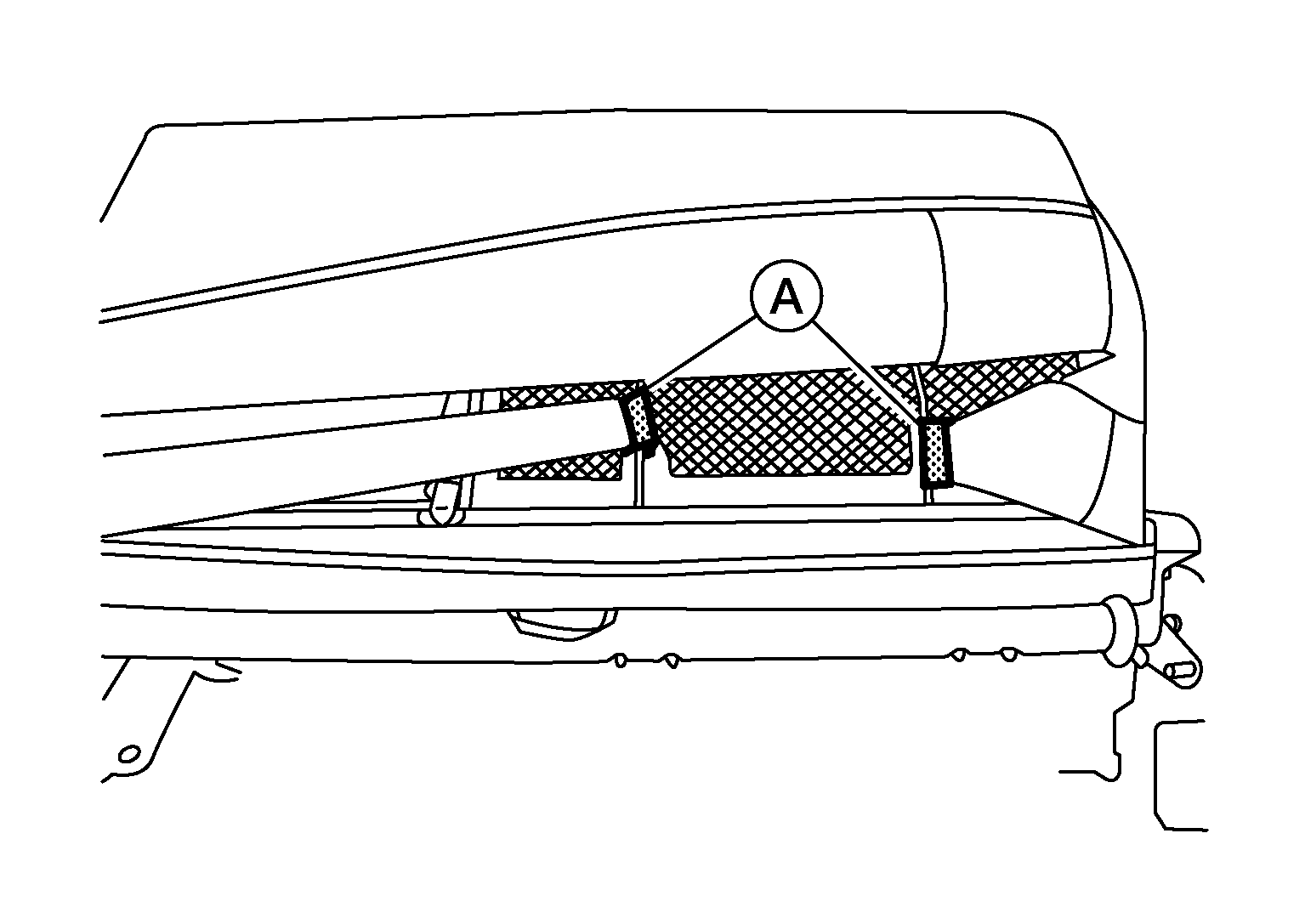

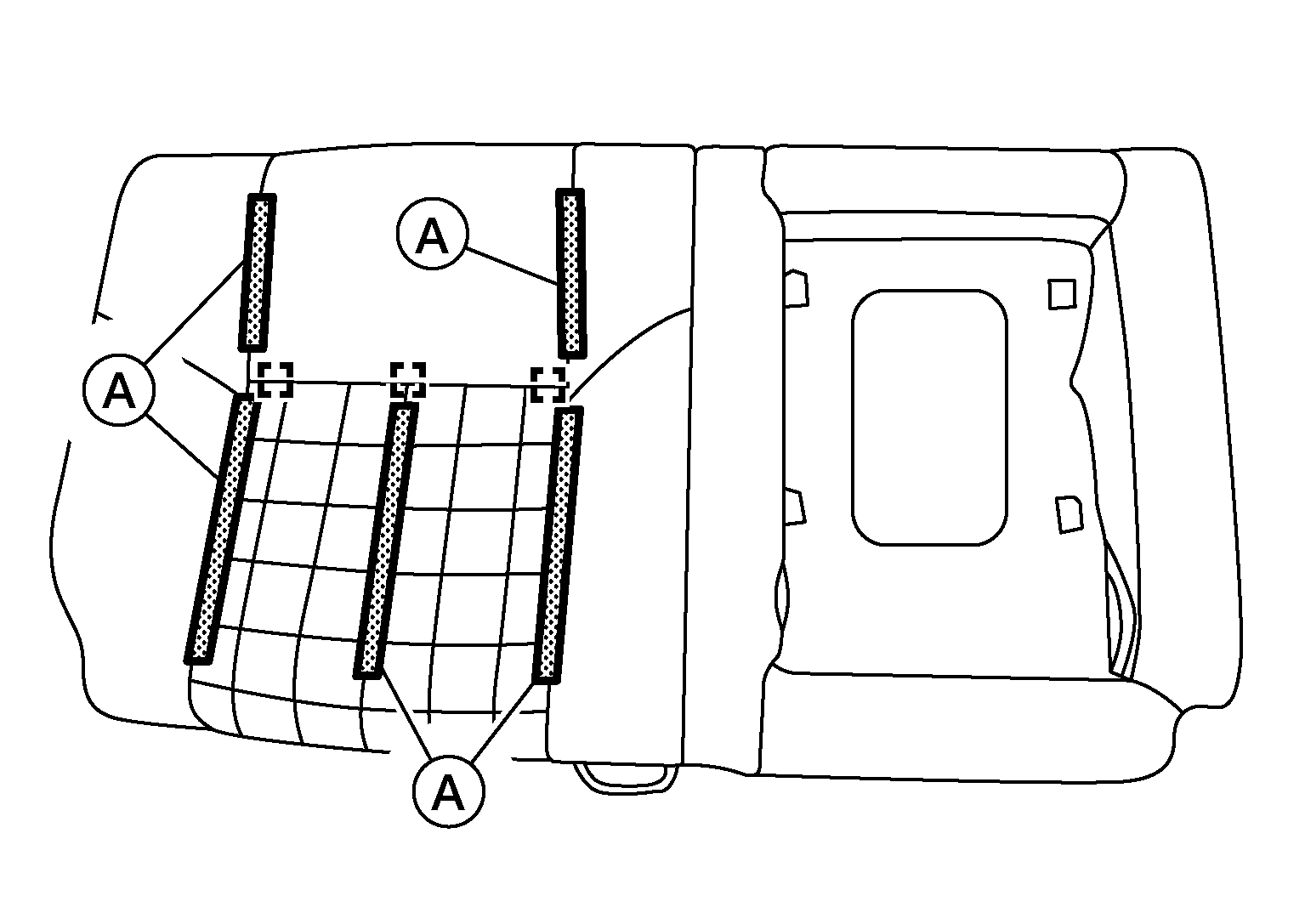

Release J-hooks (A) from seatback frame.

Courtesy of NISSAN NORTH AMERICA, INC.
Remove headrest.
Reach up behind the seatback pad, release the headrest holders as shown and remove the headrest holders.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Before removing/installing headrest holder, check its orientation (front/rear and right/left).

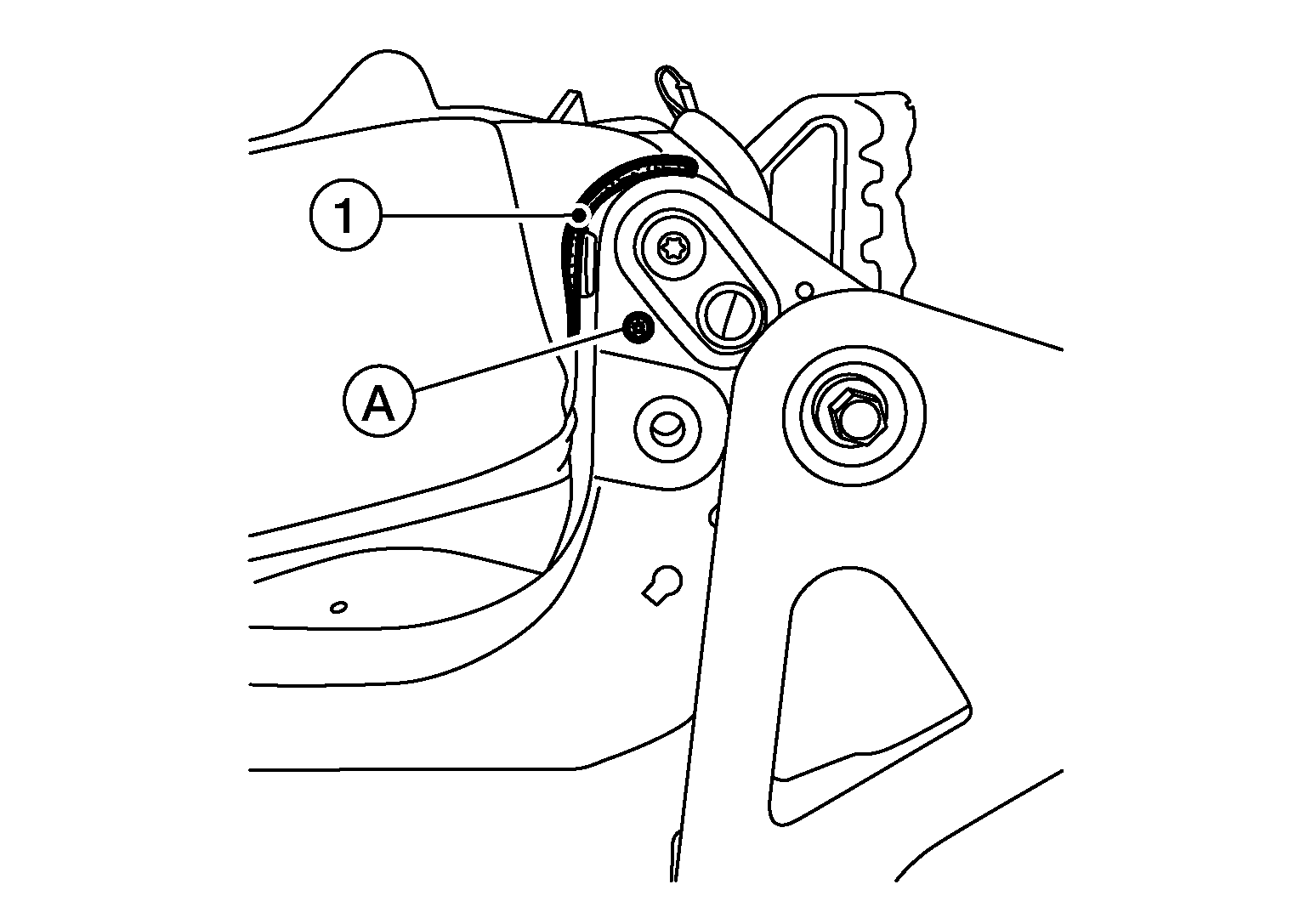

Remove screw (A) and pivot finisher [RH (1)].

Courtesy of NISSAN NORTH AMERICA, INC.

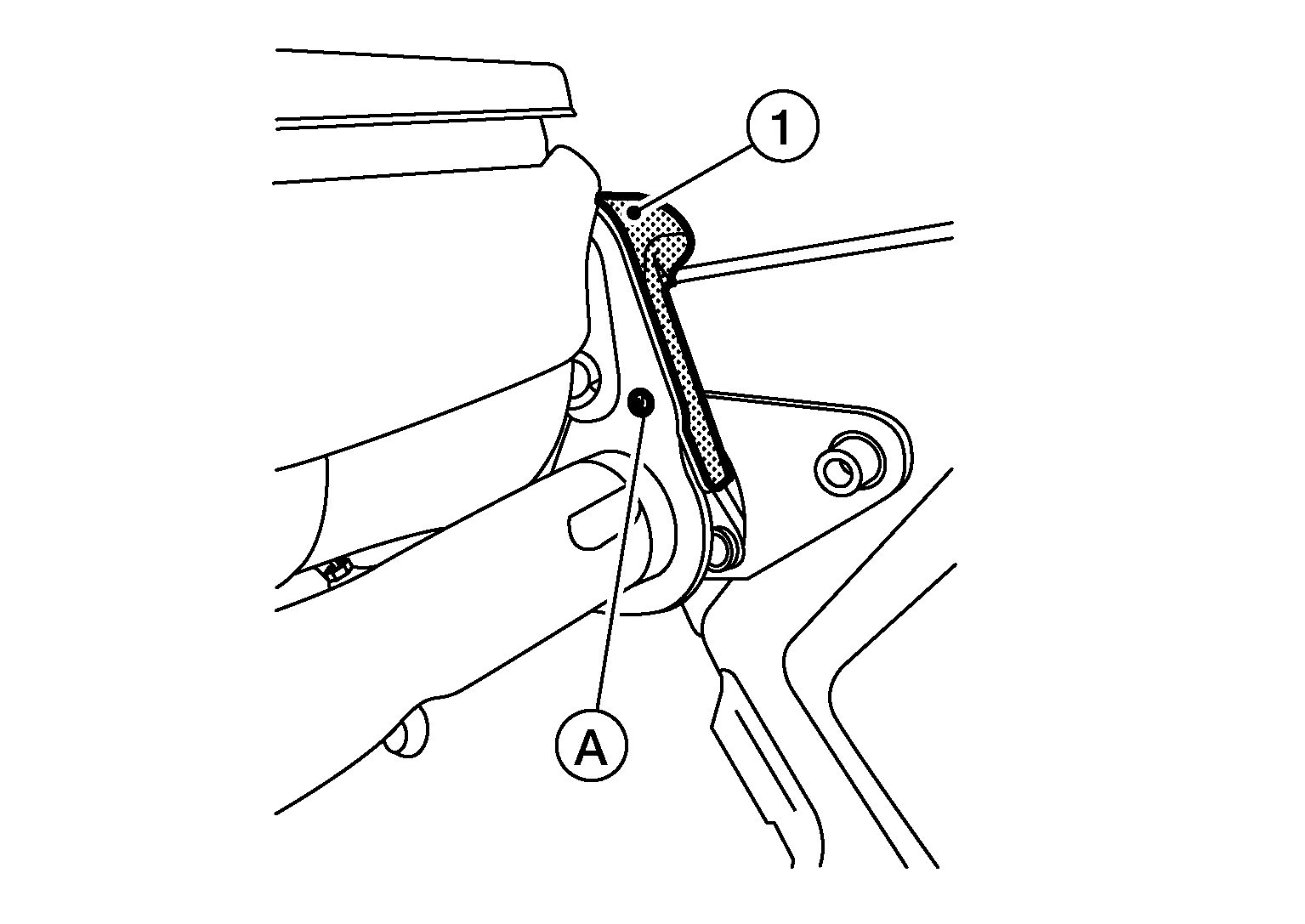

Remove screw (A), then release pawls and remove outer pivot finisher [LH (1)].

Courtesy of NISSAN NORTH AMERICA, INC.

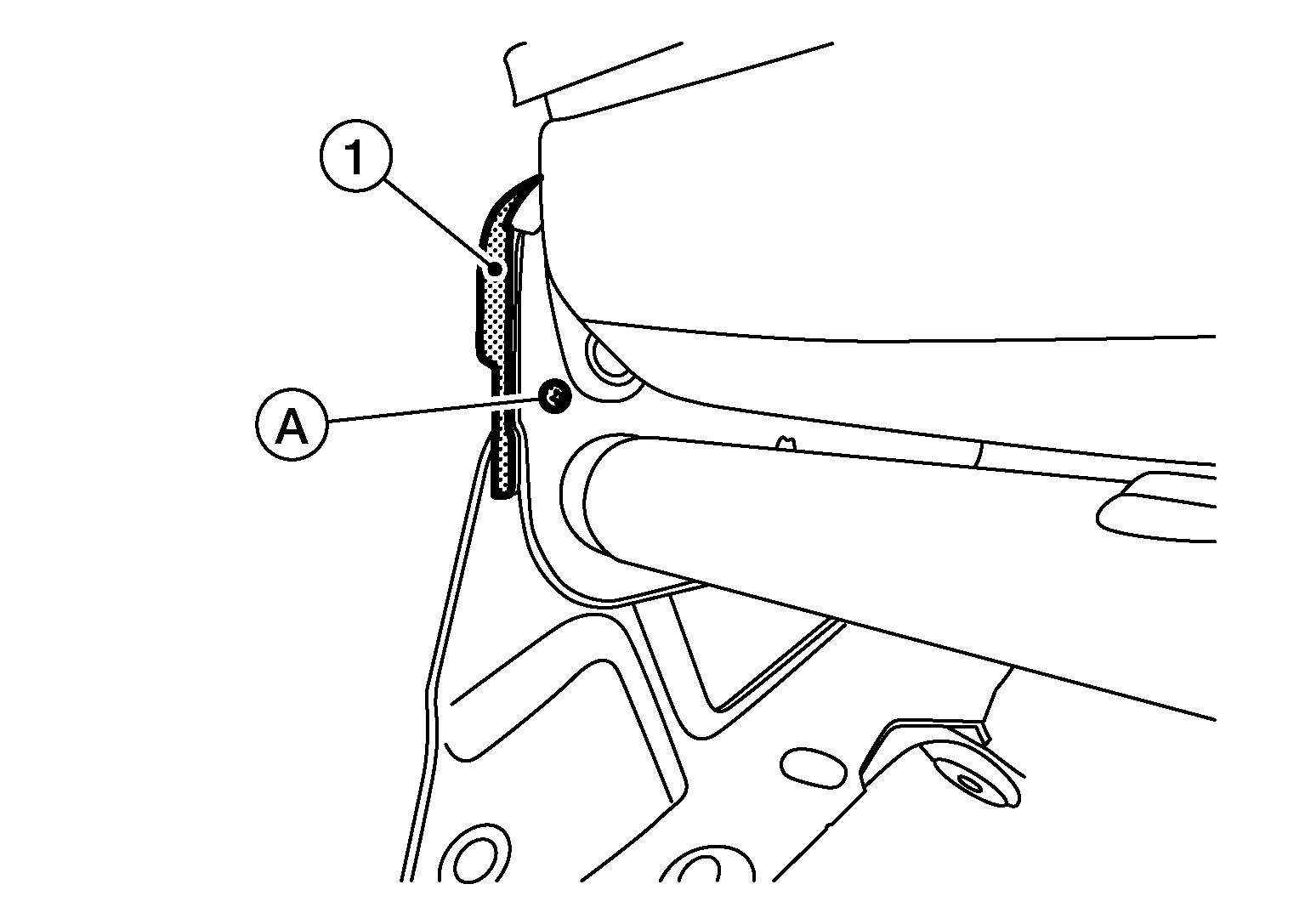

Remove screw (A) and seat inner pivot finisher [LH (1)].

Courtesy of NISSAN NORTH AMERICA, INC.

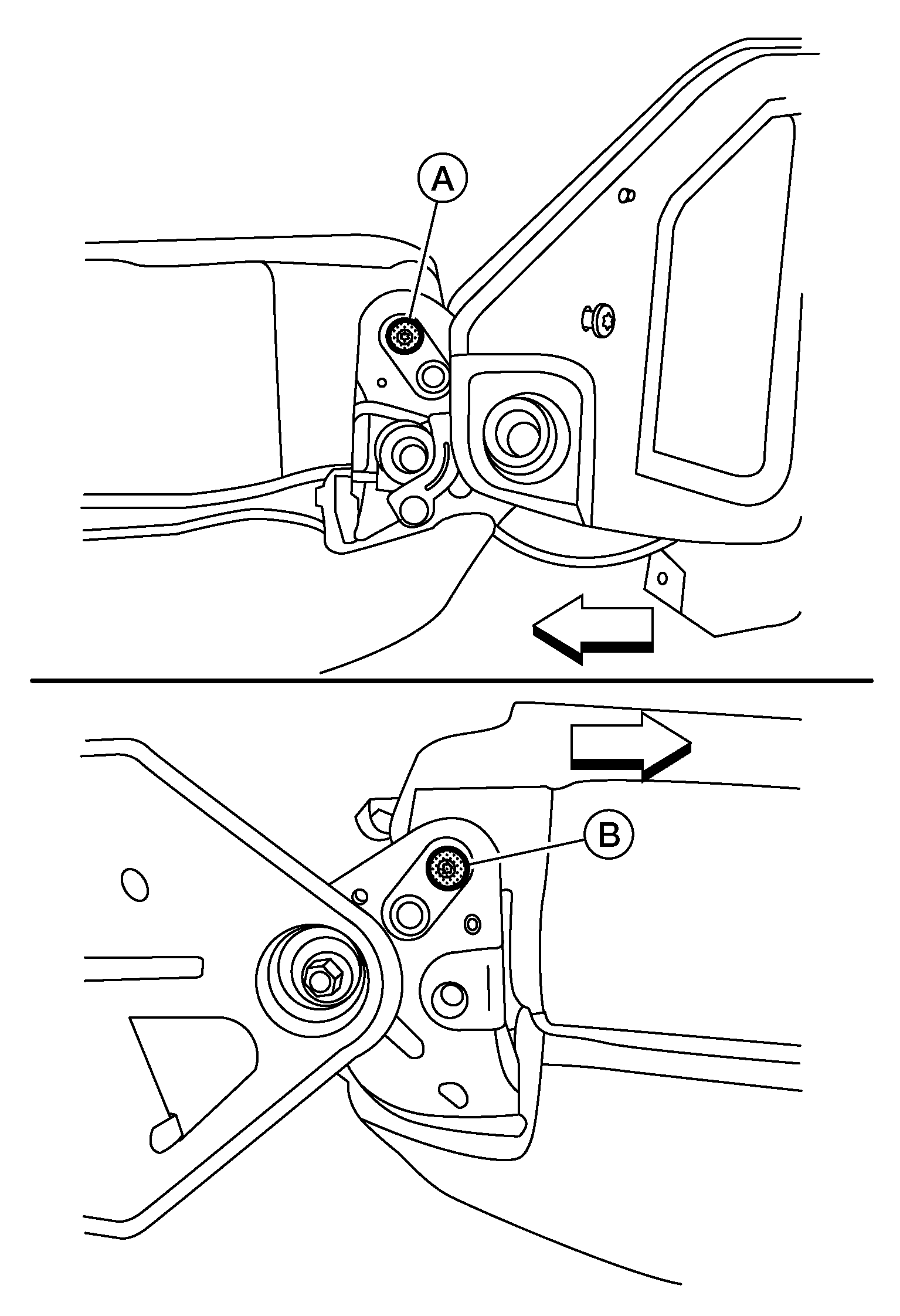

Remove bolts (A) and (B), then remove seatback assembly from seat cushion frame.

Courtesy of NISSAN NORTH AMERICA, INC.

: Front

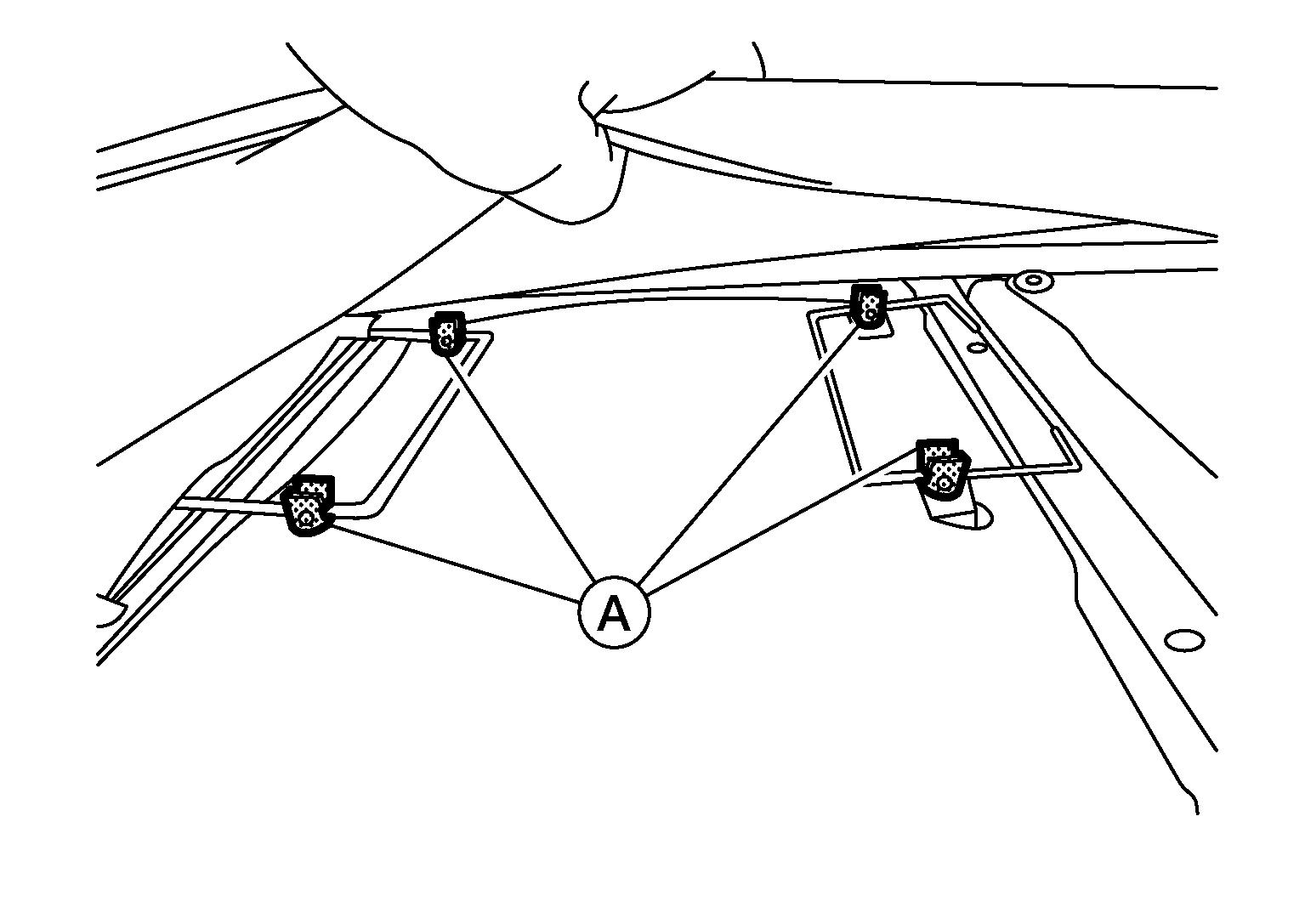

Place seatback trim aside, then release clips (A) from seatback frame and remove armrest finisher.

Courtesy of NISSAN NORTH AMERICA, INC.
Remove the seatback pad and seatback trim as an assembly from the seatback frame.
Release fasteners (A), then remove hog rings and separate the seatback trim from the seatback pad.

Courtesy of NISSAN NORTH AMERICA, INC.

:Hog ring

CAUTION: Remove all pieces of hog rings and discard them.
