Seat Cushion: Disassembly

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove RH rear seat. Refer to Removal and Installation .

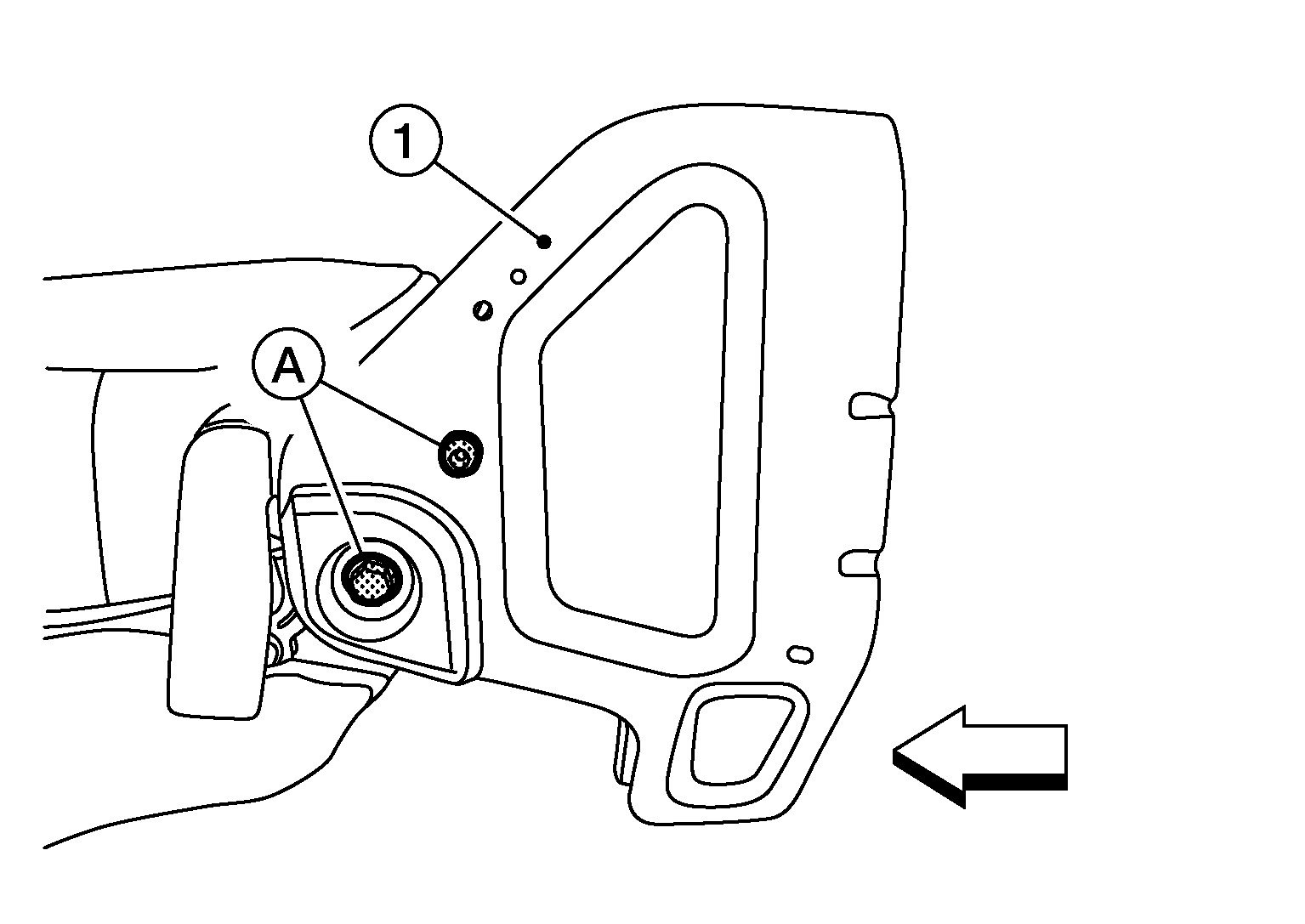

  2. If necessary remove bolts (A) and seat support bracket [LH (1)].
    GNSALJIA1876Z-876Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front

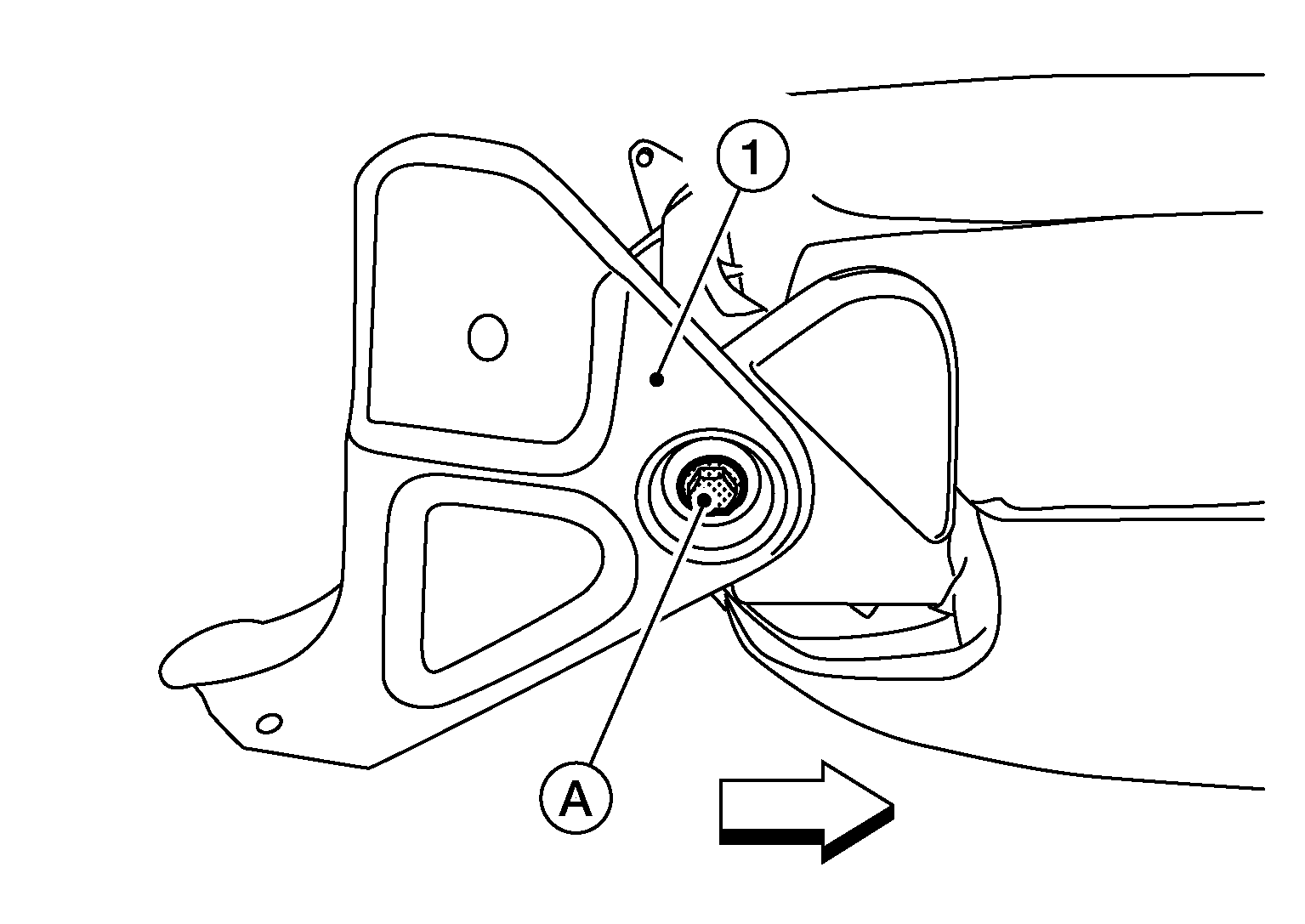

  3. If necessary remove bolt (A) and seat support bracket [RH (1)].
    GNSALJIA1877Z-877Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front

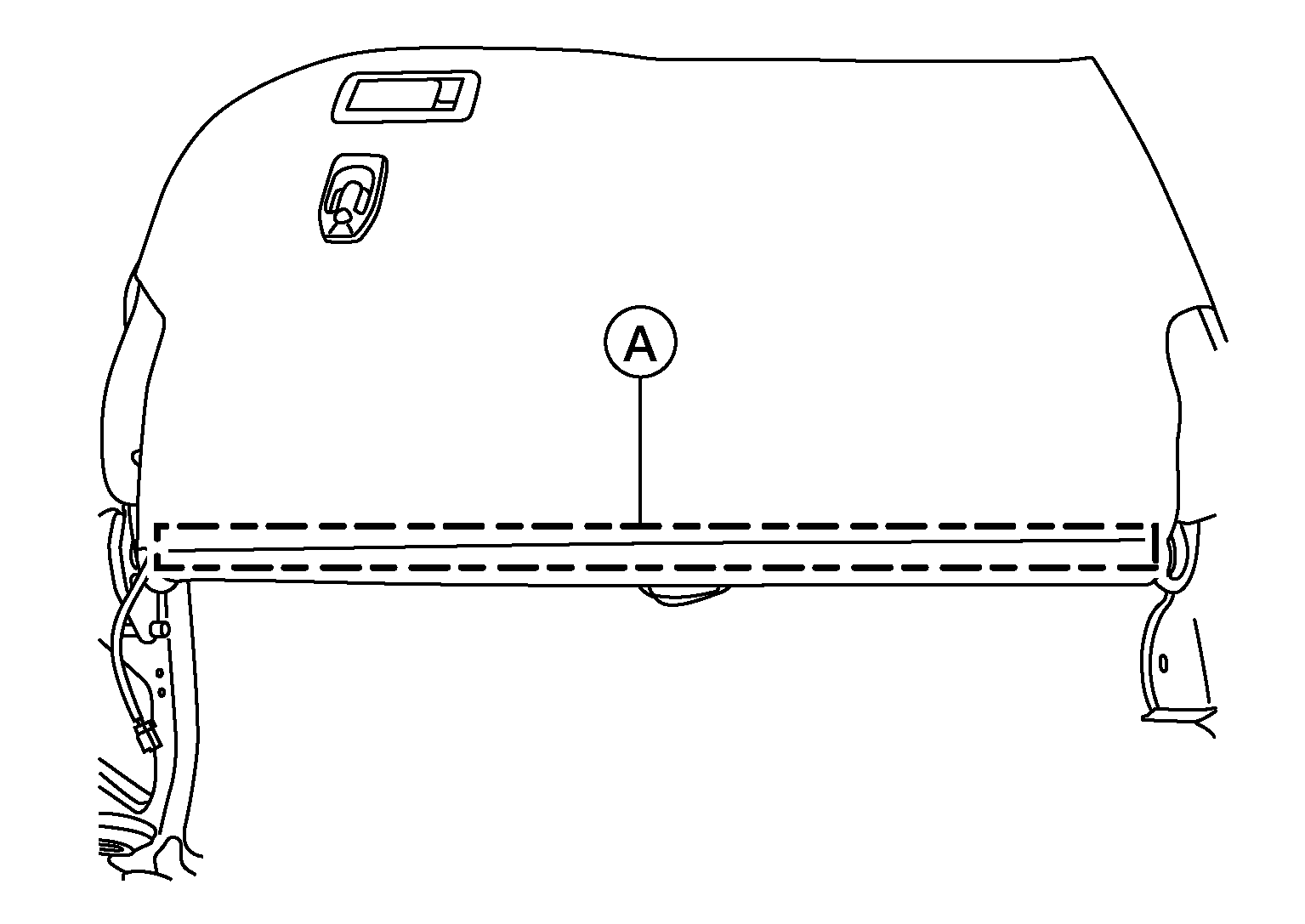

  4. Release seat cushion J-hook (A).
    GNSALJIA1873Z-873Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove screw and grocery bag hook.

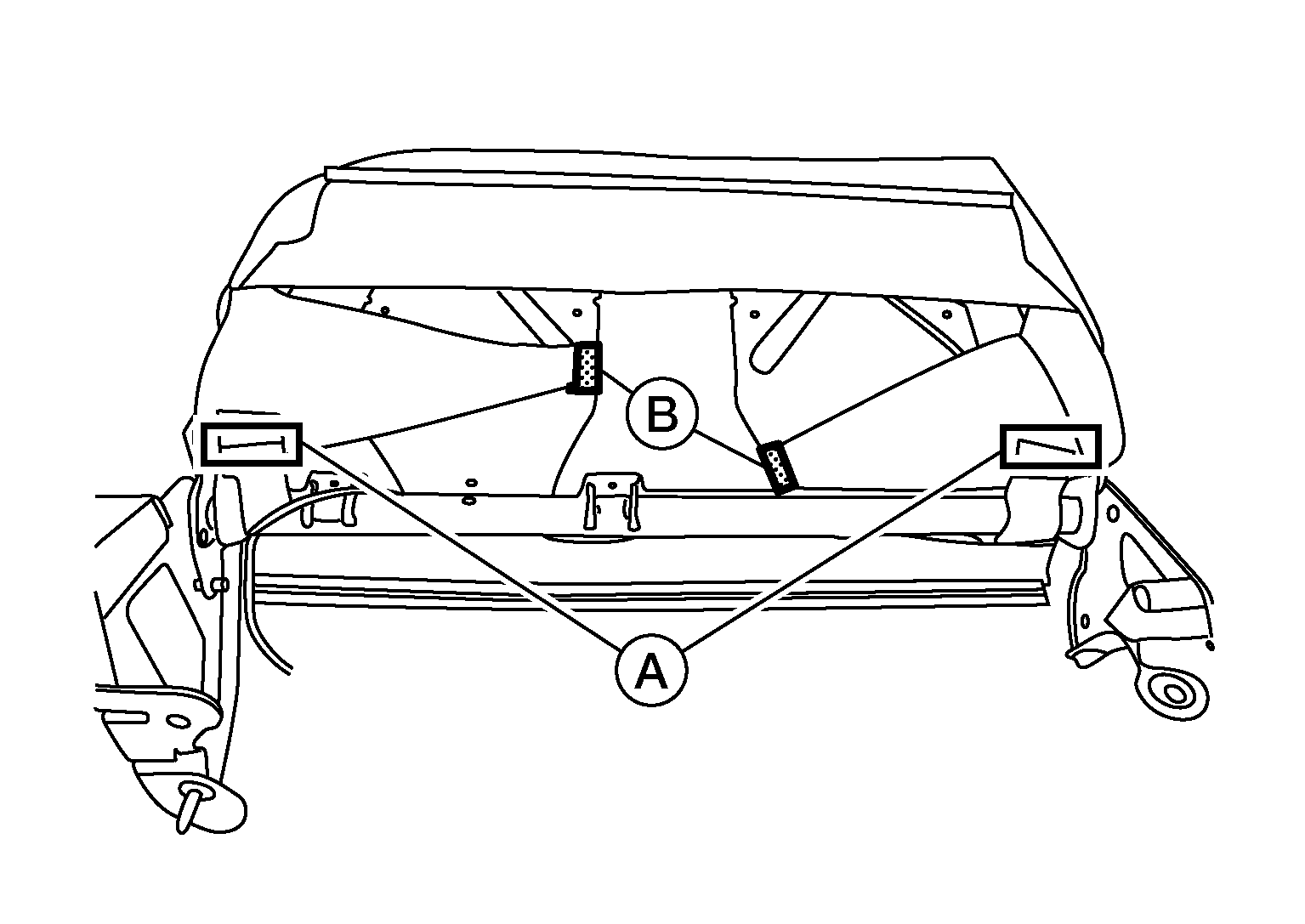

  6. Release seat cushion fasteners (A) and J-hooks (B).
    GNSALJIA1874Z-874Courtesy of NISSAN NORTH AMERICA, INC.
  7. Remove seat cushion trim and seat cushion pad as an assembly from the seat frame.

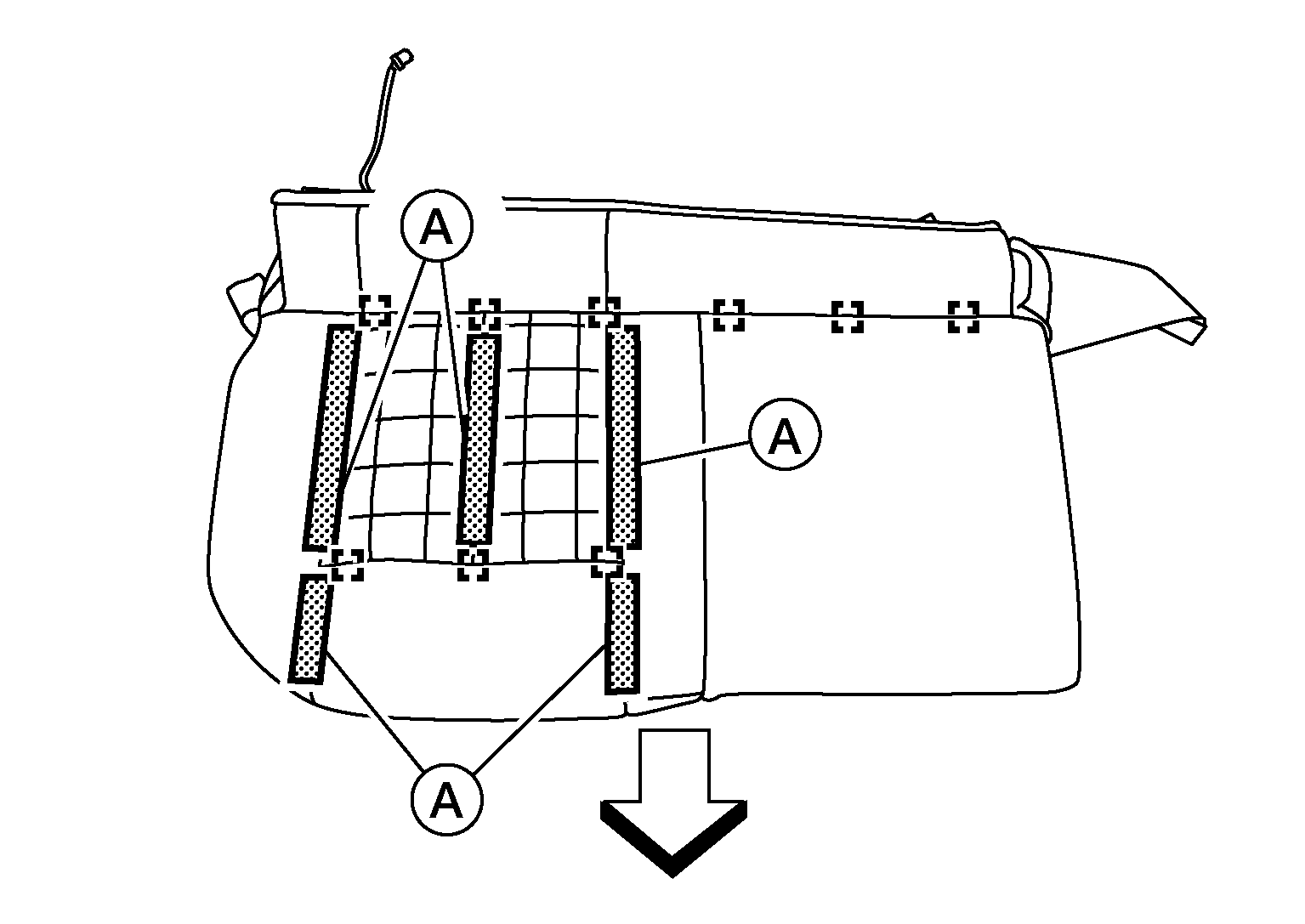

  8. Remove hog rings, then release fasteners (A) and separate the seat cushion trim from the seat cushion pad.
    GNSALJIA1875Z-875Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Hog ring

    SYMBOL

    : Front
    CAUTION: Remove all pieces of hog rings and discard them.
