Armrest Assembly: Disassembly

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove armrest bolt (A).
    GNSALJIA1878Z-878Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove armrest (1) as shown.
    GNSALJIA1879Z-879Courtesy of NISSAN NORTH AMERICA, INC.

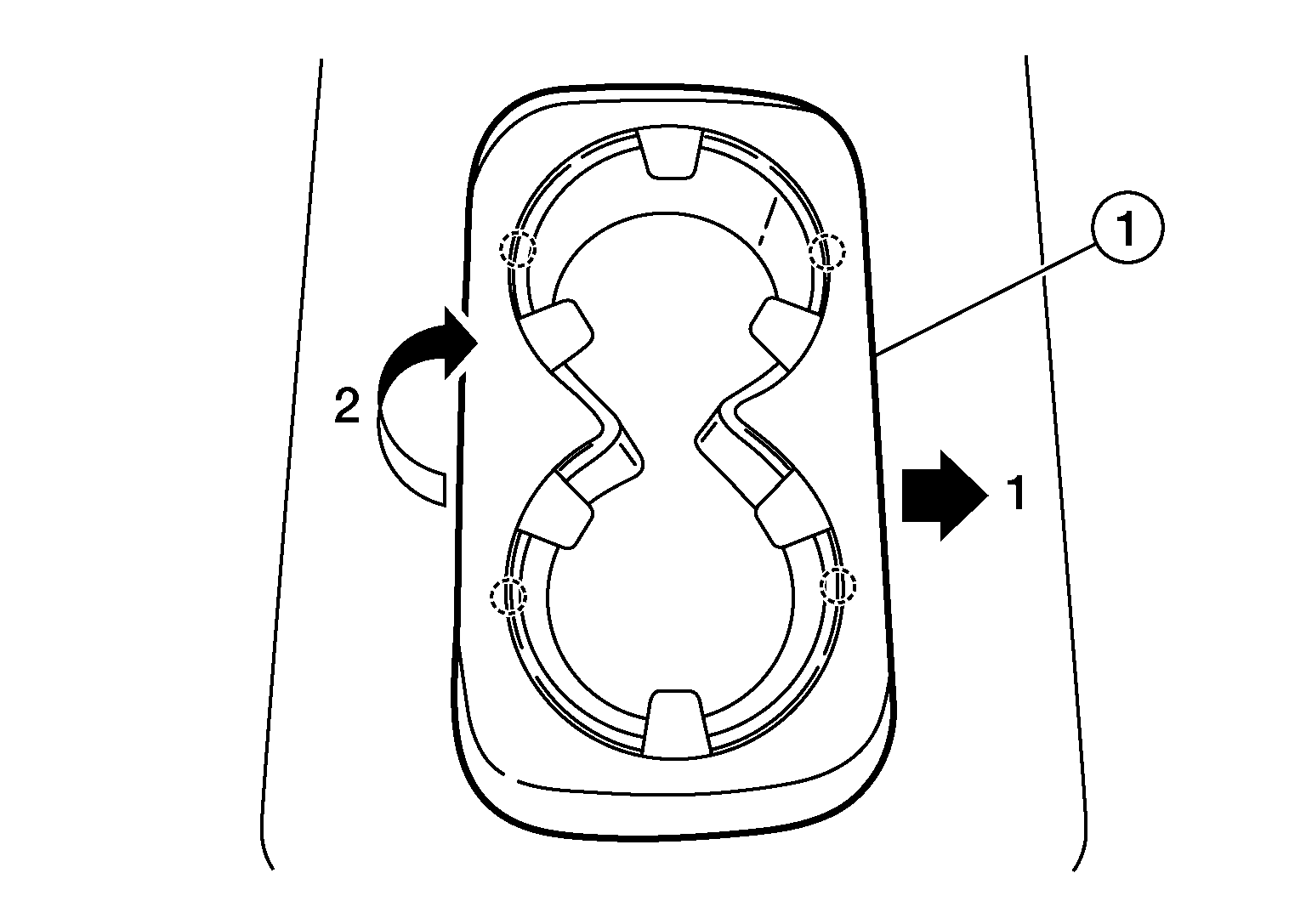

  3. Release pawls and remove cup holder (1) as shown.
    GNSALJIA1887Z-887Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl
