LH Seat: Seatback: Disassembly

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Remove the LH rear seat. Refer to Removal and Installation .

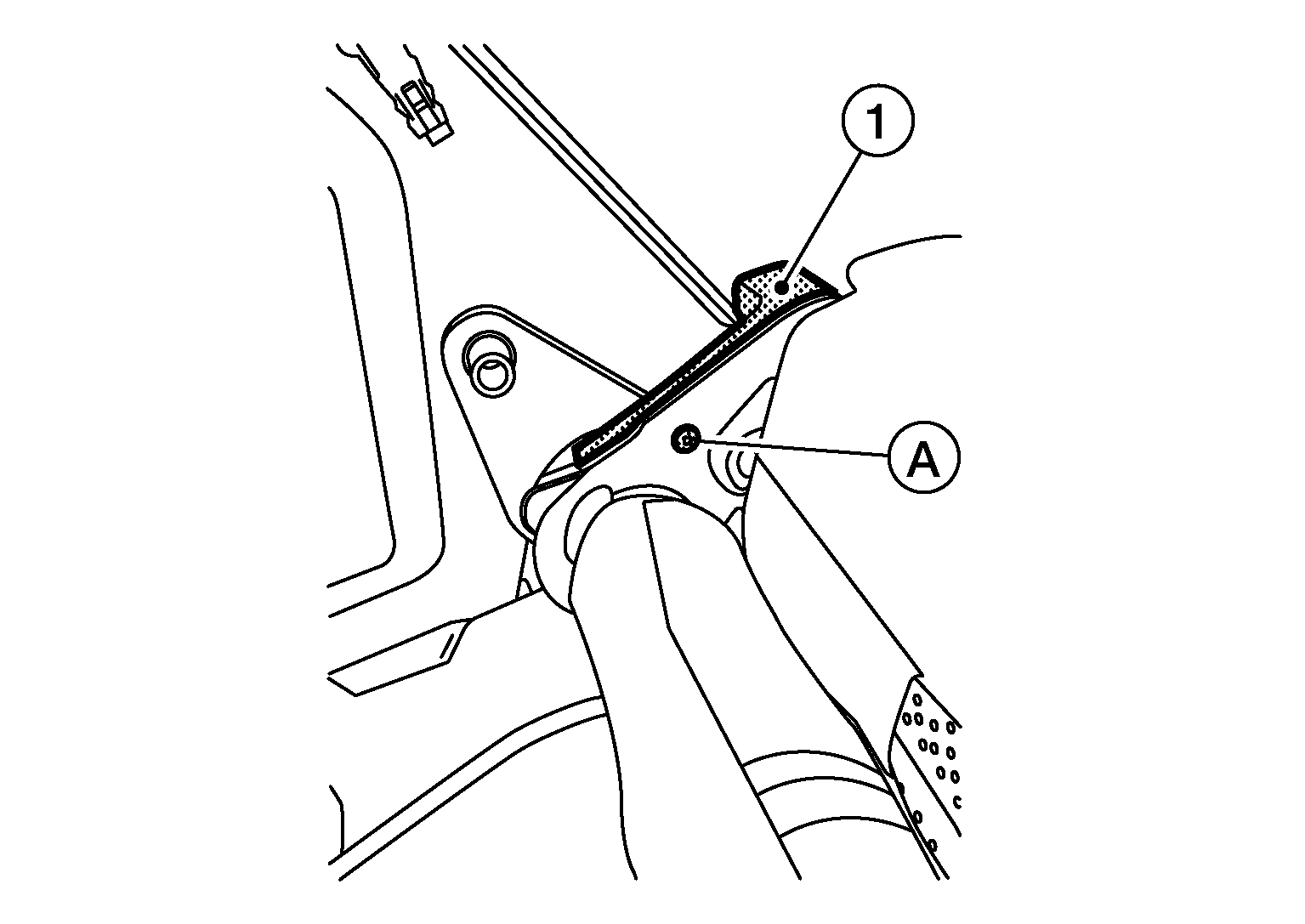

Remove screw (A) and pivot finisher [LH (1)].

Courtesy of NISSAN NORTH AMERICA, INC.

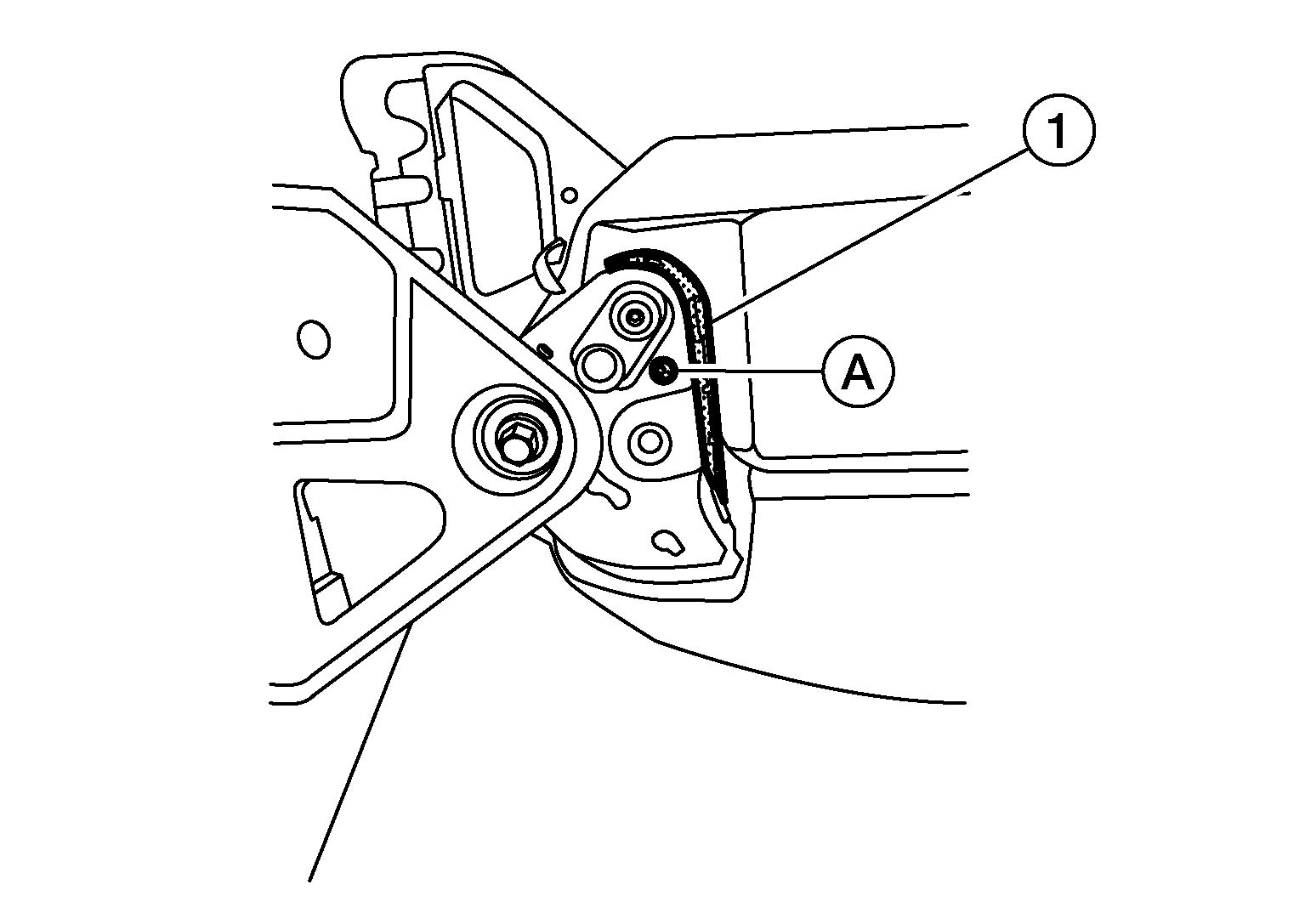

Remove screw (A), then release pawls and remove outer pivot finisher [RH (1)].

Courtesy of NISSAN NORTH AMERICA, INC.

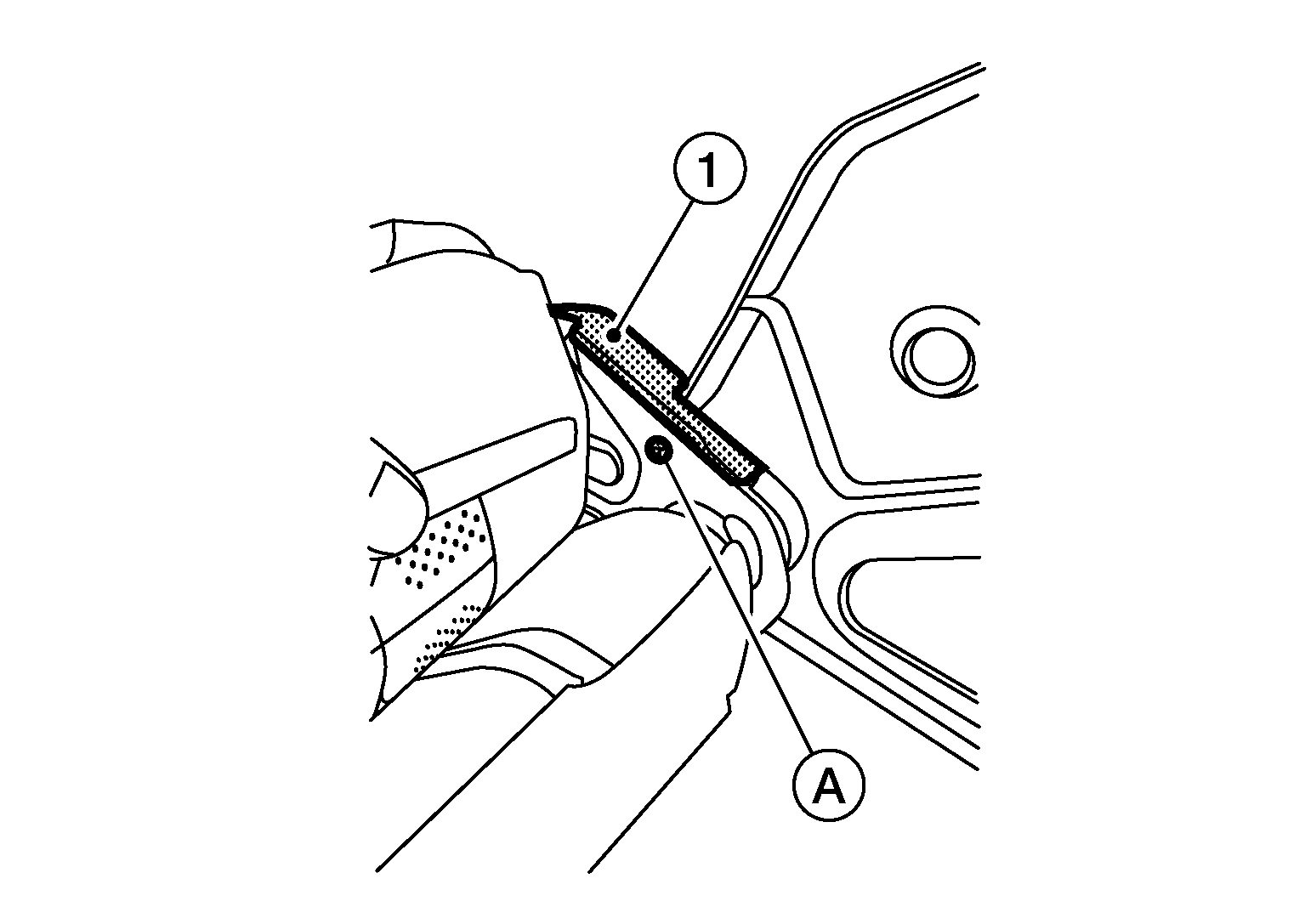

Remove screw (A) and inner pivot finisher [RH (1)].

Courtesy of NISSAN NORTH AMERICA, INC.
Remove bolts (A) and (B), then remove seatback assembly from seat cushion frame.

Courtesy of NISSAN NORTH AMERICA, INC.

: Front

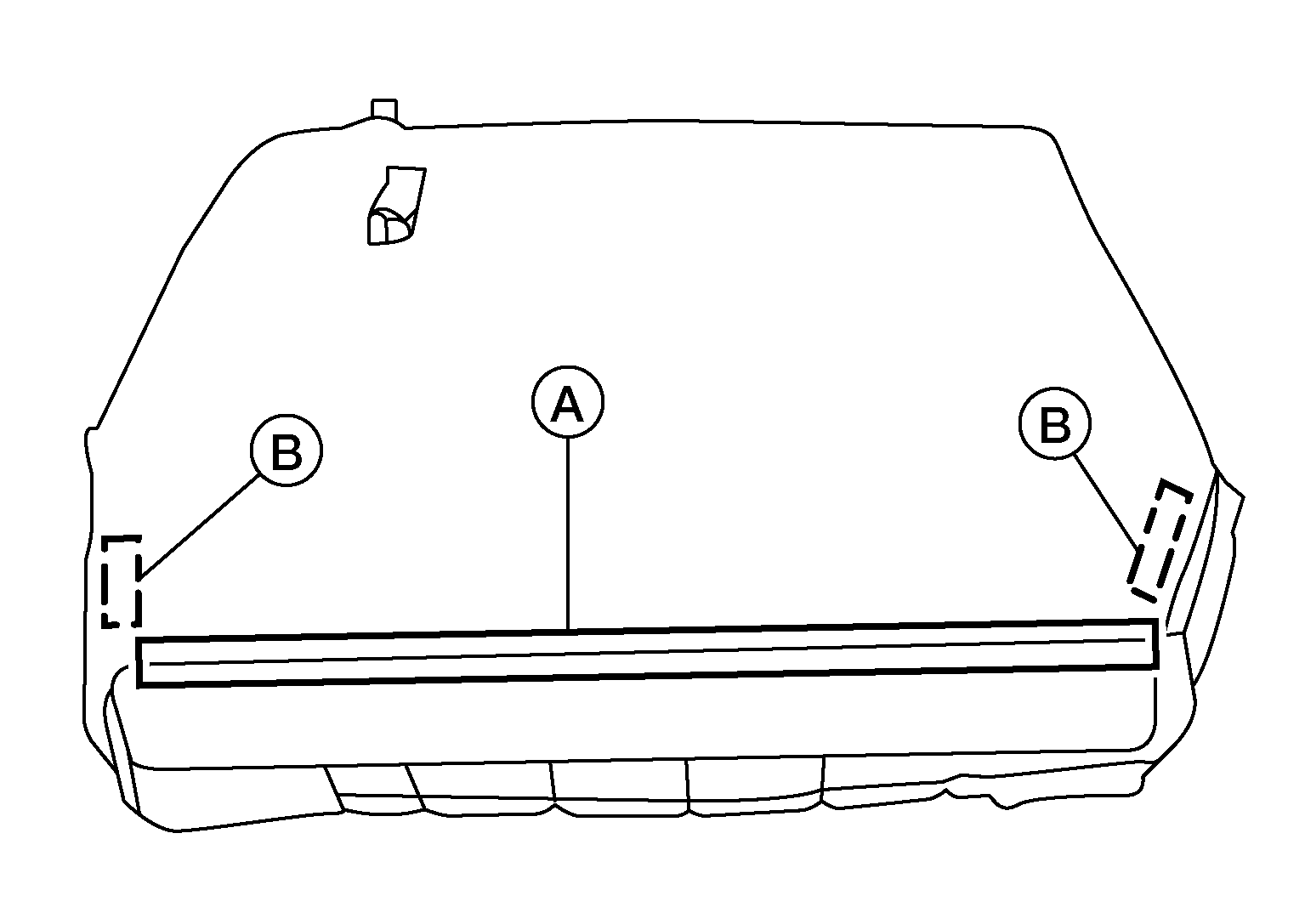

Release J-hook (A) and fasteners (B).

Courtesy of NISSAN NORTH AMERICA, INC.

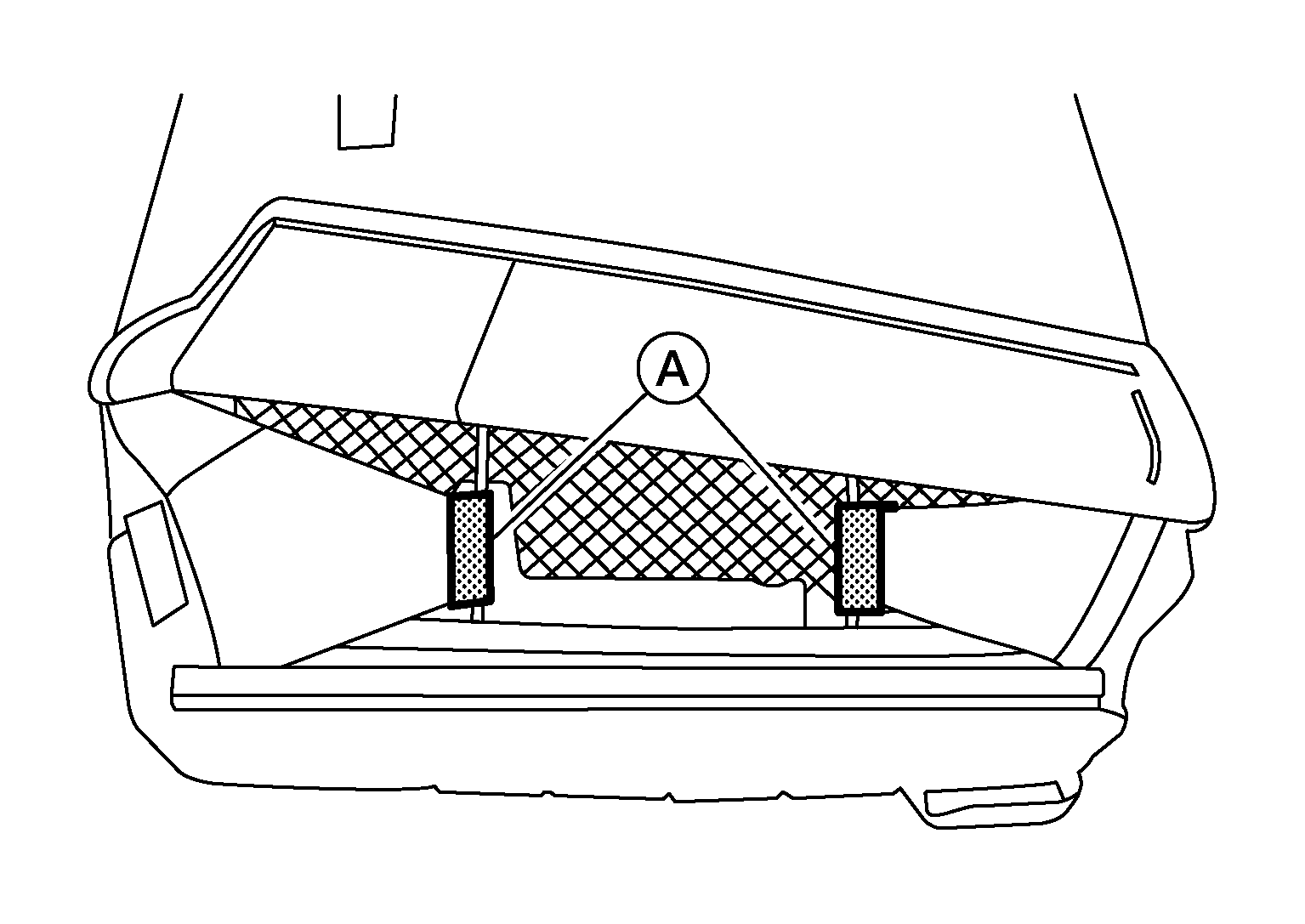

Position seatback trim aside, then release J-hooks (A).

Courtesy of NISSAN NORTH AMERICA, INC.

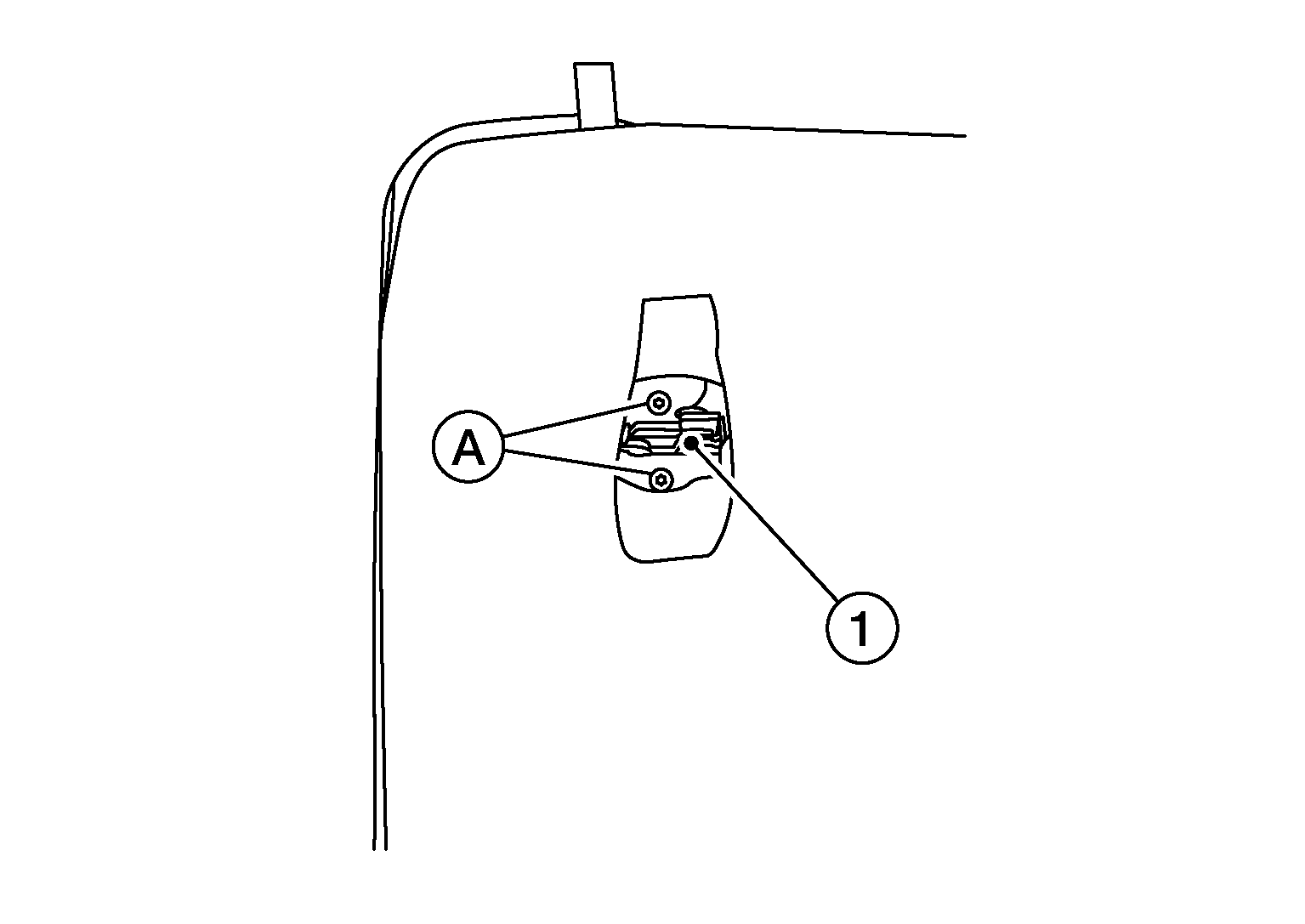

Remove bolts (A) and seatback latch [1 (if necessary)].

Courtesy of NISSAN NORTH AMERICA, INC.
Remove the headrest (LH).
Reach up behind the seatback pad, release the headrest holder locks as shown and remove the headrest holders.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Before removing/installing headrest holder, check its orientation (front/rear and right/left).
Remove seatback pad and seatback trim as an assembly from the seatback frame.

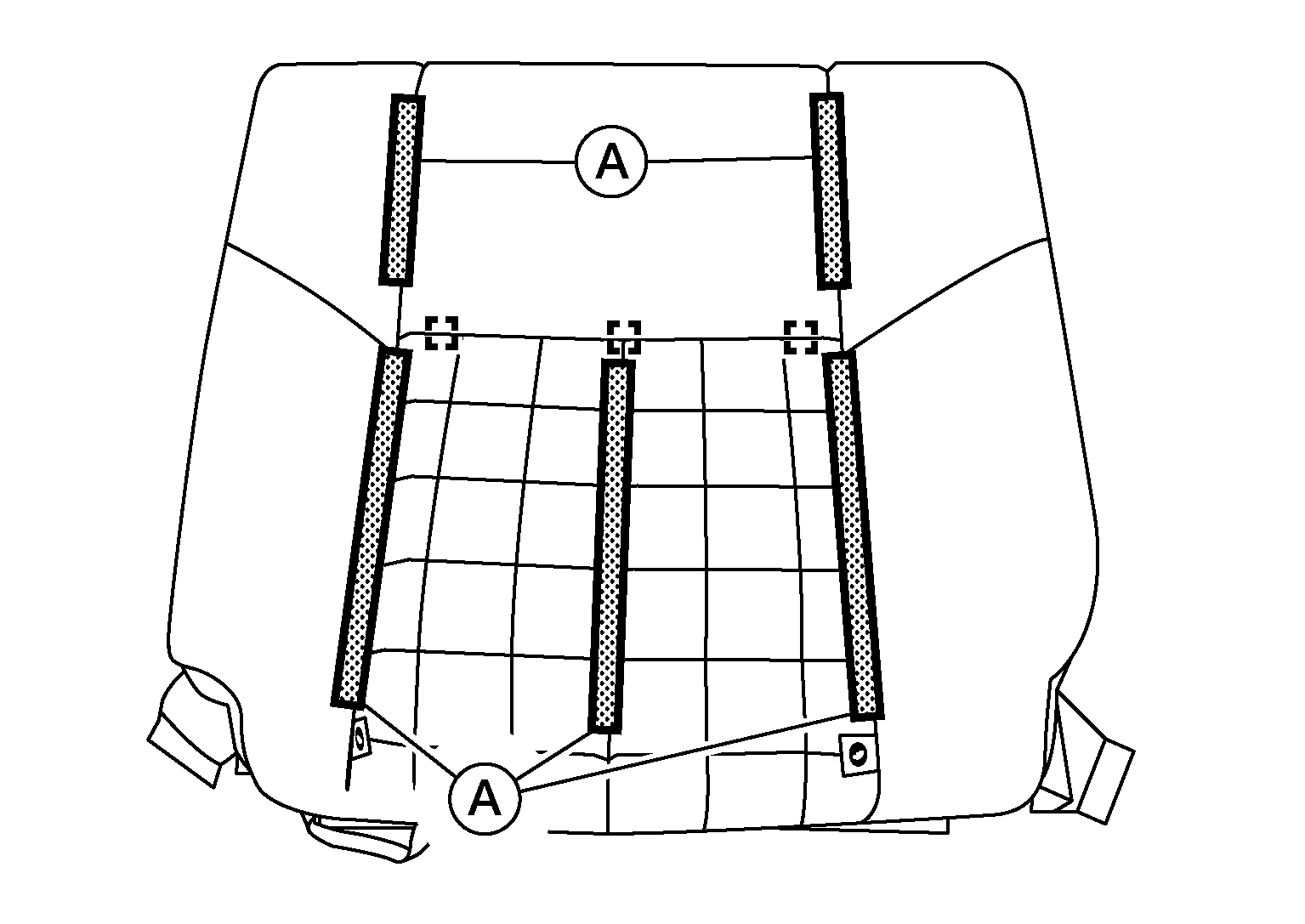

Release fasteners (A), then remove hog rings and separate the seatback pad from the seatback trim.

Courtesy of NISSAN NORTH AMERICA, INC.

: Hog ring

CAUTION: Remove all pieces of hog rings and discard them.
