Seat Cushion: Disassembly

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove LH rear seat. Refer to Removal and Installation .
  2. If necessary remove bolts (A) and seat support bracket [LH (1)].
    GNSALJIA1876Z-876Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front
  3. If necessary remove bolt (A) and seat support bracket [RH (1)].
    GNSALJIA1877Z-877Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front

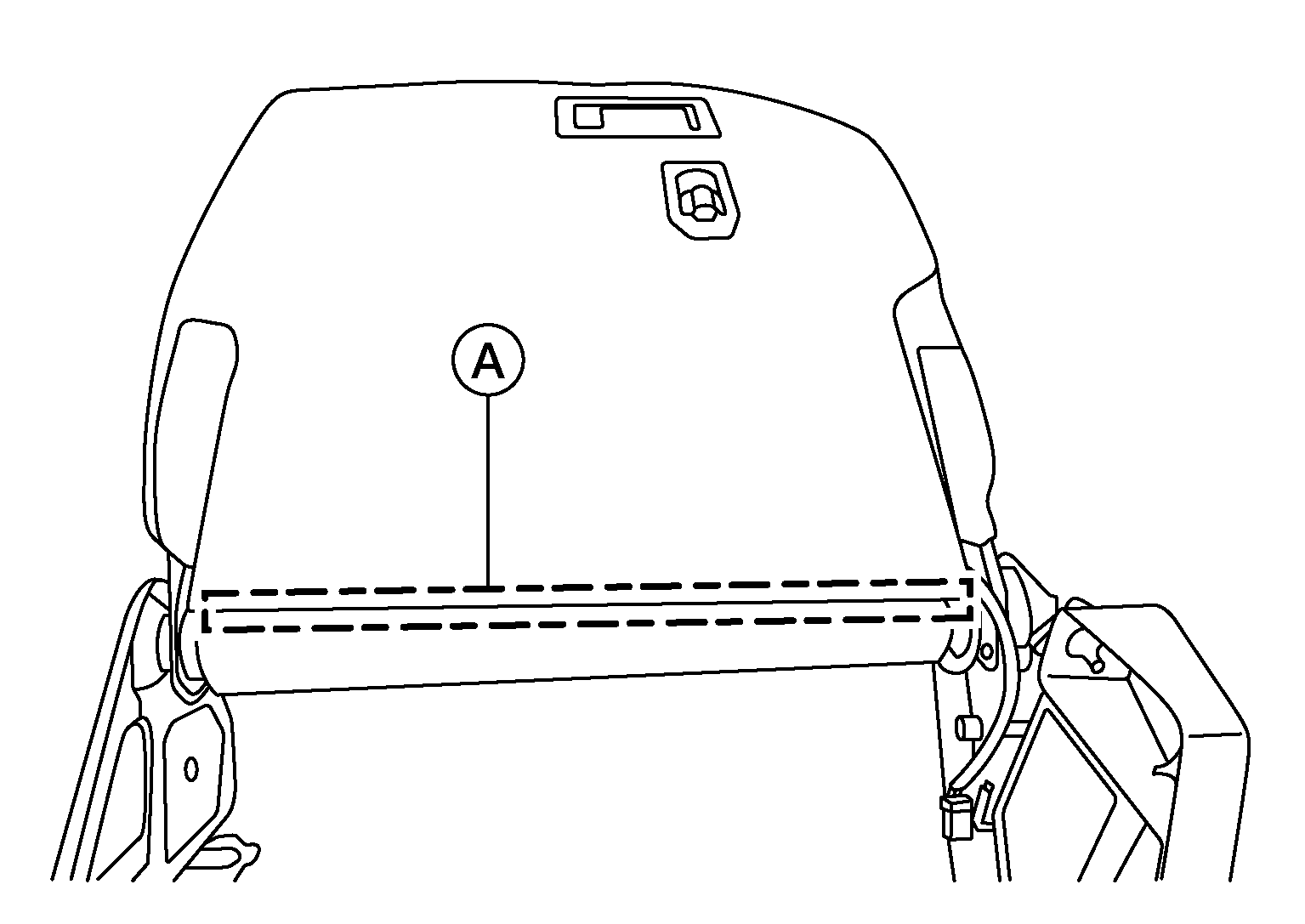

  4. Release J-hook (A).
    GNSALJIA1860Z-860Courtesy of NISSAN NORTH AMERICA, INC.

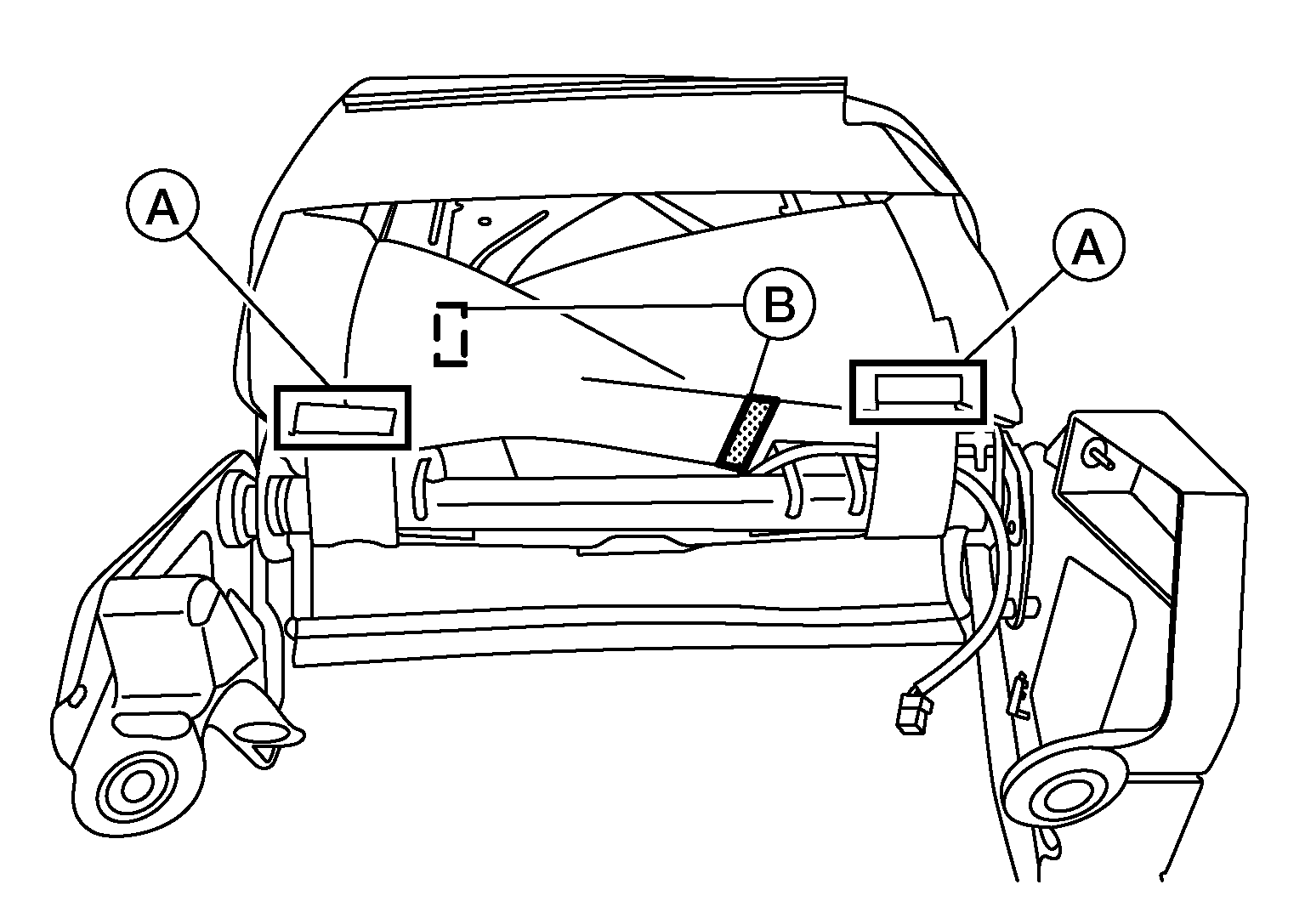

  5. Release fasteners (A) and J-hooks (B).
    GNSALJIA1861Z-861Courtesy of NISSAN NORTH AMERICA, INC.
  6. Remove screw and grocery bag hook.
  7. Remove seat cushion trim and seat cushion pad as an assembly from seat cushion frame.

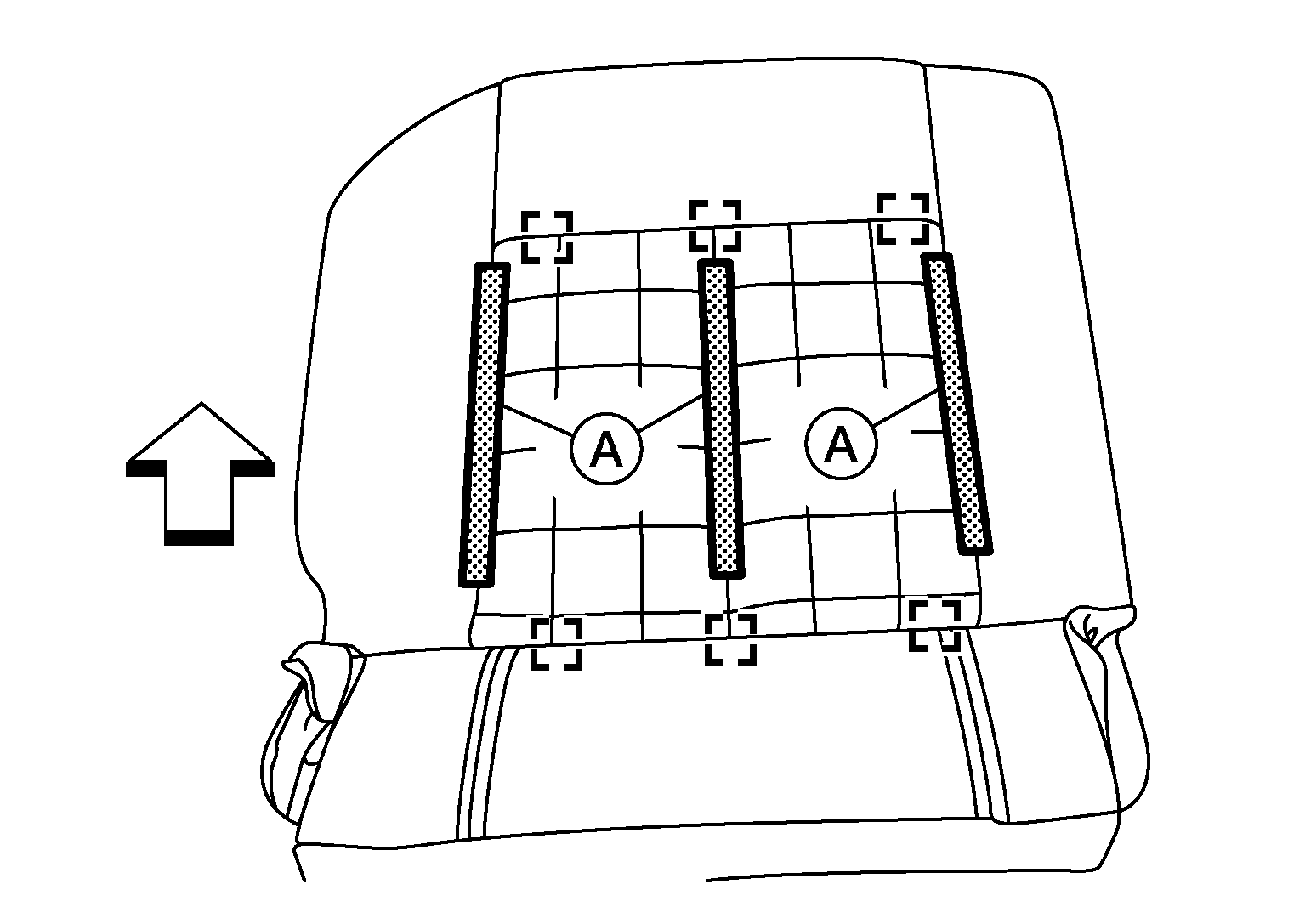

  8. Remove hog rings and release fasteners (A), then separate the seat cushion trim from the seat cushion pad.
    GNSALJIA1863Z-863Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Hog ring

    SYMBOL

    : Front
    CAUTION: Remove all pieces of hog rings and discard them.
