RH Seat: Seatback: Disassembly

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Do not leave any objects (screwdrivers, tools, etc.) on the seat during seatback repair. It can lead to personal injury if the side air bag module should accidentally deploy.
CAUTION:
  • Before servicing, turn the ignition switch OFF, disconnect battery or batteries, then wait at least three minutes.
  • Always work from the side or back of the seatback, do not work in front of seat.
  • Do not use air tools or electric tools for servicing the seat assembly.
  • Do not insert any objects into the side air bag module.
  • Do not attempt to disassemble the side air bag module.
  • Do not expose the side air bag module to temperatures exceeding 90°C (194°F).
  • Do not expose the side air bag module to any oil, grease, detergent or water.
  • During disassembly, do not damage the connectors, retainers, clips, module harness or the side air bag module.
NOTE:
  • If the vehicle has been involved in a collision and the side air bag module has deployed, the seatback must be replaced.
  1. Remove front seat RH. Refer to Removal and Installation - Captain Seats .
  2. For models without rear seat, remove clip and release elastic strap (1).
    GNSALJIA2196Z-196Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Clip
  3. Release seatback strap from under the seat.
  4. Release seatback zippers (A), then position seatback trim (1) aside.
    GNSALJIA1924Z-924Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove headrest.
    1. For models equipped with headrest display unit, perform the following steps:
      1. Disconnect harness connectors from headrest display.
      2. Release inner J-hook (A) from the seatback frame.
        GNSALJIA1928Z-928Courtesy of NISSAN NORTH AMERICA, INC.
      3. Press the headrest holder lock button and lift headrest up to remove from the seatback assembly.
      4. Release headrest harness guides (A) from seatback frame (B).
        GNSALJIA1951Z-951Courtesy of NISSAN NORTH AMERICA, INC.
    2. For models without headrest display unit, perform the following step:
      • Press the headrest holder lock button and lift headrest up to remove from the seatback assembly.
  6. Reach up behind the seatback pad, release the headrest holder locks as shown and remove the headrest holders.
    G04146145Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Before removing/installing headrest holder, check its orientation (front/rear and right/left).
  7. Remove the seat cushion outer finisher (RH) using the following procedures:
    1. For power seat:
      GNSAWJIA2118Z-118Courtesy of NISSAN NORTH AMERICA, INC.
      1. Starting from the front of the seat, release metal clips from seat frame assembly (2) as shown.

        SYMBOL

        : Metal clip
      2. Release pawls then disconnect the harness connector from the power seat switch and remove power seat cushion outer finisher [RH (1)].

        SYMBOL

        : Pawl
    2. For manual seat:
      1. Release pawl and remove recline lever (1) as shown.
        GNSAWJIA2119Z-119Courtesy of NISSAN NORTH AMERICA, INC.

        SYMBOL

        : Pawl
      2. Starting from the front of the seat, release metal clips from seat frame assembly (2) as shown.
        GNSAWJIA2120Z-120Courtesy of NISSAN NORTH AMERICA, INC.

        SYMBOL

        : Metal clip
      3. Release pawls then remove manual seat cushion outer finisher [RH (1)].

        SYMBOL

        : Pawl
  8. Release pawls and metal clip, then remove the seat cushion outer finisher (LH).
    GNSAWJIA2130Z-130Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl

    SYMBOL

    : Metal clip
  9. Unclip the side air bag module harness from the seat frame assembly.
    NOTE: Take note of harness routing and attachment location for correct installation.
  10. Disconnect the harness connector from the seatback heater (if equipped) and unclip the harness from the seatback frame.
    NOTE: Take note of harness routing and attachment location for correct installation.
  11. Disconnect the harness connector from the seatback thermal electric device (if equipped) and unclip the harness from the seatback frame.
    NOTE: Take note of harness routing and attachment location for correct installation.
  12. For models equipped with climate controlled seats, perform the following procedure:

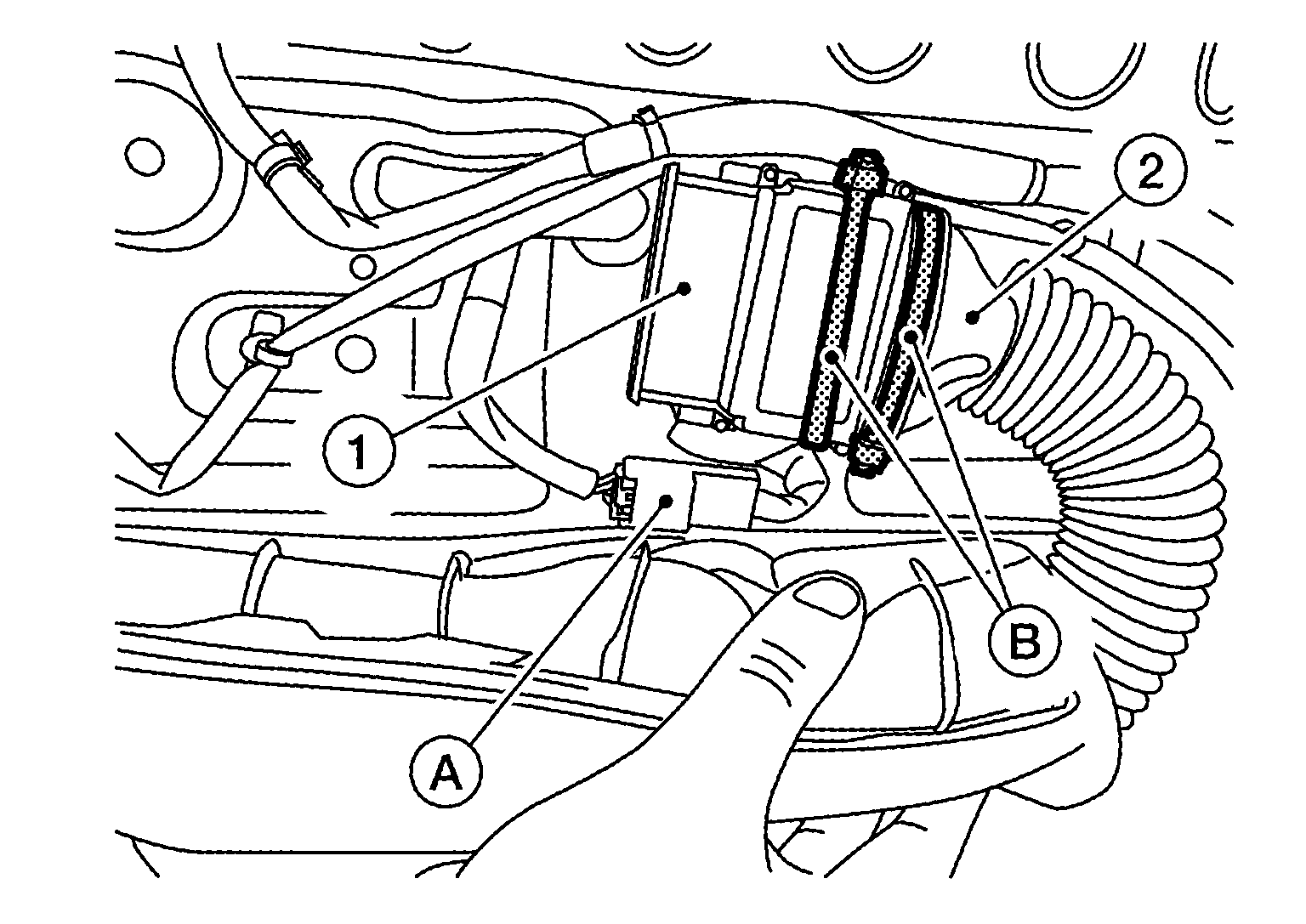

    1. Reposition seatback pad, then disconnect the harness connector (A) from the seatback thermal electric device (1).
      GNSAWJIA2122Z-122Courtesy of NISSAN NORTH AMERICA, INC.
    2. Remove the tie straps (B) and seatback thermal electric device (1) from the upper blower duct (2) and seatback frame.

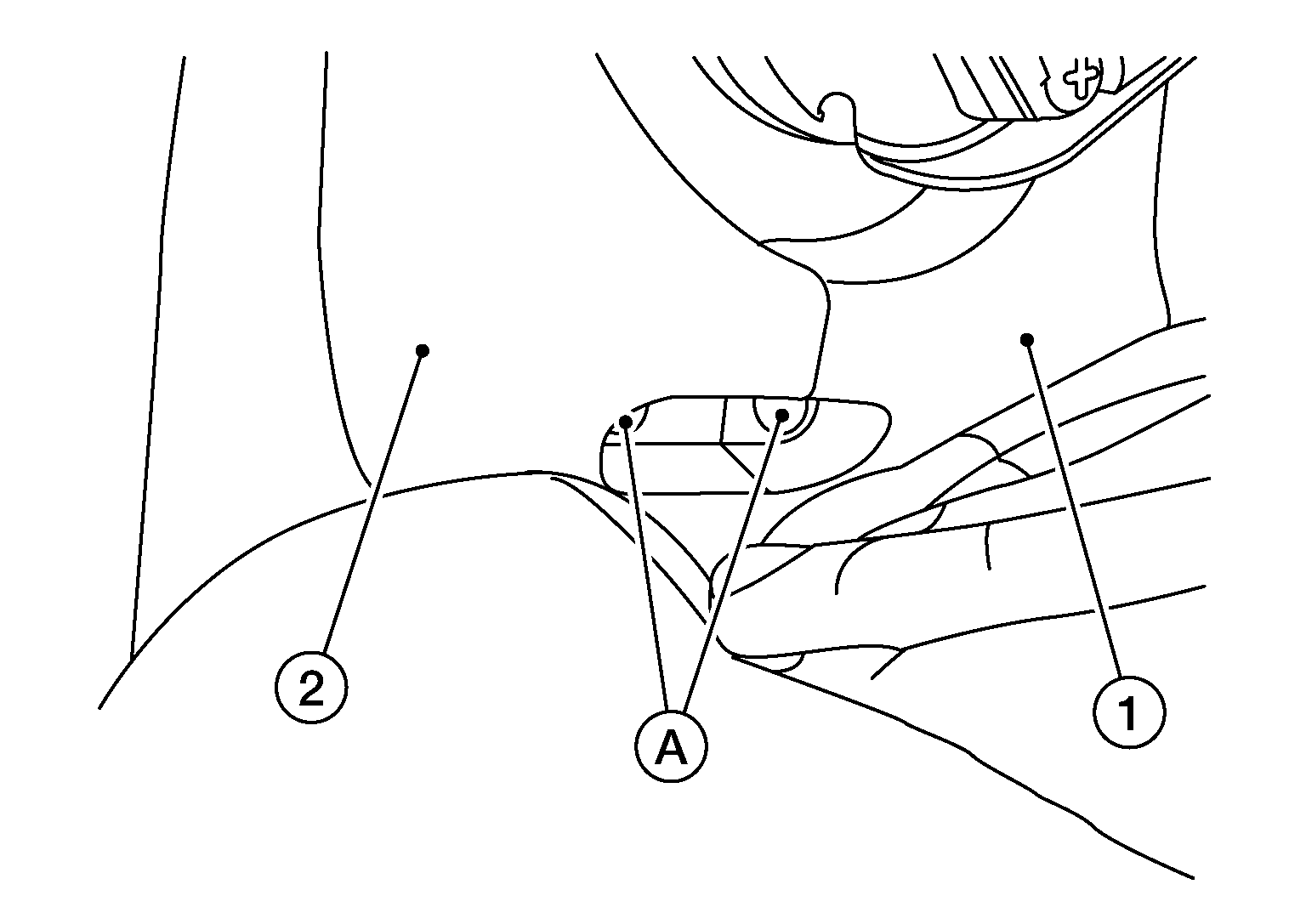

  13. Reposition seat cushion assembly and remove screws (A).
    GNSAWJIA2123Z-123Courtesy of NISSAN NORTH AMERICA, INC.
  14. Remove the seat cushion front inner finisher [LH/RH (1)].
  15. Remove seat cushion rear inner finisher [LH/RH (2)].

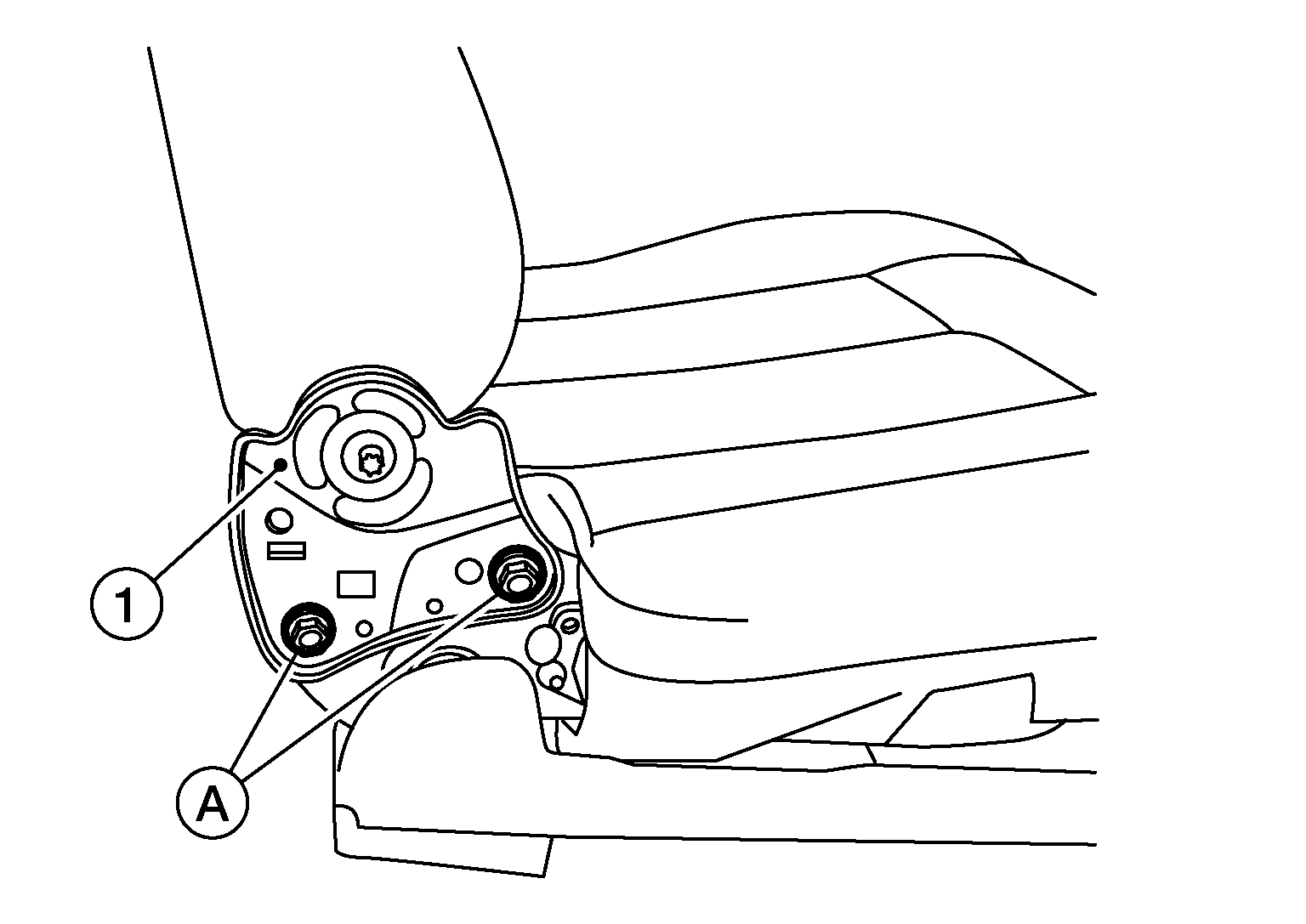

  16. Remove bolts (A) on both sides of the seatback assembly (1).
    GNSAWJIA2124Z-124Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: RH shown, LH similar.
