Seat Cushion: Disassembly

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Do not leave any objects (screwdrivers, tools, etc.) on the seat during seat cushion repair. It can lead to personal injury if the side air bag module should accidentally deploy.
CAUTION:
  • Before servicing, turn the ignition switch OFF, disconnect battery or batteries and wait at least three minutes.
  • Always work from the side or back of the seatback assembly, do not work in front of seat.
  • Do not use air tools or electric tools for servicing the seat assembly.
  1. Remove the RH front seat. Refer to Removal and Installation - Captain Seats .
  2. Remove the seat cushion outer finisher (RH) using the following procedure:
    1. For power seat:
      GNSAWJIA2118Z-118Courtesy of NISSAN NORTH AMERICA, INC.

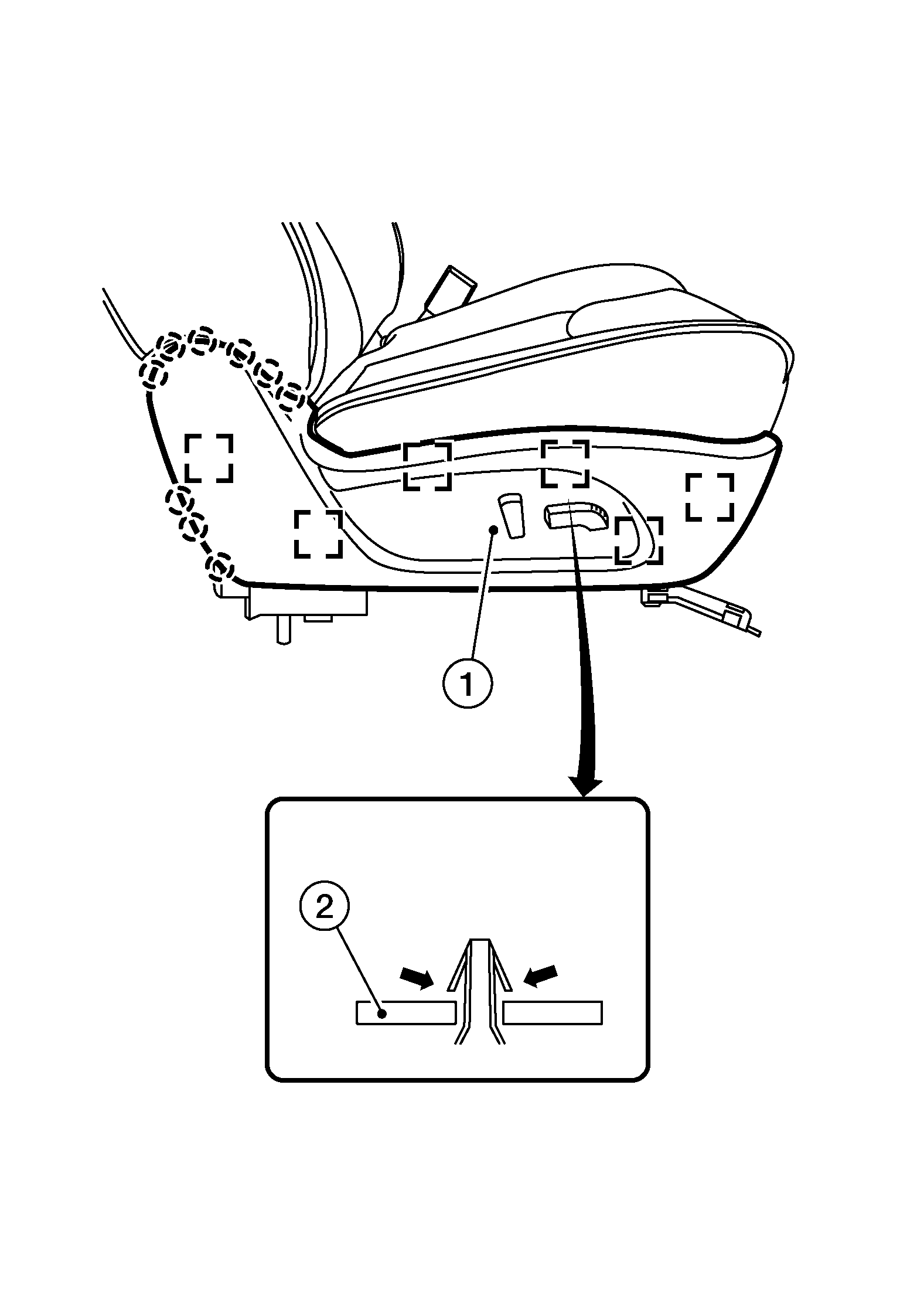

      1. Starting from the front of the seat, release metal clips from seat frame assembly (2) as shown.

        SYMBOL

        : Metal clip
      2. Release pawls, then disconnect harness connector and remove power seat cushion outer finisher [RH (1)].

        SYMBOL

        : Pawl
    2. For manual seat:

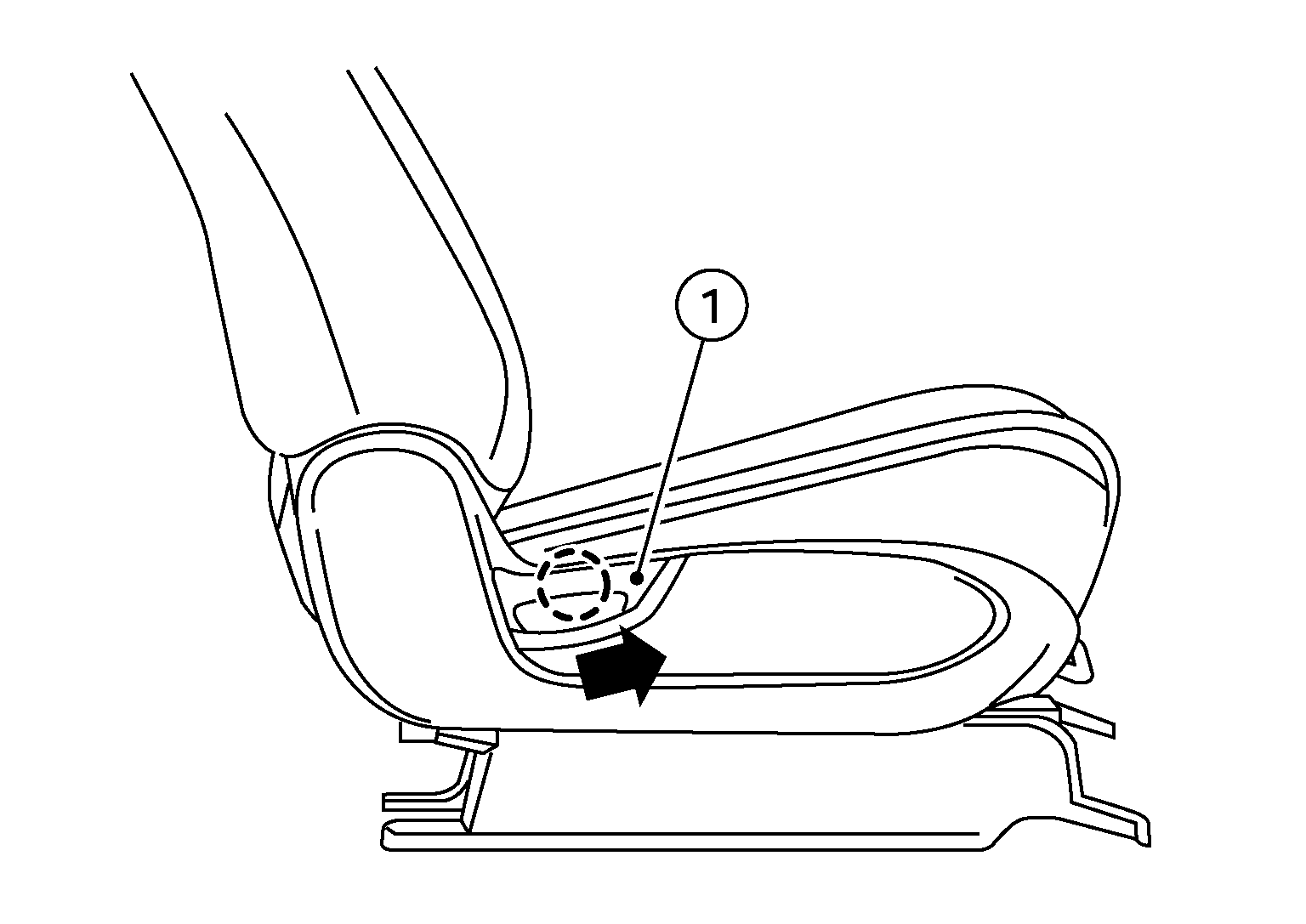

      1. Release pawl and remove recline lever (1) as shown.
        GNSAWJIA2119Z-119Courtesy of NISSAN NORTH AMERICA, INC.

        SYMBOL

        : Pawl

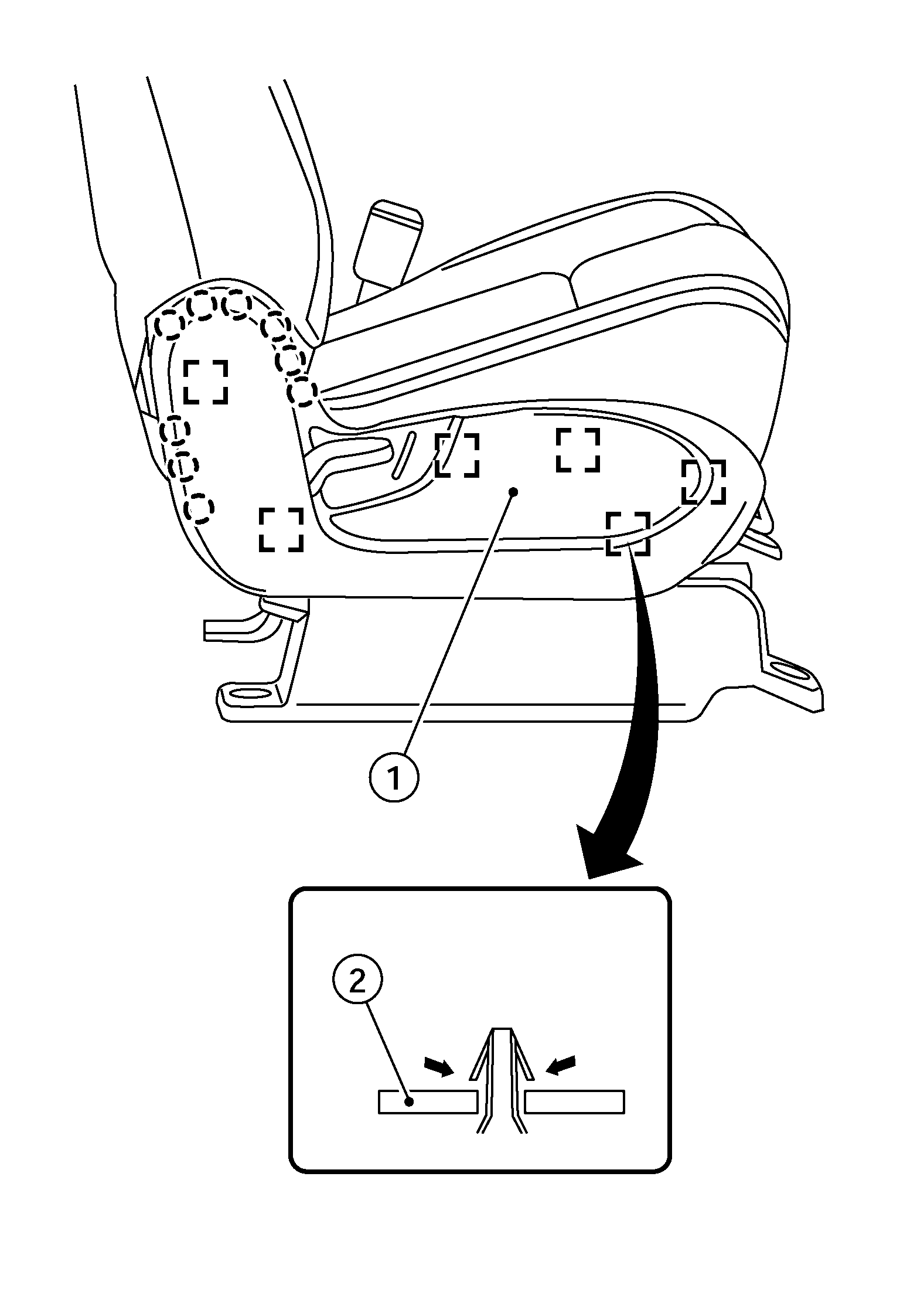

      2. Starting from the front of the seat, release metal clips from seat frame assembly (2) as shown.
        GNSAWJIA2120Z-120Courtesy of NISSAN NORTH AMERICA, INC.

        SYMBOL

        : Metal clip
      3. Release pawls then remove manual seat cushion outer finisher [RH (1)].

        SYMBOL

        : Pawl

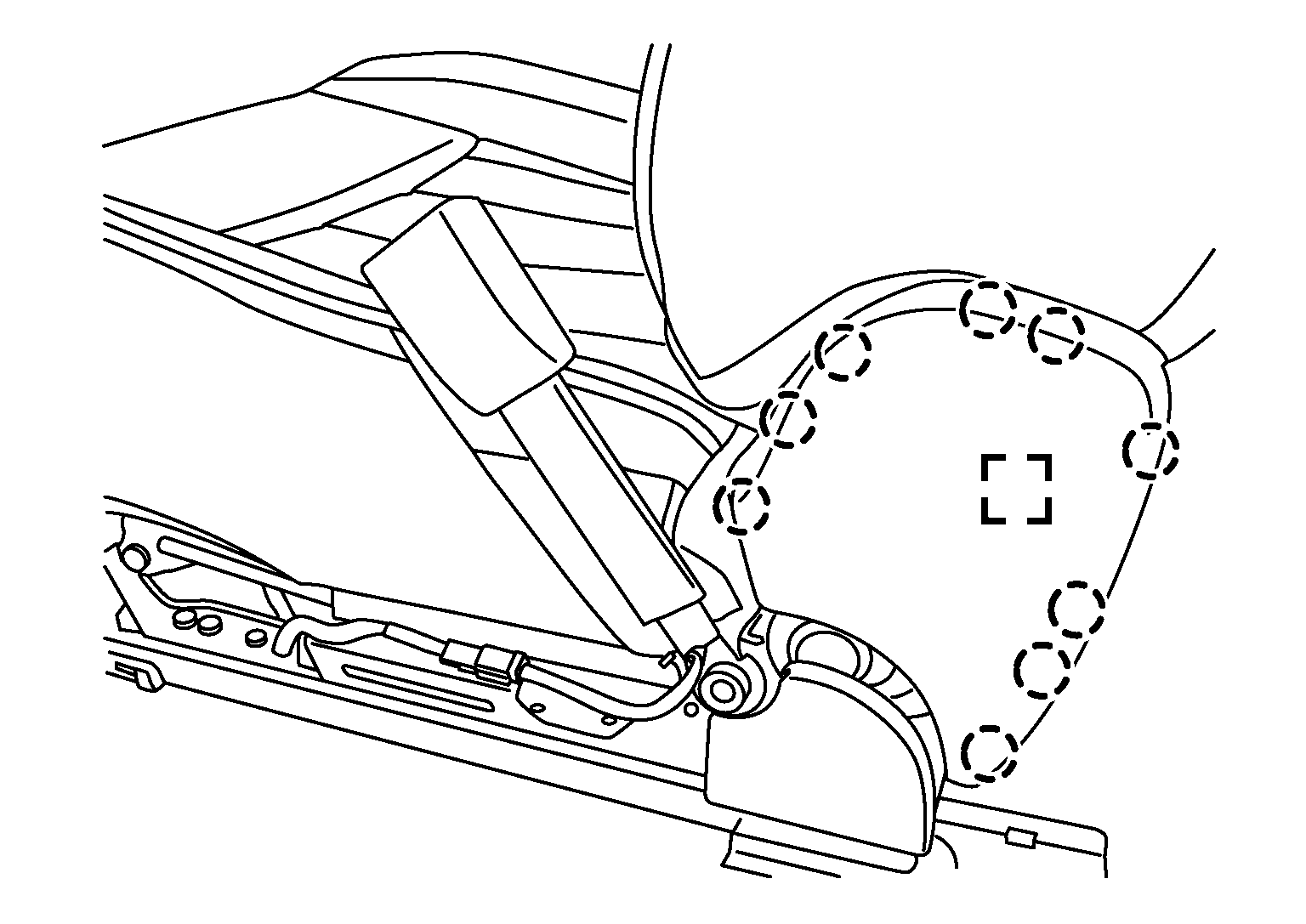

  3. Release pawls and metal clip and remove the seat cushion outer finisher (LH).
    GNSAWJIA2130Z-130Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl

    SYMBOL

    : Metal clip
  4. Release seatback flap from seat cushion frame, then position seatback flap aside.
  5. For models equipped with climate control seats, perform the following procedure:

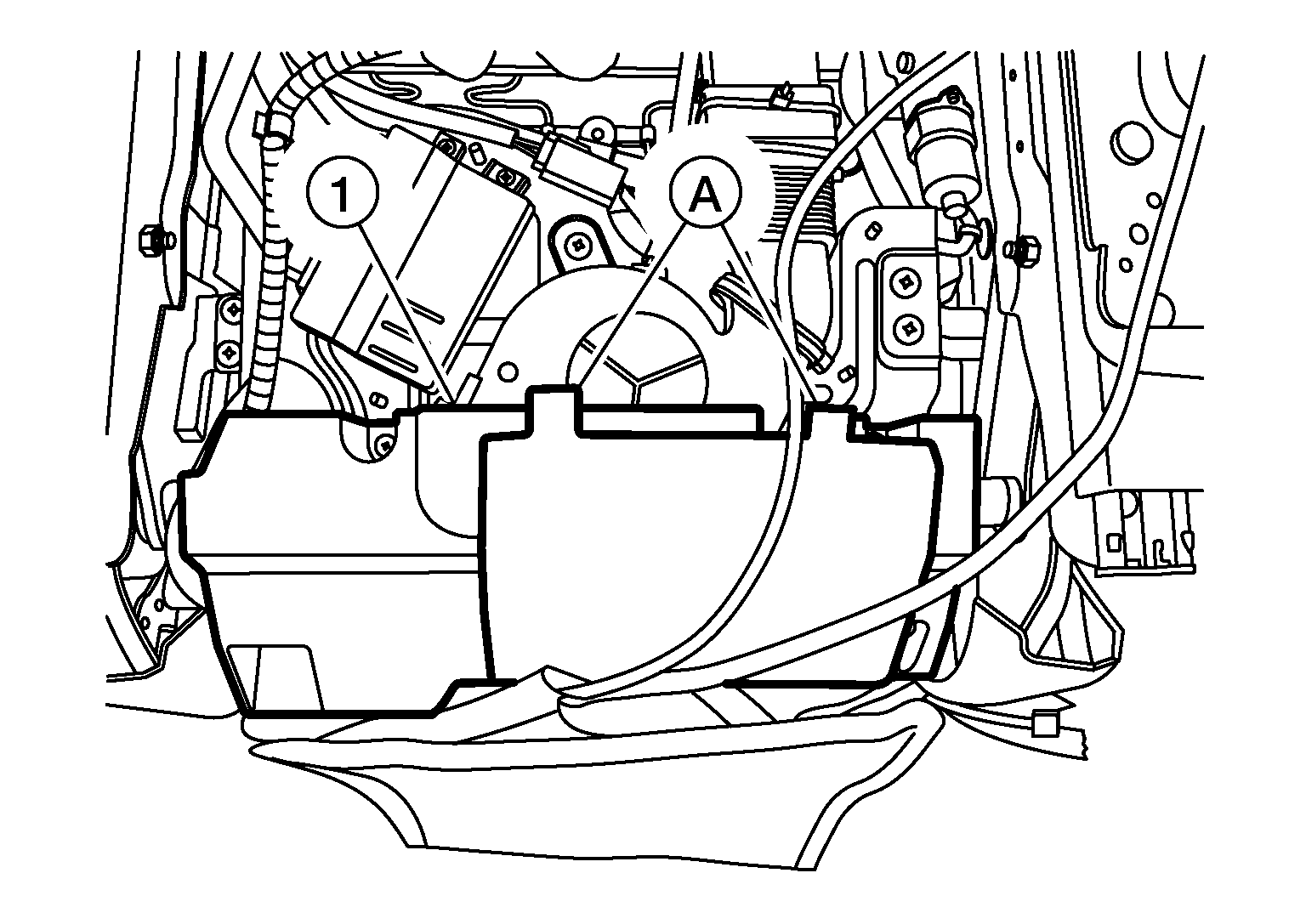

    1. Release J-hooks (A) from the lower rear cover (1).
      GNSALJIA1953Z-953Courtesy of NISSAN NORTH AMERICA, INC.

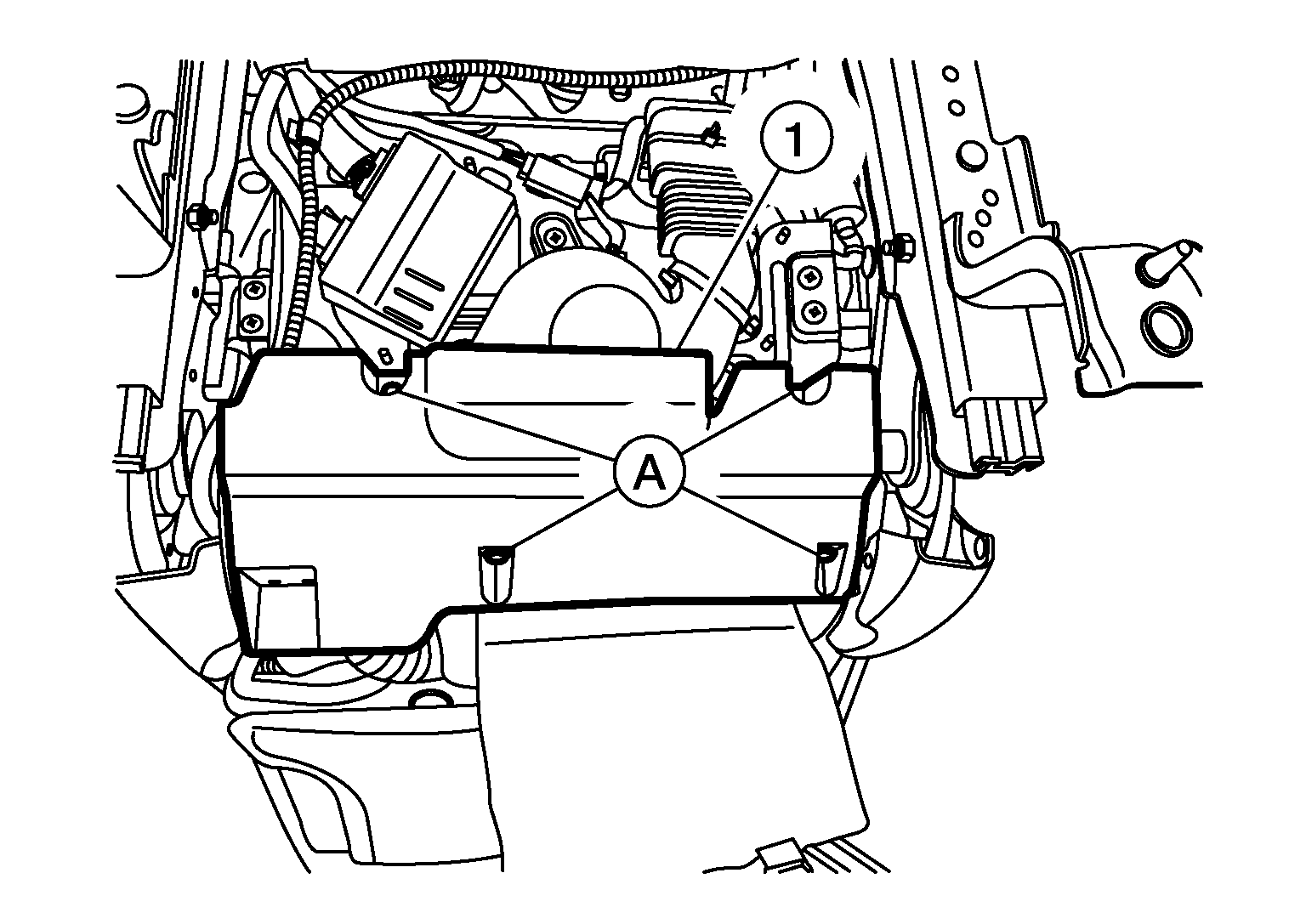

    2. Remove screws (A) and the lower rear cover (1).
      GNSALJIA1954Z-954Courtesy of NISSAN NORTH AMERICA, INC.
  6. For models not equipped with climate controlled seats:

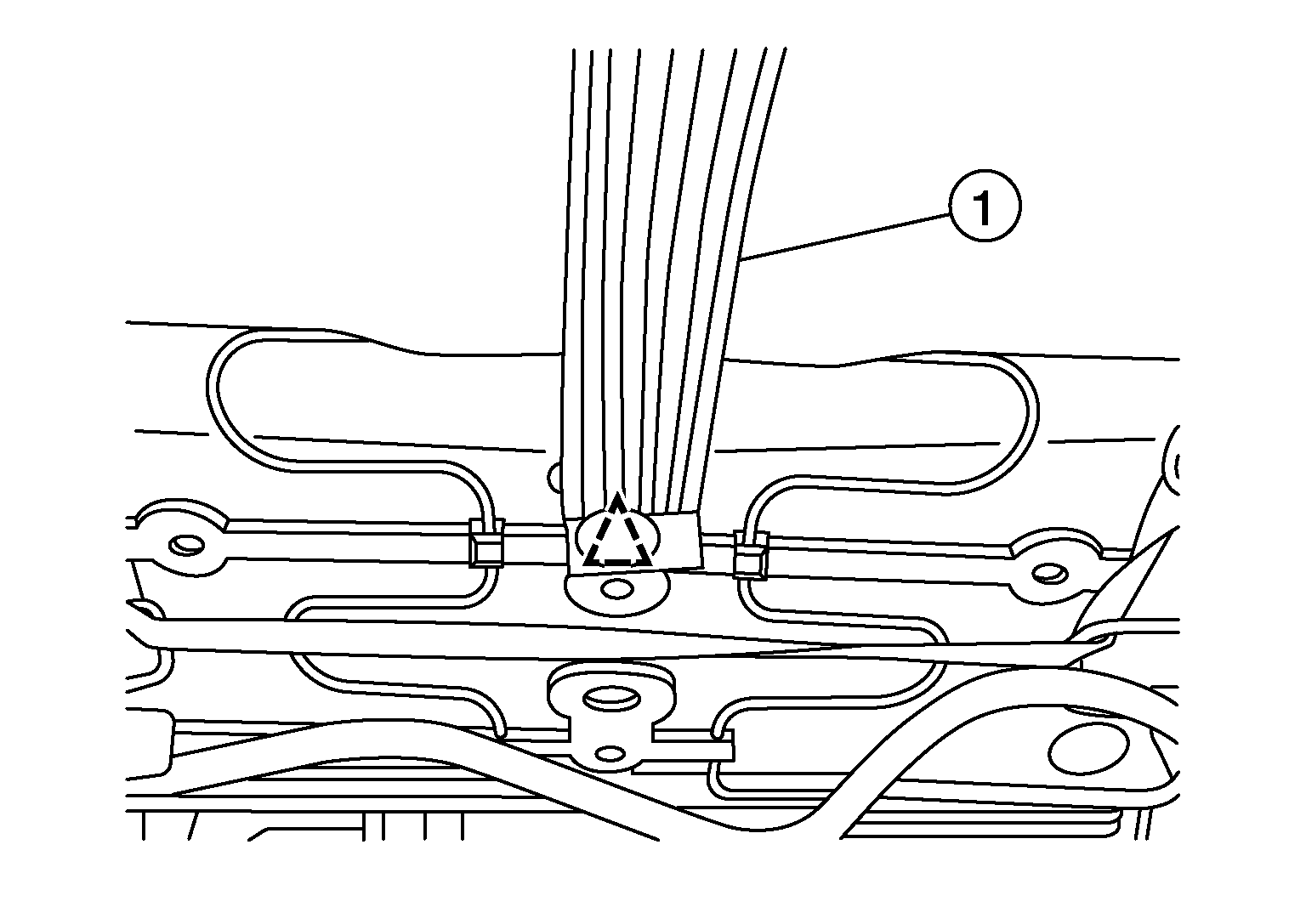

    1. For models without rear seat remove clip and release elastic strap (1).
      GNSALJIA2196Z-196Courtesy of NISSAN NORTH AMERICA, INC.

      SYMBOL

      : Clip

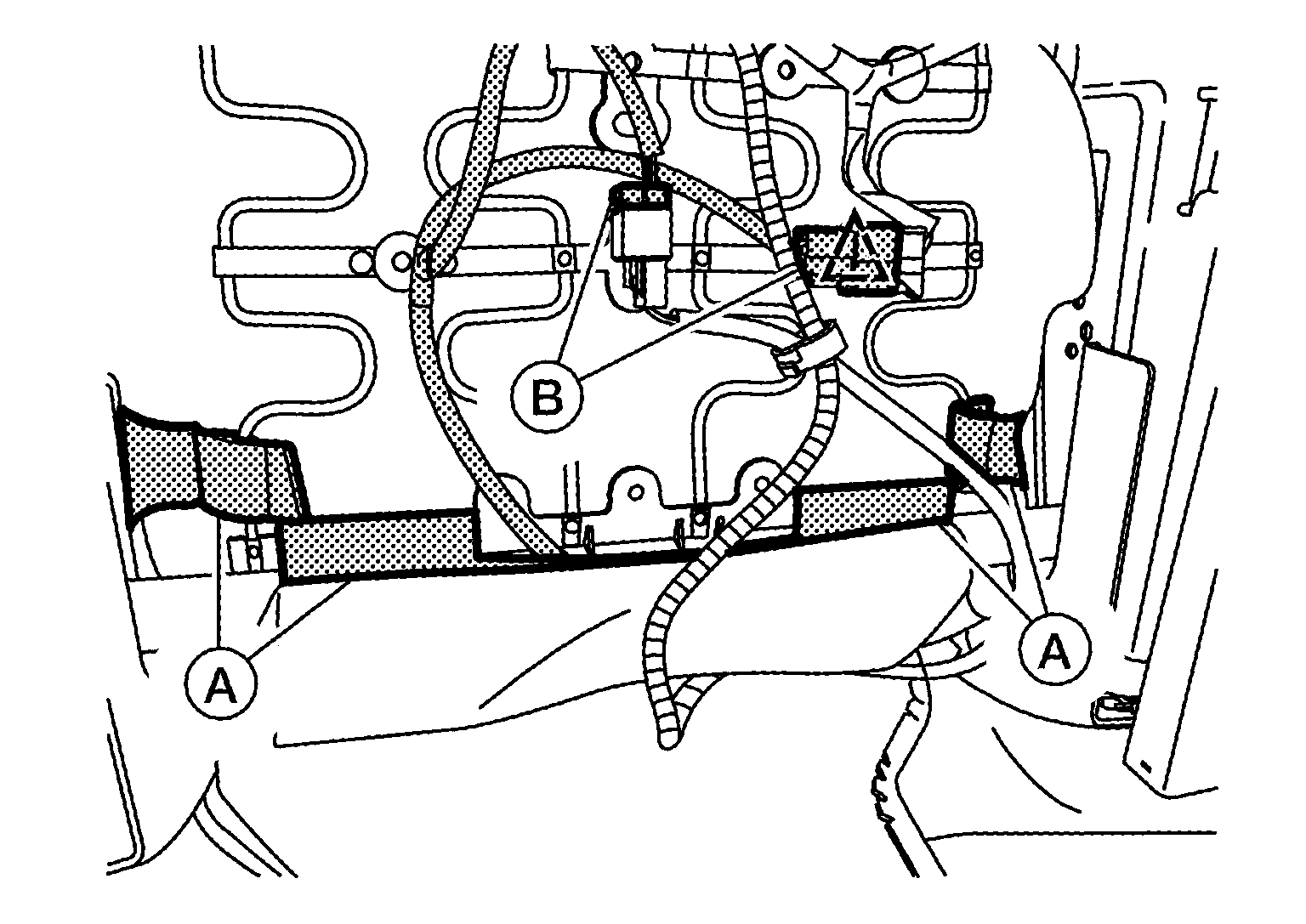

    2. Release J-hooks (A) from seat cushion frame.
      GNSALJIA1955Z-955Courtesy of NISSAN NORTH AMERICA, INC.
    3. Disconnect the harness connectors (B) from the seat cushion heater and release the harness clip.

      SYMBOL

      : Clip
  7. Remove seat cushion trim and seat cushion pad using the following procedure:

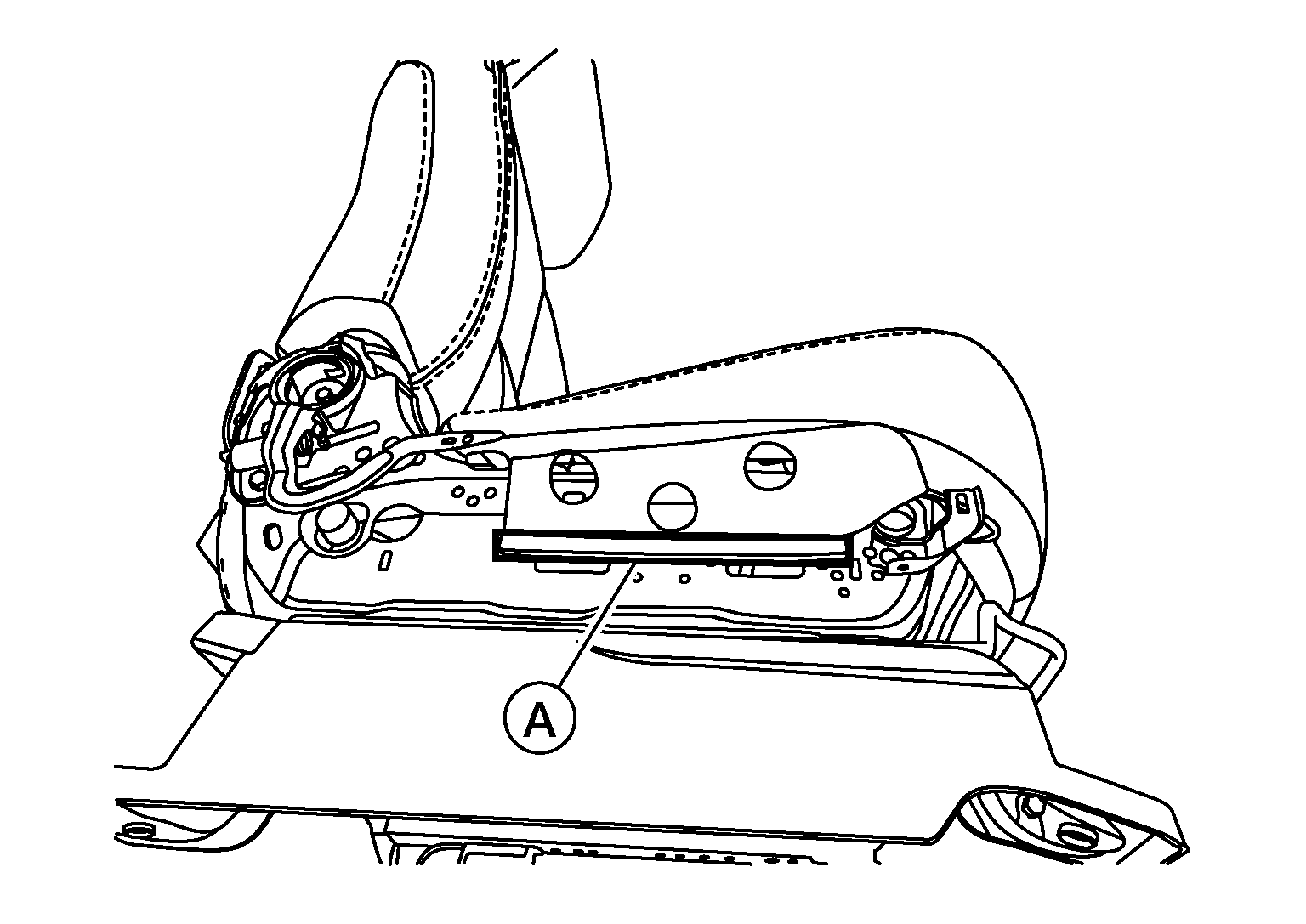

    1. Release seat cushion J-hook (A) from the RH side of the seat cushion frame.
      GNSALJIA1943Z-943Courtesy of NISSAN NORTH AMERICA, INC.

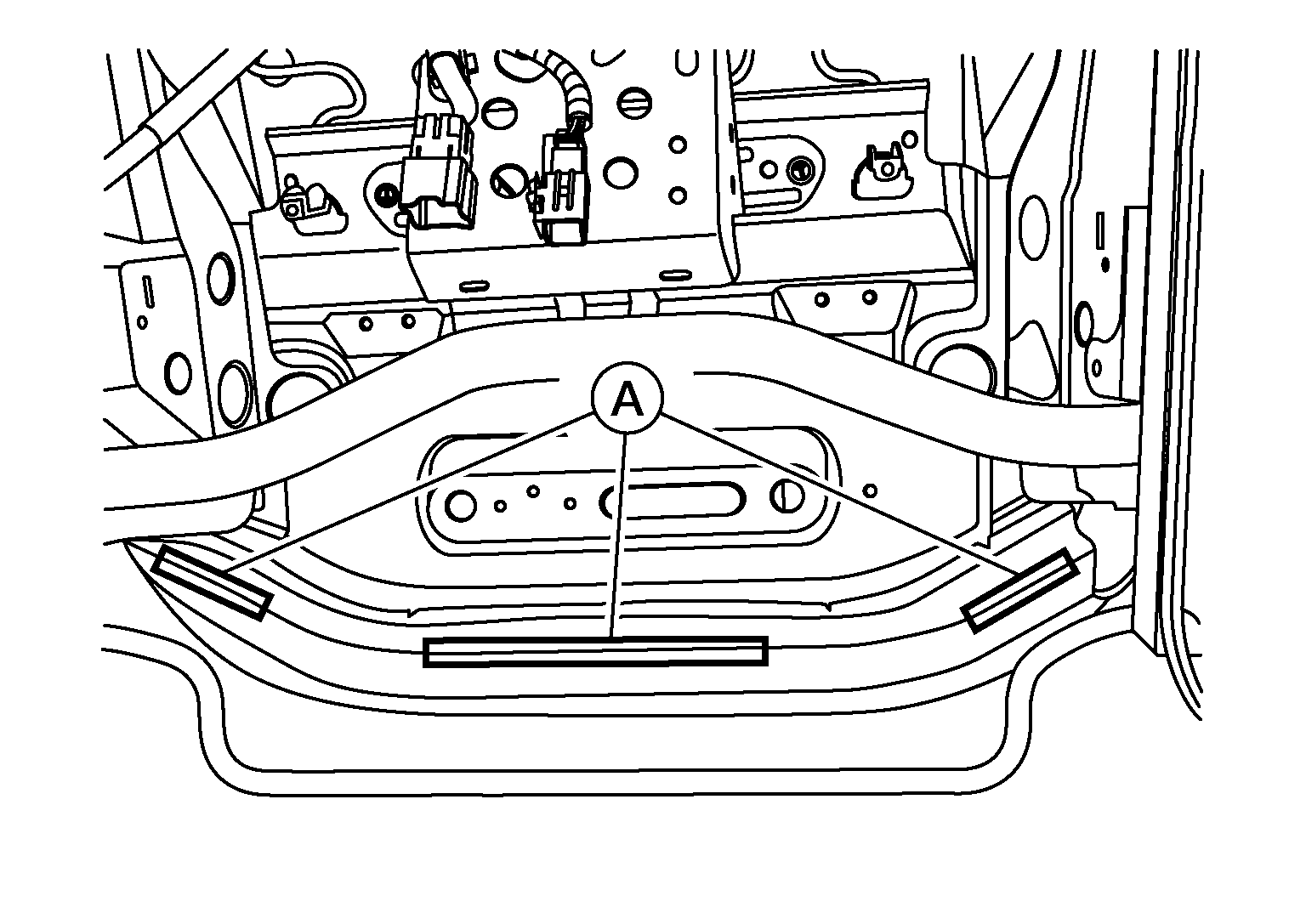

    2. Release the front seat cushion J-hooks (A).
      GNSALJIA1944Z-944Courtesy of NISSAN NORTH AMERICA, INC.

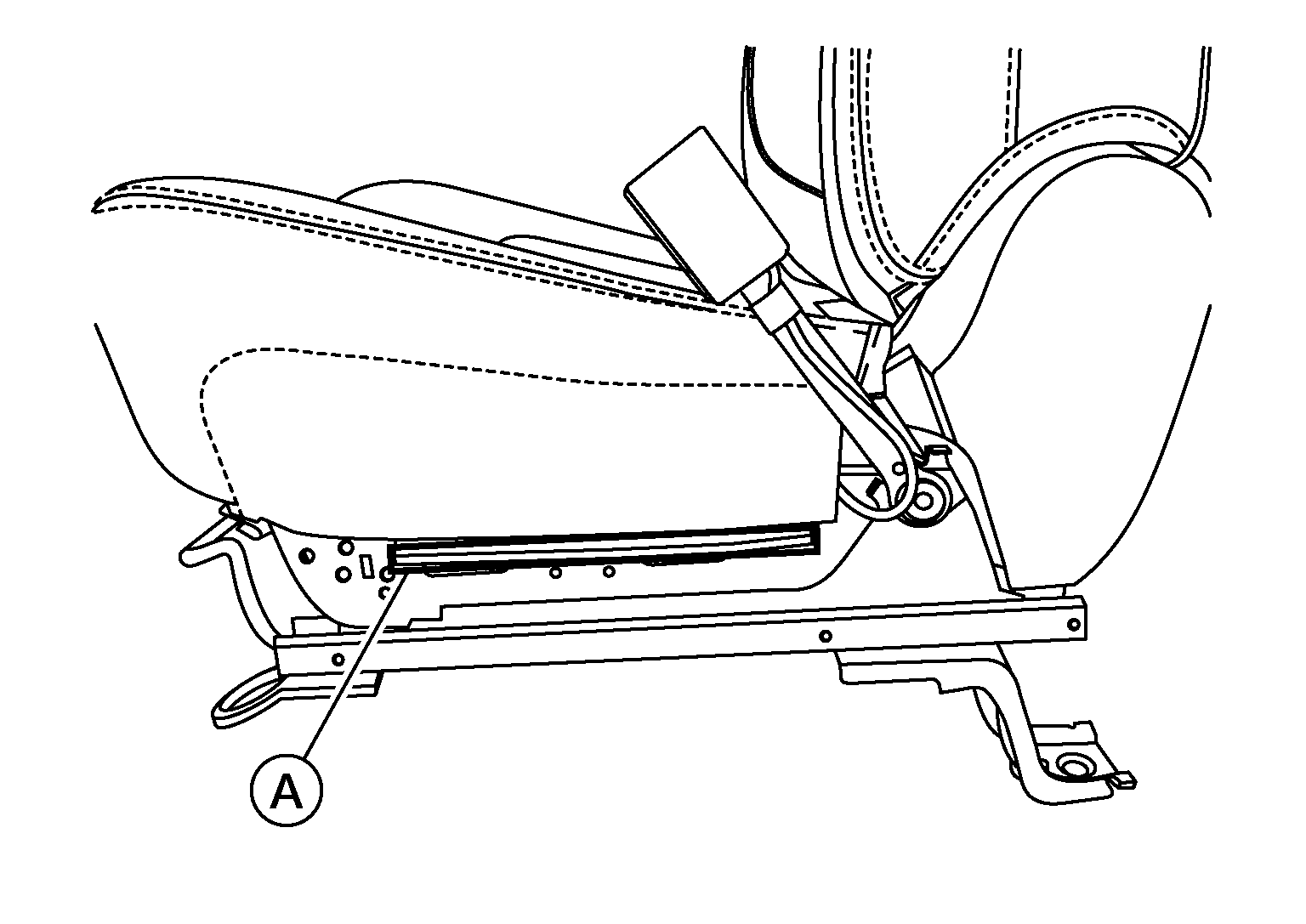

  8. Release the seat cushion trim J-hook (A) from the LH side of the seat cushion frame.
    GNSALJIA1945Z-945Courtesy of NISSAN NORTH AMERICA, INC.

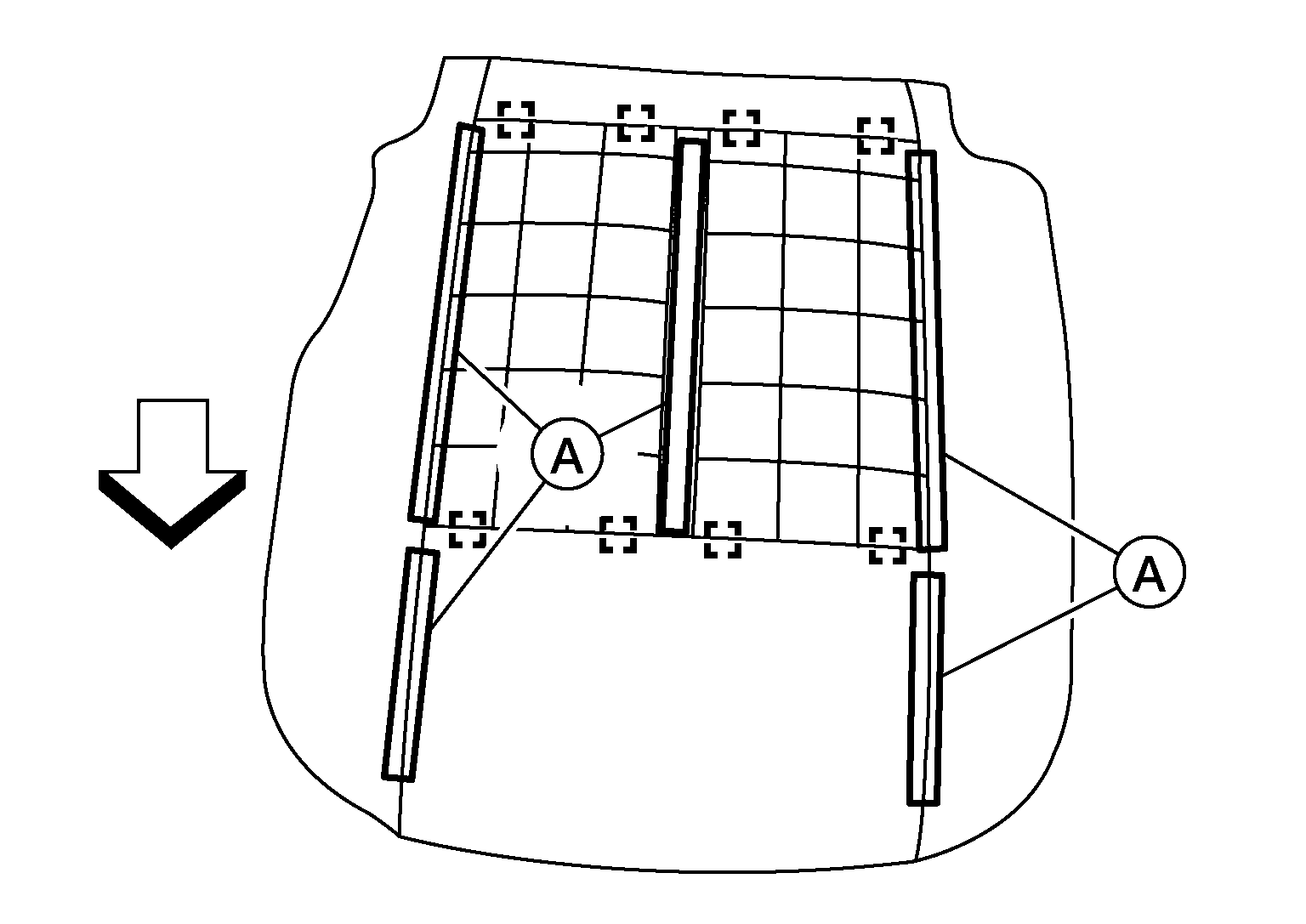

  9. Release fasteners (A) then remove hog rings and separate the seat cushion trim from the seat cushion pad.
    GNSALJIA1939Z-939Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Hog ring

    SYMBOL

    : Front
    CAUTION: Remove all pieces of hog rings and discard them.
  10. Remove seat cushion heater (if necessary). Refer to Removal and Installation .
