Exploded View
|

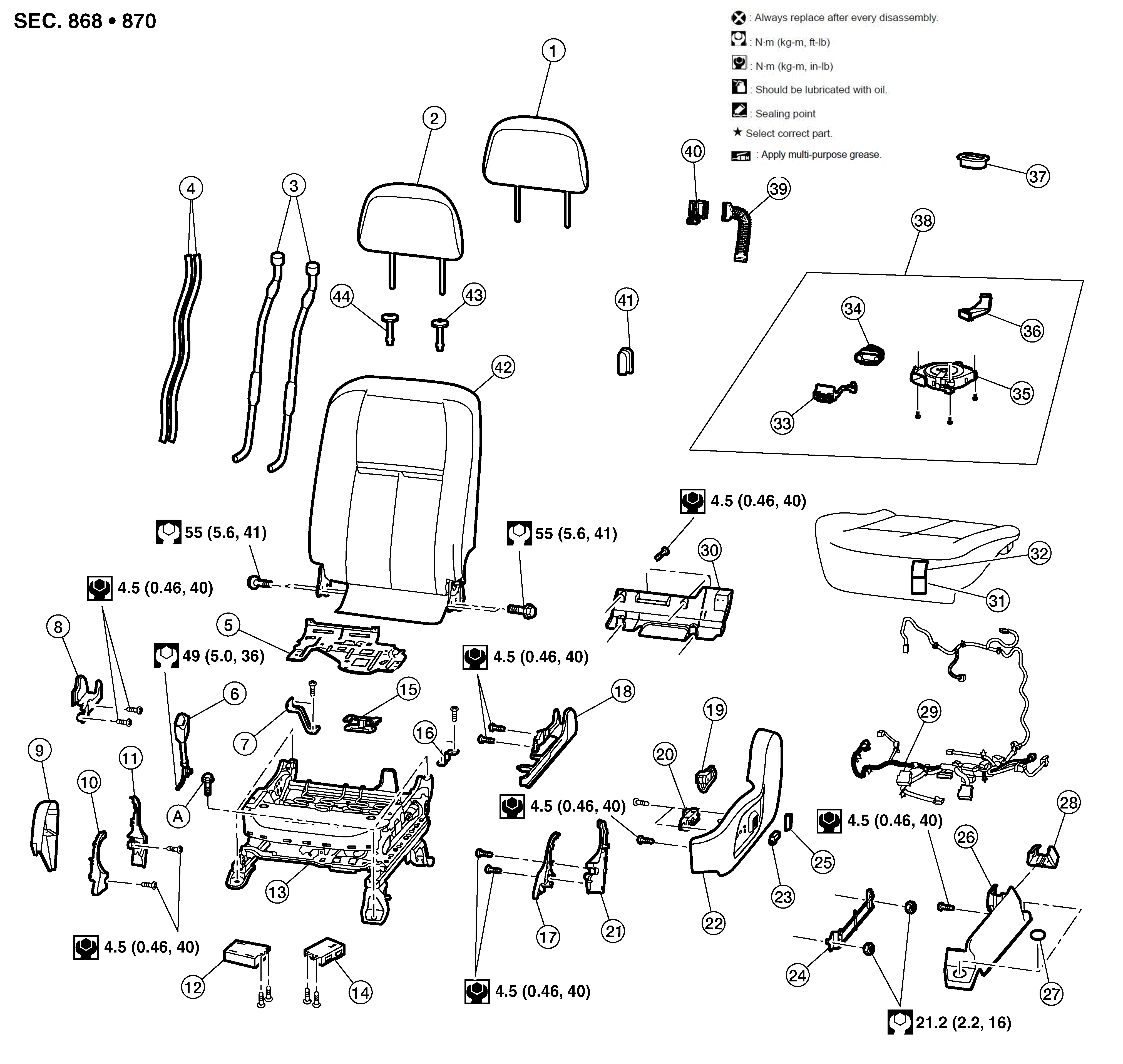

1. |
Headrest assembly with display unit (if equipped) |
2. |
Headrest assembly without display unit |
3. |
Harness guides (if equipped) |
|
4. |
Headrest assembly with display unit harnesses (if equipped) |
5. |
Climate controlled seat blower assembly bracket |
6. |
Seat belt buckle |
|
7. |
Thermal electric device bracket (RH) |
8. |
Rear slide finisher (RH) |
9. |
Seat cushion outer finisher (RH) |
|
10. |
Seat cushion front inner finisher (RH) |
11. |
Seat cushion rear inner finisher (RH) |
12. |
Driver seat control unit |
|
13. |
Seat cushion frame |
14. |
Climate controlled seat control unit |
15. |
Thermal electric device bracket (center) |
|
16. |
Thermal electric device bracket (LH) |
17. |
Seat cushion front inner finisher (LH) |
18. |
Seat slide finisher (LH) |
|
19. |
Lumbar support switch |
20. |
Power seat switch |
21. |
Seat cushion rear inner finisher (LH) |
|
22. |
Seat cushion outer finisher (LH) |
23. |
Seat slide knob |
24. |
Seat leg finisher bracket |
|
25. |
Recline knob |
26. |
Leg finisher |
27. |
Bolt cover |
|
28. |
Rear slide finisher (LH) |
29. |
Seat harness |
30. |
Lower rear cover |
|
31. |
Seat cushion pad |
32. |
Seat cushion trim |
33. |
Seat cushion thermal electric device |
|
34. |
Lower blower duct |
35. |
Climate controlled seat blower motor |
36. |
Angle duct |
|
37. |
Seat cushion thermal electric device nozzle |
38. |
Climate controlled seat blower motor assembly |
39. |
Upper blower duct |
|
40. |
Seatback thermal electric device |
41. |
Seatback thermal electric device nozzle |
42. |
Seatback assembly |
|
43. |
Headrest holder (locked) |
44. |
Headrest holder (free) |
A. |
Refer to Removal and Installation |
|

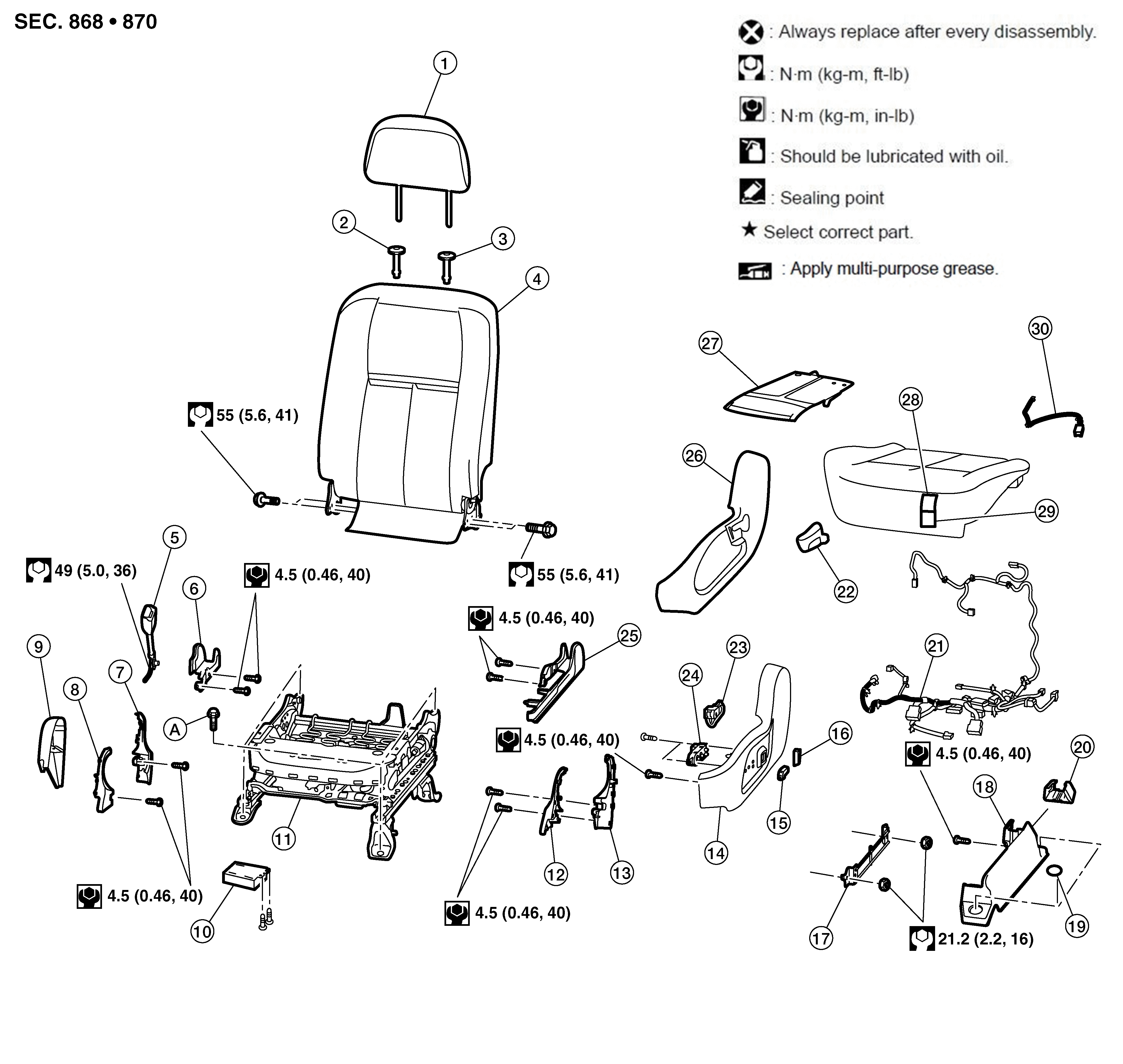

1. |
Headrest |
2. |
Headrest holder (free) |
3. |
Headrest holder (locked) |
|
4. |
Seatback assembly |
5. |
Seat belt buckle |
6. |
Rear slide finisher (RH) |
|
7. |
Seat cushion rear inner finisher (RH) |
8. |
Seat cushion front inner finisher (RH) |
9. |
Seat cushion outer finisher (RH) |
|
10. |
Driver seat control unit (if equipped) |
11. |
Seat cushion frame |
12. |
Seat cushion front inner finisher (LH) |
|
13. |
Seat cushion rear inner finisher (LH) |
14. |
Seat cushion outer finisher [LH (with power seat)] |
15. |
Seat slide knob (with power seat) |
|
16. |
Recline knob (with power seat) |
17. |
Leg finisher bracket |
18. |
Leg finisher |
|
19. |
Bolt cover |
20. |
Rear slide finisher (LH) |
21. |
Seat harness (with power seat) |
|
22. |
Recline lever (with manual seat) |
23. |
Lumbar support switch (with power seat) |
24. |
Power seat switch |
|
25. |
Slide finisher (LH) |
26. |
Seat cushion outer finisher [LH (with manual seat)] |
27. |
Seat cushion heater (if equipped) |
|
28. |
Seat cushion trim |
29. |
Seat cushion pad |
30. |
Seat harness (with manual seat) |
|
A. |
Refer to Removal and Installation |
|

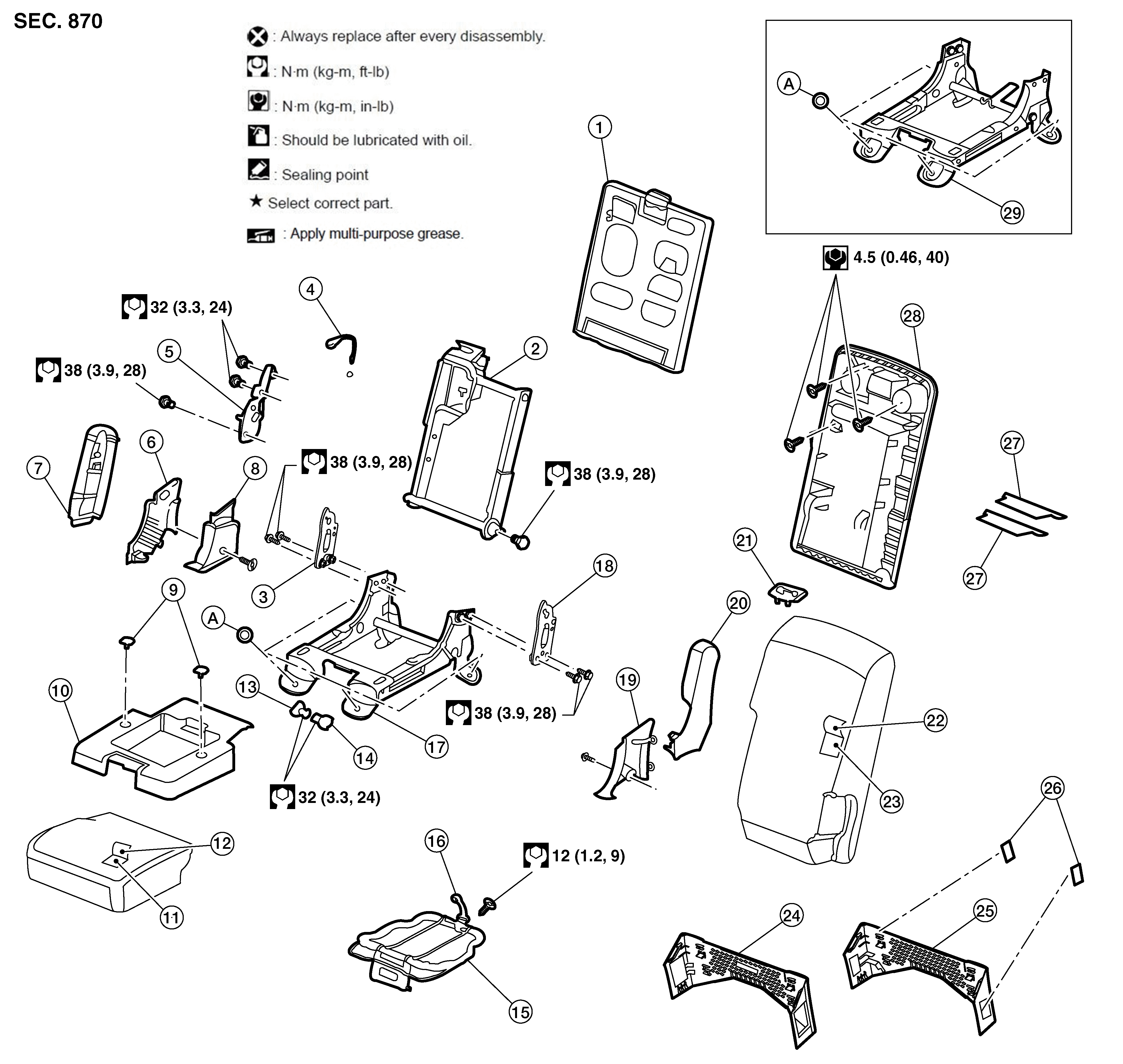

1. |
Armrest lid |
2. |
Armrest frame |
3. |
Armrest pivot arm bracket (RH) |
|
4. |
Armrest release strap |
5. |
Armrest pivot arm |
6. |
Armrest outer lower pivot finisher (RH) |
|
7. |
Armrest outer upper pivot finisher (RH) |
8. |
Armrest inner lower pivot finisher (RH) |
9. |
Rubber bumper (LH/RH) |
|
10. |
Storage bin |
11. |
Seat cushion pad |
12. |
Seat cushion trim |
|
13. |
Storage bin stopper (RH) |
14. |
Storage bin stopper (LH) |
15. |
Seat cushion frame |
|
16. |
Seat cushion strap |
17. |
Storage bin frame (with rear seat) |
18. |
Armrest pivot arm bracket (LH) |
|
19. |
Armrest inner pivot finisher (LH) |
20. |
Armrest outer pivot finisher (LH) |
21. |
Seat belt guide |
|
22. |
Armrest trim |
23. |
Armrest pad |
24. |
Rear leg finisher (without rear seat) |
|
25. |
Rear leg finisher (with rear seat) |
26. |
Rear leg finisher caps |
27. |
Drawer divider |
|
28. |
Armrest drawer |
29. |
Storage bin frame (without rear seat) |
A. |
Refer to Removal and Installation |
|

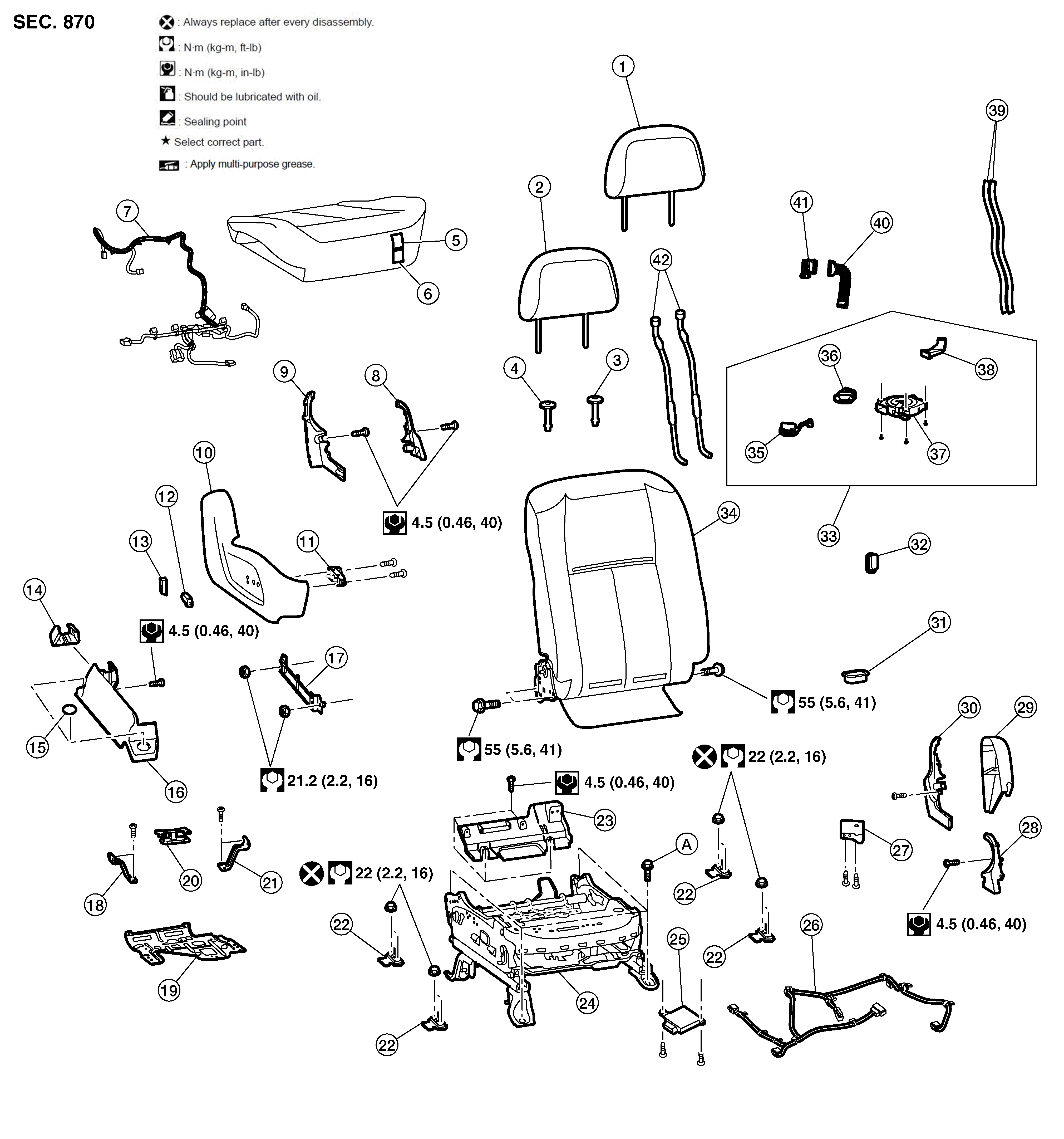

1. |
Headrest assembly with display unit (if equipped) |
2. |
Headrest assembly without display unit |
3. |
Headrest holder (locked) |
|
4. |
Headrest holder (free) |
5. |
Seat cushion trim |
6. |
Seat cushion pad |
|
7. |
Seat harness |
8. |
Seat cushion front inner finisher (RH) |
9. |
Seat cushion rear inner finisher (RH) |
|
10. |
Seat cushion outer finisher (RH) |
11. |
Power seat switch |
12. |
Slide knob |
|
13. |
Recline knob |
14. |
Rear slide finisher (RH) |
15. |
Bolt cover |
|
16. |
Leg finisher |
17. |
Leg finisher bracket |
18. |
Thermal electric device bracket (RH) |
|
19. |
Climate controlled seat blower assembly bracket |
20. |
Thermal electric device bracket (center) |
21. |
Thermal electric device bracket (LH) |
|
22. |
Occupant classification system sensor (Non-XD Models) |
23. |
Lower rear cover |
24. |
Seat cushion frame |
|
25. |
Occupant classification system control unit (Non-XD Models) |
26. |
Occupant classification system harness (Non-XD Models) |
27. |
Climate controlled seat control unit |
|
28. |
Seat cushion front inner finisher (LH) |
29. |
Seat cushion outer finisher (LH) |
30. |
Seat cushion rear inner finisher (LH) |
|
31. |
Seat cushion thermal electric device nozzle |
32. |
Seatback thermal electric device nozzle |
33. |
Climate controlled seat blower motor assembly |
|
34. |
Seatback assembly |
35. |
Seat cushion thermal electric device |
36. |
Lower blower duct |
|
37. |
Climate controlled seat blower motor |
38. |
Angle duct |
39. |
Harness guides (if equipped) |
|
40. |
Upper blower duct |
41. |
Seatback thermal electric device |
42. |
Headrest with display unit harnesses (if equipped) |
|
A. |
Refer to Removal and Installation |
|

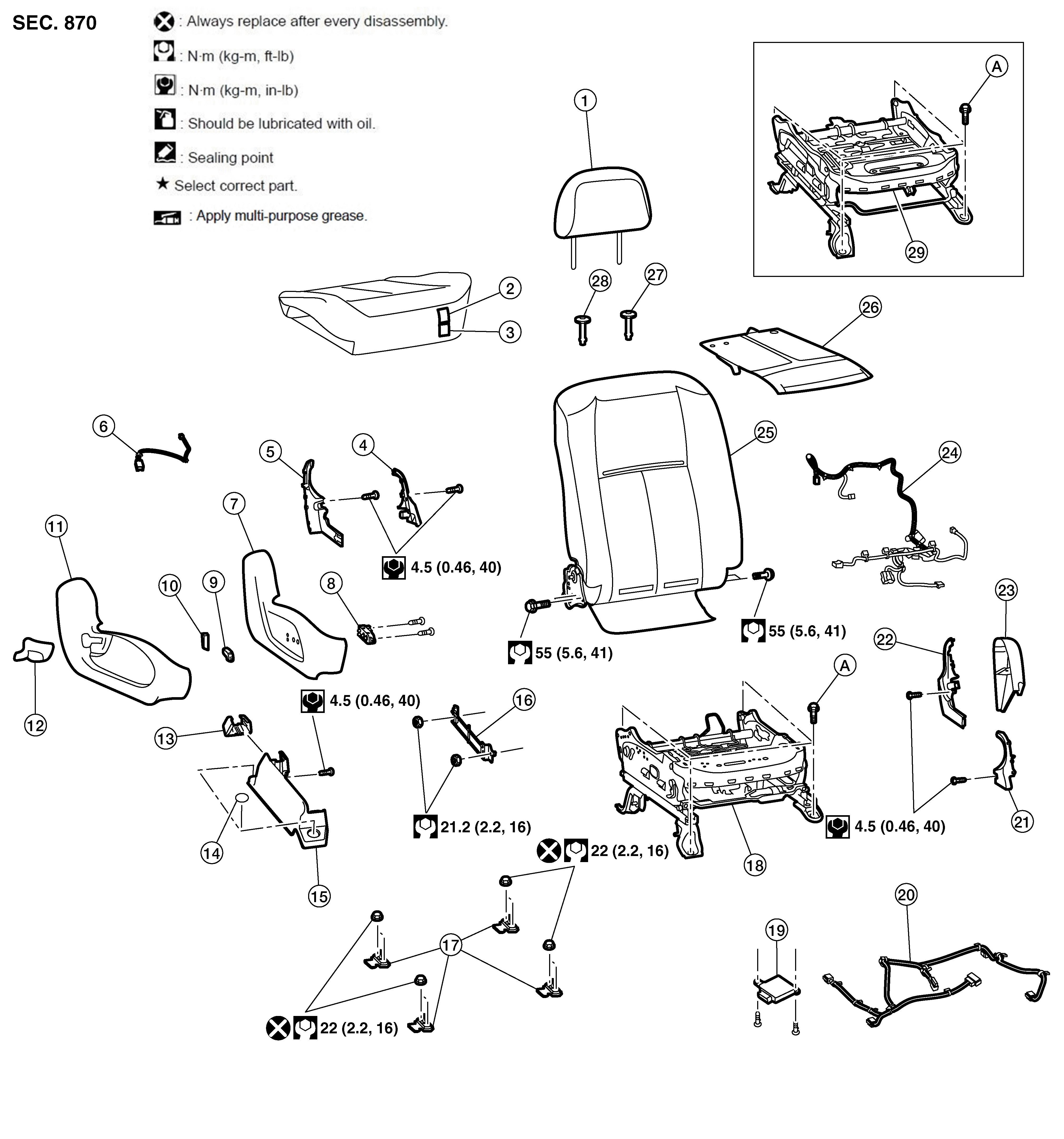

1. |
Headrest |
2. |
Seat cushion trim |
3. |
Seat cushion pad |
|
4. |
Seat cushion front inner finisher (RH) |
5. |
Seat cushion front outer finisher (RH) |
6. |
Seat harness (with manual seat) |
|
7. |
Seat cushion outer finisher [RH (with power seat)] |
8. |
Power seat switch |
9. |
Seat slide knob (with power seat) |
|
10. |
Recline knob (with power seat) |
11. |
Seat cushion outer finisher [RH (with manual seat)] |
12. |
Recline lever (with manual seat) |
|
13. |
Rear slide finisher (RH) |
14. |
Bolt cover |
15. |
Leg finisher |
|
16. |
Leg finisher bracket |
17. |
Occupant classification system sensor (Non-XD Models) |
18. |
Seat cushion frame (with rear seat) |
|
19. |
Occupant classification system control unit (Non-XD Models) |
20. |
Occupant classification system harness (Non-XD Models) |
21. |
Seat cushion front inner finisher (LH) |
|
22. |
Seat cushion rear inner finisher (LH) |
23. |
Seat cushion outer finisher (LH) |
24. |
Seat harness (with power seat) |
|
25. |
Seatback assembly |
26. |
Seat cushion heater (if equipped) |
27. |
Headrest holder (locked) |
|
28. |
Headrest holder (free) |
29. |
Seat cushion frame (without rear seat) |
A. |
Refer to Removal and Installation |
