Center Seat: Seatback: Disassembly

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Always work from the side or back of the seatback, do not work in front of seat.
Do not use air tools or electric tools for servicing the seat assembly.

Remove front center seat. Refer to Removal and Installation - Center Seat .

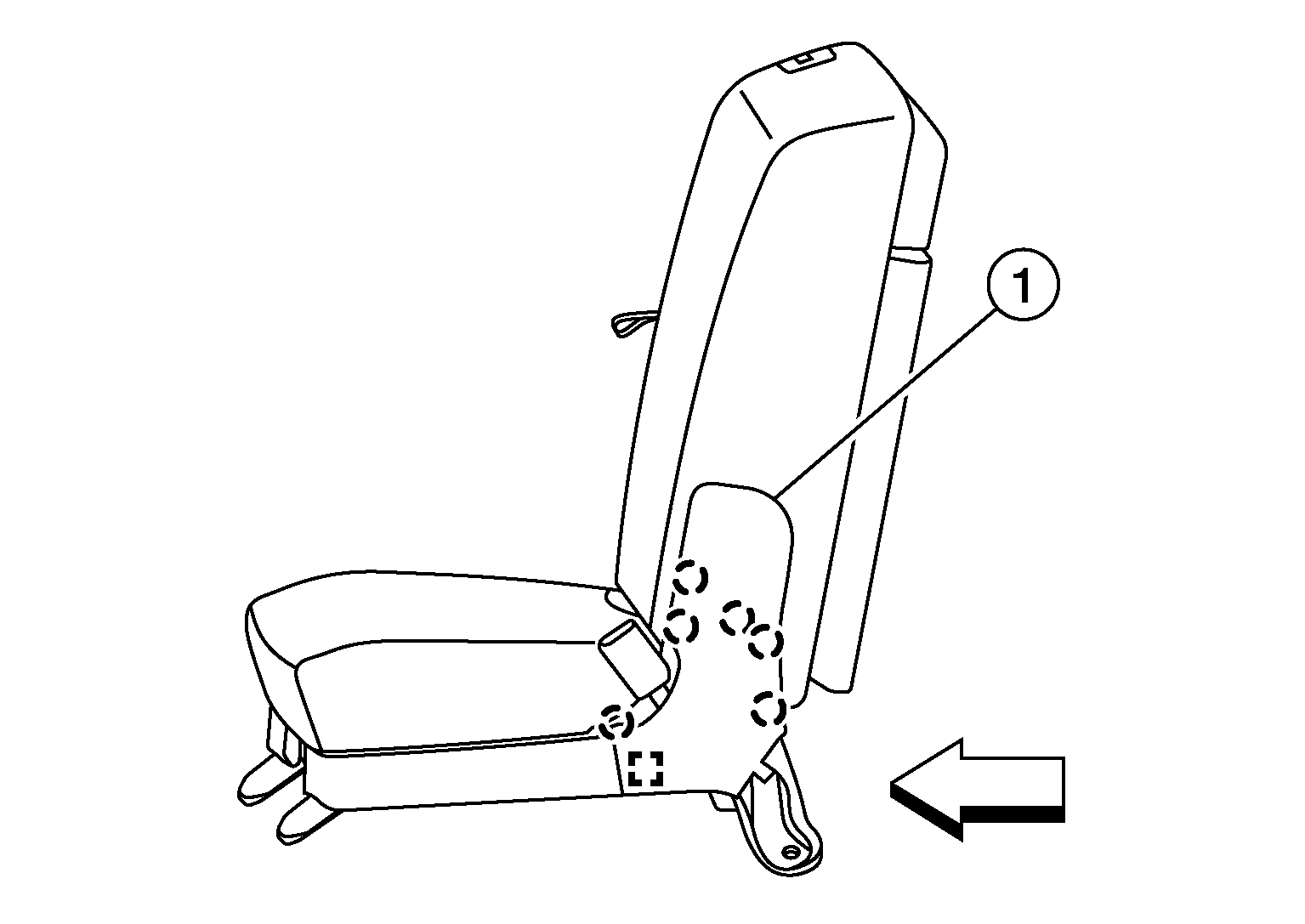

Release metal clips and pawls, then remove rear leg finisher (1).

NOTE: With rear seat shown without rear seat similar.

Courtesy of NISSAN NORTH AMERICA, INC.

	: Pawl
	: Metal clip
	: Front

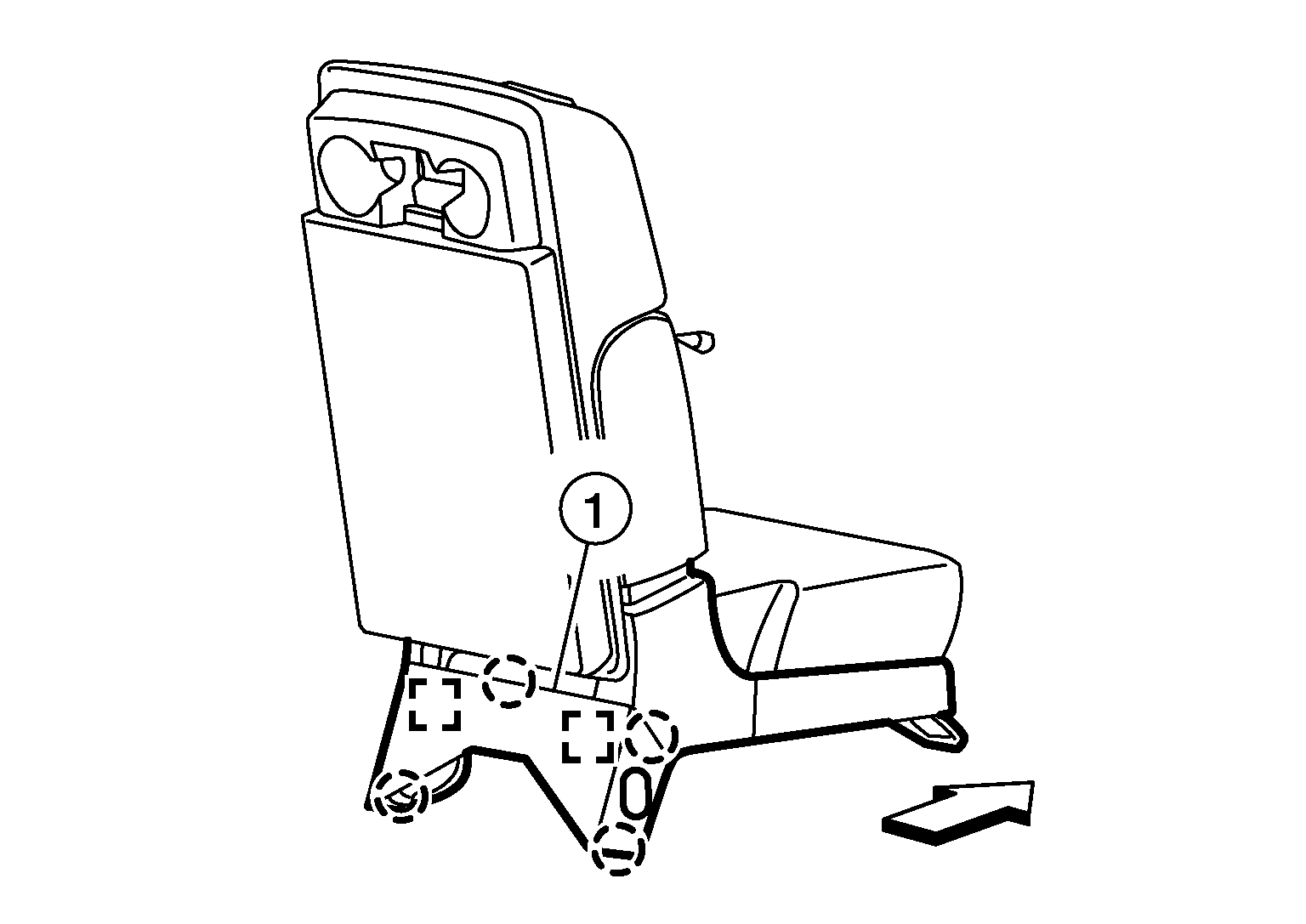

Release metal clip and pawls, then remove armrest outer upper pivot finisher [RH (1)].

Courtesy of NISSAN NORTH AMERICA, INC.

	: Pawl
	: Metal clip

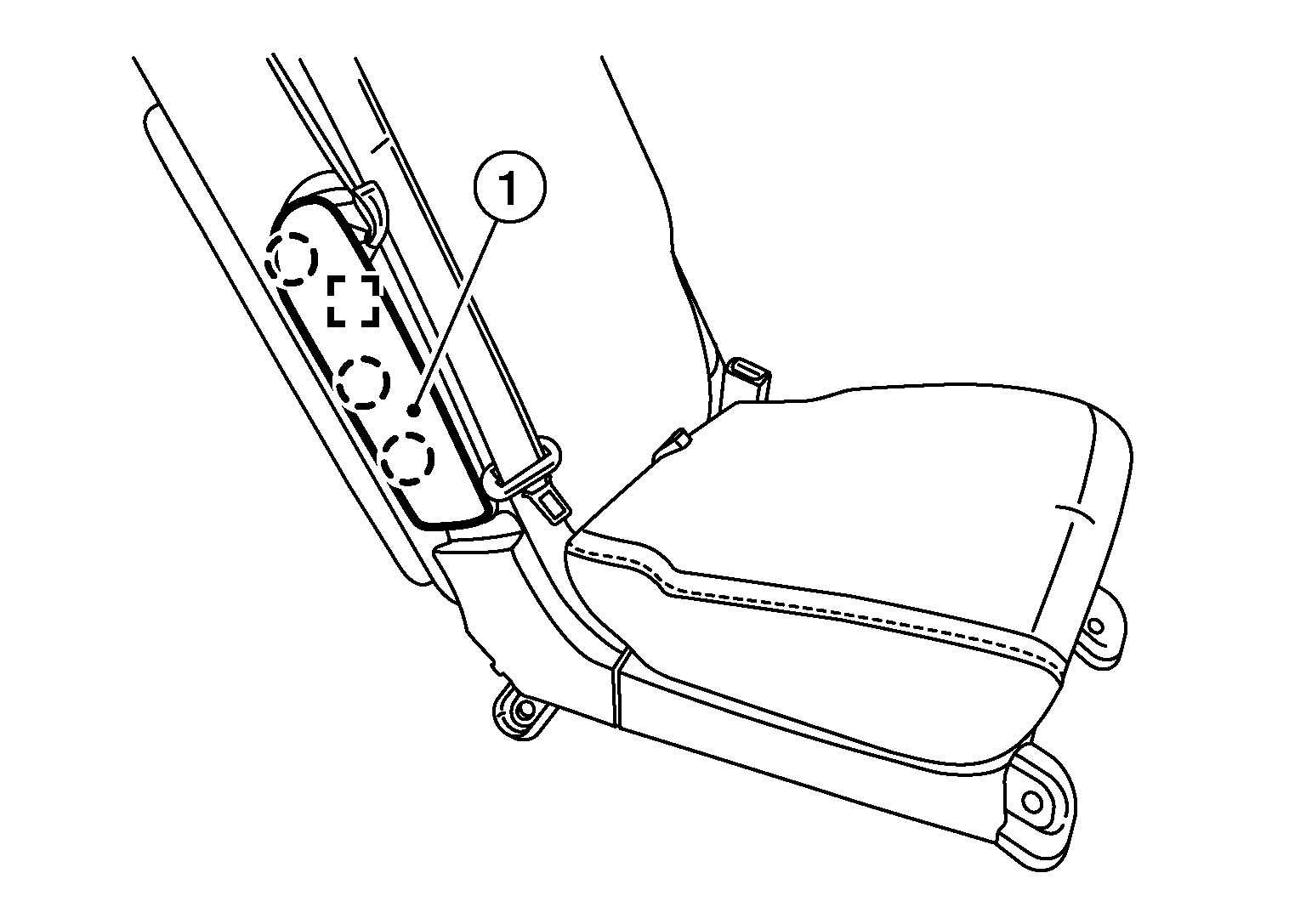

Release pawls and metal clip, then remove armrest outer pivot finisher [LH (1)].

Courtesy of NISSAN NORTH AMERICA, INC.

	: Pawl
	: Metal clip
	: Front

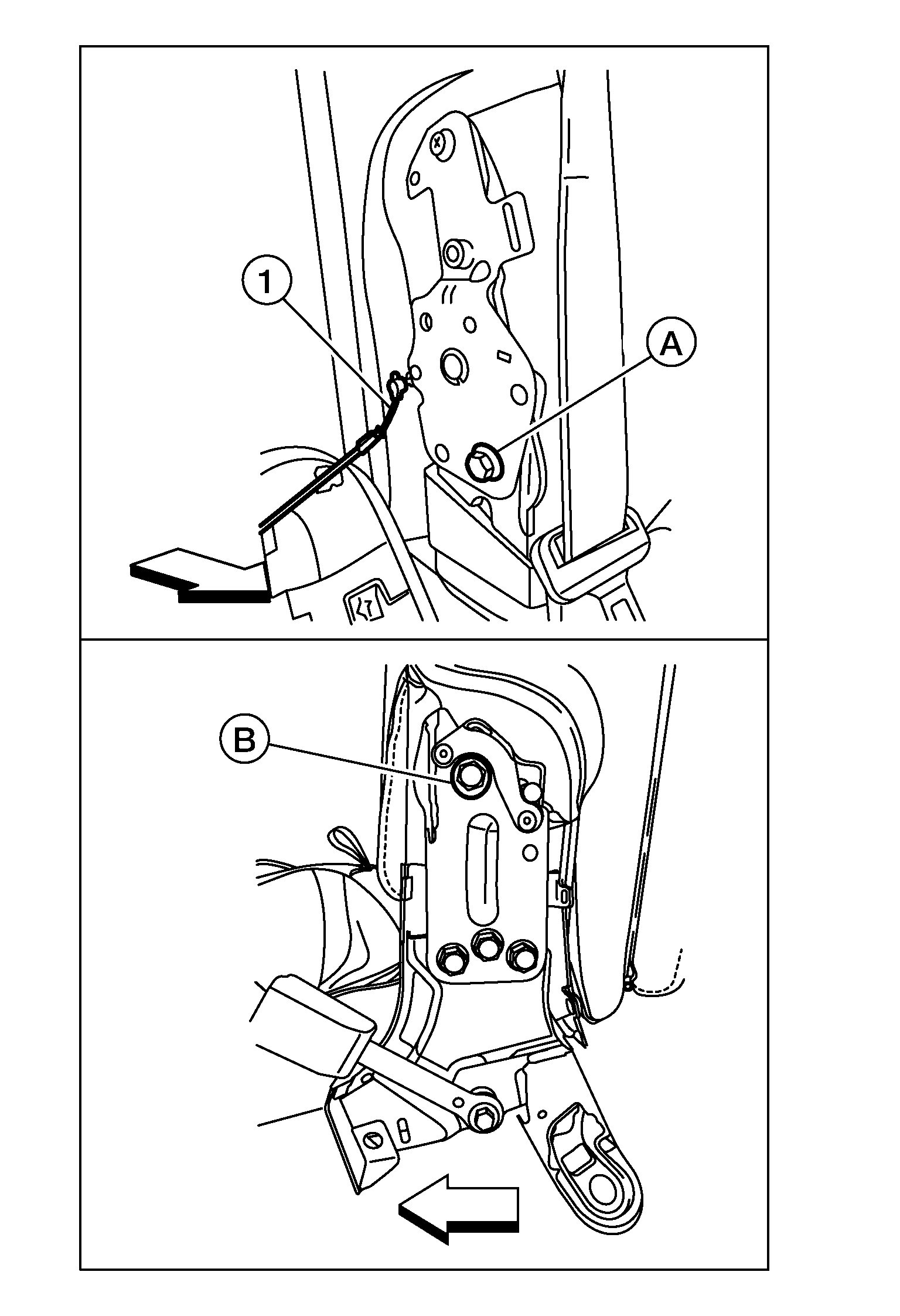

Remove armrest release strap (1), then remove armrest pivot bolts (A, B) and remove armrest.

Courtesy of NISSAN NORTH AMERICA, INC.

: Front

Remove armrest inner and outer pivots (RH) using the following procedure:

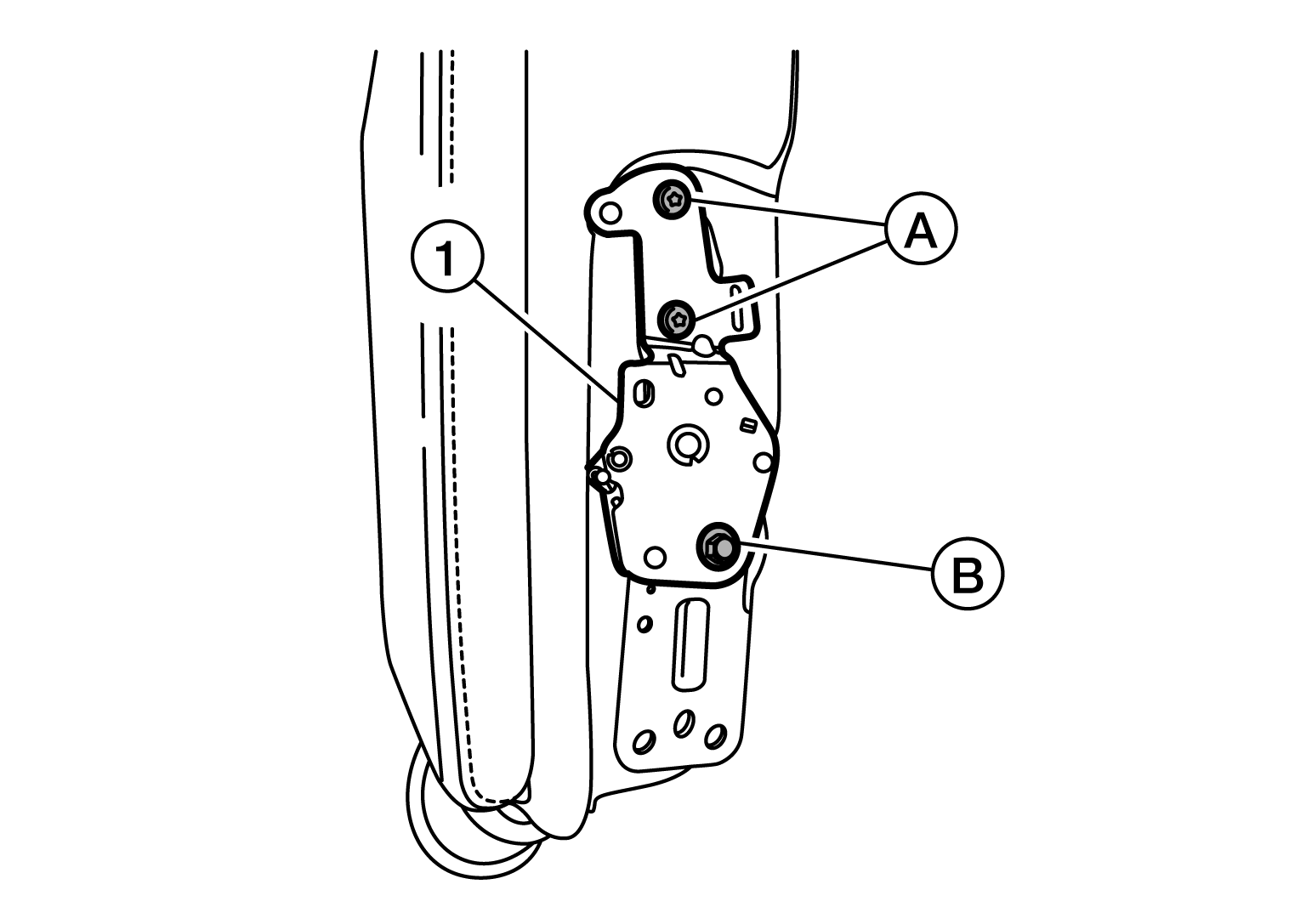

Remove screws (A) and bolt (B) from armrest pivot arm (1), then remove armrest pivot arm.

Courtesy of NISSAN NORTH AMERICA, INC.

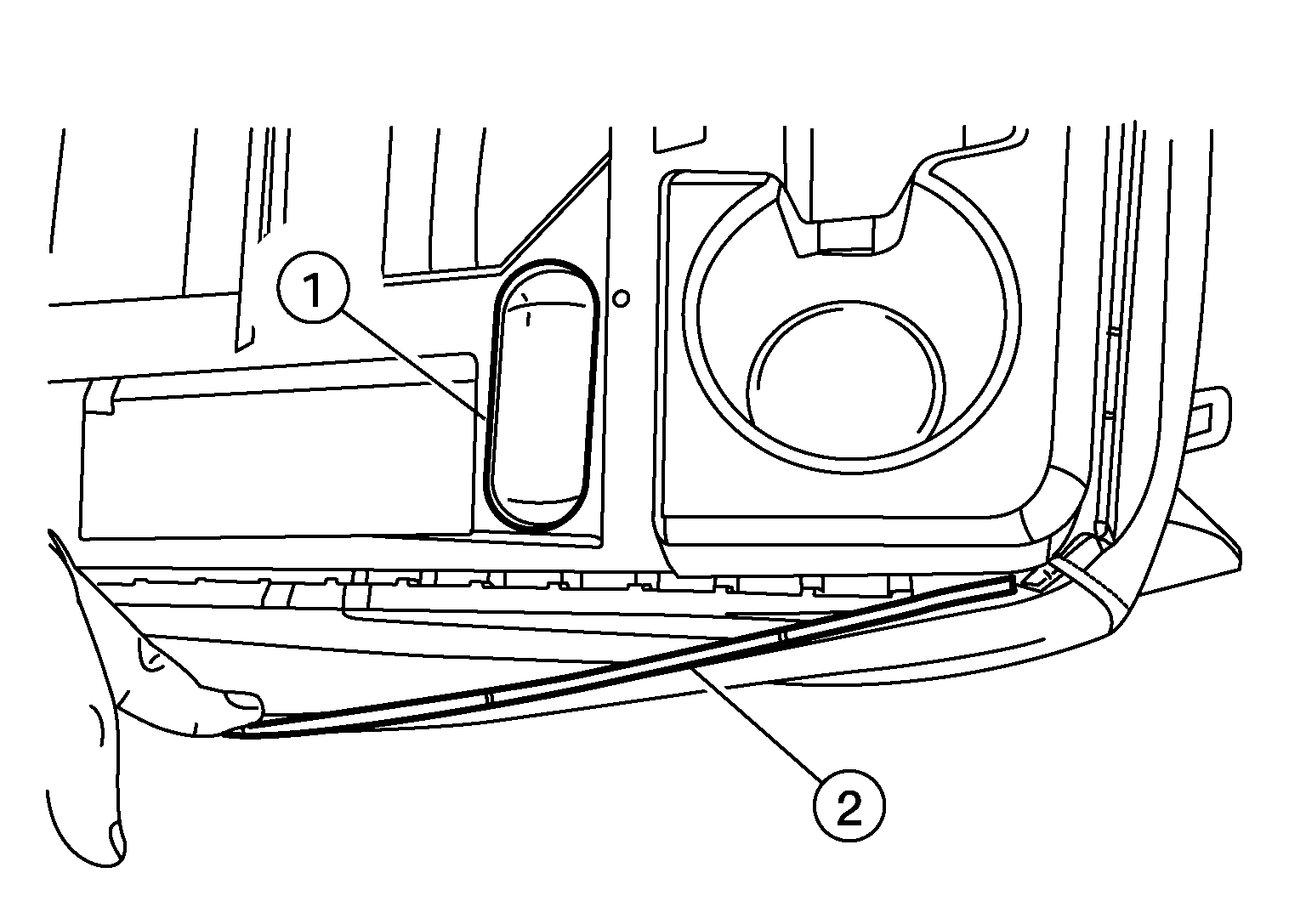

Lift the armrest lid, then release armrest trim (2) from around the armrest drawer (1) and remove the armrest trim and the armrest pad from the armrest frame.

Courtesy of NISSAN NORTH AMERICA, INC.
Separate the armrest trim from the armrest pad.
Remove three screws and remove the seat belt guide from the armrest frame.

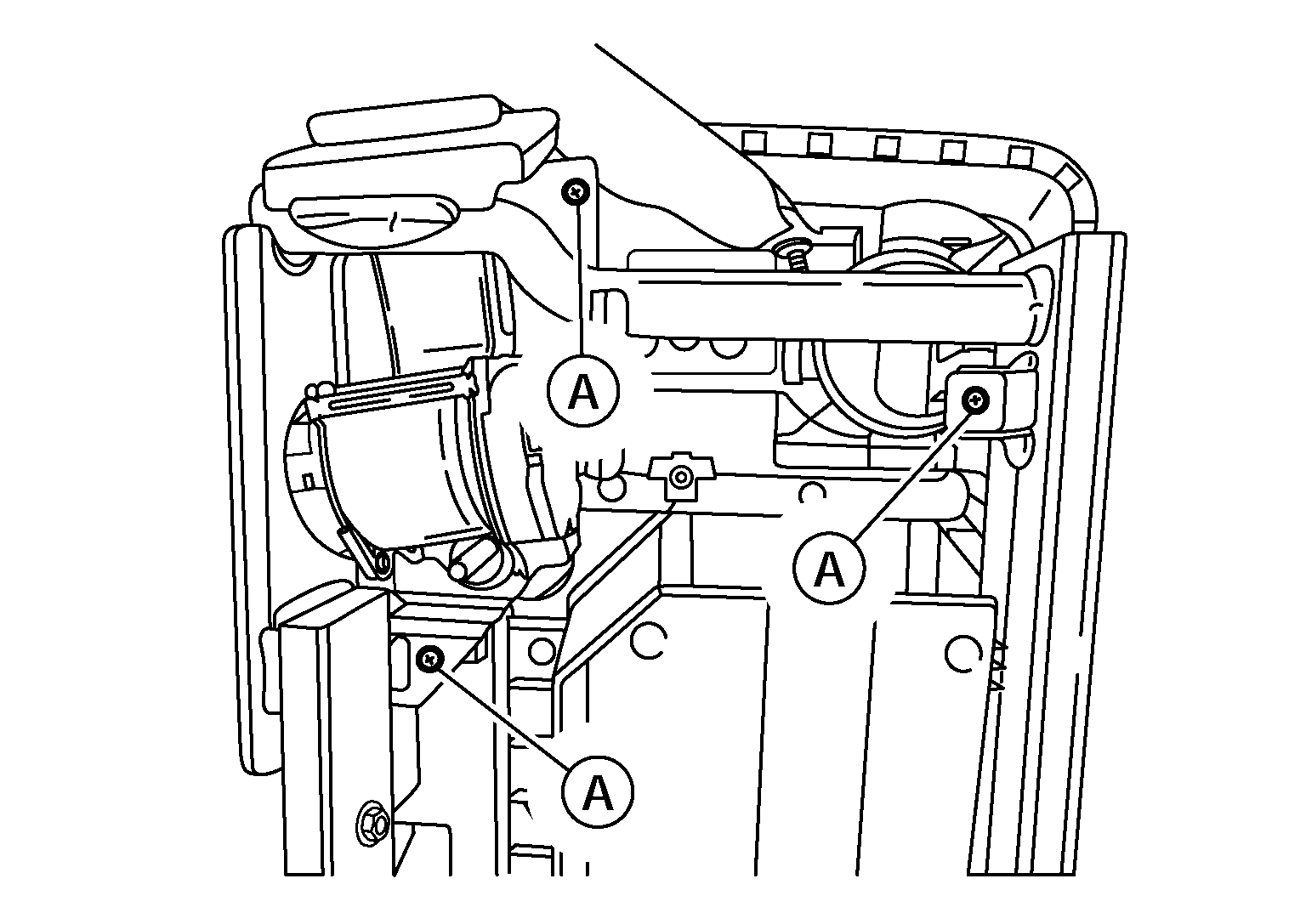

Remove screws (A), then remove armrest lid and armrest drawer as an assembly from the armrest frame.

Courtesy of NISSAN NORTH AMERICA, INC.

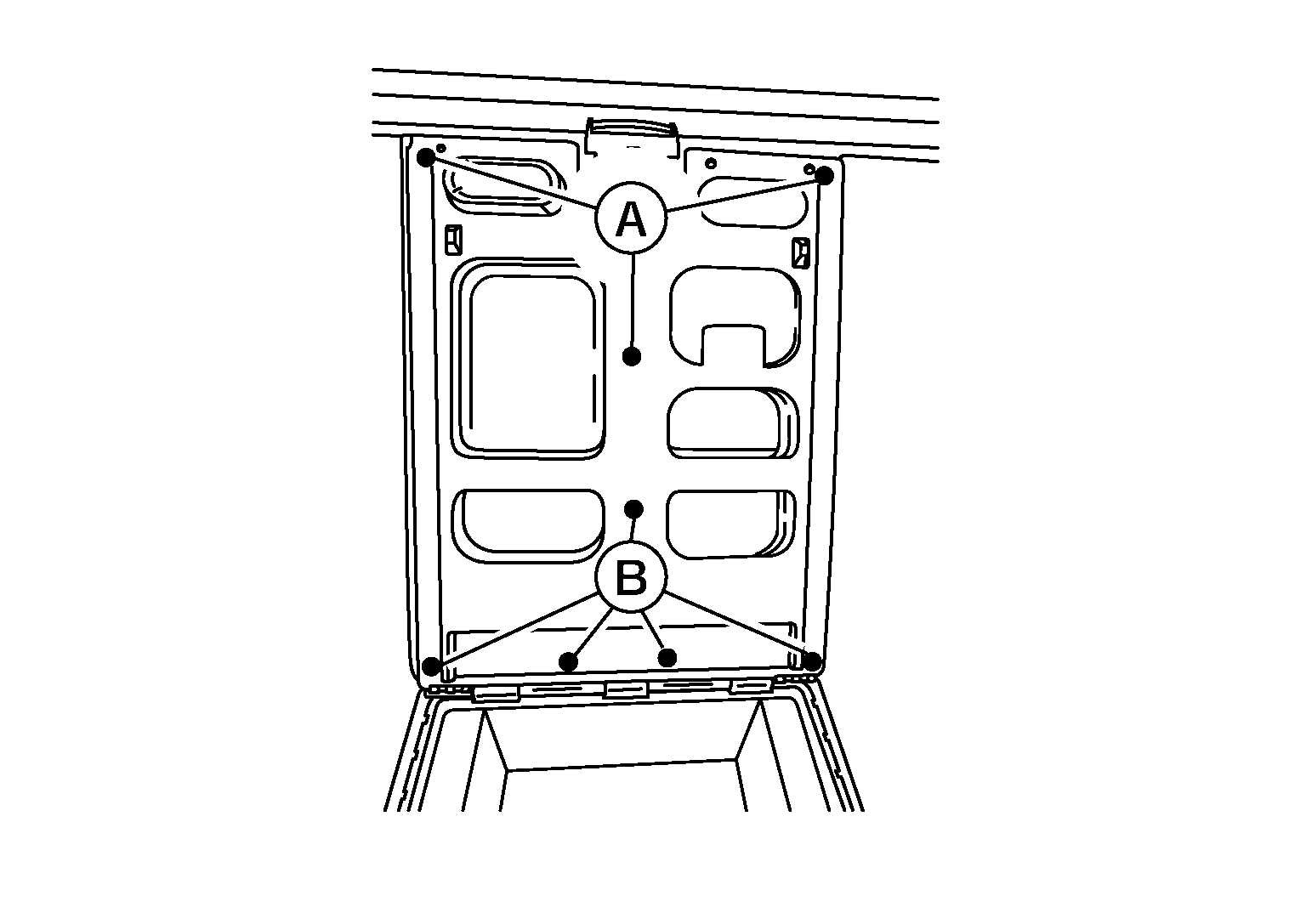

Remove screws (A, B), then separate the armrest lid from the armrest drawer.
