Seat Cushion: Disassembly

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Remove front center seat. Refer to Removal and Installation - Center Seat .

Release metal clip and pawls, then remove armrest outer upper pivot finisher [RH (1)].

Courtesy of NISSAN NORTH AMERICA, INC.

	: Pawl
	: Metal clip

Release metal clips and pawls, then remove rear leg finisher (1).

NOTE: With rear seat shown without rear seat similar.

Courtesy of NISSAN NORTH AMERICA, INC.

	: Pawl
	: Metal clip
	: Front

Release pawls and metal clip, then remove armrest outer pivot finisher [LH (1)].

Courtesy of NISSAN NORTH AMERICA, INC.

	: Pawl
	: Metal clip
	: Front

Remove armrest release strap (1), then remove armrest pivot bolts (A, B) and remove armrest.

Courtesy of NISSAN NORTH AMERICA, INC.

: Front

Release metal clip and pawls, then remove armrest outer lower finisher [RH (1)].

Courtesy of NISSAN NORTH AMERICA, INC.

	: Pawl
	: Metal clip

Lift seat cushion trim and perform the following procedure:

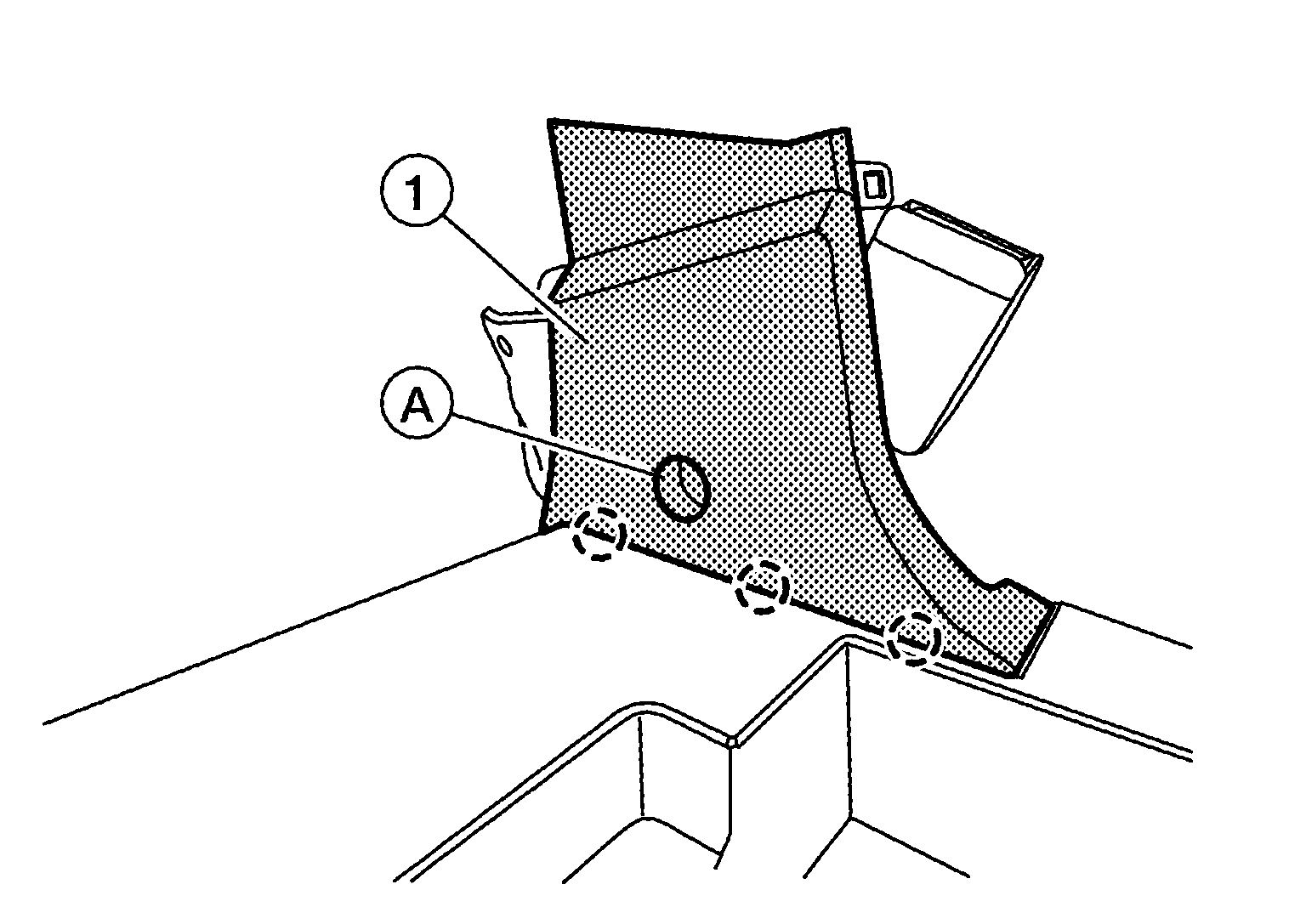

Release pawls, then remove screw (A) and armrest inner lower pivot finisher [LH (1)].

Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl

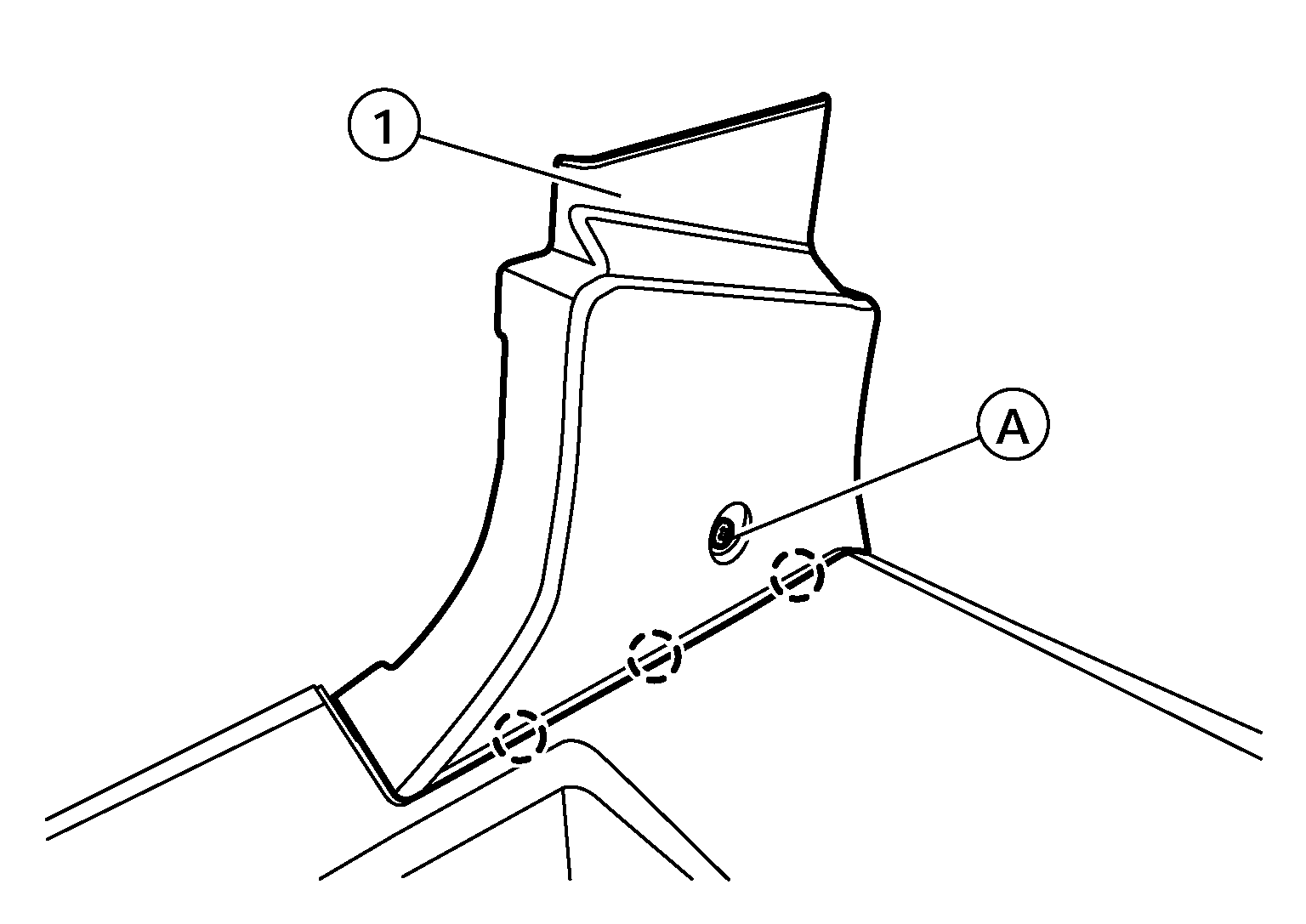

Release pawls, then remove screw (A) and armrest inner pivot finisher [RH (1)].

Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl

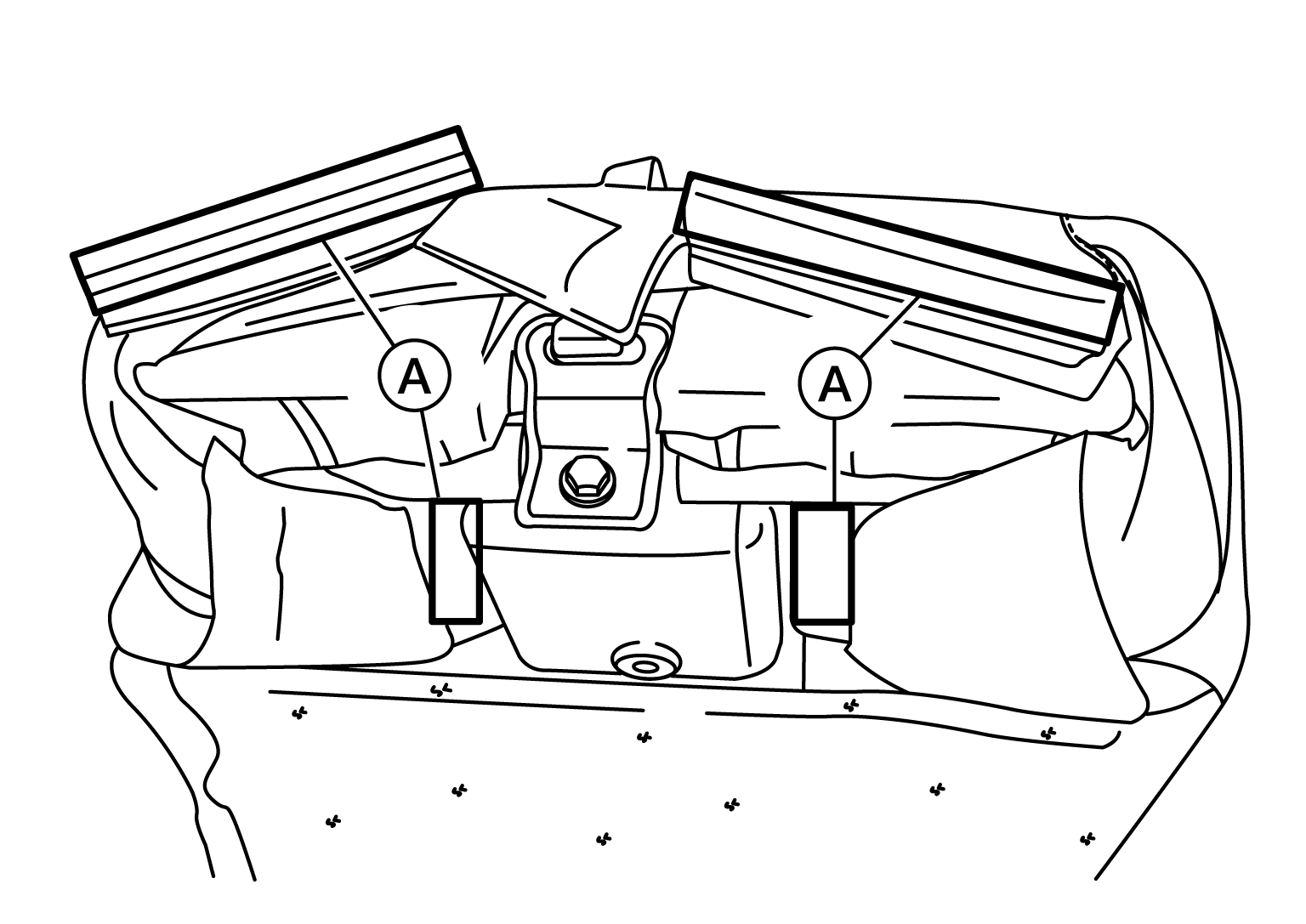

Remove rubber bumpers (RH/LH) from storage bin (if necessary).
Remove storage bin from storage bin frame.
Remove screws from storage bin stoppers (RH/LH), then remove seat cushion from storage bin frame.

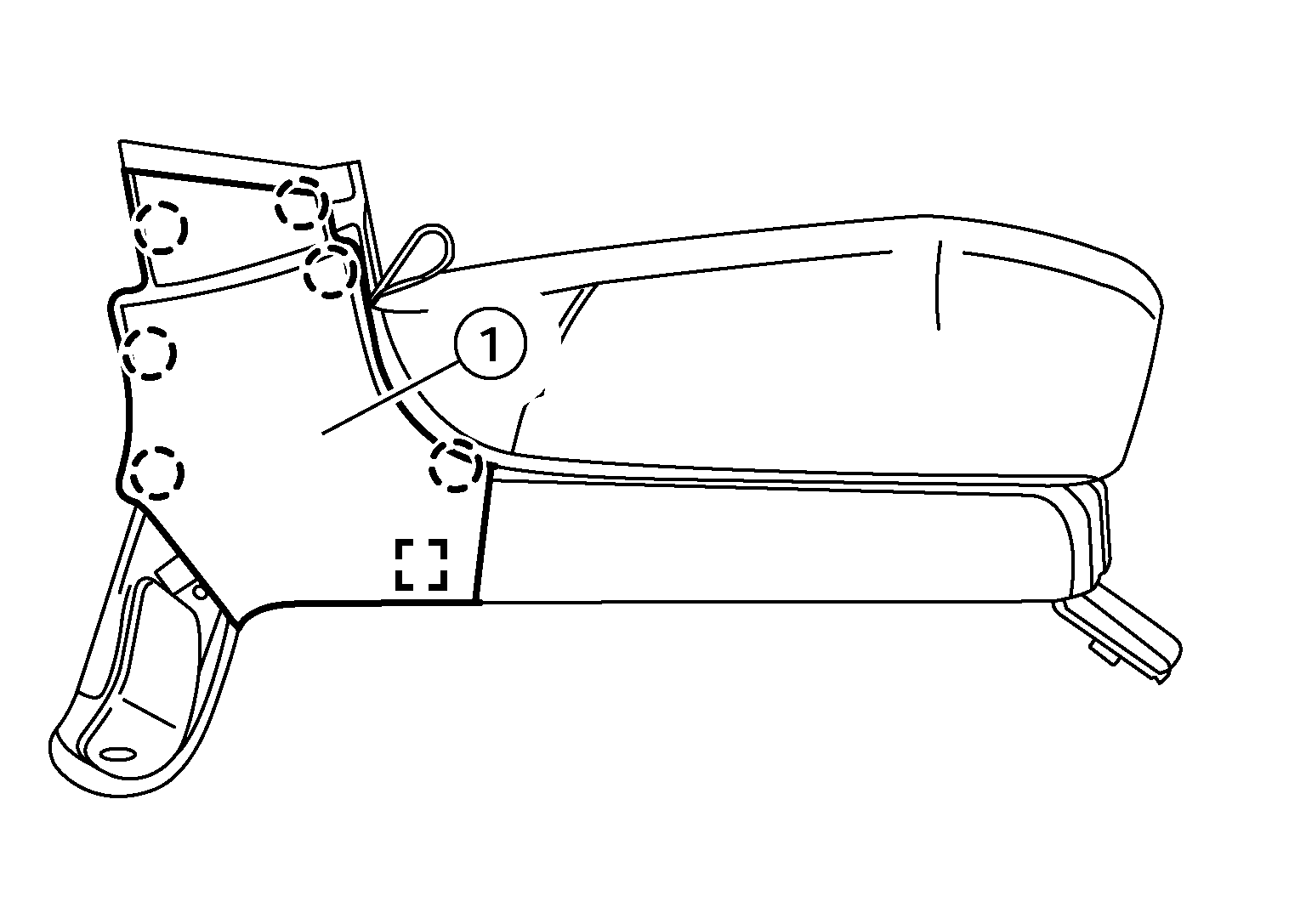

Release J-hooks (A) then remove seat cushion trim from seat cushion frame.

Courtesy of NISSAN NORTH AMERICA, INC.
