Component Parts Location
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|

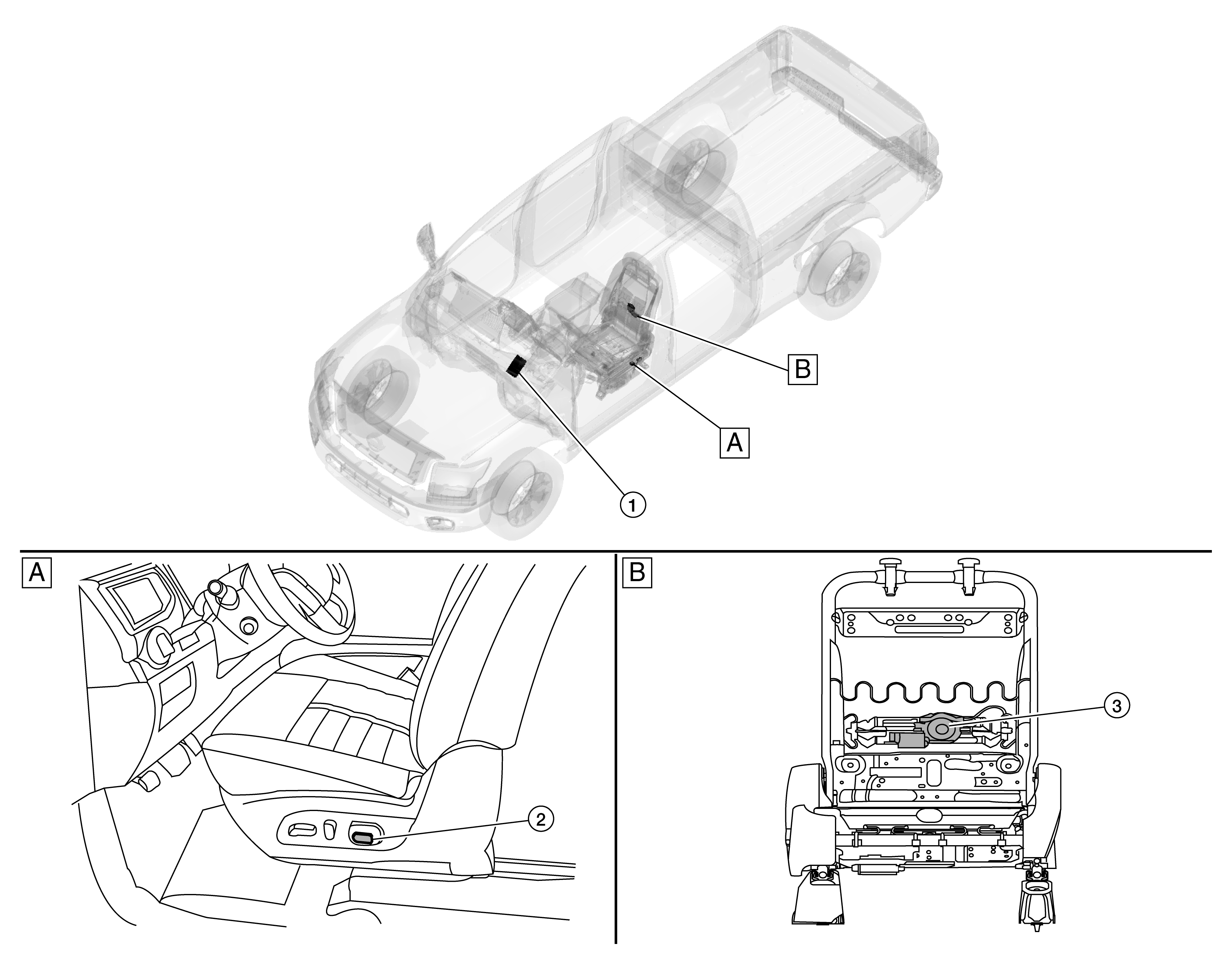

A. |
LH side of driver seat |
B. |
Back side of driver seat (view with seat removed) |
|
No. |
Component |
Function |
|
1. |
BCM |
Supplies power from battery to lumbar support switch (without automatic drive positioner). |
|
2. |
Lumbar support switch |
Refer to Lumbar Support Switch . |
|
3. |
Lumbar support motor |
Refer to Lumbar Support Motor . |
