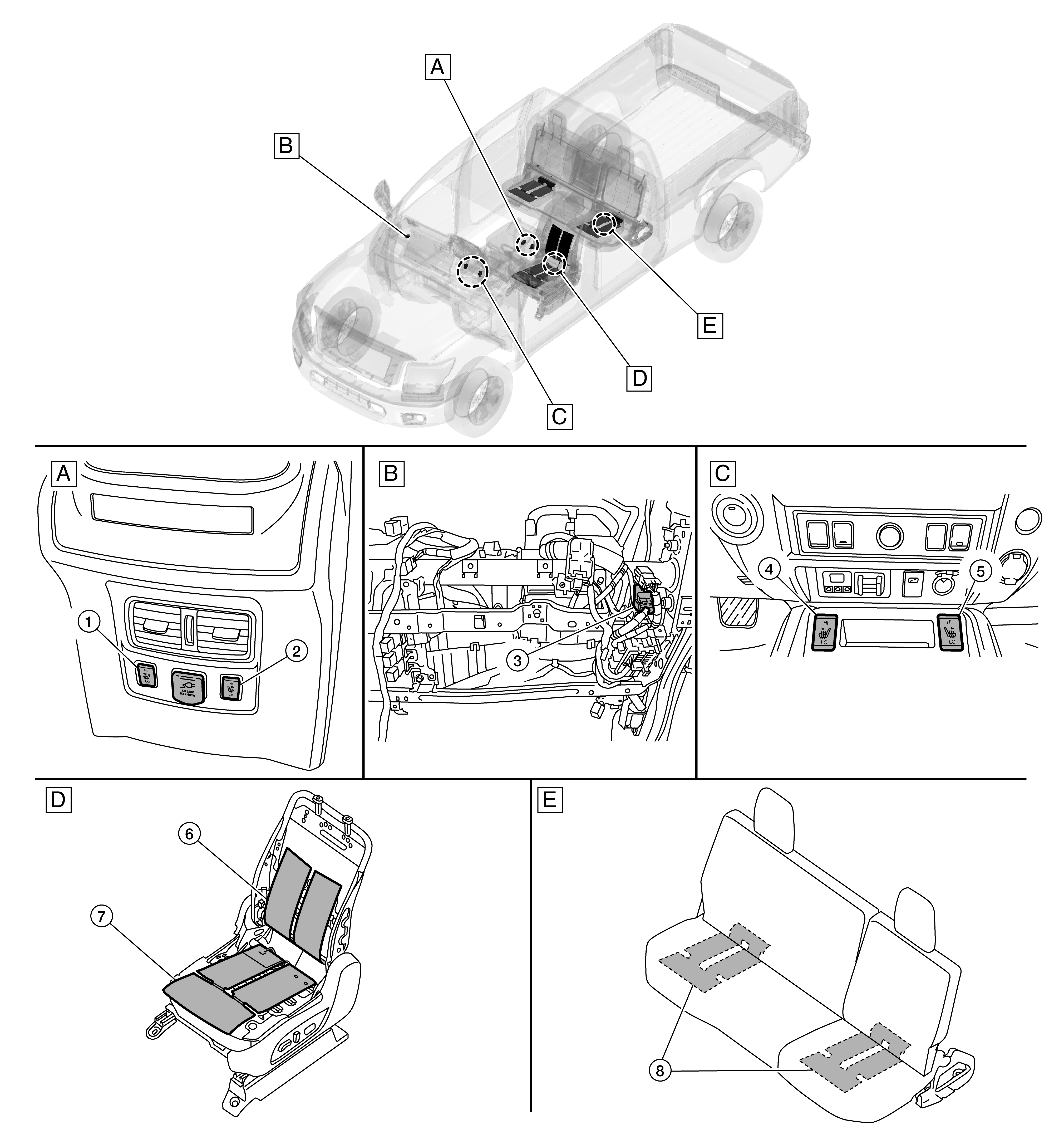

Component Parts Location
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|
A. |
Rear of center console |
B. |
Instrument panel RH (view with instrument panel removed) |
C. |
Front of center console |
|
D. |
Front seat (view with seat removed) |
E. |
Rear seats (view with seats removed) |
|
No. |
Component |
Function |
|
1. |
Rear heated seat switch LH |
Refer to Rear Heated Seat Switch . |
|
2. |
Rear heated seat switch RH |
|
|
3. |
Heated seat relay |
Supplies power to the front heated seat switches in accordance with the ignition switch position that is ON or OFF. |
|
4. |
Front heated seat switch LH |
Refer to Front Heated Seat Switch . |
|
5. |
Front heated seat switch RH |
|
|
6. |
Seat heater (back) |
Refer to Front Seat Heater . |
|
7. |
Seat heater (cushion) |
|
|
8. |
Rear seat heater |
Refer to Rear Seat Heater . |
