Component Parts Location

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

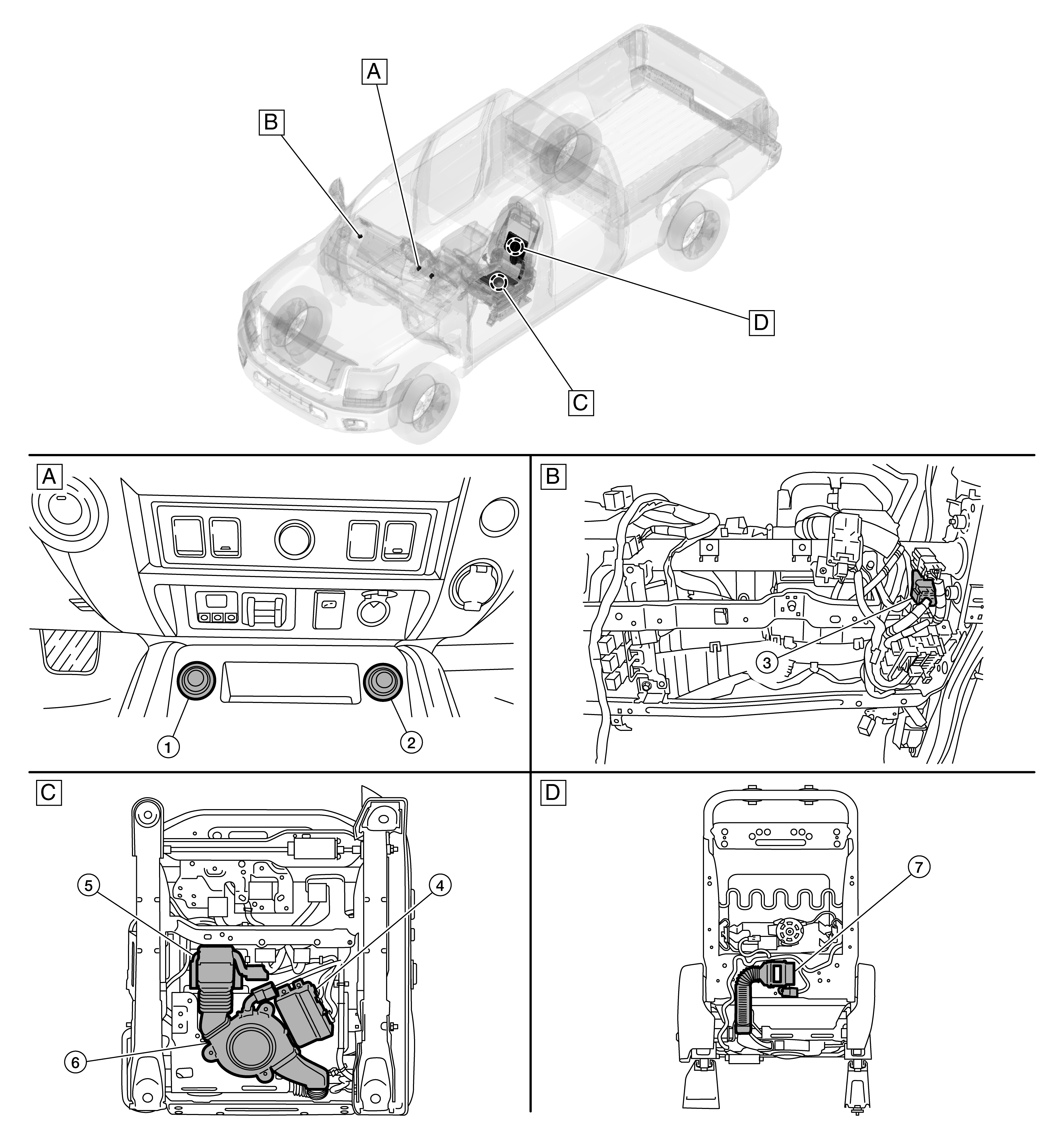

A.	Front of center console	B.	Instrument panel RH (view with instrument panel removed)	C.	Driver seat bottom (view with seat removed)
D.	Driver seat back (view with seat removed)

No.	Component	Function
1.	Climate controlled seat switch LH	Refer to Climate Controlled Seat Switch .
2.	Climate controlled seat switch RH	Refer to Climate Controlled Seat Switch .
3.	Climate controlled seat relay	Supplies power to the climate controlled seat control unit in accordance with the ignition switch position that is ON or OFF.
4.	Climate controlled seat control unit	Refer to Climate Controlled Seat Control Unit .
5.	Seat cushion thermal electric device	Refer to Seat Cushion Thermal Electric Device .
6.	Climate controlled seat blower motor	Refer to Climate Controlled Seat Blower Motor .
7.	Seatback thermal electric device	Refer to Seat Back Thermal Electric Device .
