Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Before removal and installation, use shop cloths to protect parts from damage.
  • During removal and installation, an assistant is required to protect against injury or damage.
  1. Remove storage box. Refer to Removal and Installation (KING CAB) or Removal and Installation (CREW CAB).
  2. Route seat belt buckle through LH seat cushion.
  3. Disconnect the harness connector from rear seat heater (if equipped).
  4. Release harness clip from seat frame (if equipped).

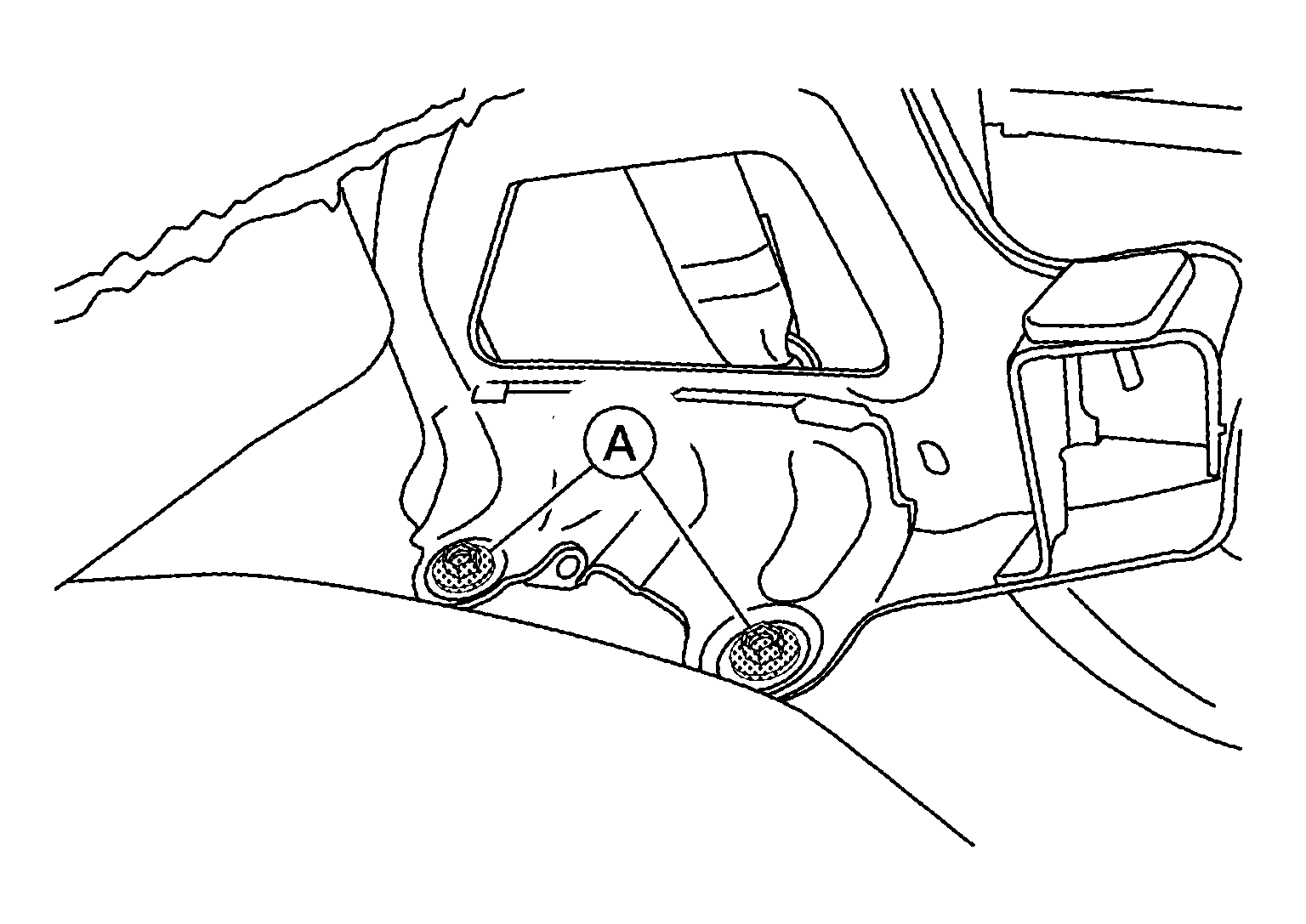

  5. Remove LH seat bolts (A).
    GNSALJIA1907Z-907Courtesy of NISSAN NORTH AMERICA, INC.

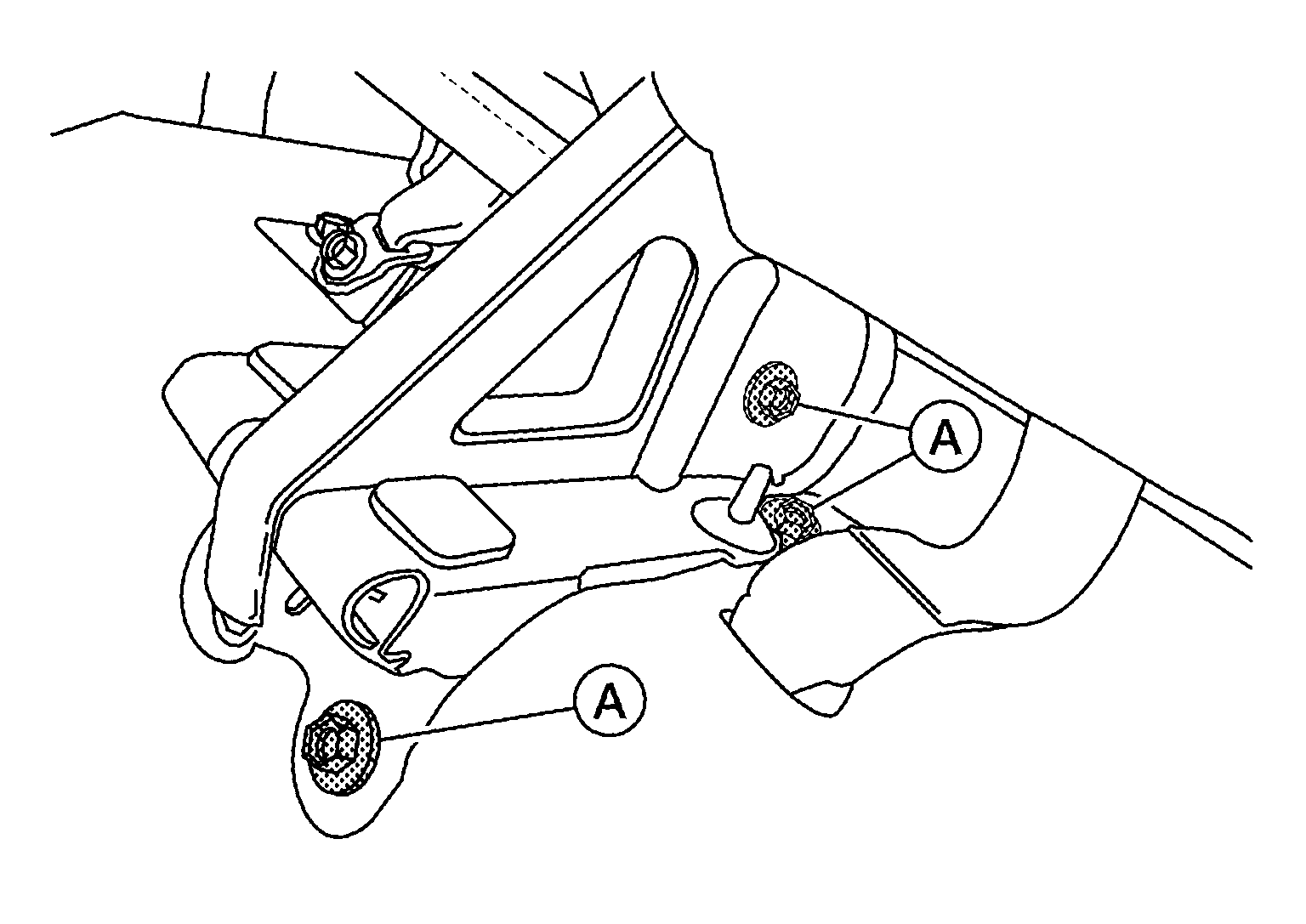

  6. Remove the RH seat bolts (A).
    GNSALJIA1905Z-905Courtesy of NISSAN NORTH AMERICA, INC.
  7. Release the seatback and remove the seat.
