Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

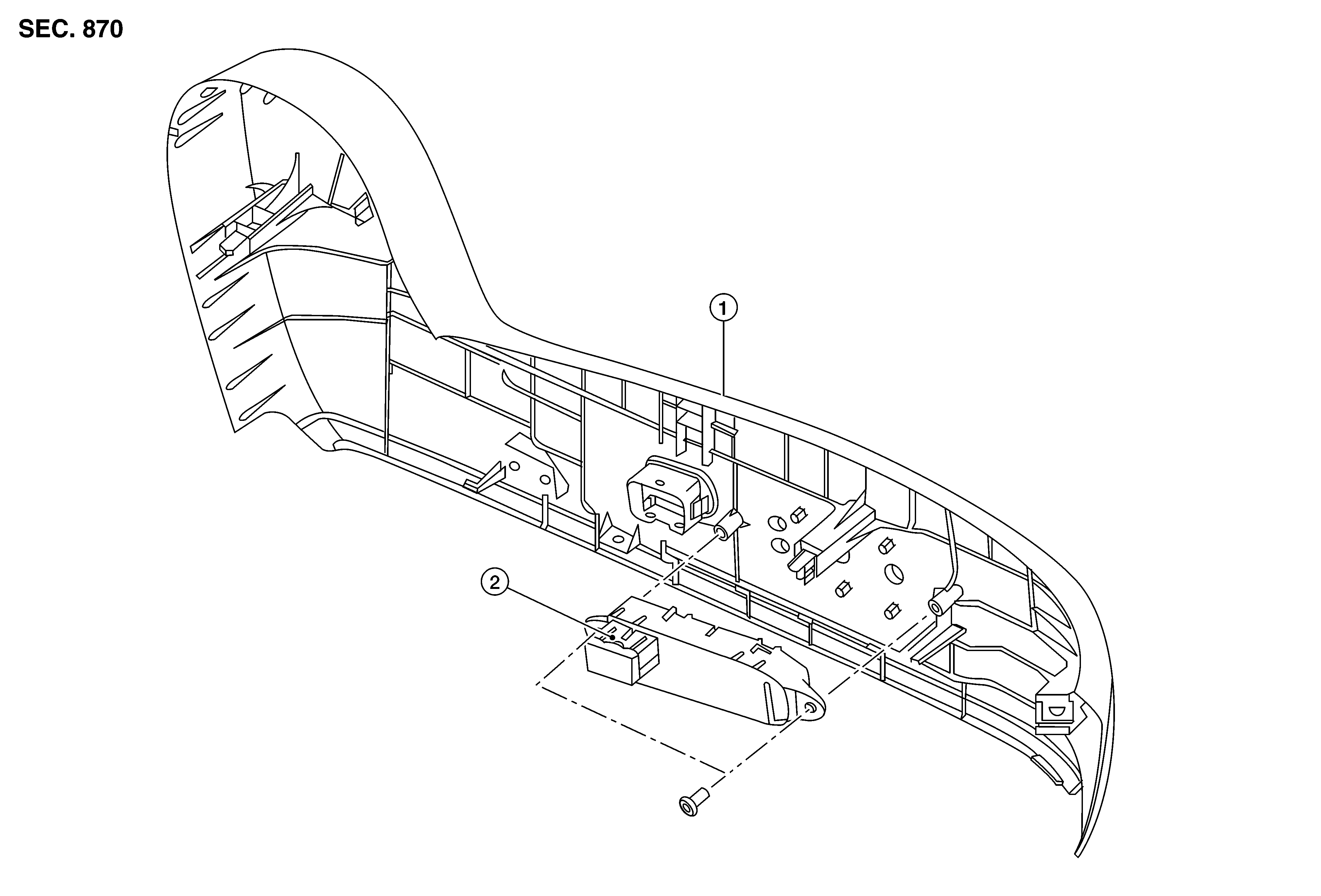

GNSALJIA1647Z-647Courtesy of NISSAN NORTH AMERICA, INC.

1.

Seat cushion outer finisher

2.

Power seat switch
