Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
- Slide front seat to the fully forward position.

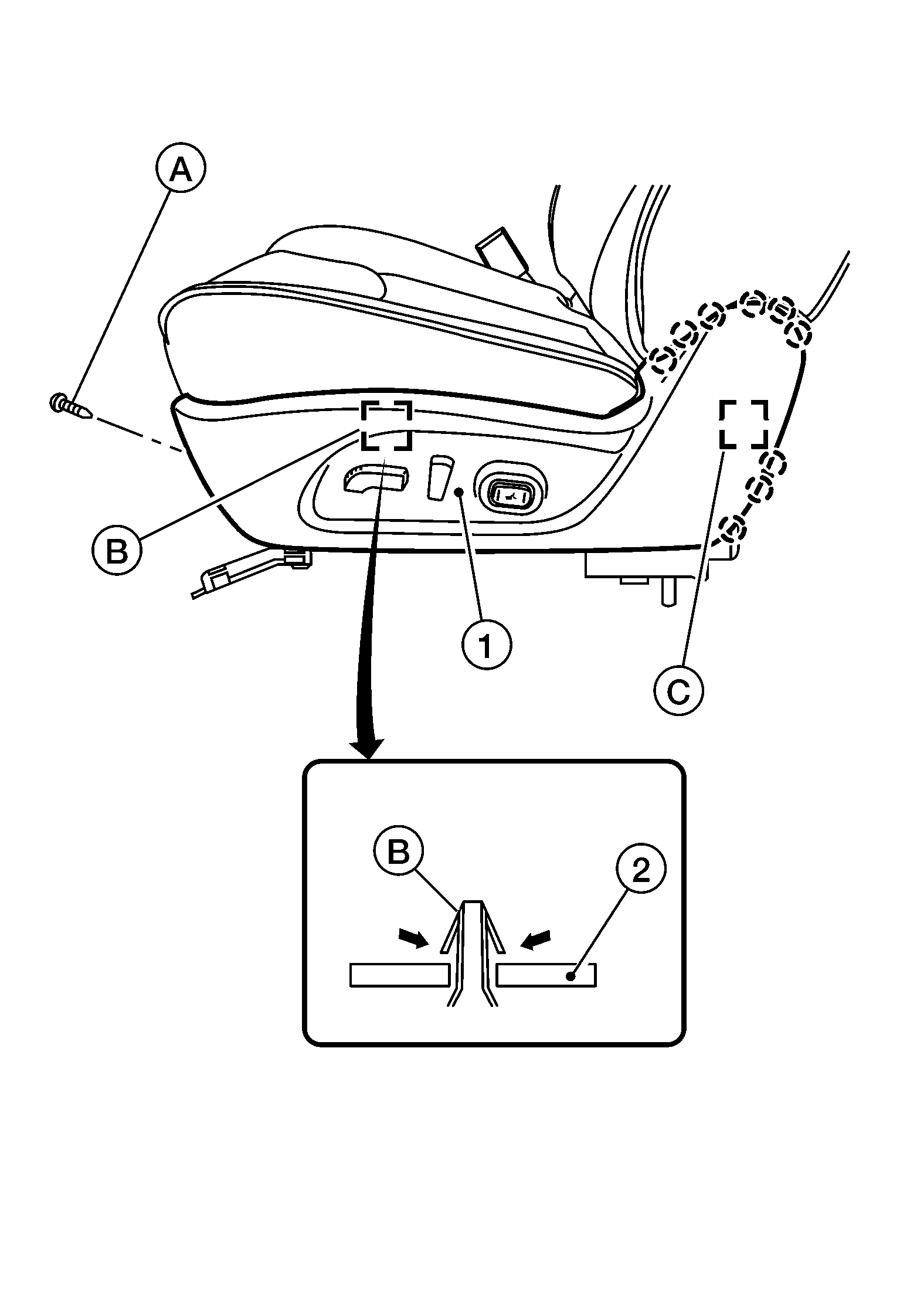

- Remove seat cushion outer finisher (1).
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove screw (A).
- Release metal clip (B) from seat frame assembly (2) as shown.
|
|
: Metal clip
|
- Release pawls and metal clip (C), and remove.
|
|
: Pawl
|
|
|
: Metal clip
|
- Disconnect harness connectors from power seat switch and lumbar support switch.
- Using suitable tool, release pawls and remove lumbar support switch.
