Removal and Installation - Rear Heated Seat Switch: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

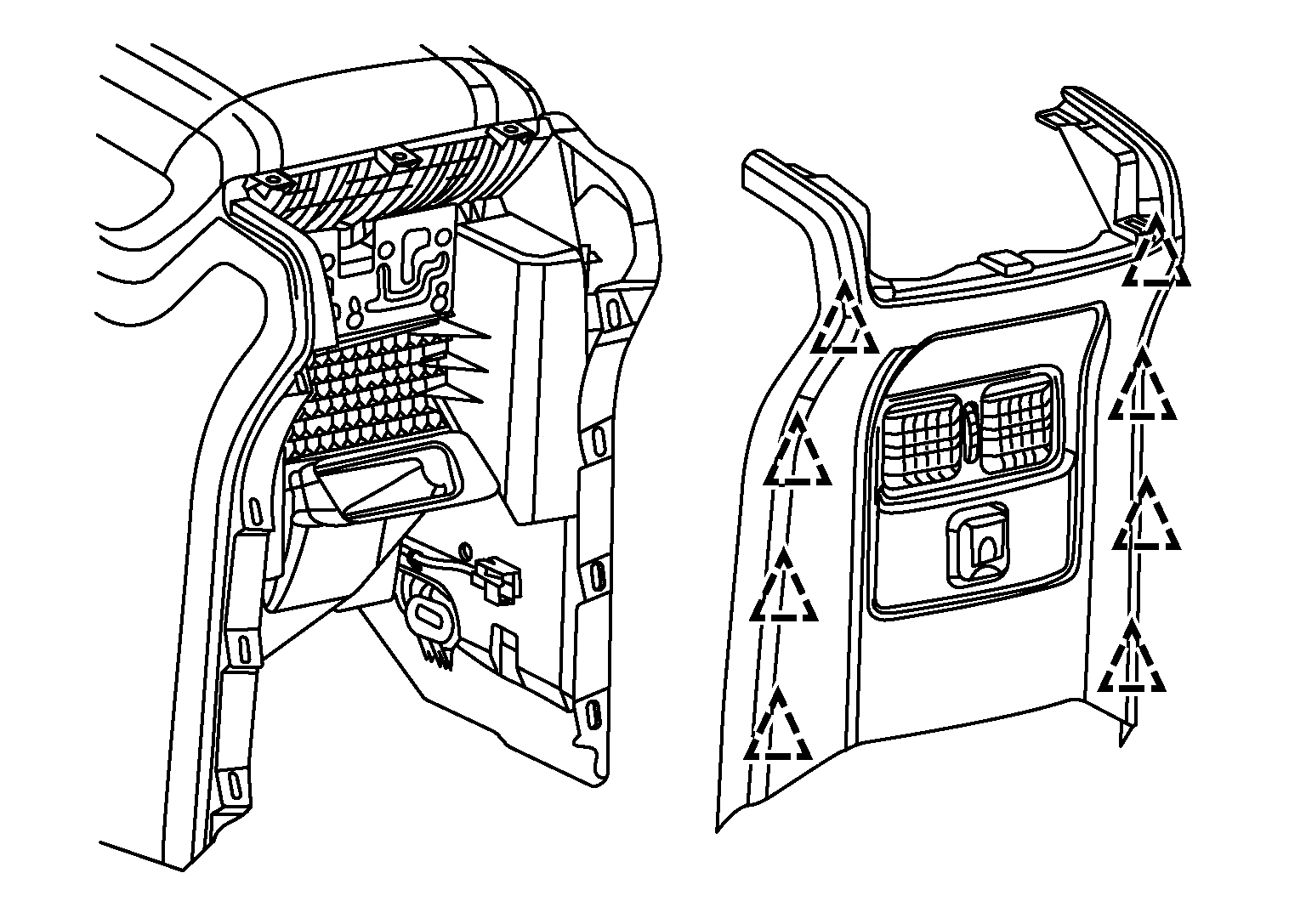

Release clips using suitable tool and remove center console rear finisher.

Courtesy of NISSAN NORTH AMERICA, INC.

: Clip
Disconnect harness connectors from rear heated seat switch (LH/RH) and from the AC 120V outlet.

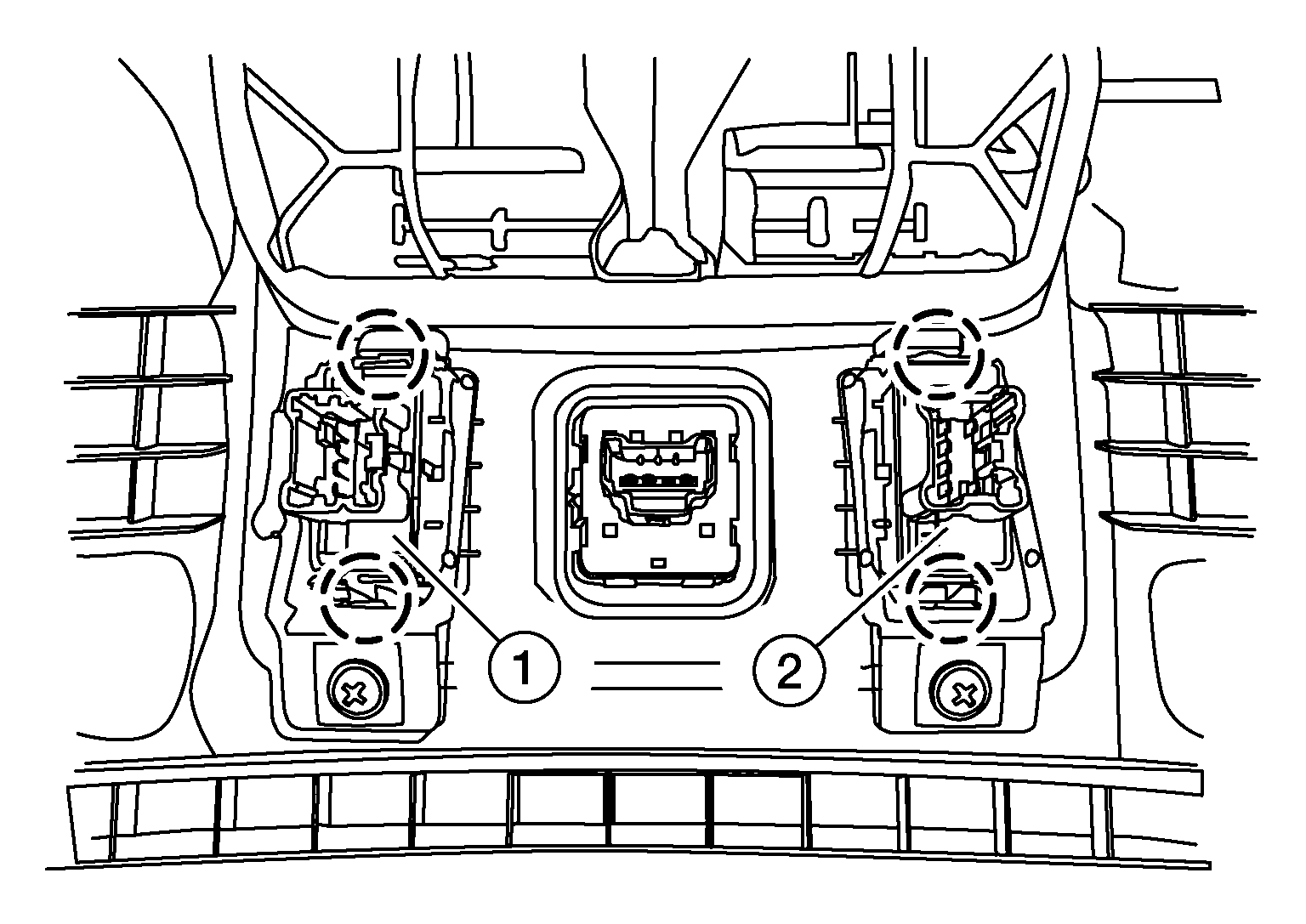

Release pawls, then remove rear heated seat switch.

Courtesy of NISSAN NORTH AMERICA, INC.

	: Pawl
(1)	: Rear heated seat switch (RH)
(2)	: Rear heated seat switch (LH)
