Removal and Installation - Front Heated Seat Switch: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

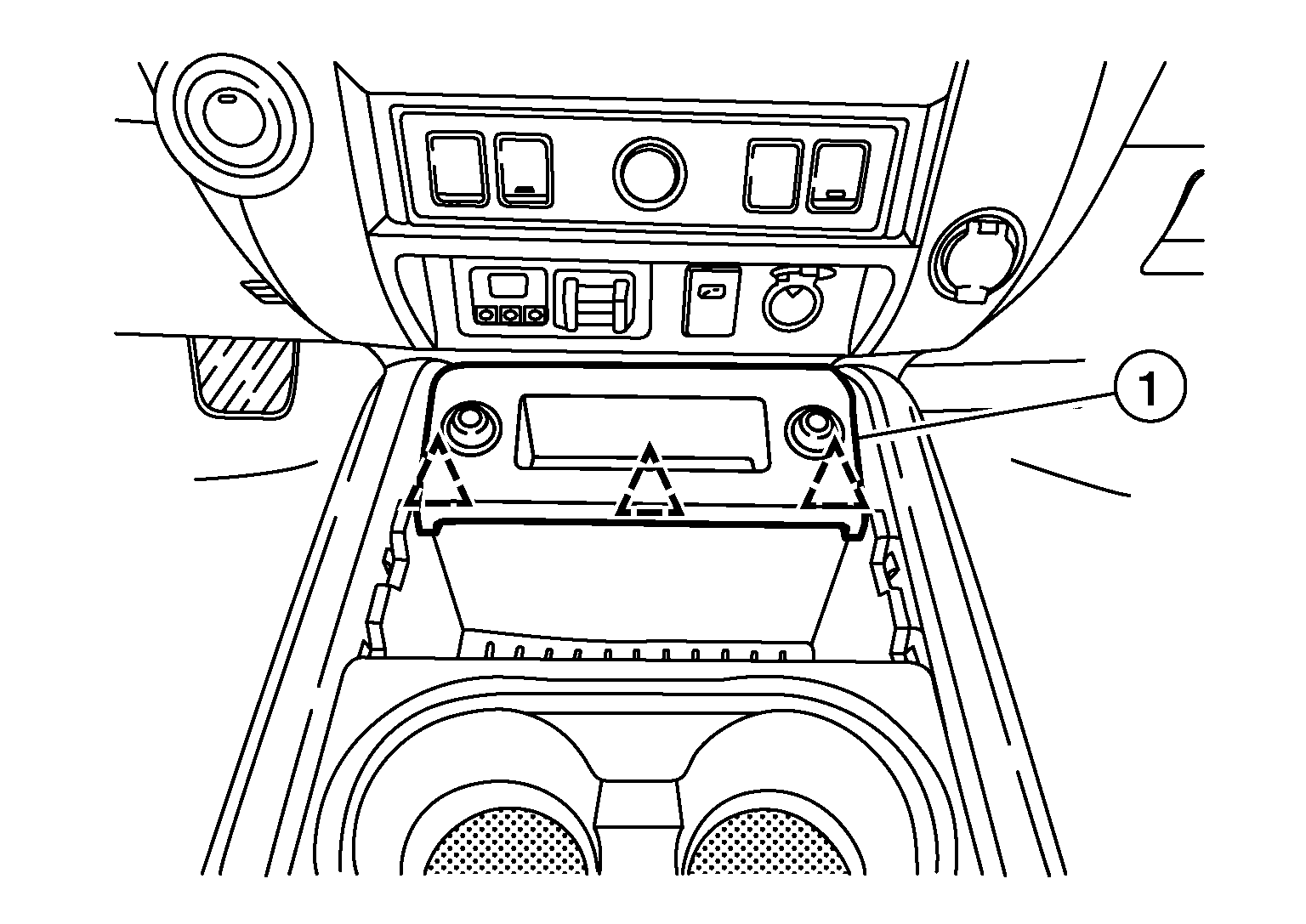

Release clips using suitable tool.

Courtesy of NISSAN NORTH AMERICA, INC.

: Clip
Disconnect harness connectors from front heated seat switch (LH/RH), then remove console switch finisher (1).

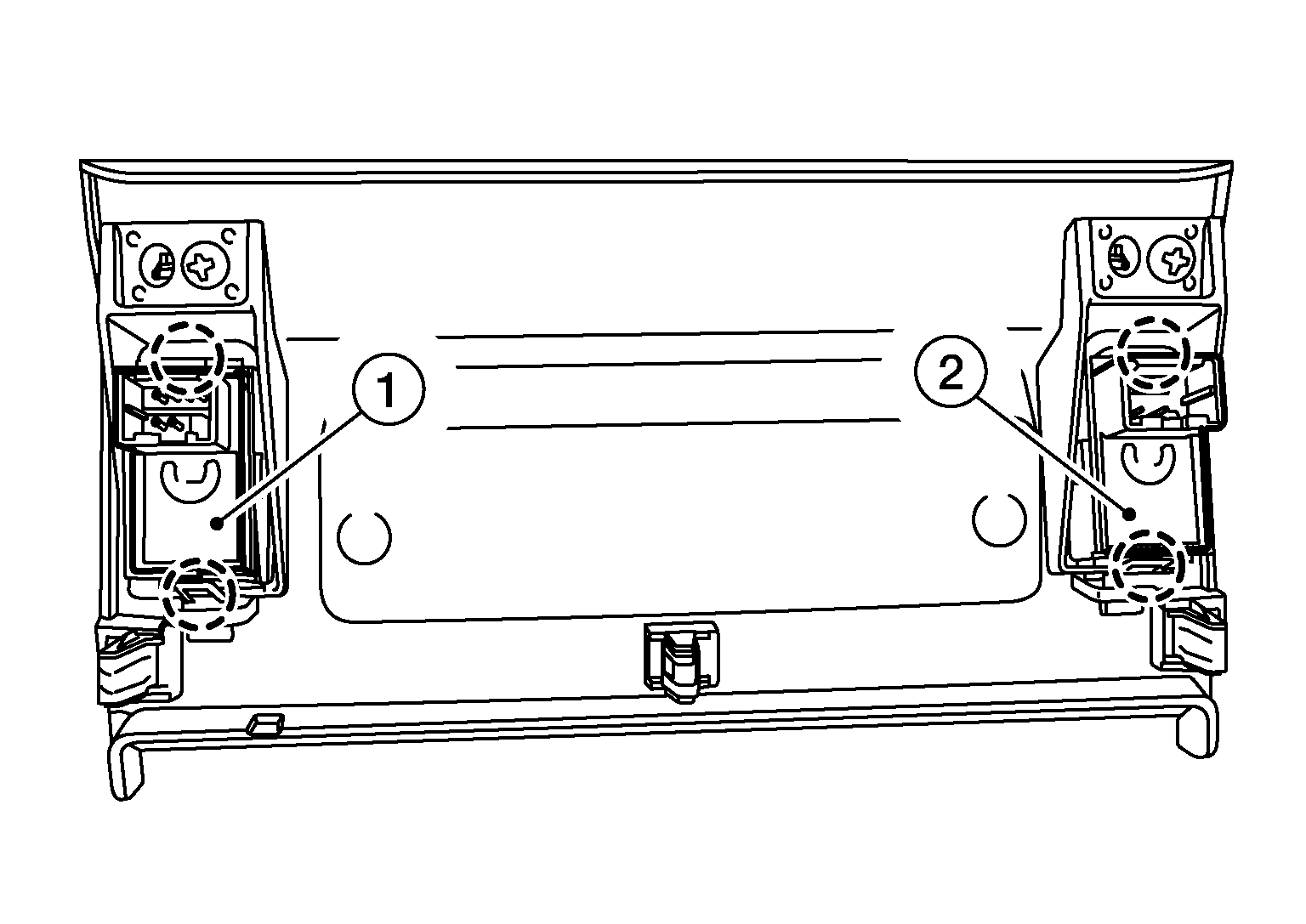

Release pawls using suitable tool and remove front heated seat switch.

Courtesy of NISSAN NORTH AMERICA, INC.

	: Pawl
(1)	: Front heated seat switch (RH)
(2)	: Front heated seat switch (LH)
