Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

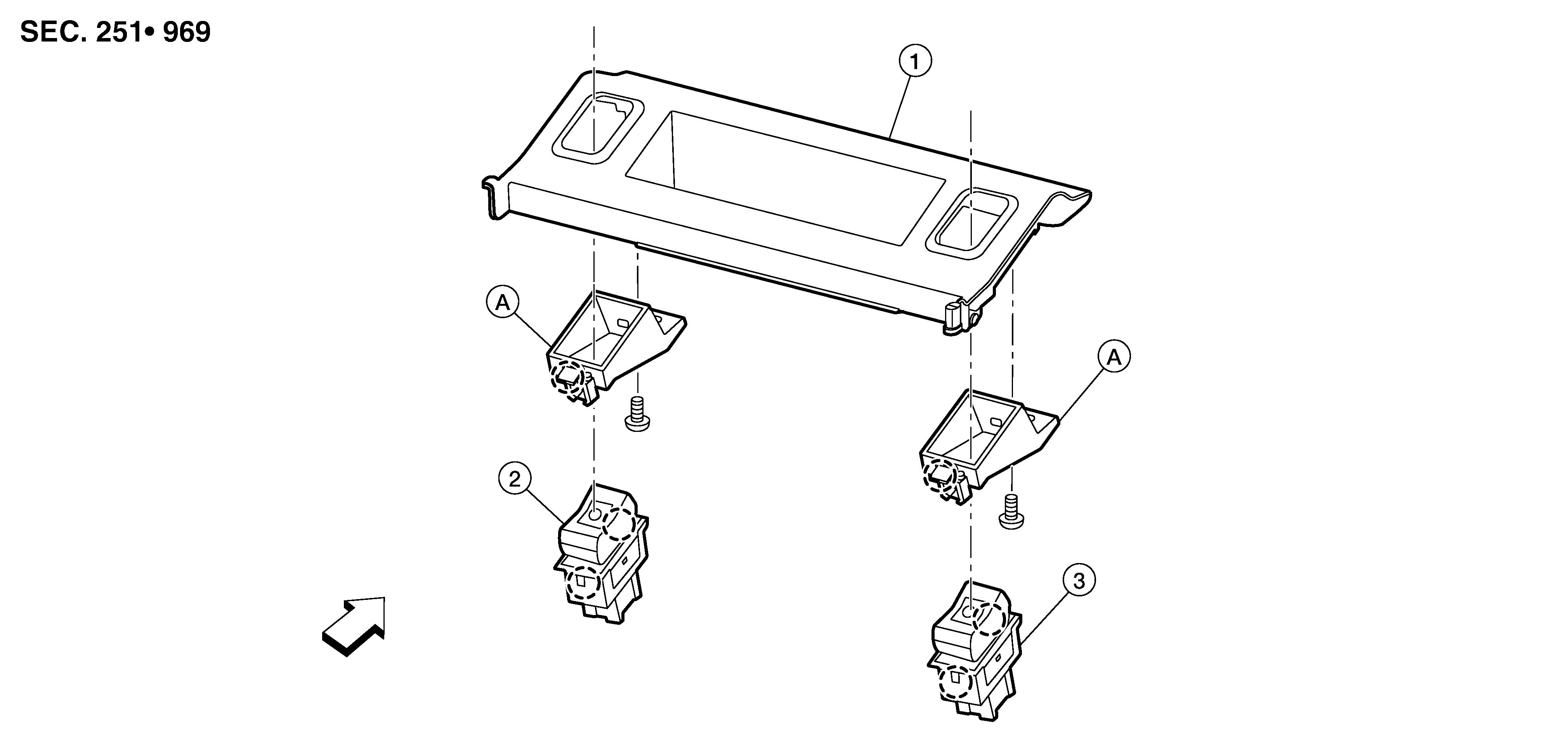

Fig 1: Front Heated Seat Switch Replacement Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Console switch finisher	2.	Front heated seat switch (LH)	3.	Front heated seat switch (RH)
A.	Switch carrier		Pawl		Front

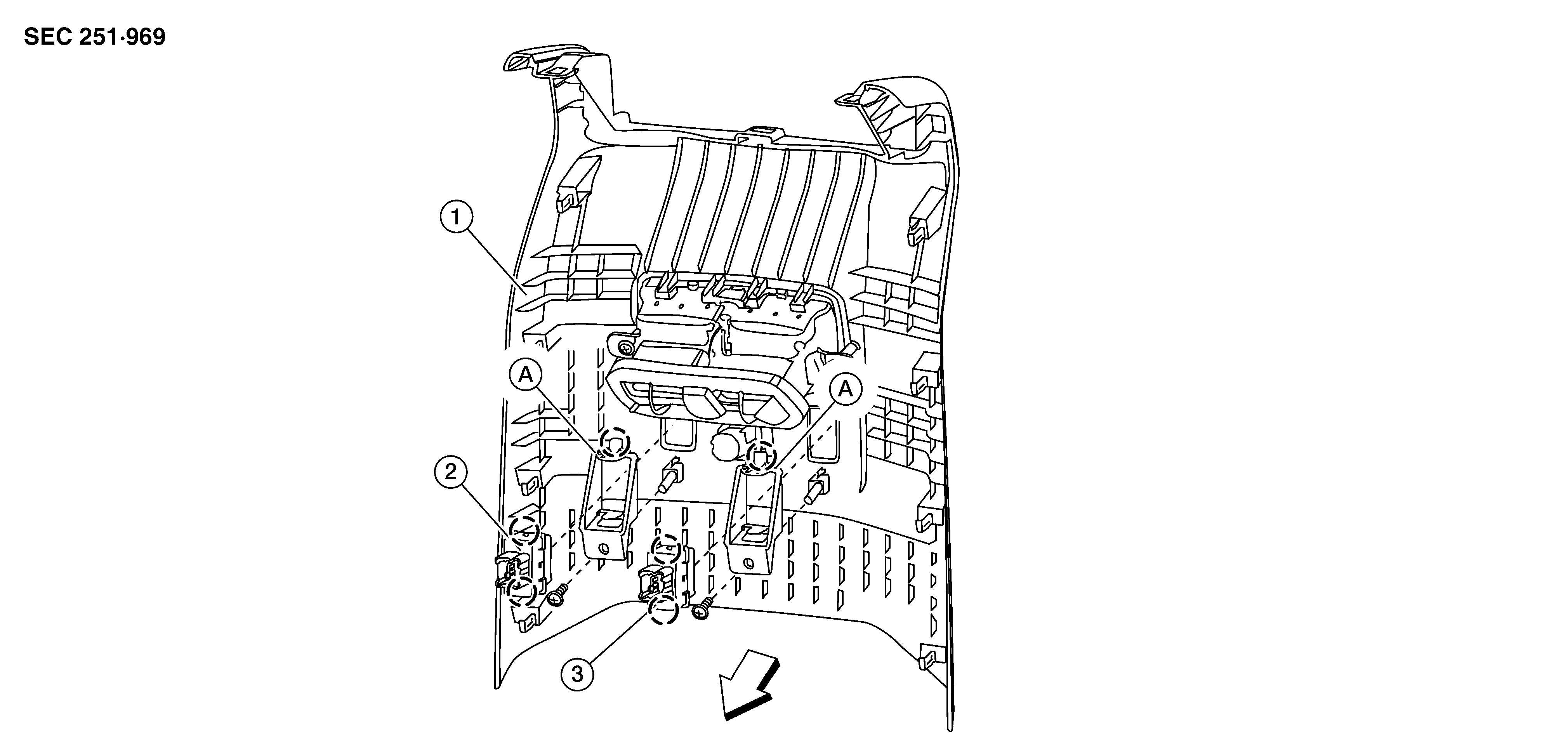

Fig 2: Rear Heated Seat Switch Replacement Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Center console rear finisher	2.	Rear heated seat switch (RH)	3.	Rear heated seat switch (LH)
A.	Switch carrier		Pawl		Front
