Removal and Installation - Center Seat: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When removing or installing seat trim, handle it carefully to keep dirt out and to avoid damage.
When removing and installing seat, use shop cloths to protect components from damage.

Remove center seat front bolts.
Slide front seats (LH/RH) to the fully forward position.

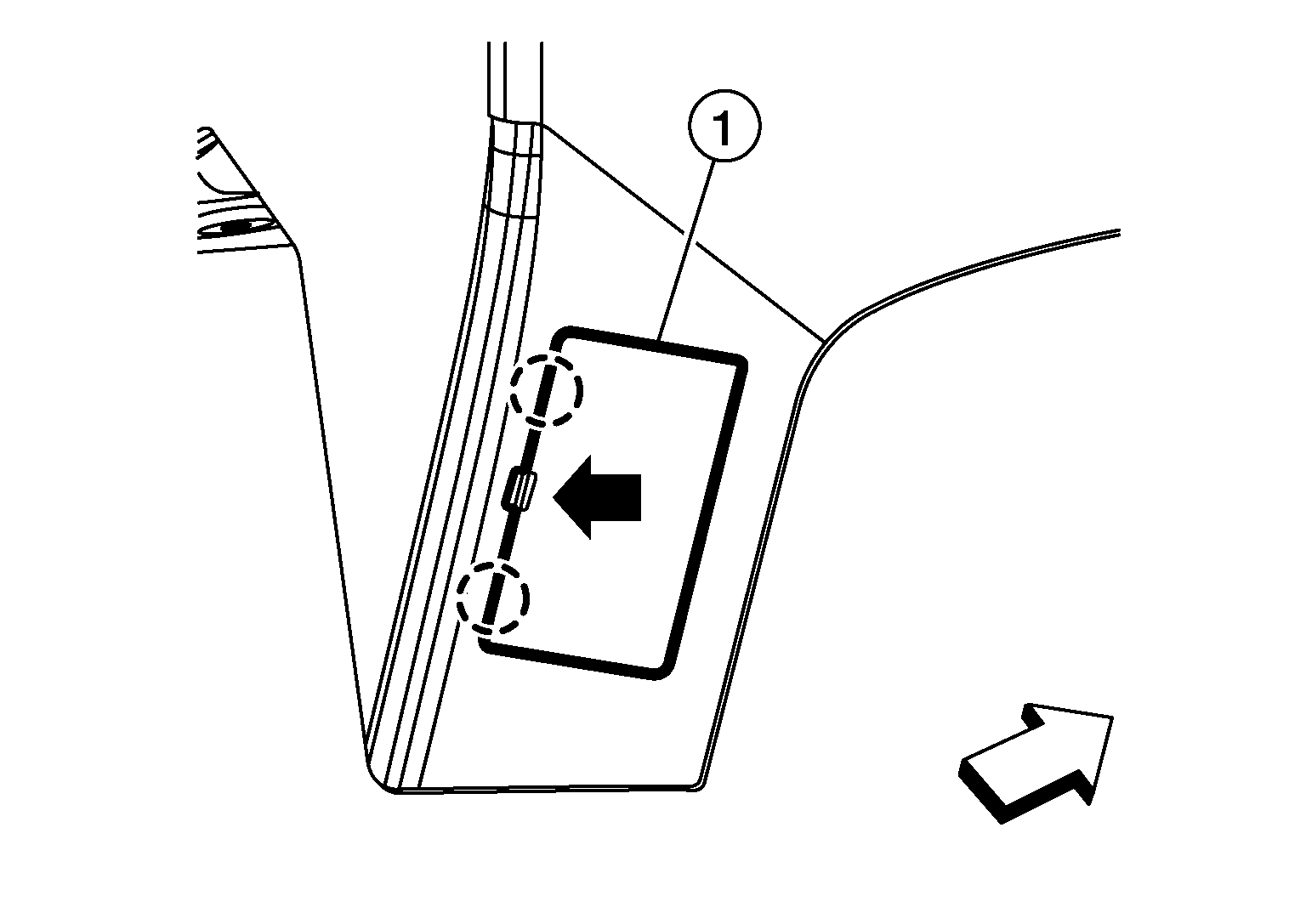

Using suitable tool where shown (

), release pawls, then remove rear leg finisher cap (1).

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: RH shown, LH similar.

	: Pawl
	: Front

Remove center seat rear bolts and center seat.
