Removal and Installation - Center Seat: Installation

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

CAUTION: Make sure that the floor carpet is not damaged during installation.

NOTE:

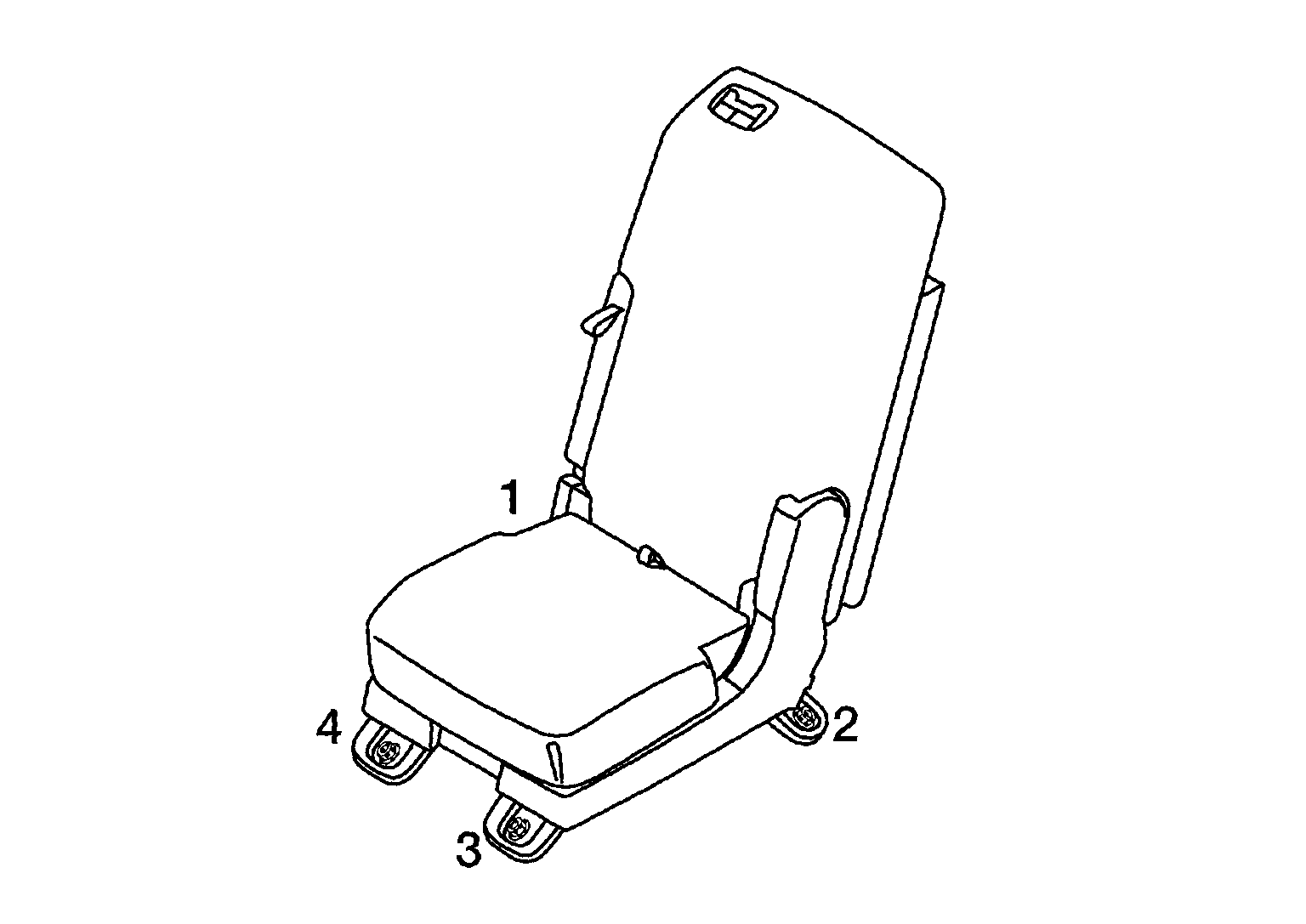

When installing center seat, hand-tighten bolt (4), then tighten to specification in the order shown.

Courtesy of NISSAN NORTH AMERICA, INC.

Center seat bolt torque

: 48 Nm (4.9 kg-m, 35 ft-lb)
