Removal and Installation - Captain Seats: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Do not leave any objects (screwdrivers, tools, etc.) on the seat during seat repair. It can lead to personal injury if the side air bag module should accidentally deploy.
CAUTION:
  • When removing or installing seat trim, handle it carefully to keep dirt out and to avoid damage.
  • When checking power seat circuit for continuity using a circuit tester, do not confuse its connector with side air bag module connector. Such an error may cause air bag module to deploy.
  • Do not drop, tilt, or bump side air bag module while installing seat. Always handle it with care.
  • After front side air bag module inflates, front seatback assembly must be replaced.
  • When removing and installing seat, use shop cloths to protect components from damage.
  • Before removing front seat, turn ignition switch OFF, disconnect battery or batteries, then wait at least three minutes.
  1. Slide seat to the fully rearward position.
  2. Disconnect the battery or batteries and wait at least three minutes. Refer to Battery Disconnect .

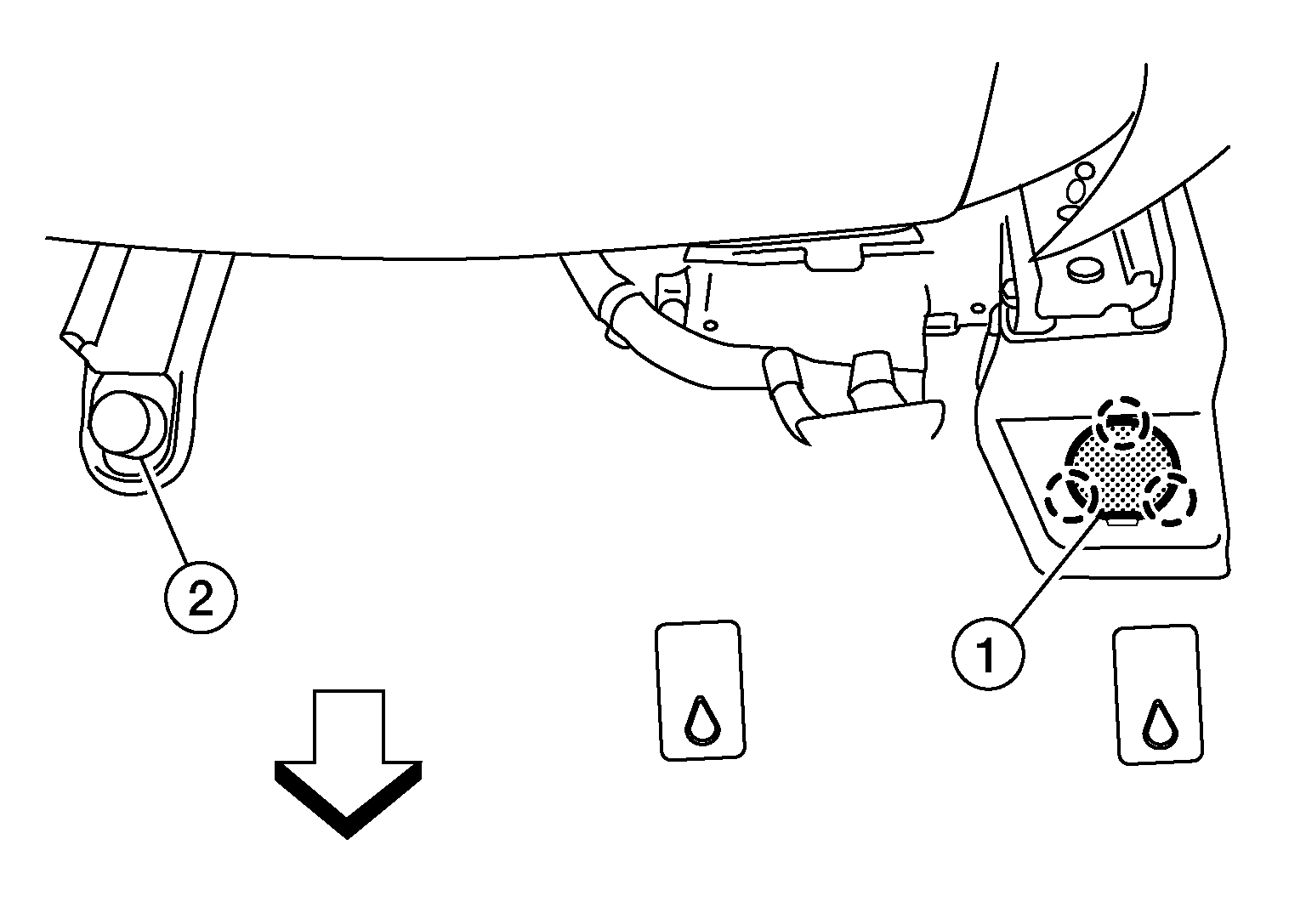

  3. Using a suitable tool release pawls and remove bolt cover (1) and (2).
    GNSAWJIA0199Z-199Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl

    SYMBOL

    : Front

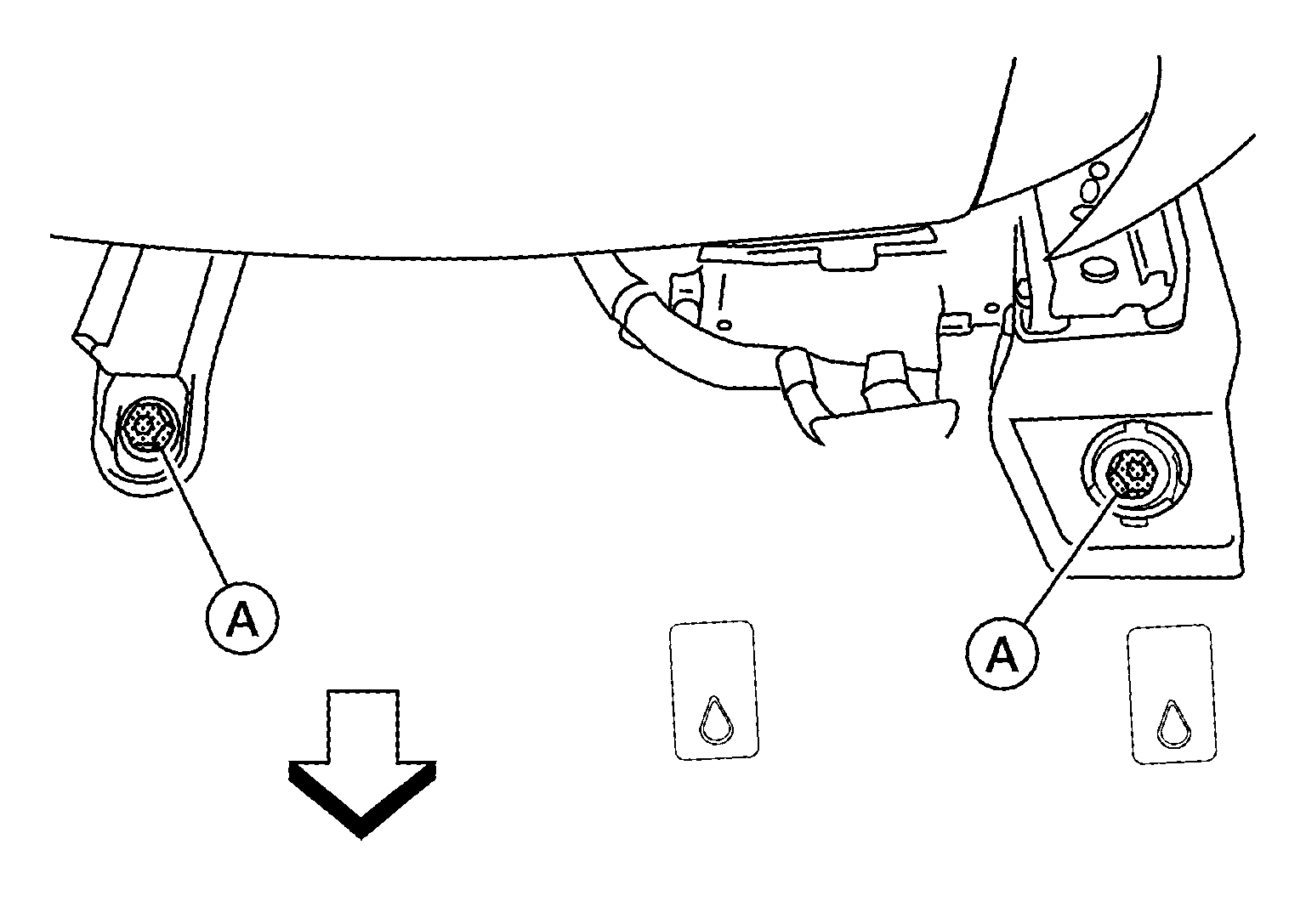

  4. Remove front seat front bolts (A).
    GNSALJIA1894Z-894Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front
  5. For models with power seats, connect the battery or batteries. Slide seat to the fully forward position. Refer to Battery Disconnect .
  6. For models with power seats, disconnect the battery or batteries and wait at least three minutes. Refer to Battery Disconnect .

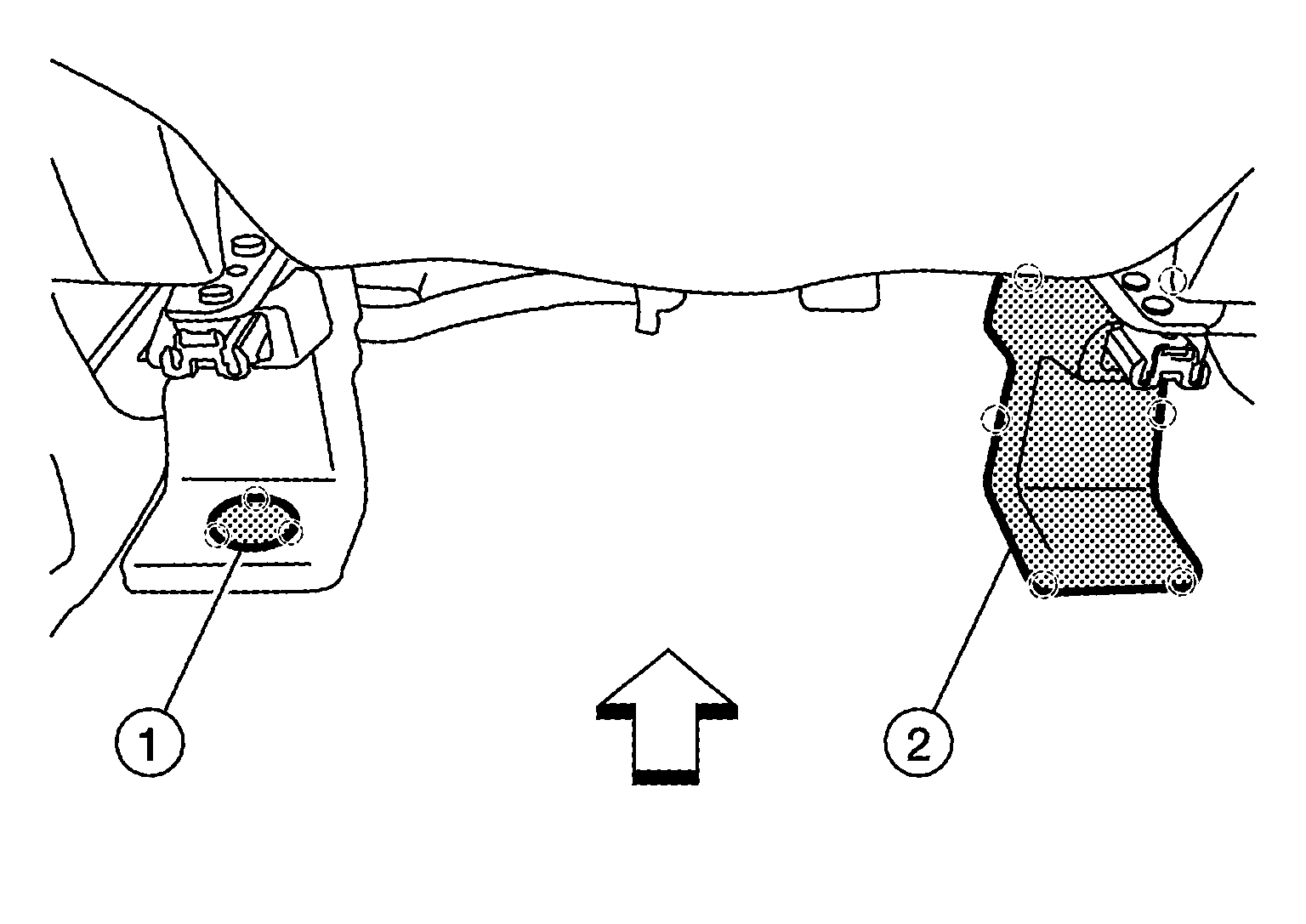

  7. Release pawls, then remove bolt cover (1) and rear leg finisher (2).
    GNSALJIA1895Z-895Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl

    SYMBOL

    : Front

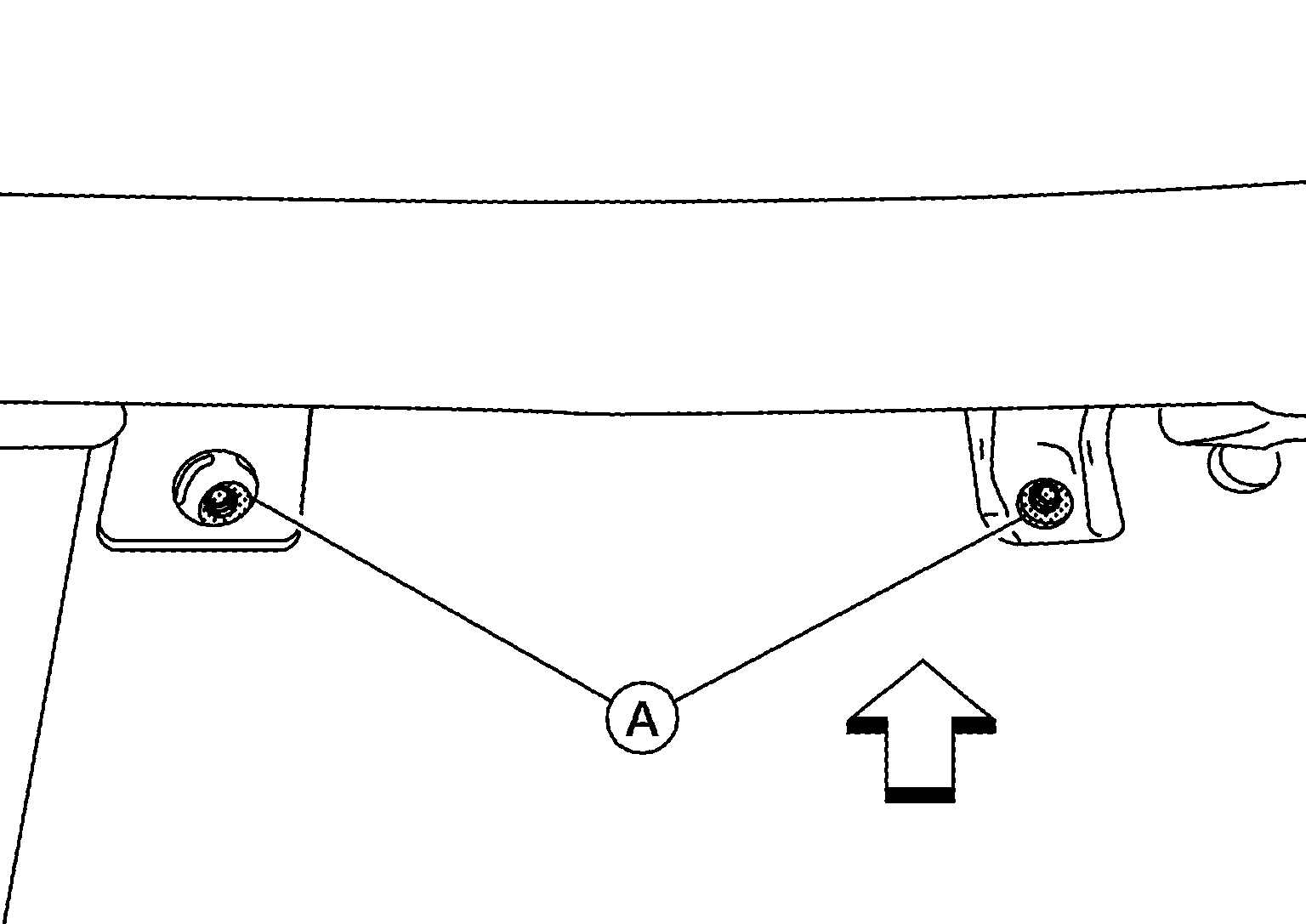

  8. Remove the front seat rear bolts (A).
    GNSALJIA1896Z-896Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front
  9. Disconnect harness connectors from the front seat assembly.
  10. Remove front seat assembly from vehicle.
