Removal and Installation - Captain Seats: Installation
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
Installation is in the reverse order of removal.
CAUTION:
Make sure that the seat harness or the floor carpet is not damaged during installation.
NOTE:

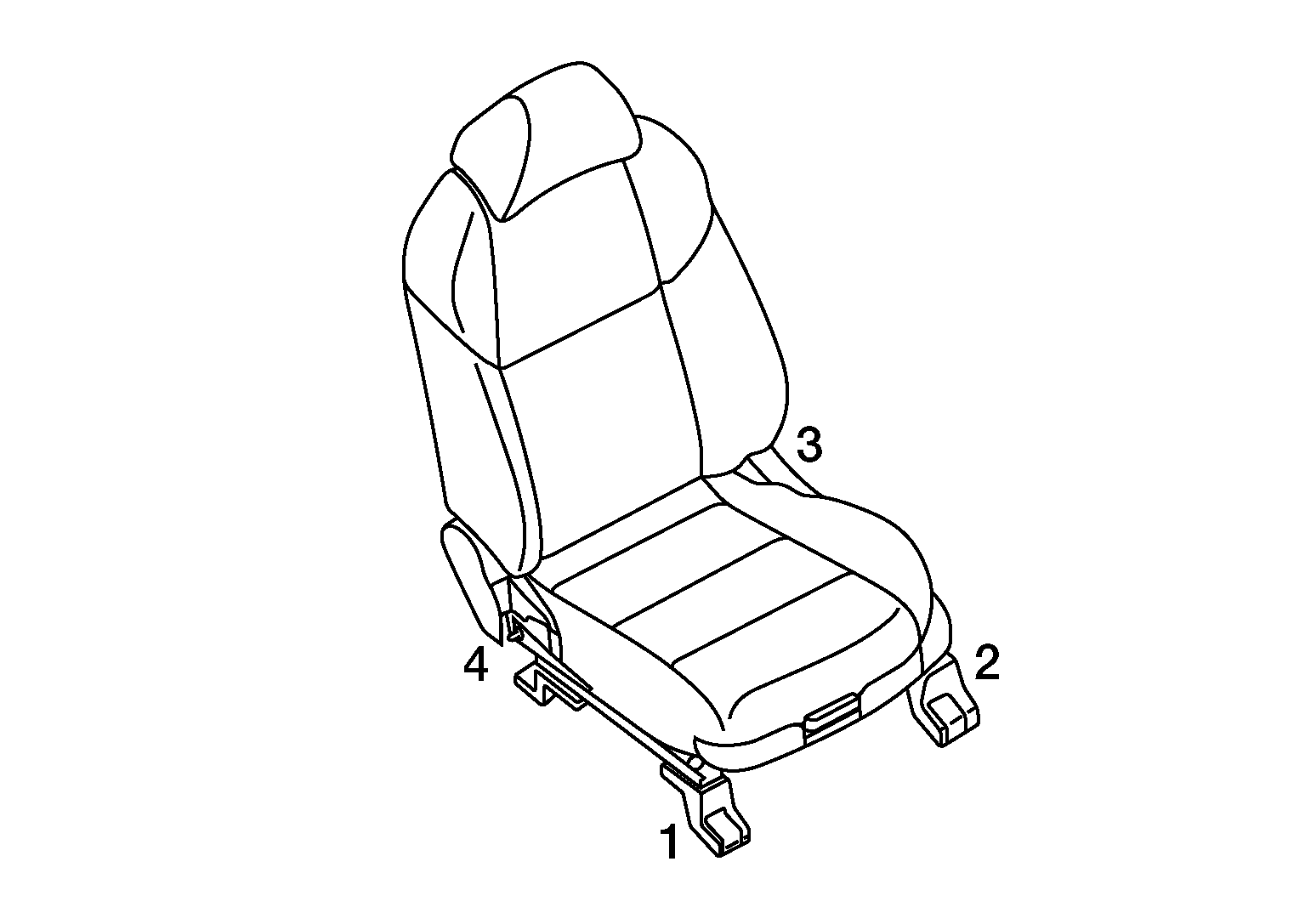

- When installing front seat (LH), tighten bolts to specification in the order shown.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
Front seat (LH) bolt torque
|
: 48 Nm (4.9 kg-m, 35 ft-lb)
|

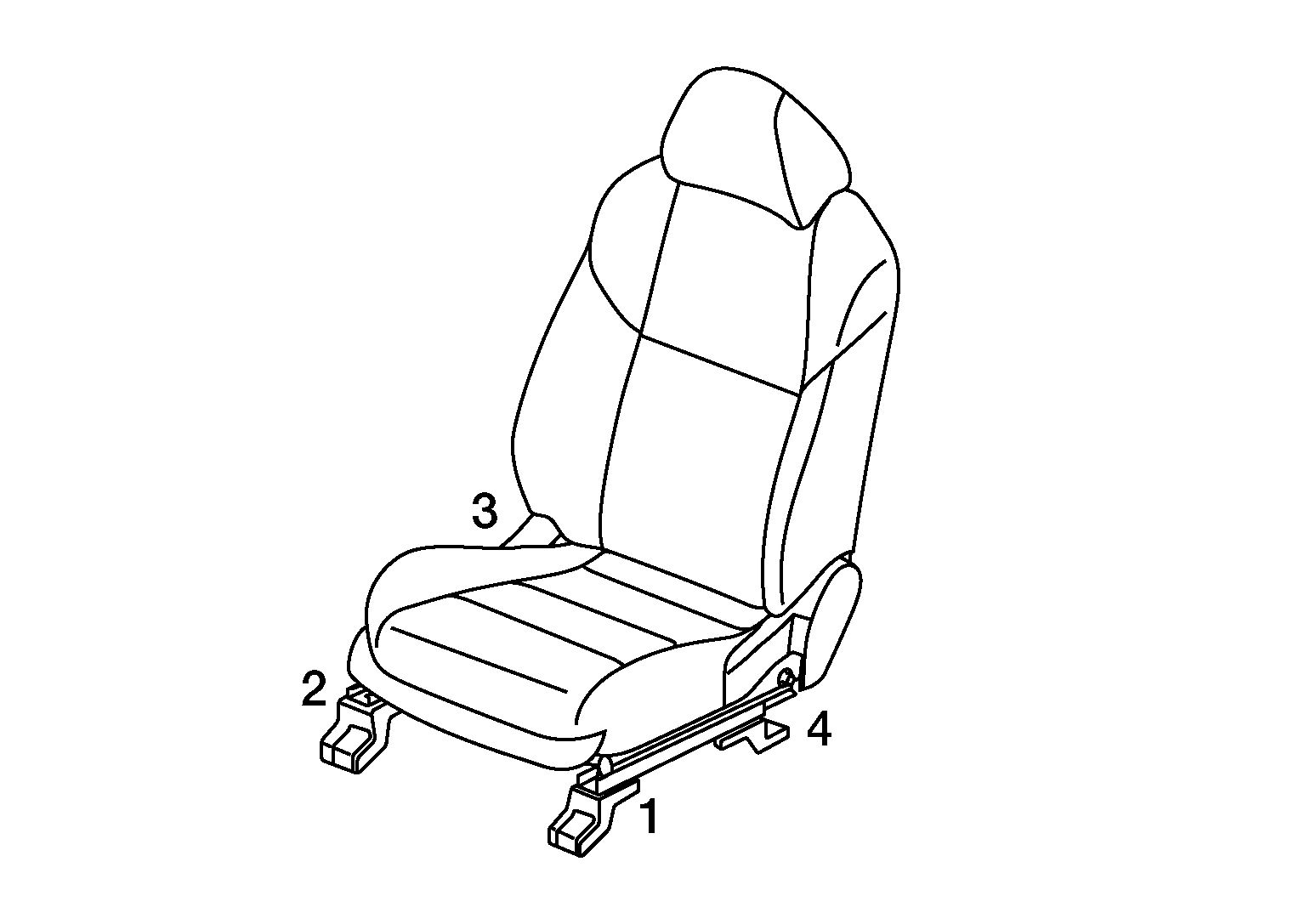

- When installing front seat (RH), tighten bolts to specification in the order shown.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
Front seat (RH) bolt torque
|
: 48 Nm (4.9 kg-m, 35 ft-lb)
|
