Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

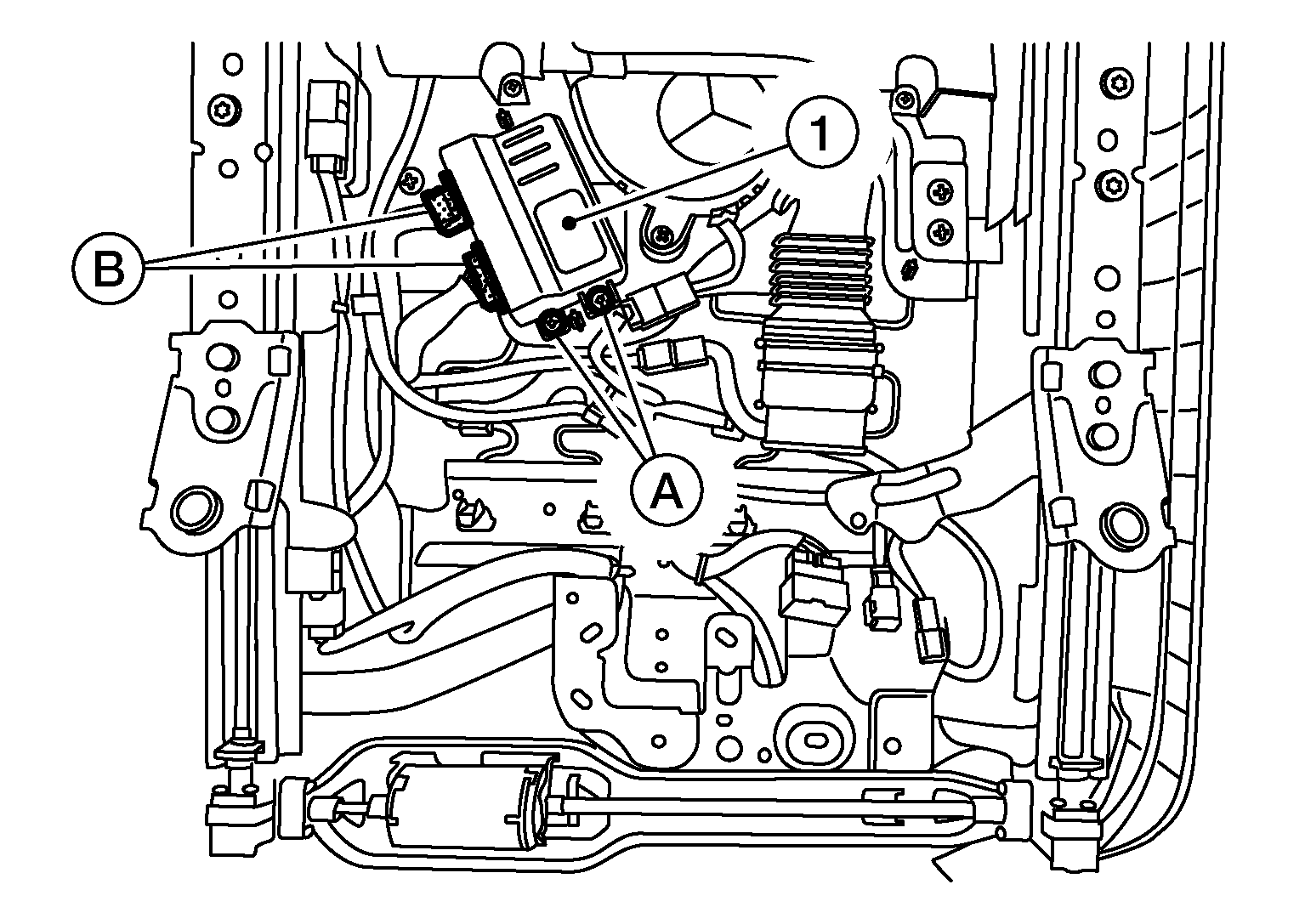

- Remove front seat. Refer to Removal and Installation - Captain Seats .
- Remove screws (A).
- Disconnect harness connectors (B) from the climate controlled seat control unit (1) then remove.
