Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front seat. Refer to Removal and Installation - Captain Seats .
  2. Release seatback flap from seat cushion frame, then position seatback flap aside.

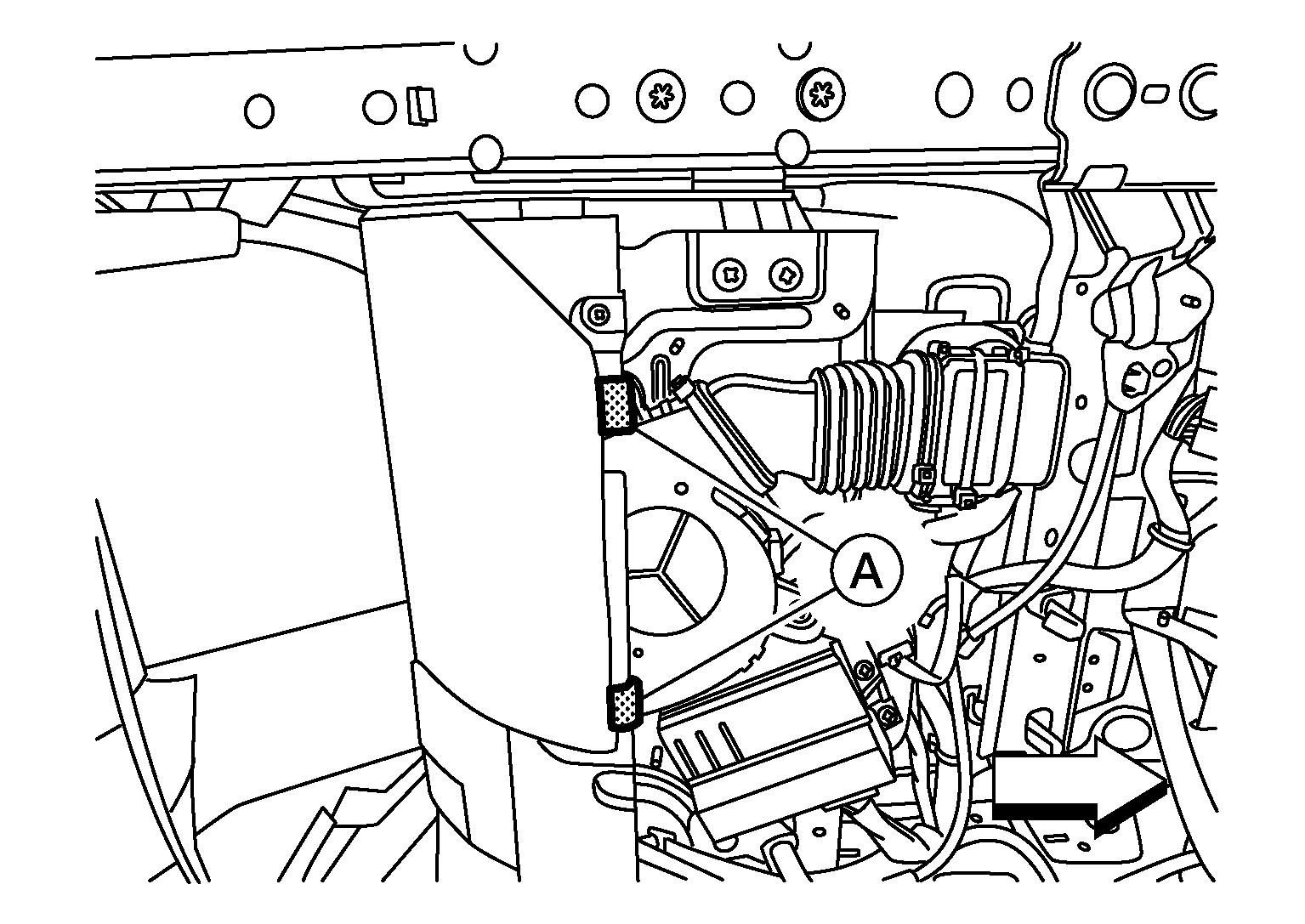

  3. Release seat cushion J-clip retainers (A) that hold seat cushion trim to seat cushion lower rear finisher.
    GNSALJIA1619Z-619Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front

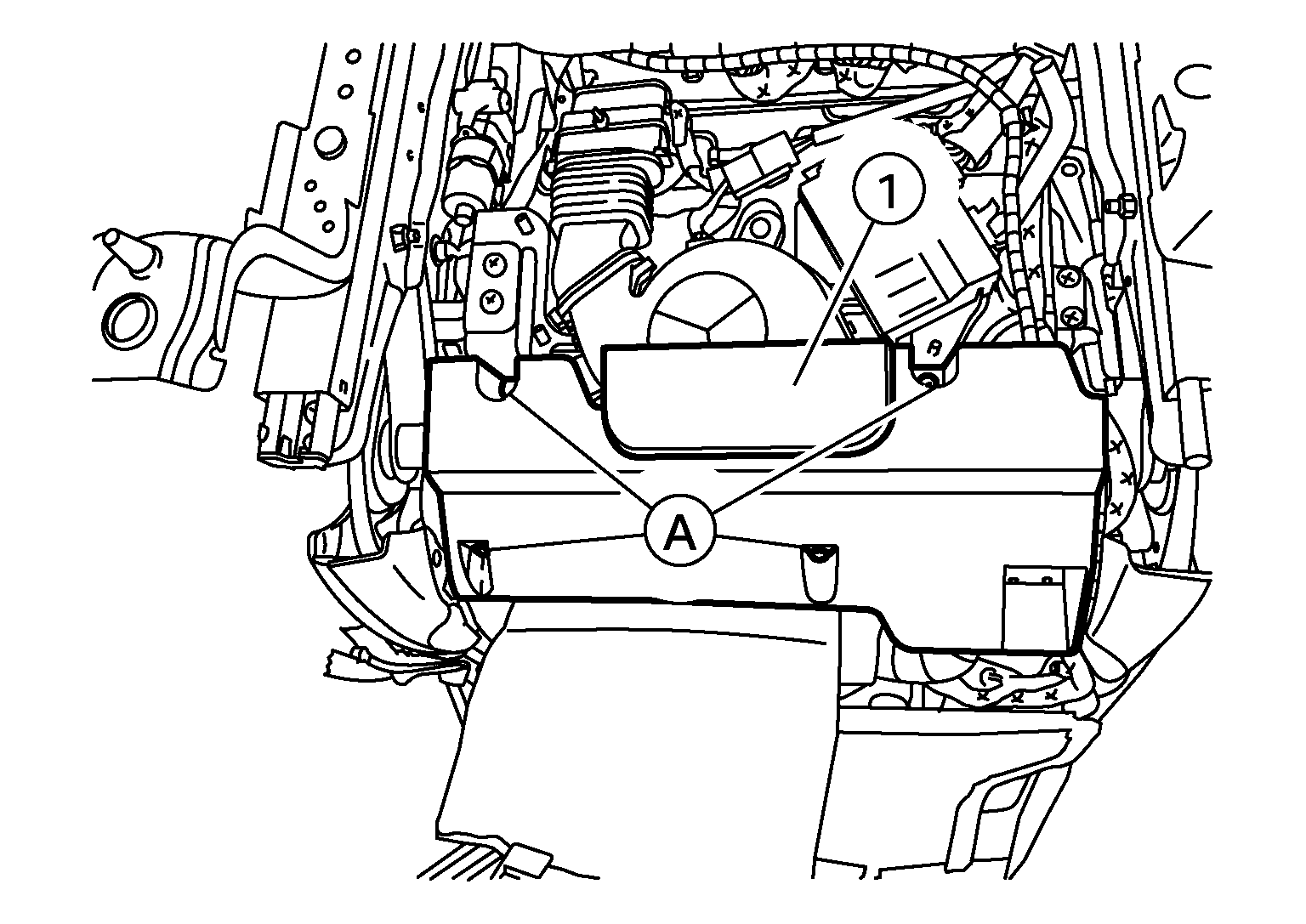

  4. Remove screws (A) and the lower rear cover (1).
    GNSALJIA1960Z-960Courtesy of NISSAN NORTH AMERICA, INC.

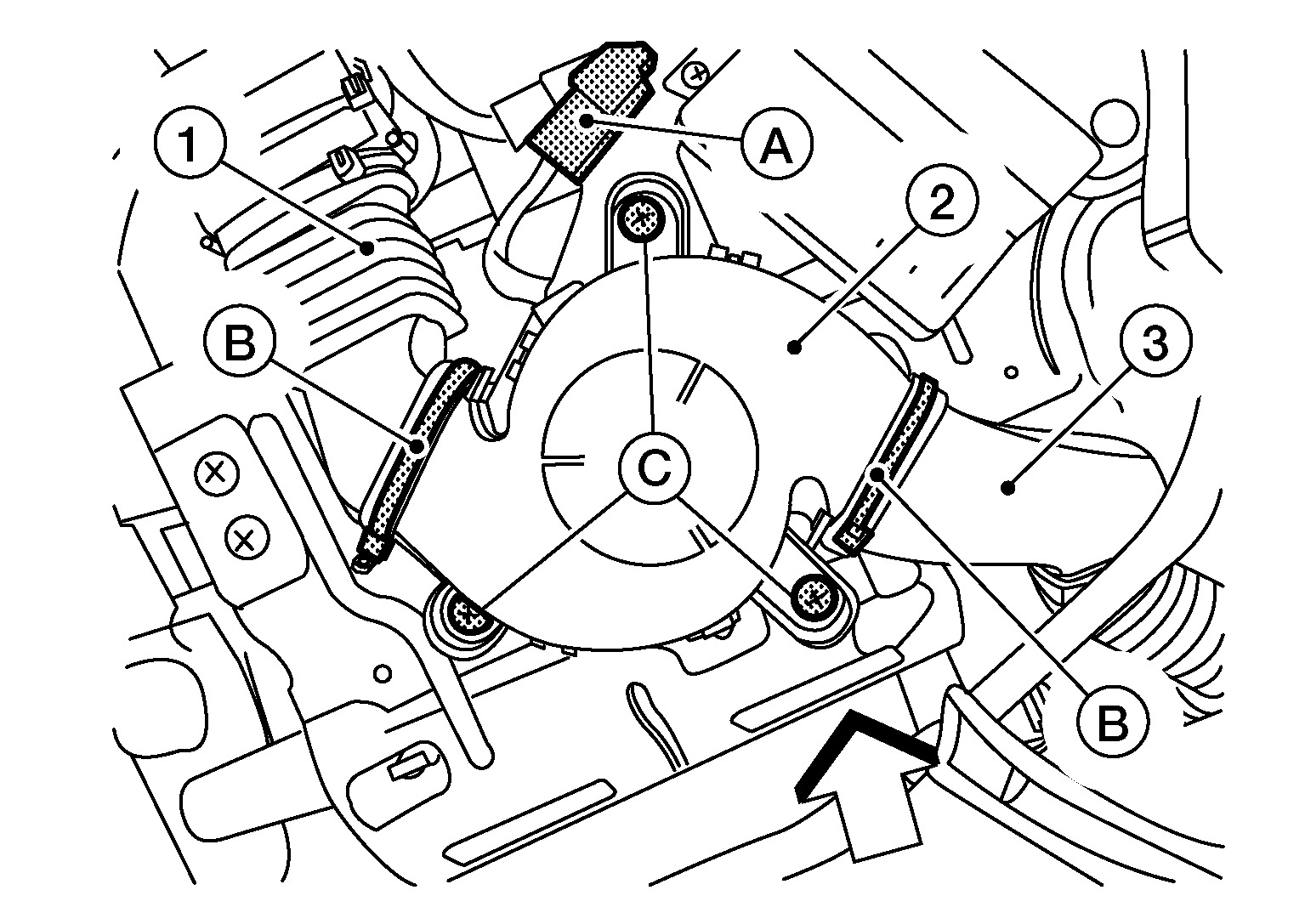

  5. Disconnect harness connector (A) from climate controlled seat blower motor (2).
    GNSALJIA1622Z-622Courtesy of NISSAN NORTH AMERICA, INC.
  6. Remove tie straps (B) and discard, then remove angle duct (3) and lower blower duct (1) from climate controlled seat blower motor (2).
  7. Remove screws (C) and climate controlled seat blower motor.

    SYMBOL

    : Front
