Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
- Using suitable tool, remove seat memory switch finisher.
- Disconnect the harness connector from the seat memory switch.

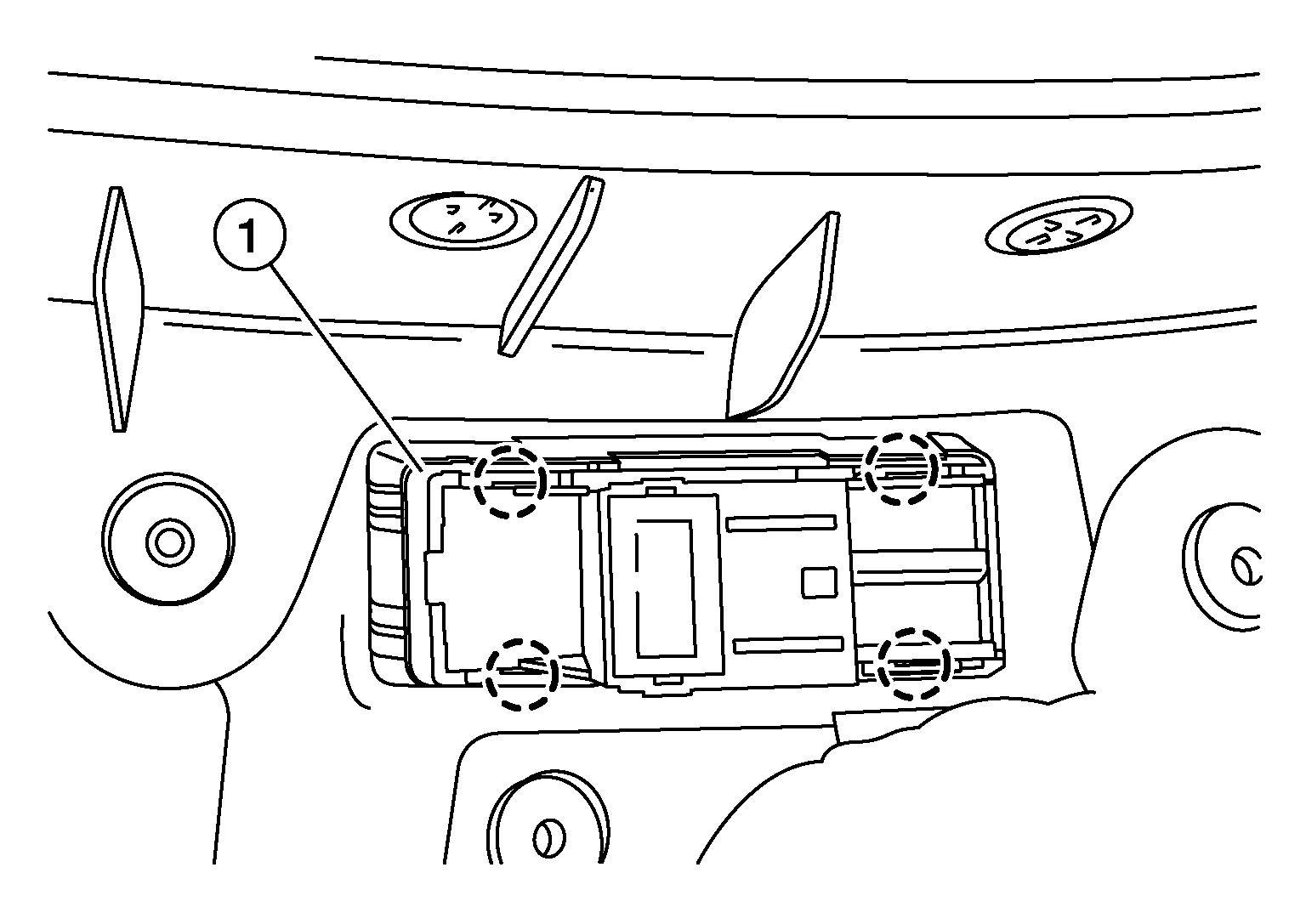

- Release pawls using suitable tool and remove seat memory switch (1).
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
|
: Pawl
|
