Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front seat (LH). Refer to Removal and Installation - Captain Seats .

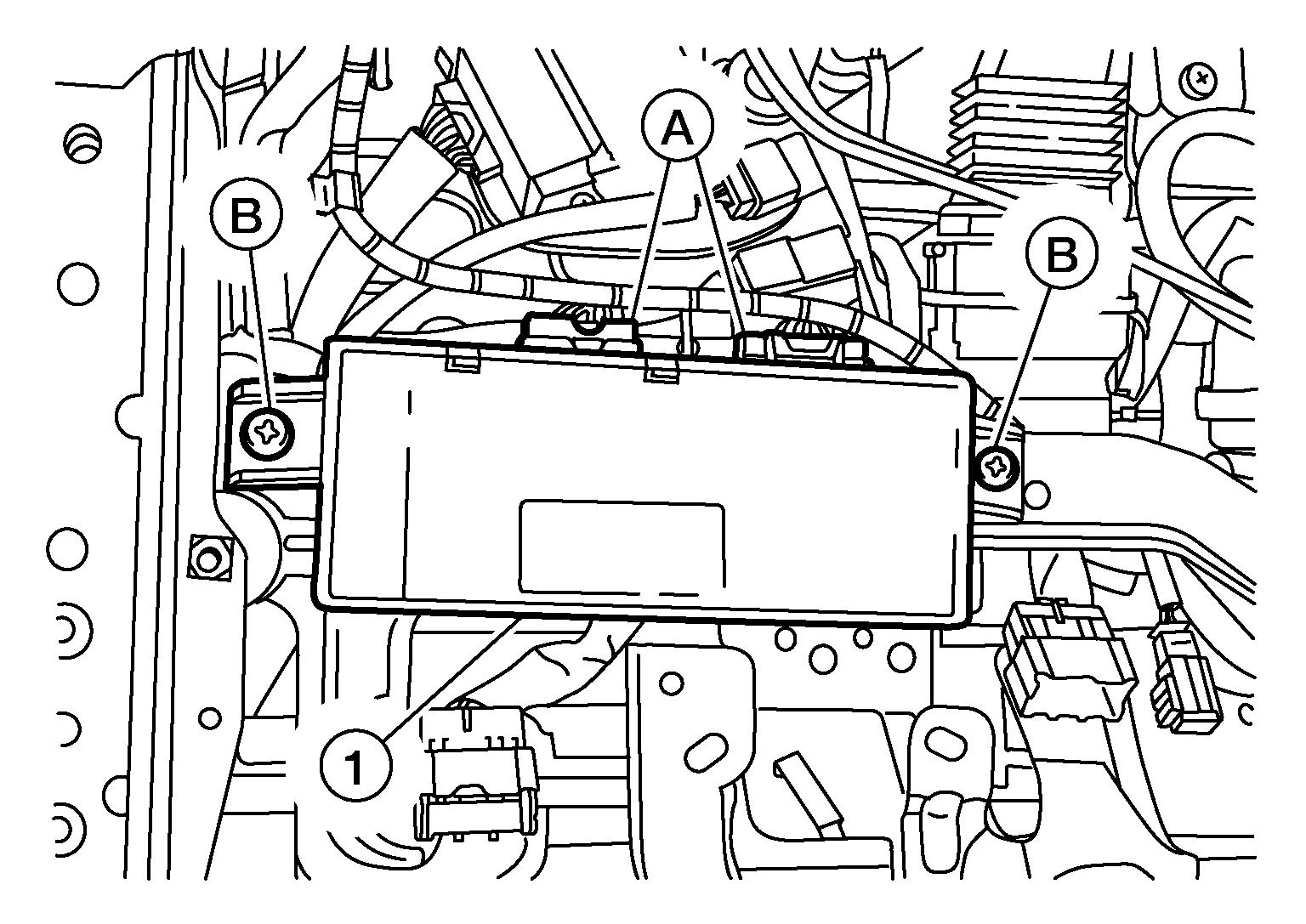

  2. Disconnect harness connectors (A) from driver seat control unit (1).
    GNSALJIA1916Z-916Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove screws (B) and driver seat control unit.
