Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove audio unit or AV control unit. Refer to Removal and Installation (DISPLAY AUDIO), Removal and Installation (NAVIGATION WITHOUT AMPLIFIER), Removal and Installation (NAVIGATION WITH AMPLIFIER), Removal and Installation (INTELLIGENT AROUND VIEW MONITOR SYSTEM), Removal and Installation (REAR VIEW MONITOR SYSTEM), Removal and Installation (TELEMATICS SYSTEM), or Removal and Installation [REAR SEAT ENTERTAINMENT (RSE) SYSTEM].

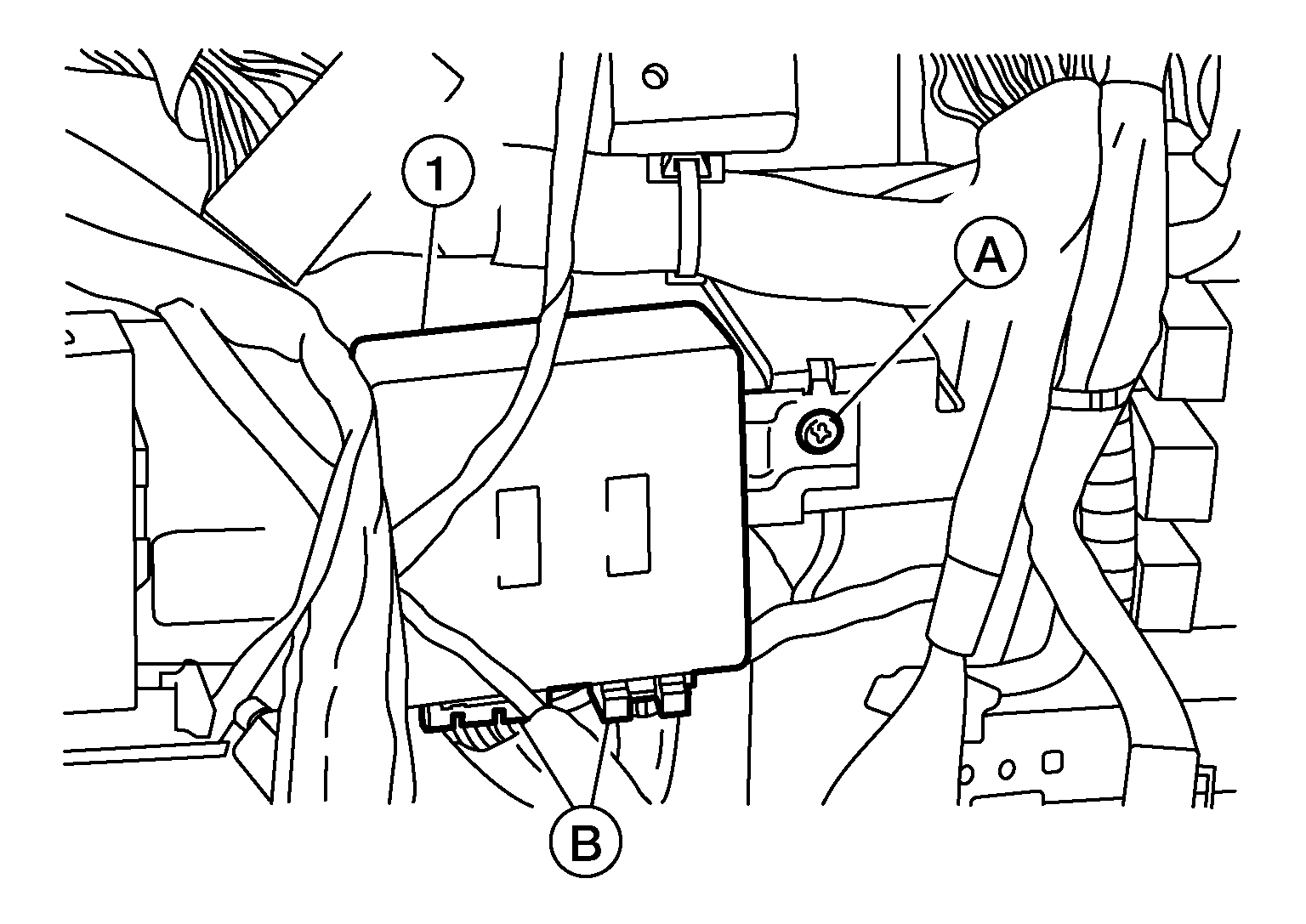

  2. Disconnect harness connectors (B) from automatic drive positioner control unit.
    GNSALJIA1917Z-917Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove automatic drive positioner control unit screw (A) and automatic drive positioner control unit (1).
