Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery or batteries. Refer to Battery Disconnect
.WARNING: Battery acid and battery acid fumes are extremely dangerous and can cause severe burns and explosion. To help reduce the risk of personal injury:
- Wear appropriate goggles and protective clothing.
- Always properly ventilate the area where the service is being performed.
- Never allow battery fluid to come in contact with skin, eyes, fabrics or painted surfaces.
- To avoid arcing, remove the negative (-) battery cable first and attach the negative (-) battery cable last.
- If acid contacts eyes, skin or clothing, immediately flush with water for 15 minutes and seek medical attention.
- Remove air cleaner and air duct assembly. Refer to Removal and Installation .
- Disconnect the connectors from the glow plug control unit by pressing the connector latch and pulling outward.

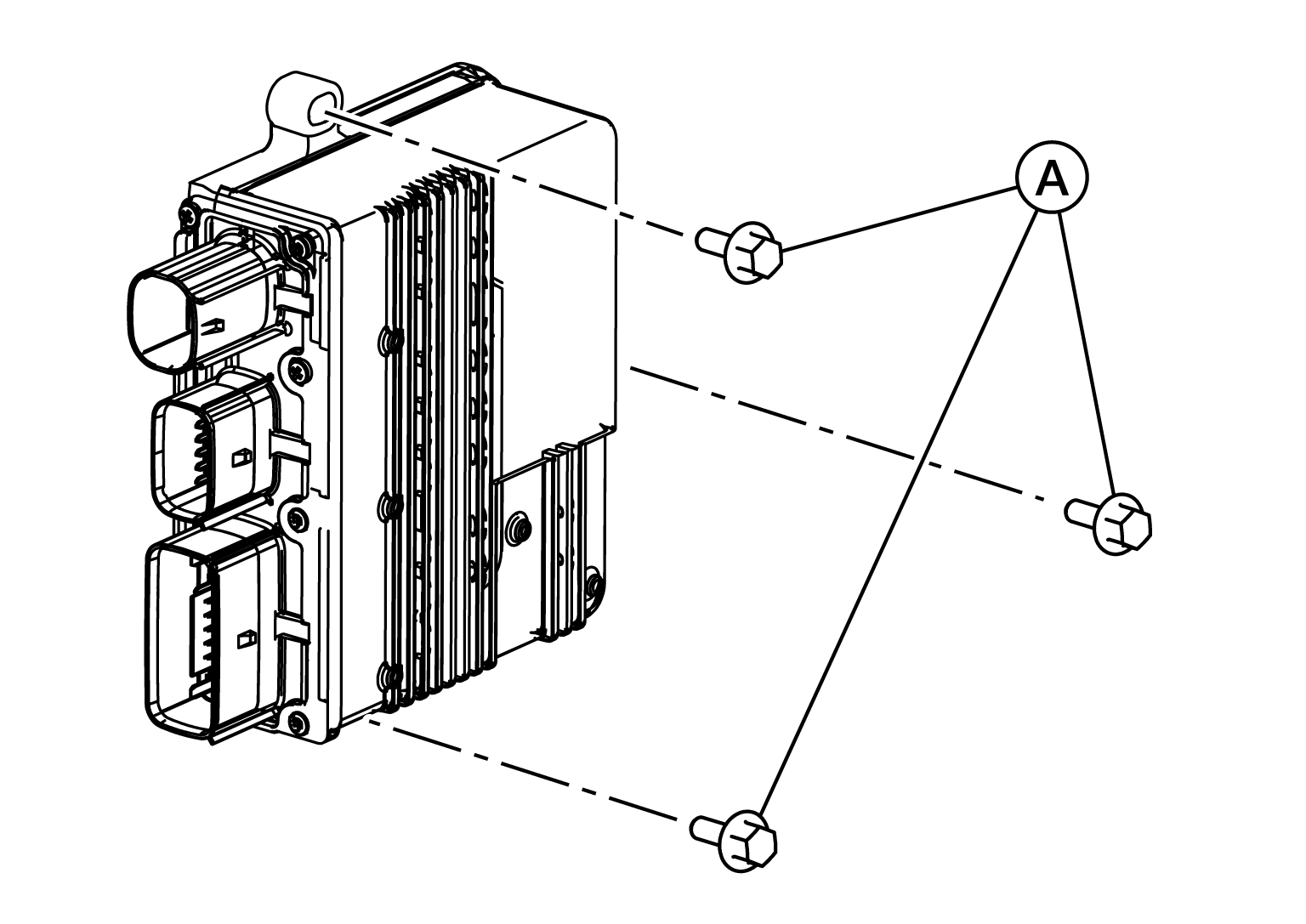

- Remove the bolts (A) that secure the glow plug control unit to the vehicle chassis.
Remove the glow plug control unit.
