Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

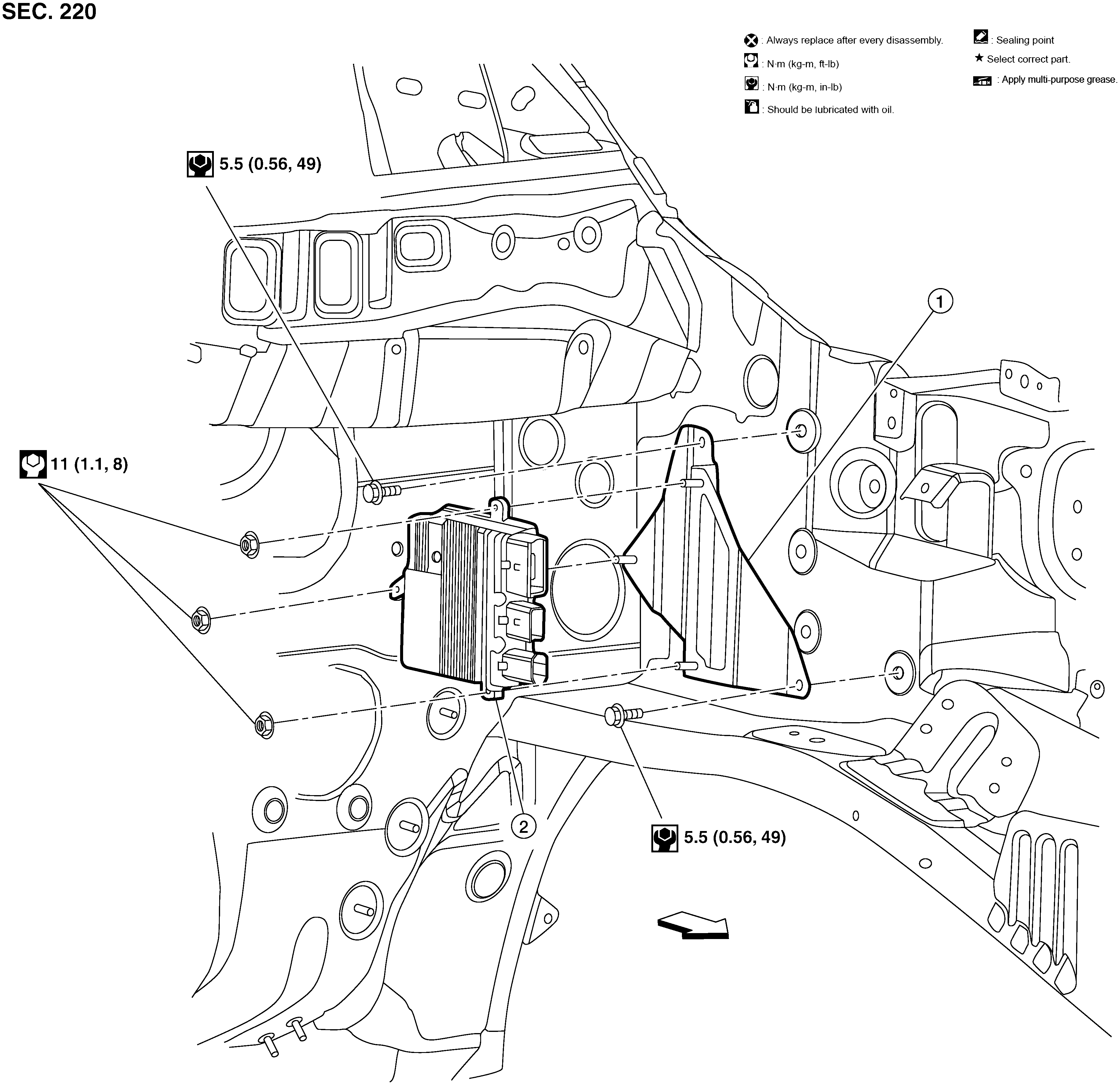

GNSAWBIA2887Z-887Courtesy of NISSAN NORTH AMERICA, INC.

1.

Glow control unit bracket

2.

Glow control unit

SYMBOL

Front
