Exploded View - XD Models
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|

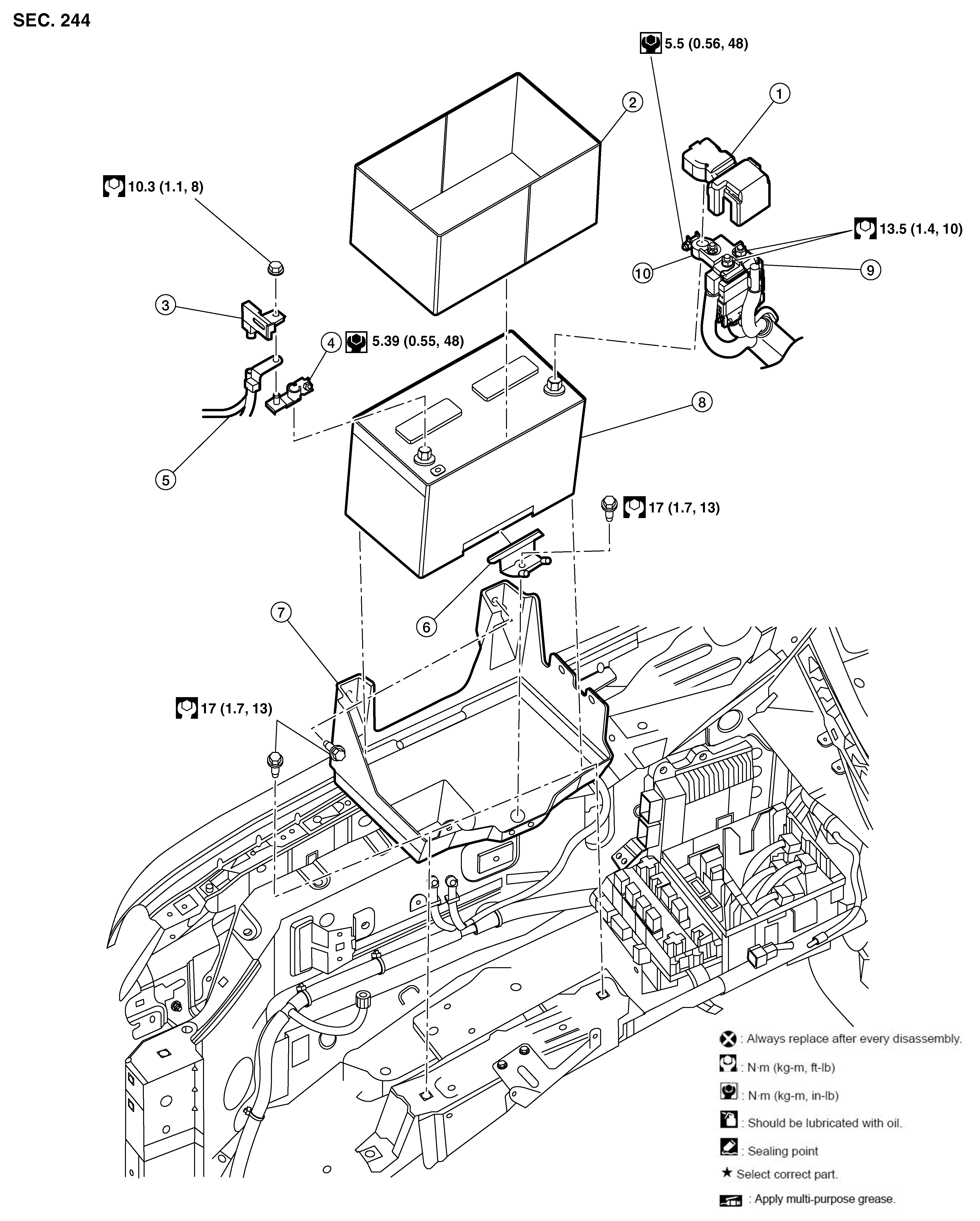

1.
|
Battery positive terminal cover
|
2.
|
Battery cover
|
3.
|
Battery current sensor
|
|
4.
|
Battery negative terminal
|
5.
|
Battery negative cable
|
6.
|
Battery wedge bracket
|
|
7.
|
Sub battery tray
|
8.
|
Battery
|
9.
|
Fusible link box (battery)
|
|
10.
|
Battery positive terminal
|
