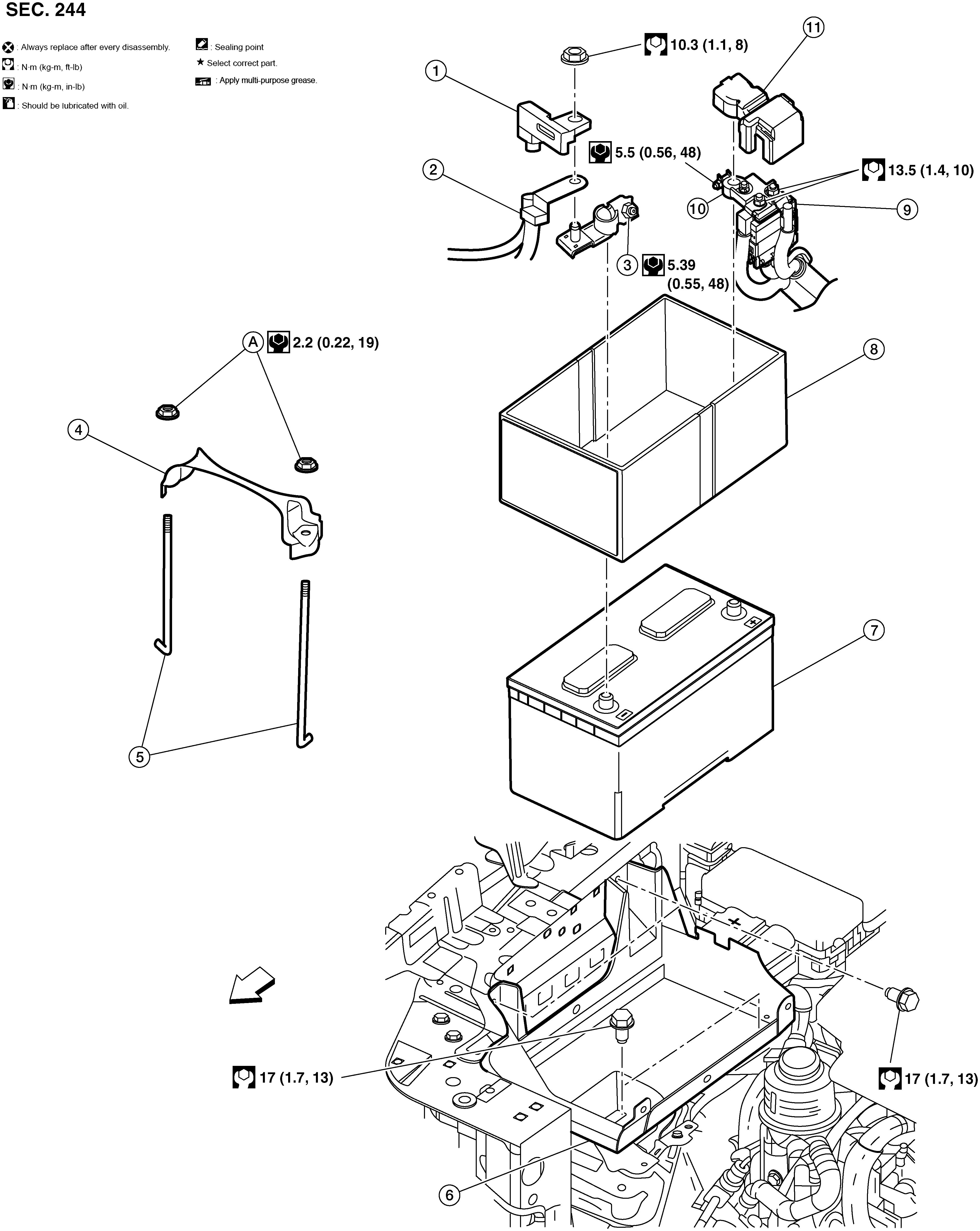

Exploded View - Non XD Models
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Battery current sensor
|
2.
|
Battery negative cable
|
3.
|
Battery negative terminal
|
|
4.
|
Battery frame
|
5.
|
Battery rod
|
6.
|
Sub battery tray
|
|
7.
|
Battery
|
8.
|
Battery cover
|
9.
|
Fusible link box (battery)
|
|
10.
|
Battery positive terminal
|
11.
|
Battery positive terminal cover
|
A.
|
Battery rod nuts
|
|
|
Front
|
