Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery or batteries. Refer to Battery Disconnect .

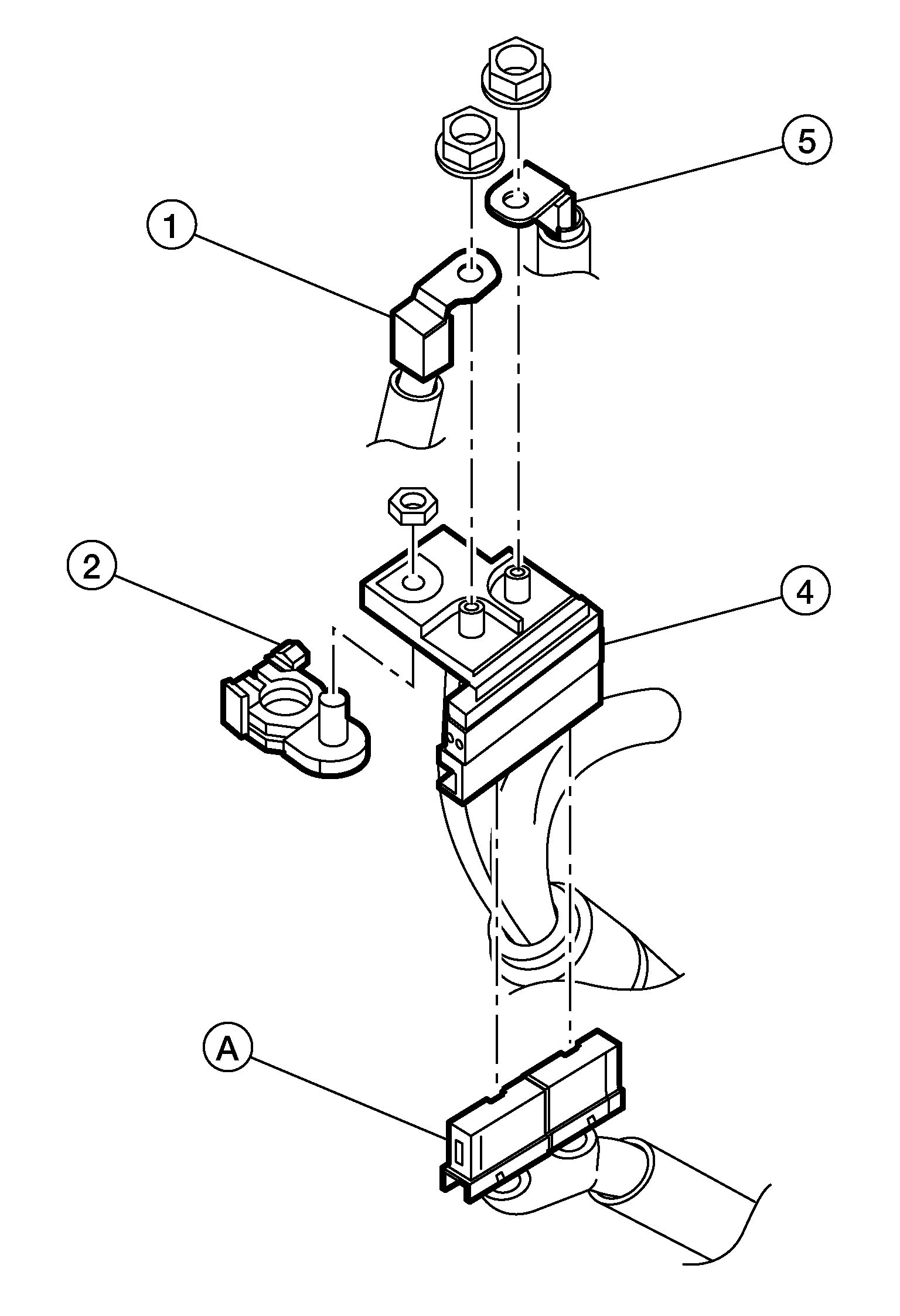

- Disconnect the following components:
- Battery positive terminal (2) from the fusible link box [battery (4)].
- Battery positive cables (1) and (5) from the fusible link box [battery (4)].
- Harness connector (A) from the fusible link box [battery (4)].
