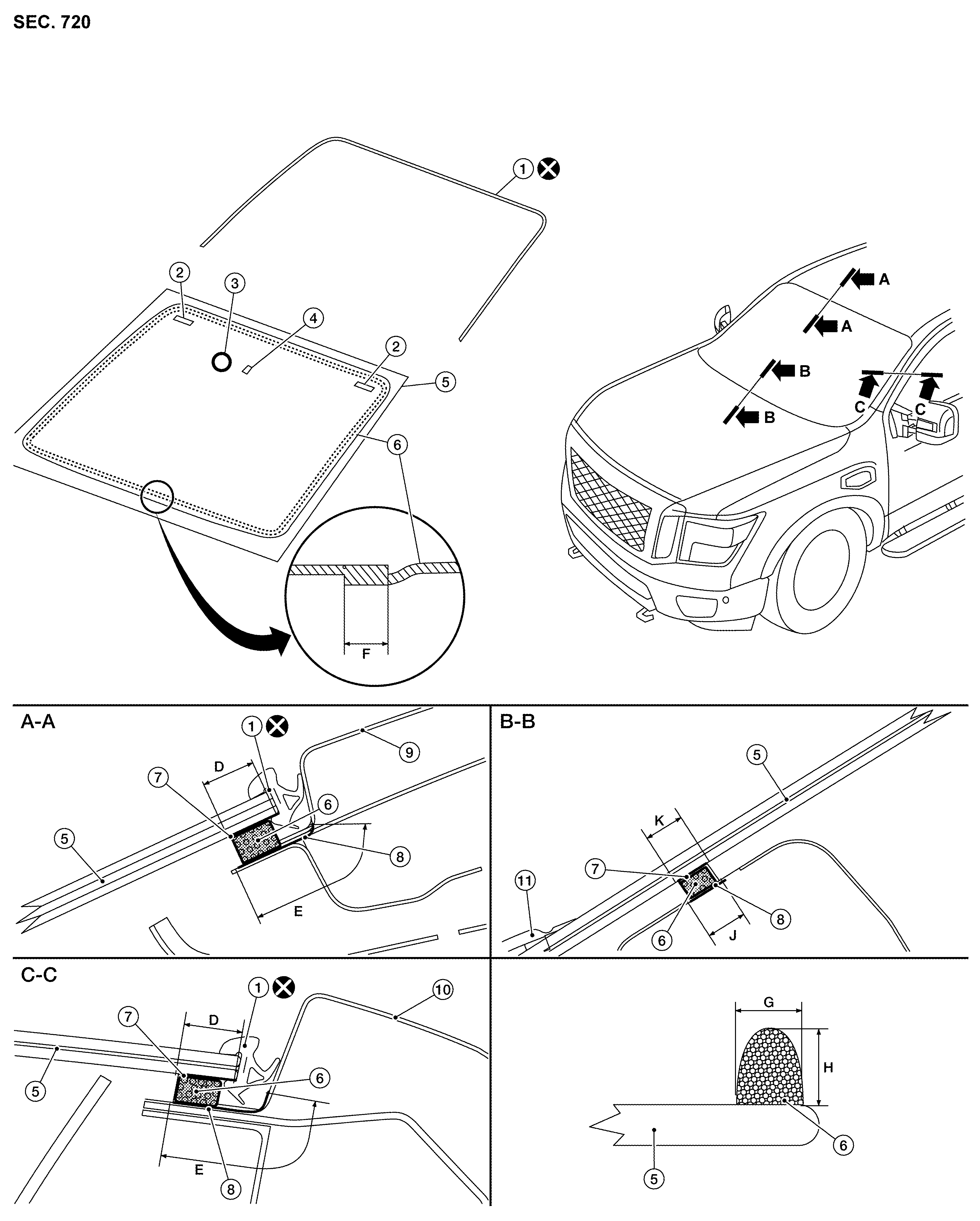

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Windshield glass molding |
2. |
Spacer |
3. |
Rain sensor bracket (if equipped) |
|
4. |
Mirror base |
5. |
Windshield glass |
6. |
Adhesive |
|
7. |
Glass primer |
8. |
Painted surface primer |
9. |
Roof panel |
|
10. |
Body side outer |
11. |
Cowl top cover |
D. |
14 mm (0.6 in) |
|
E. |
22 mm (0.87 in) |
F. |
120 mm (4.7 in) |
G. |
7 mm +2, -0 mm (0.28 in +0.08, -0 in) |
|
H. |
12 mm +2, -0 mm (0.47 in +0.08, -0 in) |
J. |
19 mm (0.7 in) |
K. |
26 mm (1.0 in) |
