Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery or batteries, then wait at least three minutes. Refer to Battery Disconnect .
- Remove rear panel. Refer to Removal and Installation .
- Lower the headlining. Refer to Exploded View .
- Disconnect the harness connectors from rear window defogger.
- Disconnect the harness connector from rear power slide glass motor (if equipped).

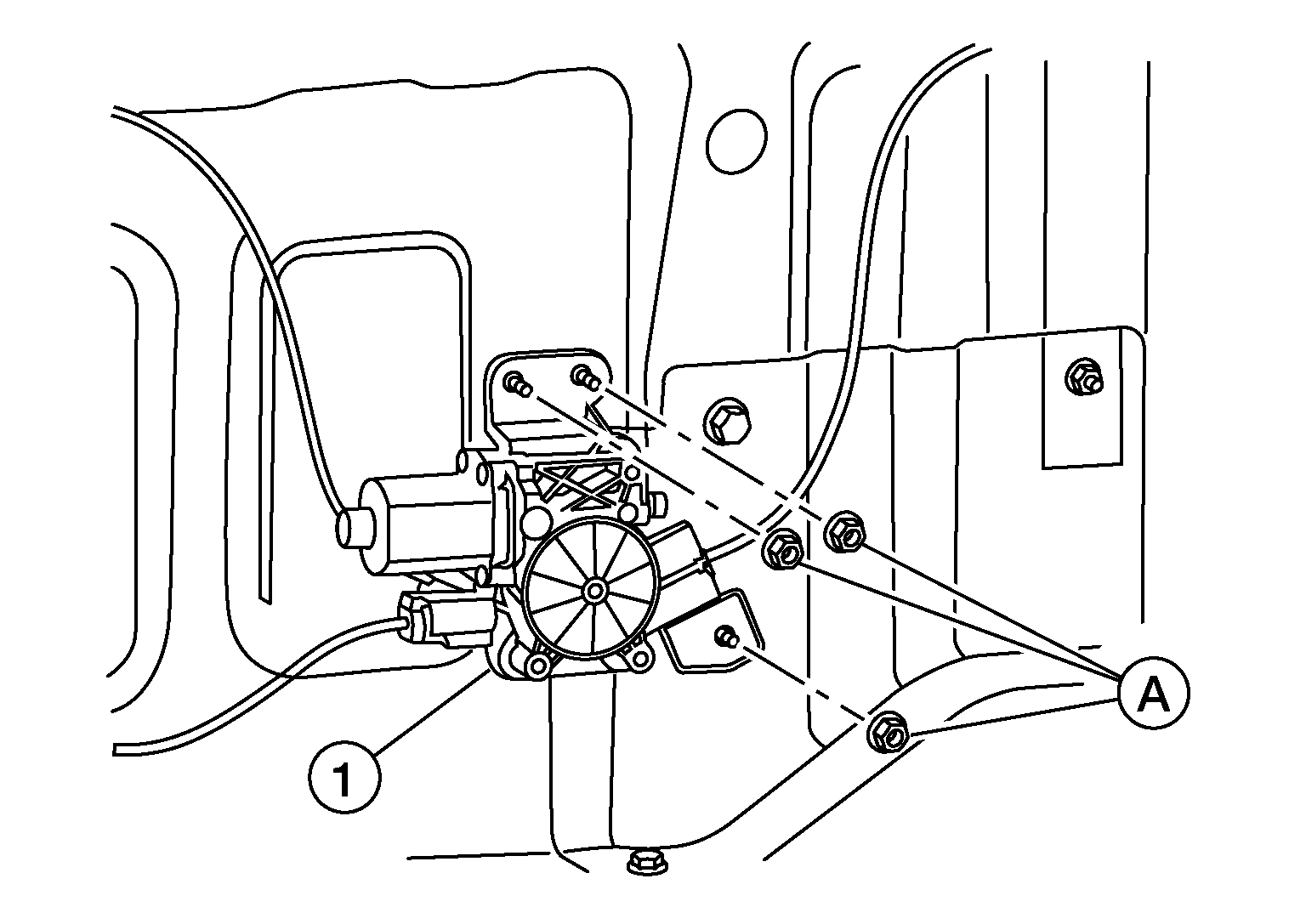

- Remove nuts (A) from slide glass regulator [1 (if equipped)].
- Disconnect clips retaining the slide glass regulator (if equipped).

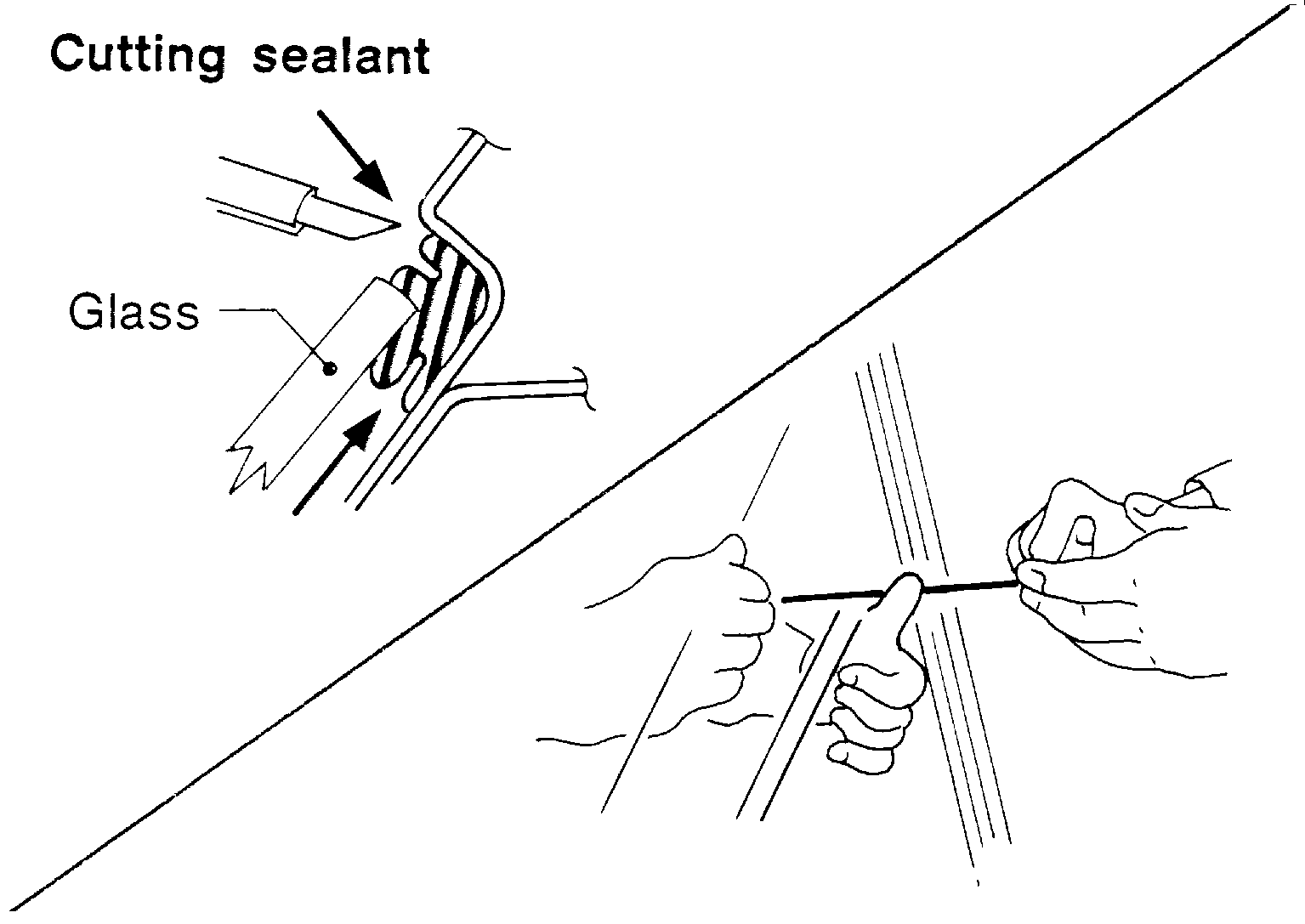

- Remove rear window glass using piano wire or power cutting tool.WARNING: When cutting rear window glass from vehicle, always wear safety glasses and heavy gloves to prevent glass splinters from entering your eyes or cutting your hands.CAUTION:
- Be careful not to scratch glass when removing.
- Do not set or stand glass on its edge. Small chips may develop into cracks.
- Apply protective tape around rear window glass to protect painted surface from damage.
NOTE: Mark body and glass with matching marks if rear window glass is to be reused.
