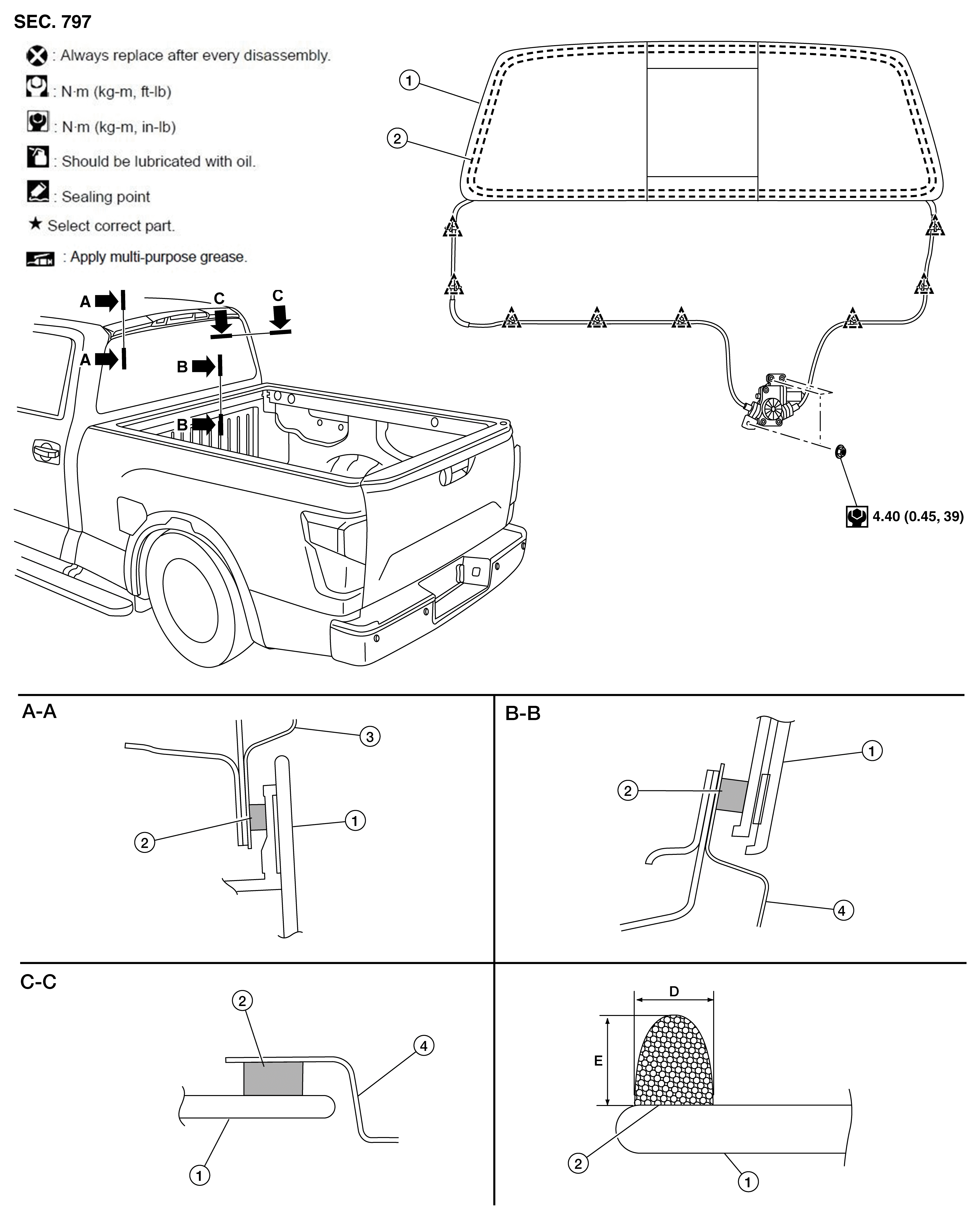

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Rear window glass |
2. |
Adhesive |
3. |
Roof panel |
|
4. |
Body side outer panel |
D. |
7 mm +2, -0 mm (0.28 in +0.08, -0 in) |
E. |
12 mm +2, -0mm (0.47 in +0.08, -0 in) |
|
|
Clip |
|

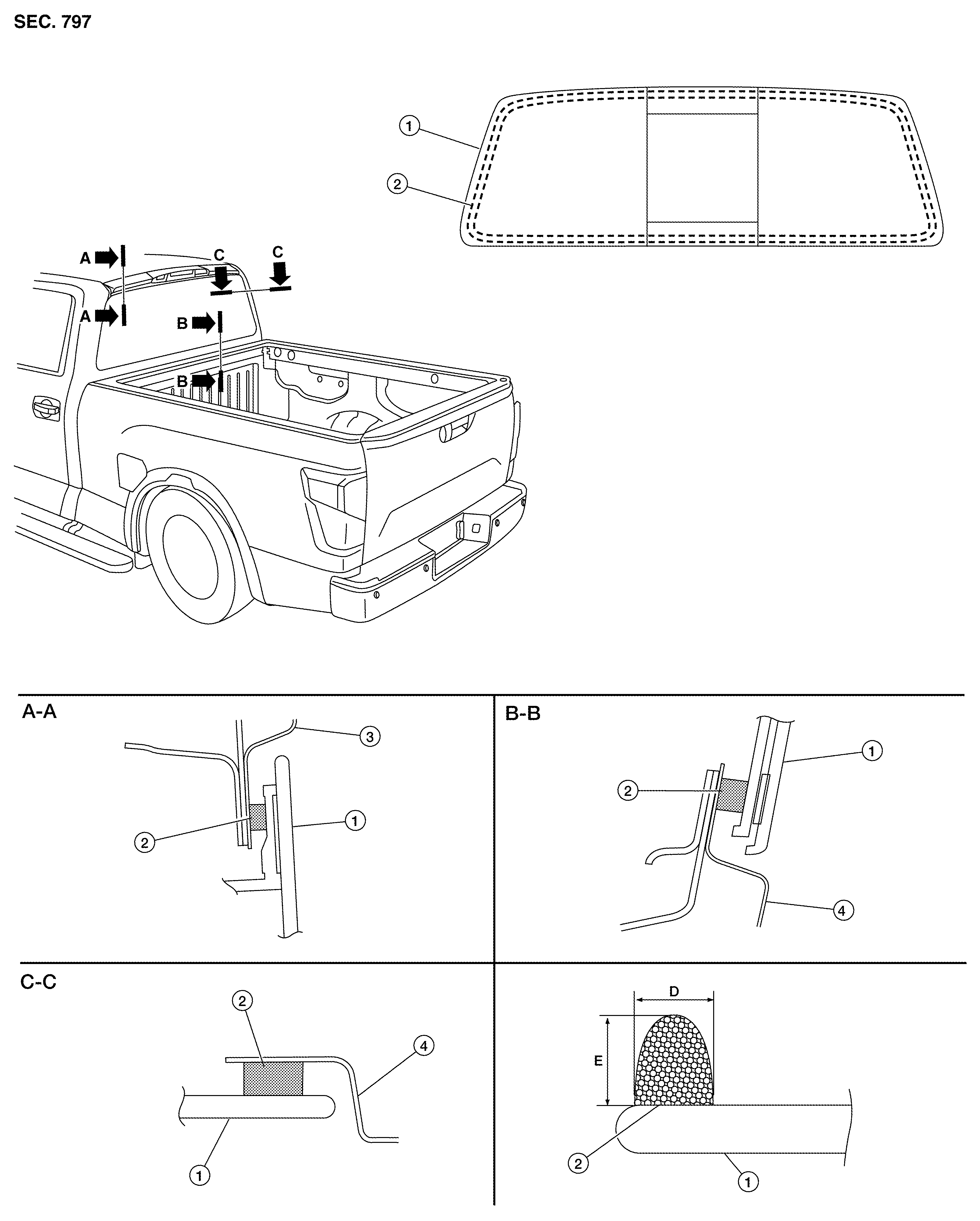

1. |
Rear window glass |
2. |
Adhesive |
3. |
Roof panel |
|
4. |
Body side outer panel |
D. |
7 mm +2, -0 mm (0.28 in +0.08, -0 in) |
E. |
12 mm +2, -0mm (0.47 in +0.08, -0 in) |
