Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove door glass regulator. Refer to Removal and Installation .

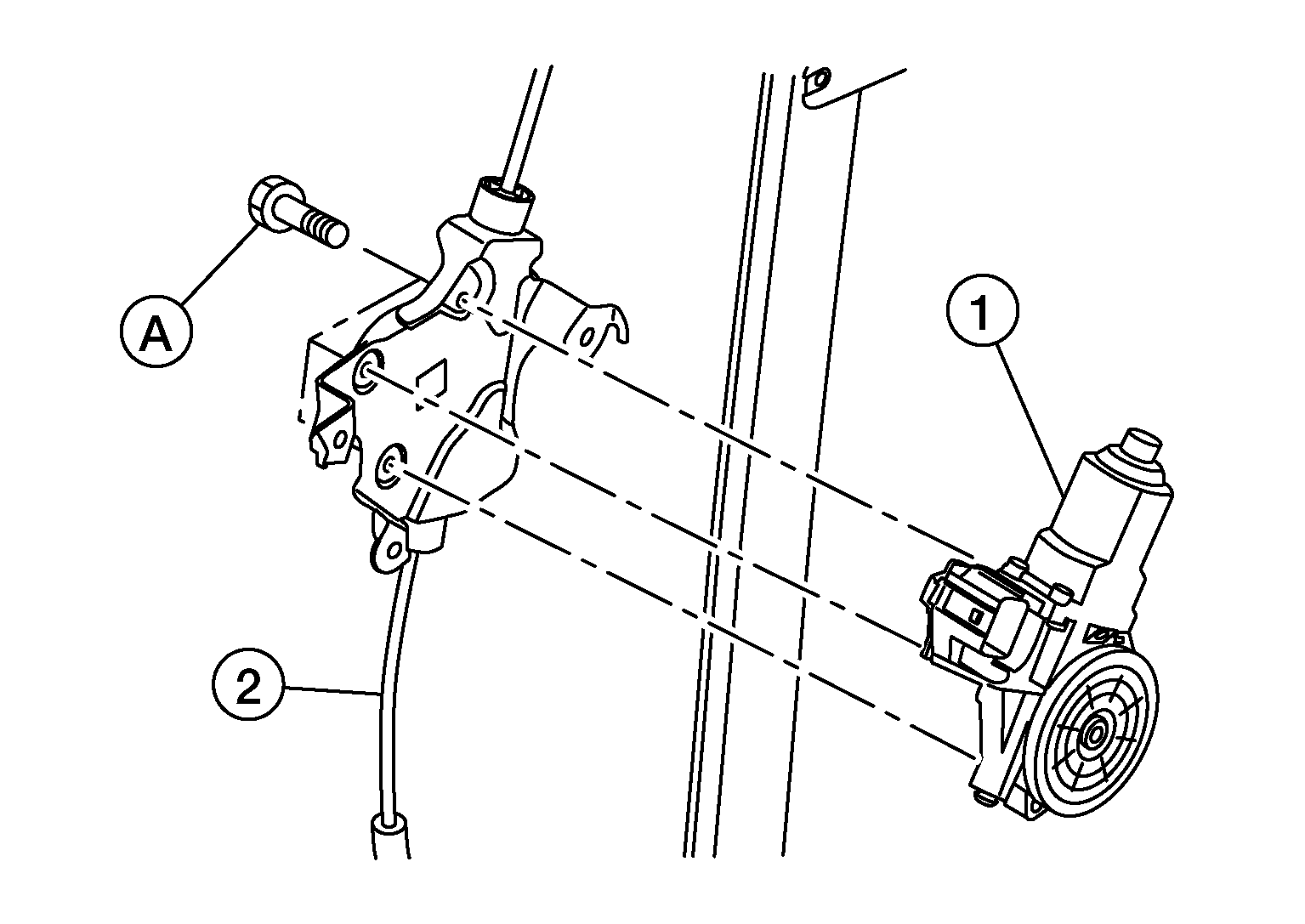

  2. Remove bolts (A) and rear power window motor (1) from door glass regulator (2).
    GNSAWKIA3479Z-479Courtesy of NISSAN NORTH AMERICA, INC.
