Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not damage the door glass or door panel.
  1. Remove rear door finisher. Refer to Removal and Installation .
  2. Disconnect harness connector from rear door speaker.

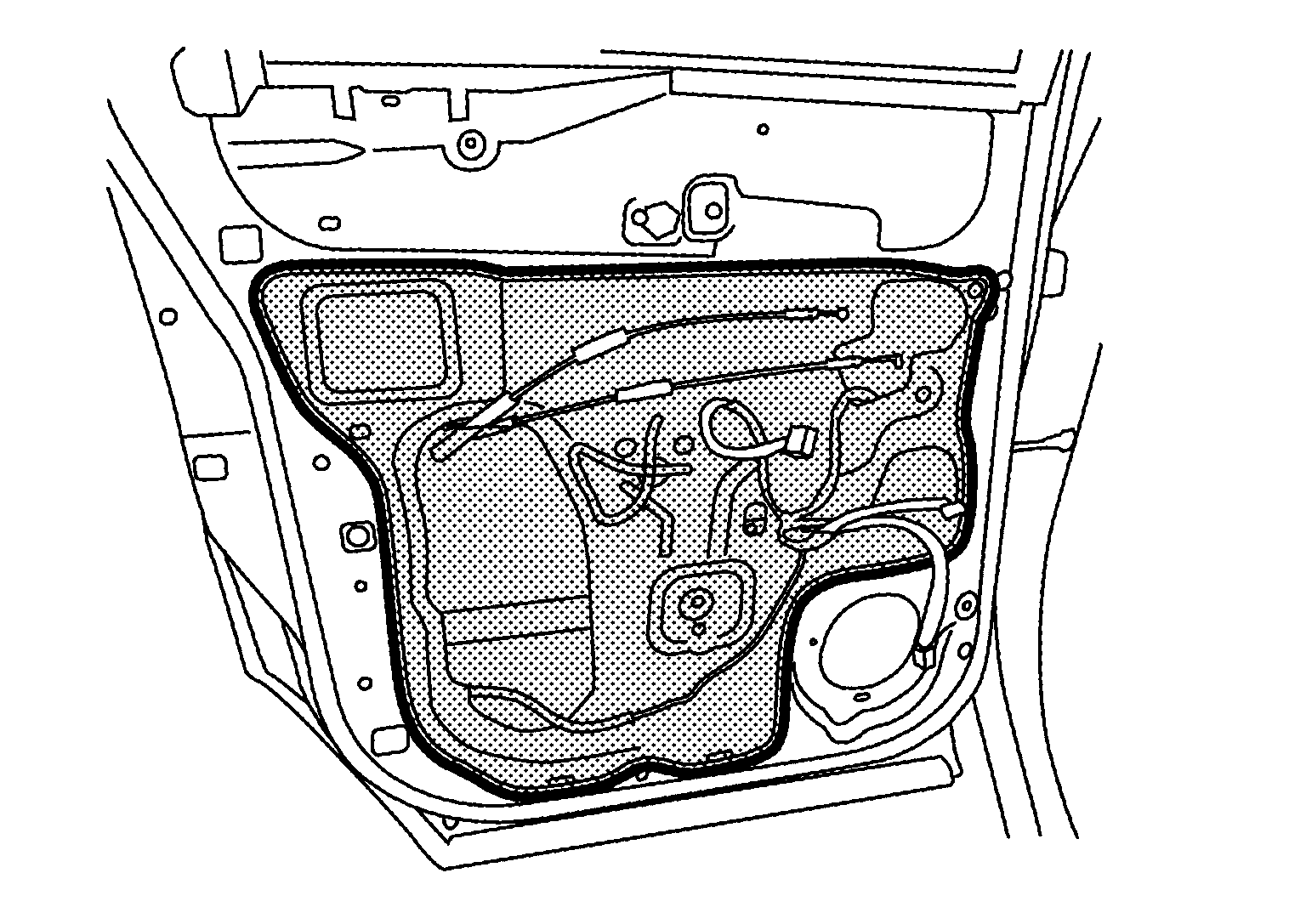

  3. Remove door vapor barrier.
    GNSALKIA4311Z-311Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Use care not to damage or tear vapor barrier during removal.
  4. Remove door inside seal.

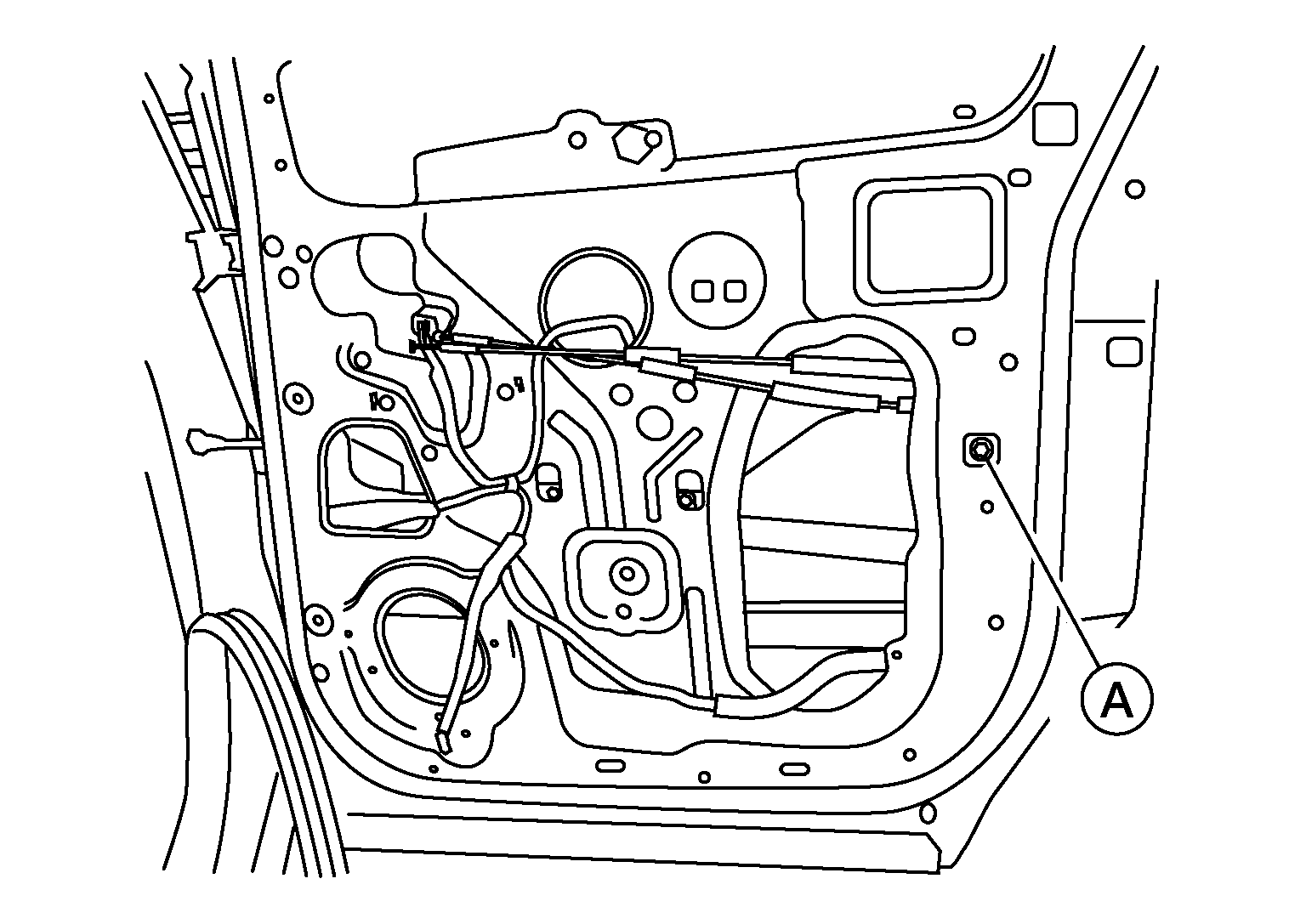

  5. Remove bolt (A) then remove door rear run.
    GNSALKIA4313Z-313Courtesy of NISSAN NORTH AMERICA, INC.
  6. Temporarily reconnect the rear power window switch.
  7. Raise and lower door glass until the door glass regulator to door glass bolts can be seen and remove.
    GNSALKIA4312Z-312Courtesy of NISSAN NORTH AMERICA, INC.
  8. Remove glass out of door glass regulator and lower glass to inner bottom of door panel.
  9. Lift glass up with rear edge out of door glass rubber run and front edge in the door glass rubber run.
    NOTE: When lifting glass, rear edge will pass between door glass rubber run and door inner.
  10. Remove door glass from door panel.
  11. Remove door glass rubber run (if necessary).
