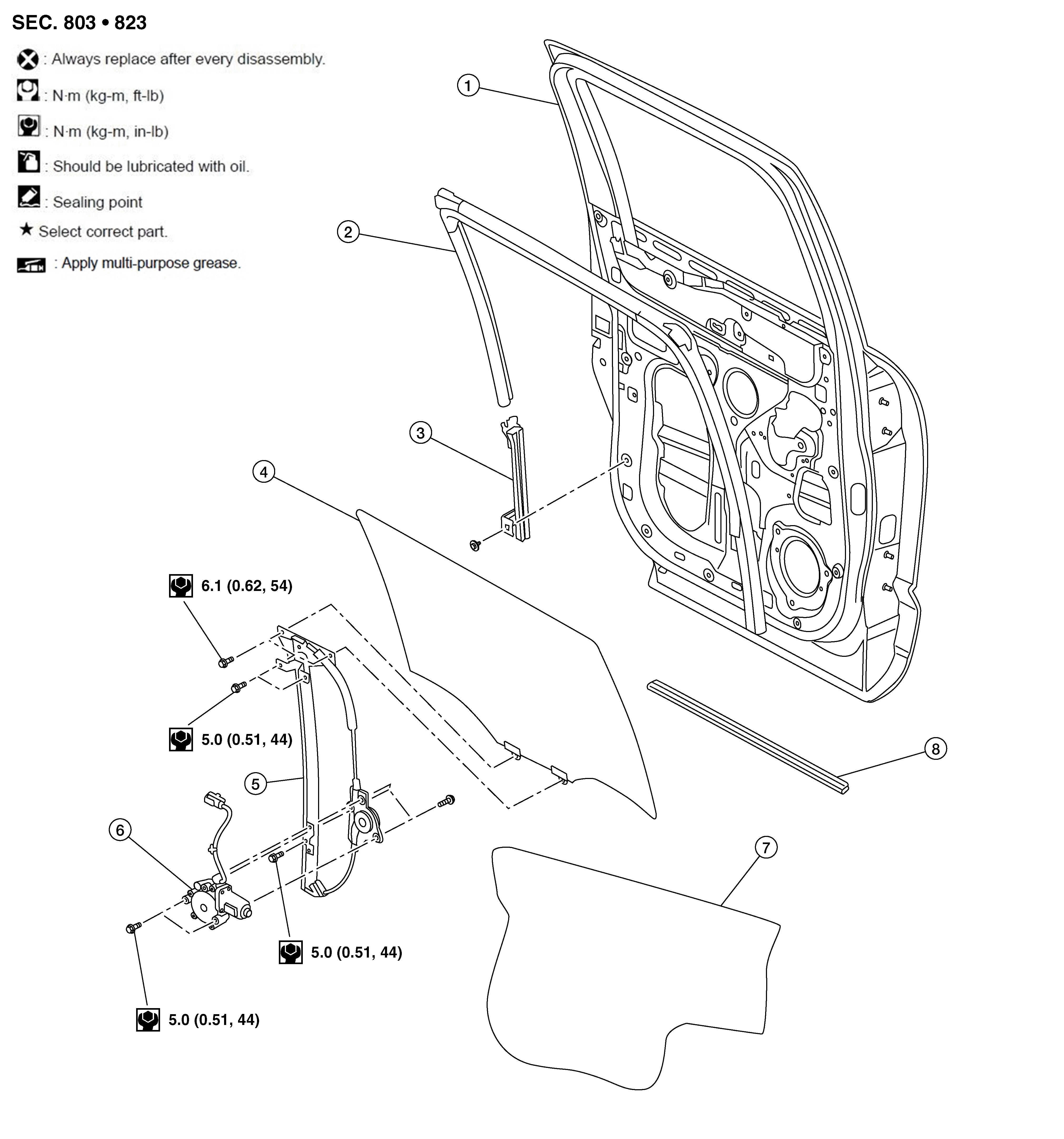

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Door panel
|
2.
|
Door glass run rubber
|
3.
|
Door glass rear run
|
|
4.
|
Door glass
|
5.
|
Door glass regulator
|
6.
|
Rear power window motor
|
|
7.
|
Vapor barrier
|
8.
|
Door inside seal
|
|
