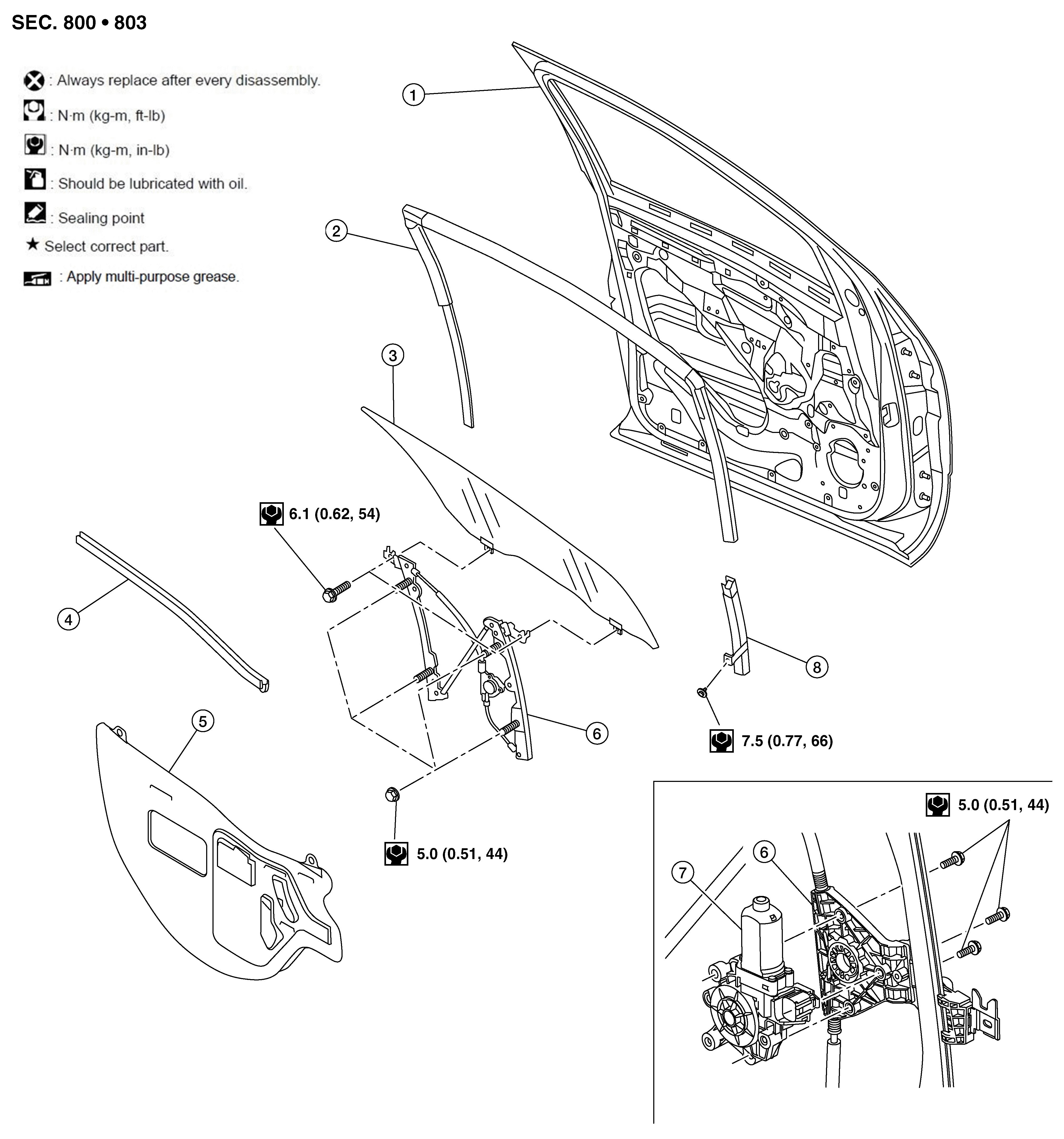

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Door panel
|
2.
|
Door glass run rubber
|
3.
|
Door glass
|
|
4.
|
Door inside seal
|
5.
|
Door vapor barrier
|
6.
|
Door glass regulator
|
|
7.
|
Front power window motor
|
8.
|
Door glass front run
|
|
|
