Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

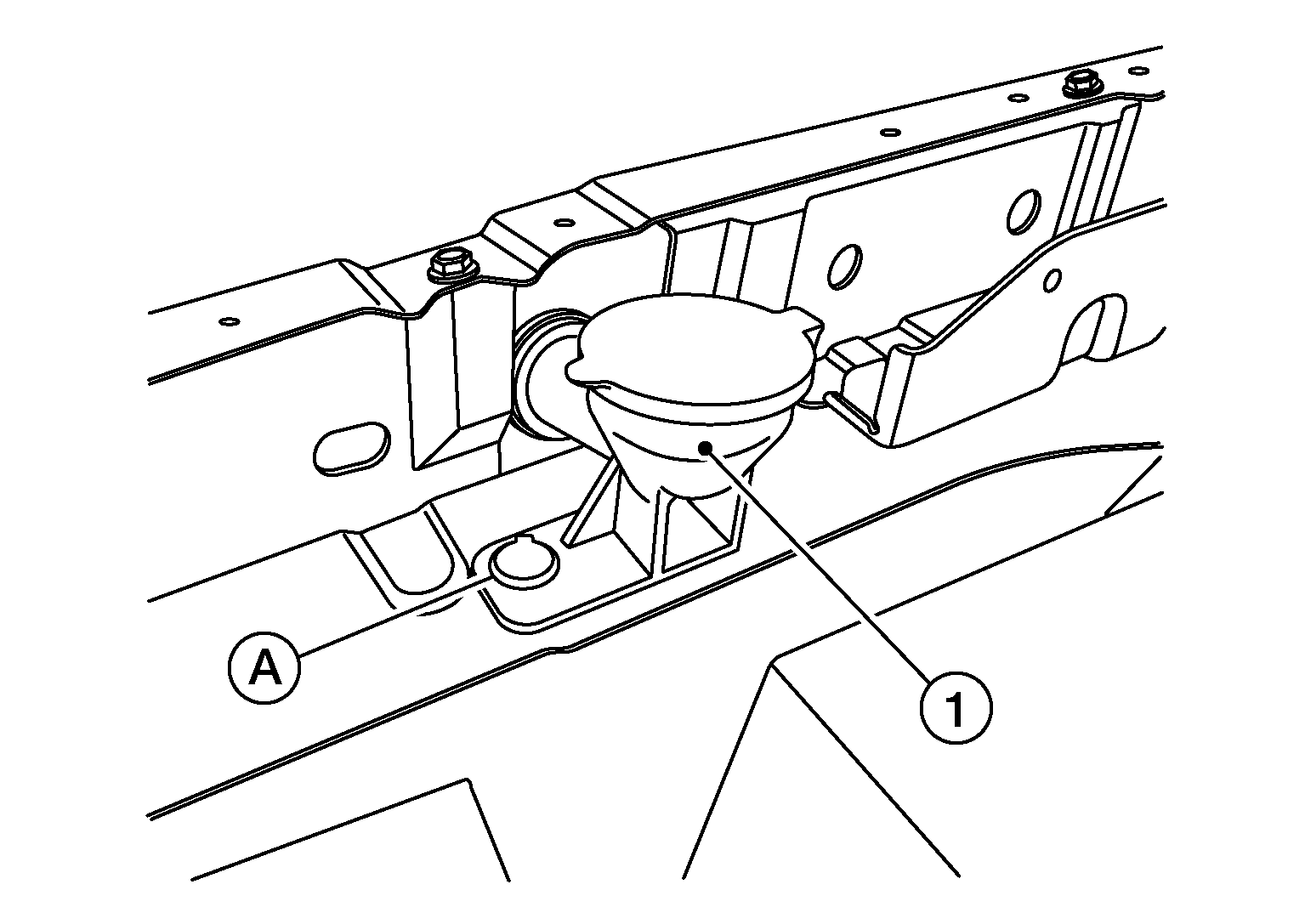

- Remove clip (A) and pull washer tank inlet (1) out of washer tank.
- Remove front fender protector (RH). Refer to Removal and Installation - Front Fender Protector .
- Disconnect washer tube (3).

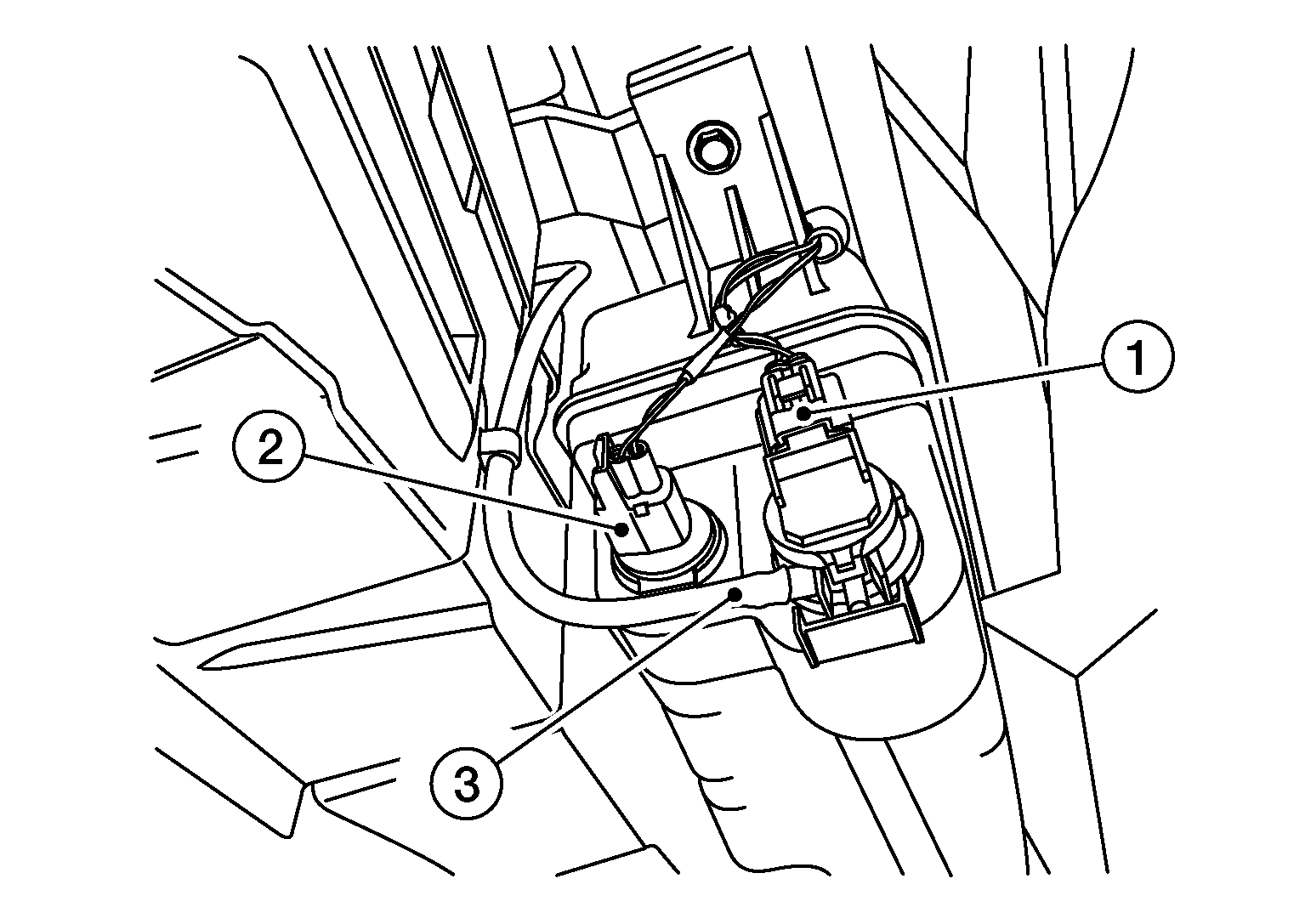

- Disconnect harness connector from front washer motor (1) and washer fluid level switch [if equipped (2)].
- Remove washer tank bolts.

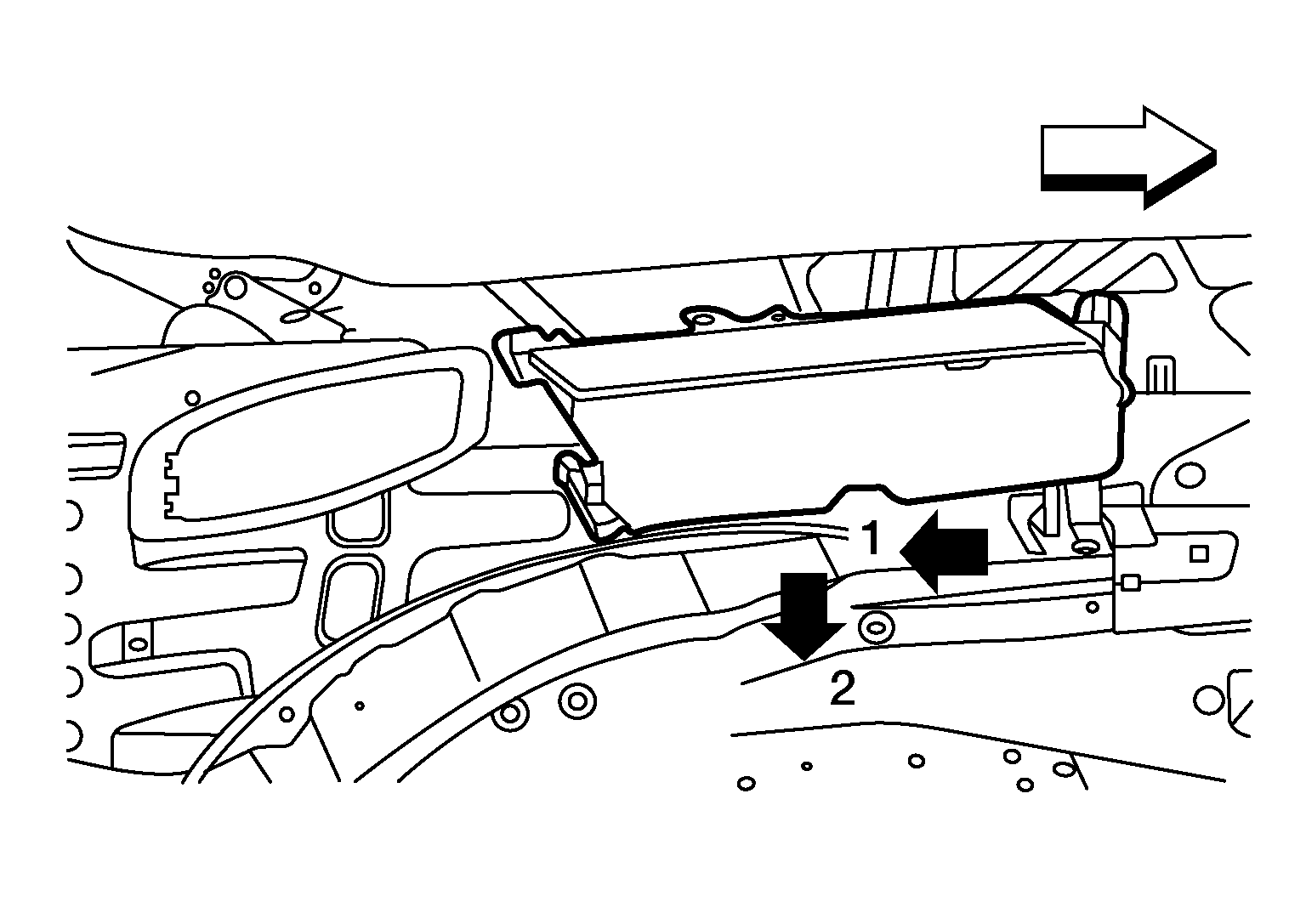

- Remove washer tank as shown.
:Front
