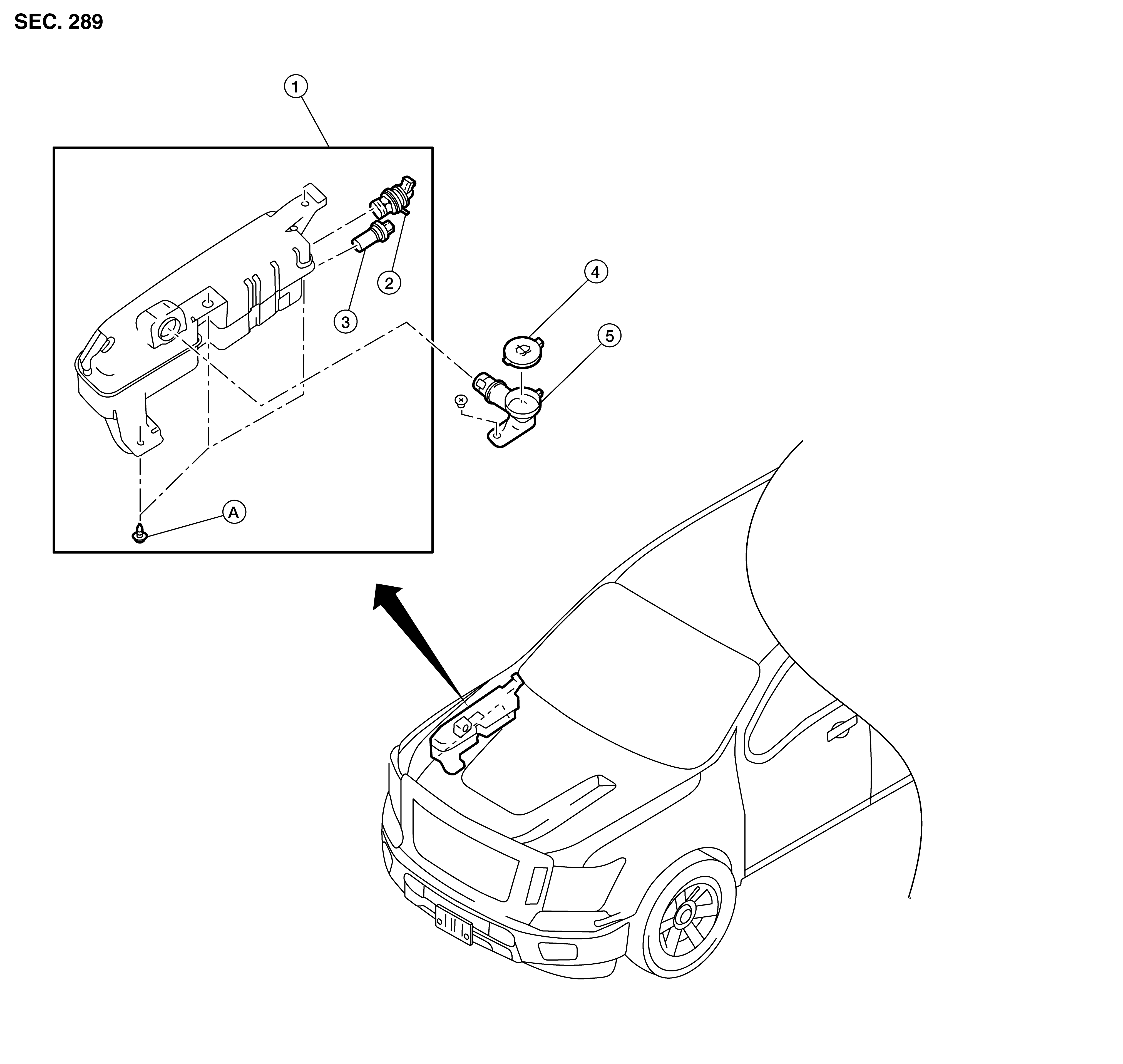

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Washer tank |
2. |
Front washer motor |
3. |
Washer fluid level switch (if equipped) |
|
4. |
Washer tank inlet cap |
5. |
Washer tank inlet |
A. |
Refer to Removal and Installation . |
