Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

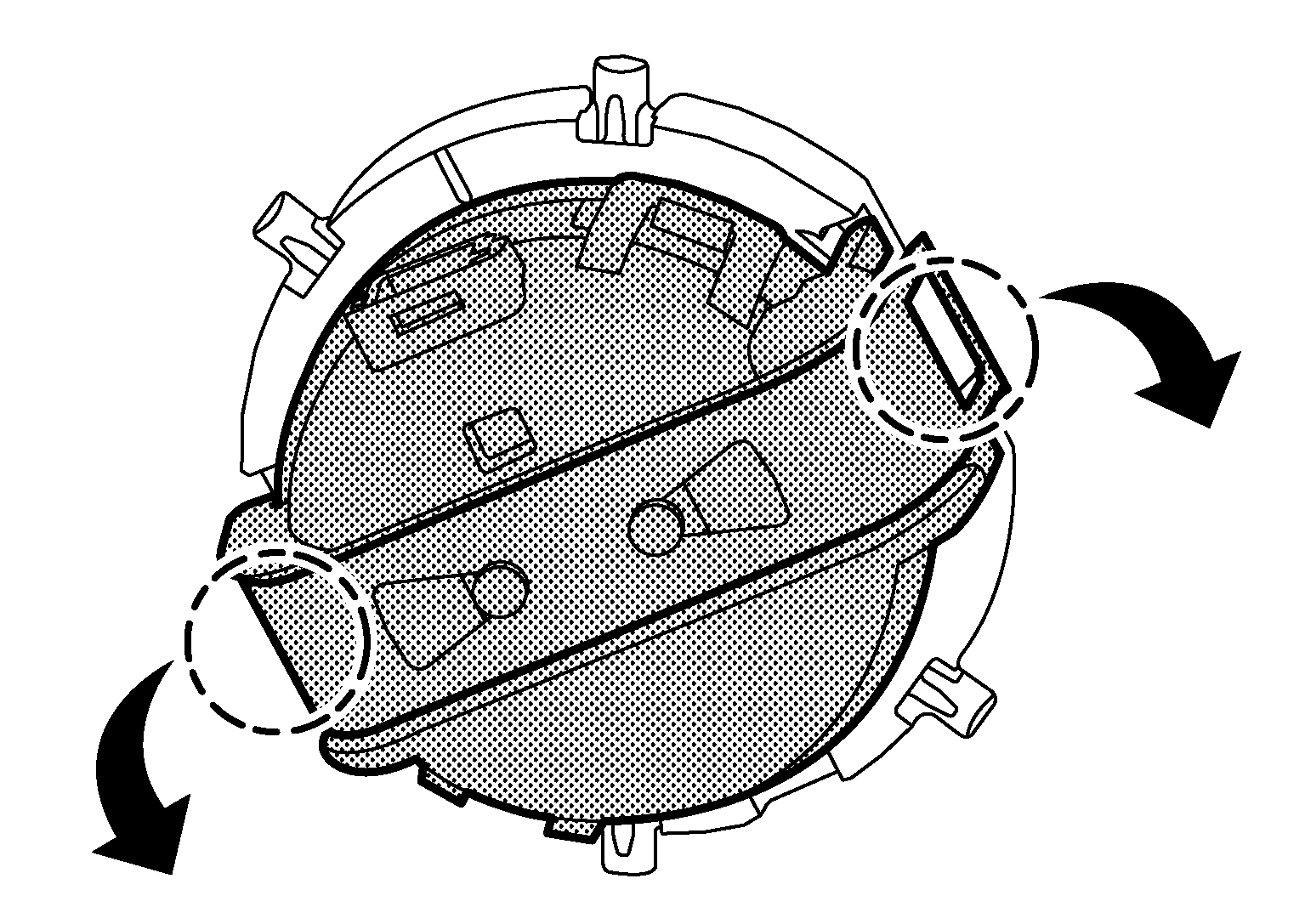

- Release rain sensor finishers pawls using a suitable tool, then remove the rain sensor finisher.
- Disconnect harness connector from rain sensor.
- Release metal bracket from pawls, then remove rain sensor from the windshield glass.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
|
: Pawl
|
