Removal and Installation: Installation
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
Installation is in the reverse order of removal.
CAUTION:
- Do not reuse rain sensor.
- Do not reuse rain sensor if dropped.
- The surface of the windshield should be cleaned.
- Remove protective cover from sensor just before installation.

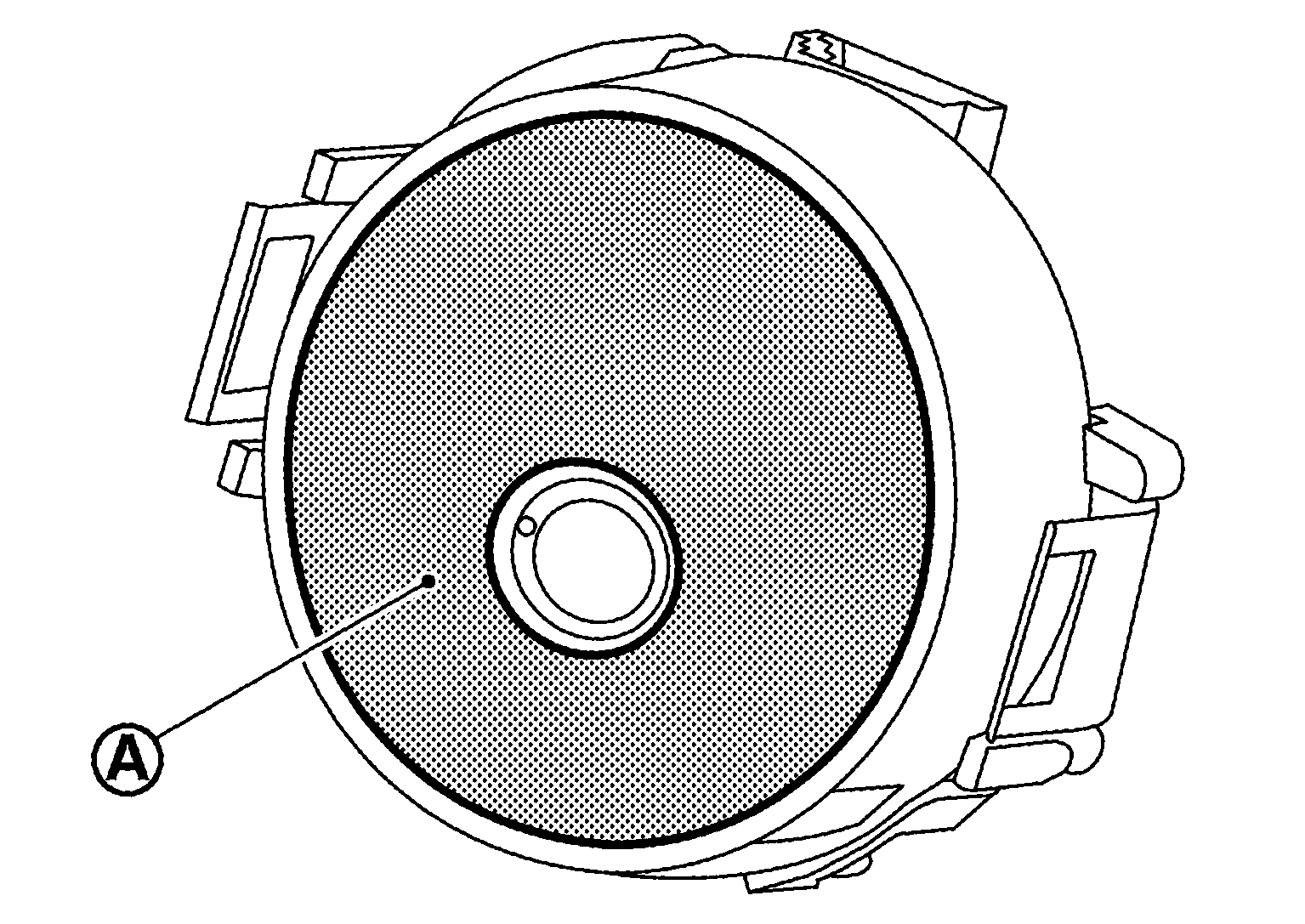

- Do not touch gel/adhesive (A) after removing protective cover.
- Install rain sensor with connector facing upward.

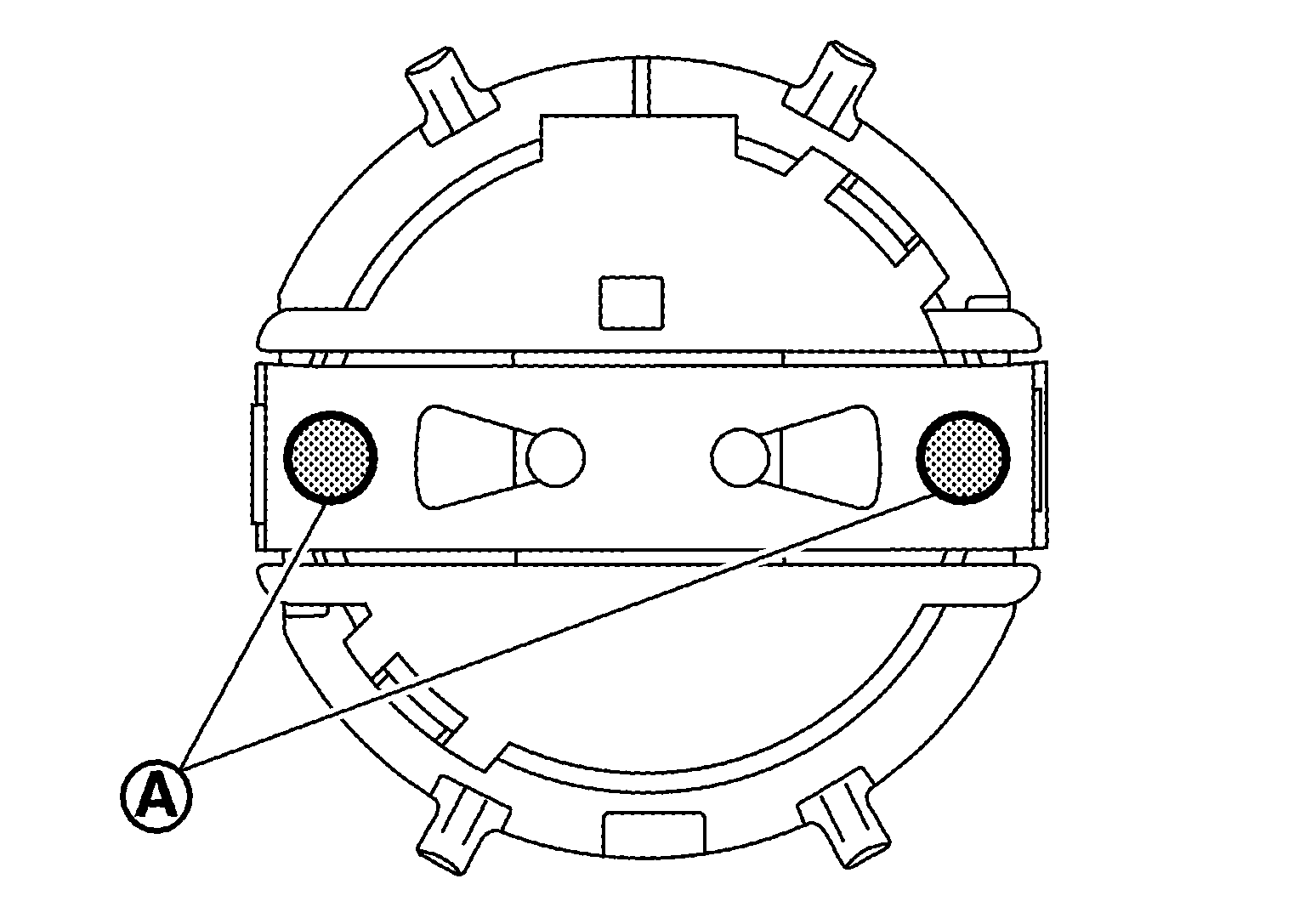

- Press rain sensor at point (A), flush against the glass surface.
- Be sure the metal bracket fully engages the pawls and is locked securely.
