Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove wiper blade. Refer to Removal and Installation .

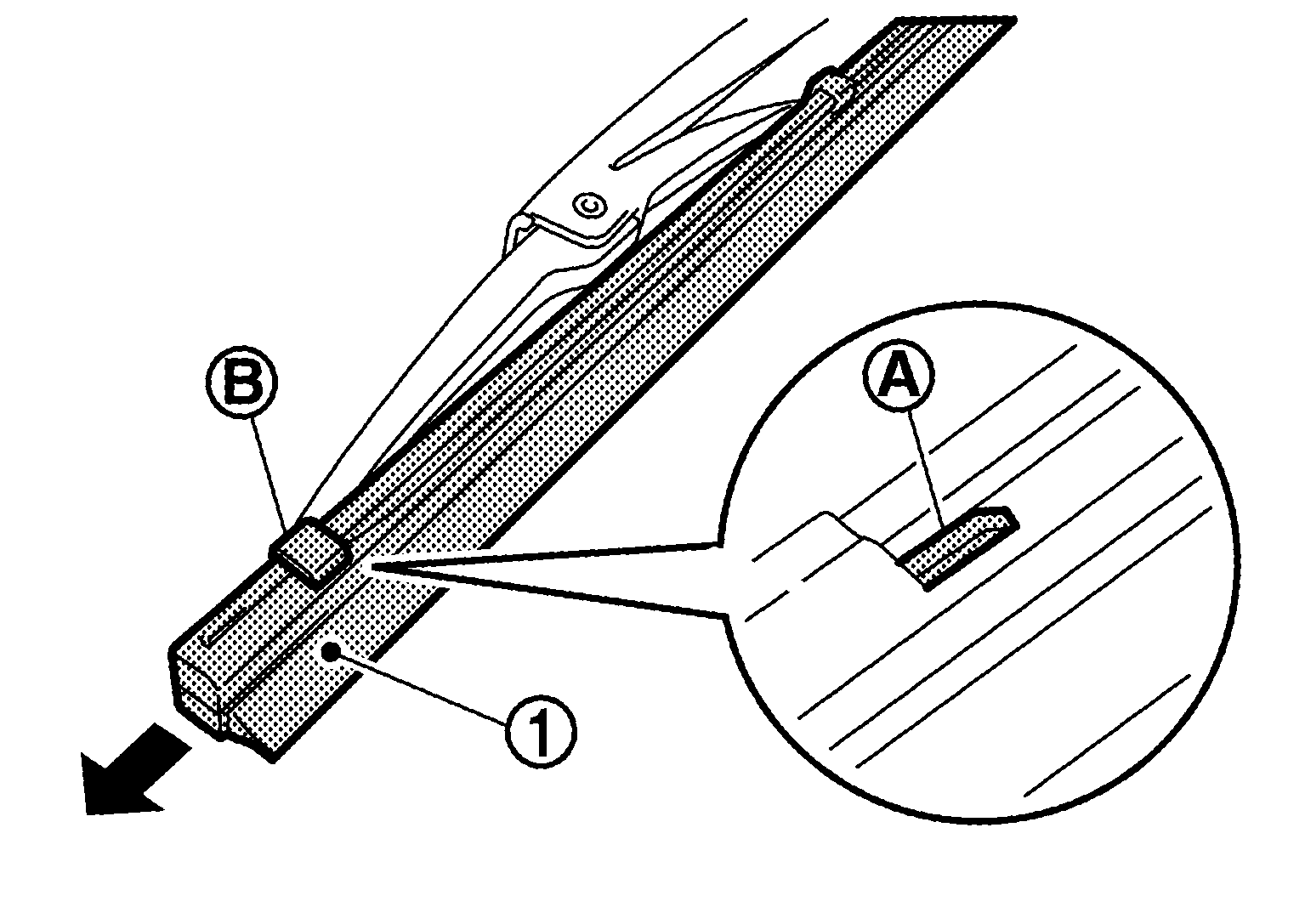

  2. Release portion (A) of wiper refill (1), from wiper blade portion (B) and remove wiper refill as shown.
    GNSJMLIA1992Z-992Courtesy of NISSAN NORTH AMERICA, INC.
