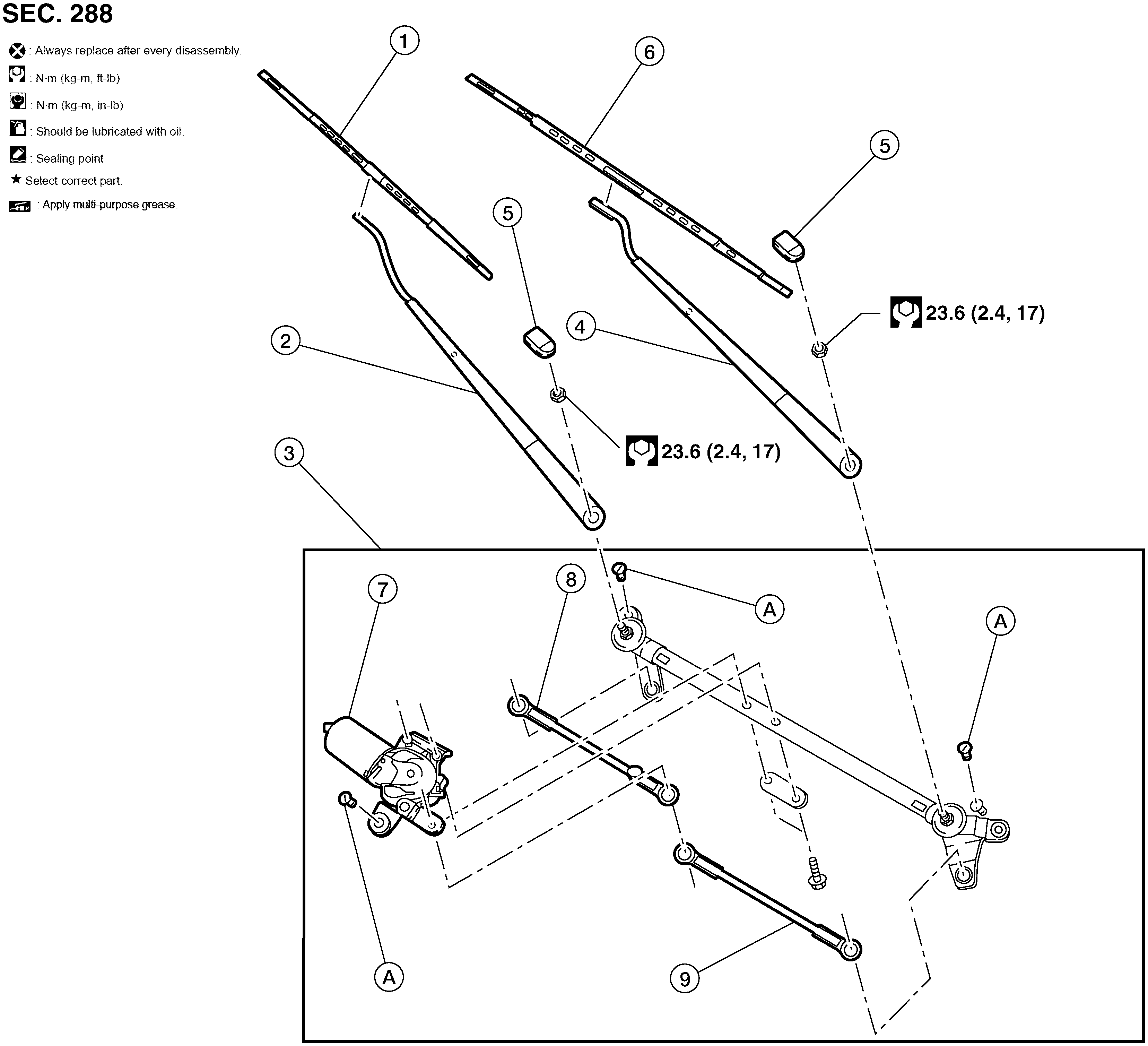

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Wiper blade (RH) |
2. |
Wiper arm (RH) |
3. |
Wiper drive assembly |
|
4. |
Wiper arm (LH) |
5. |
Wiper arm cover |
6. |
Wiper blade (LH) |
|
7. |
Wiper motor |
8. |
Link 1 |
9. |
Link 2 |
|
A. |
Refer to Removal and Installation . |
